Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

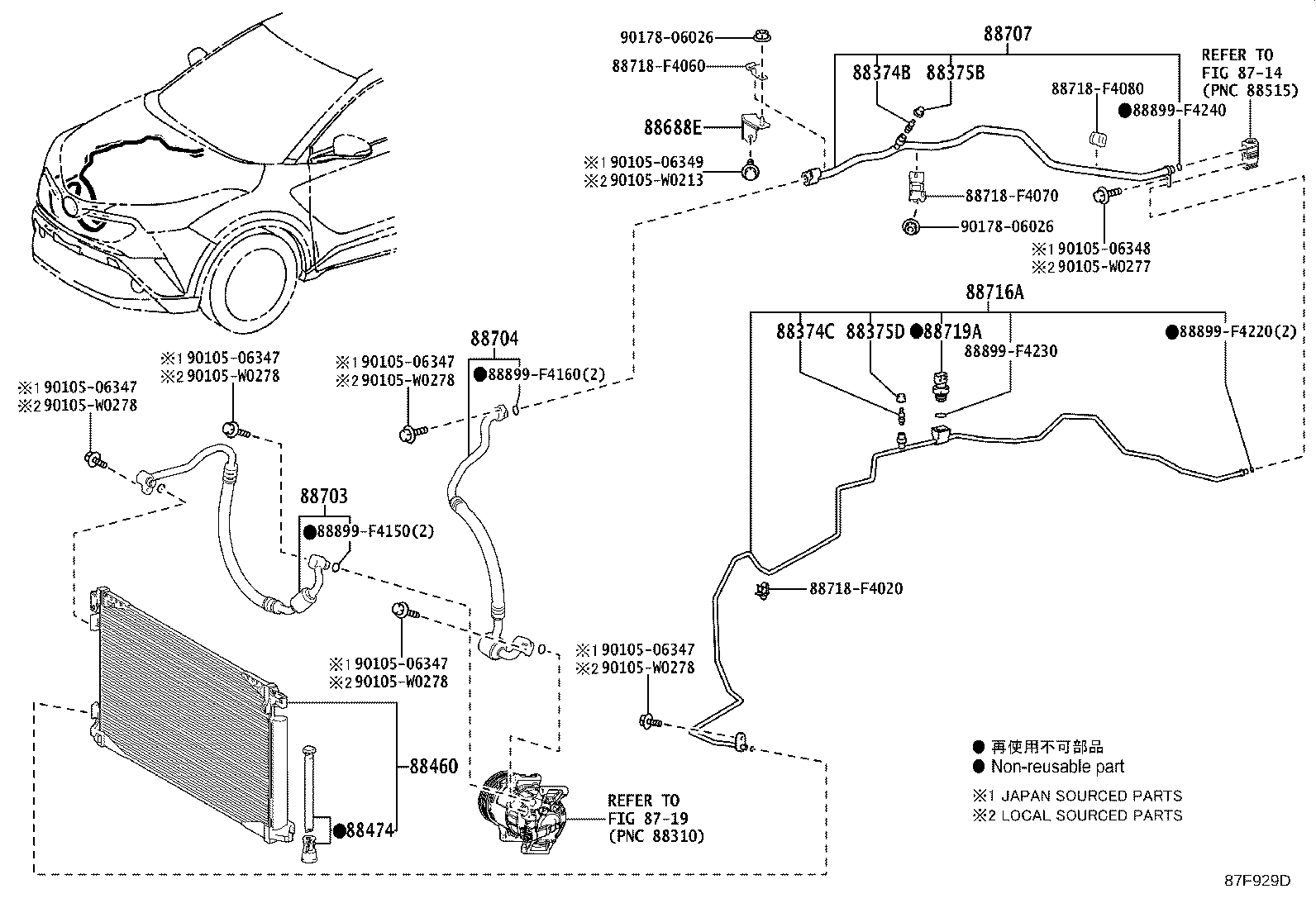

Exploded illustration 87F929D 88460 — CONDENSER ASSY, COOLER (4 parts) 88374B — VALVE, SERVICE, NO.1 (3 parts) 88375B — CAP, SERVICE VALVE, NO.1 (3 parts) 88688E — BRACKET, COOLER REFRIGERANT HOSE, NO.1 (5 parts) 88707 — PIPE SUB-ASSY, SUCTION (5 parts) 88718F4060 — not listed in this catalogue 9017806026 — not listed in this catalogue 9017806026 — not listed in this catalogue 9010506348 — not listed in this catalogue 90105W0277 — not listed in this catalogue 9010506347 — not listed in this catalogue 90105W0278 — not listed in this catalogue 9010506347 — not listed in this catalogue 90105W0278 — not listed in this catalogue 9010506347 — not listed in this catalogue 90105W0278 — not listed in this catalogue 9010506347 — not listed in this catalogue 90105W0278 — not listed in this catalogue 9010506349 — not listed in this catalogue 90105W0213 — not listed in this catalogue 9010506347 — not listed in this catalogue 90105W0278 — not listed in this catalogue 88718F4020 — not listed in this catalogue 88718F4070 — not listed in this catalogue 88718F4080 — not listed in this catalogue 8714 — not listed in this catalogue 8719 — not listed in this catalogue 88899F4230 — not listed in this catalogue 88899F4240 — not listed in this catalogue 88899F4220 — not listed in this catalogue 88899F4150 — not listed in this catalogue 88899F4160 — not listed in this catalogue 88719A — SENSOR, AIR CONDITIONER PRESSURE (3 parts) 88375D — CAP, SERVICE VALVE, NO.2 (3 parts) 88374C — VALVE, SERVICE, NO.2 (3 parts) 88716A — PIPE, COOLER REFRIGERANT LIQUID, A (5 parts) 88474 — DRYER, COOLER (3 parts) 88703 — HOSE SUB-ASSY, DISCHARGE (4 parts) 88704 — HOSE SUB-ASSY, SUCTION (4 parts)
87F929D · 12 callouts, 27 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88899-F4170 Valve, Service, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
88374-30010 Valve, Service, NO.1
2019-09 → —
ZYX10 —
88899-F4170 Valve, Service, NO.1
2019-09 → —
NGX10,50 —
88374C — Valve, Service, NO.2
88899-F4170 Valve, Service, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
88374-33070 Valve, Service, NO.2
2019-09 → —
ZYX10 —
88899-F4170 Valve, Service, NO.2
2019-09 → —
NGX10,50 —
88375B — Cap, Service Valve, NO.1
88899-F4210 Cap, Service Valve, NO.1
2016-10 → 2019-09 ended
NGX10,50 —
88375-30290 Cap, Service Valve, NO.1
2019-09 → —
ZYX10 —
88899-F4210 Cap, Service Valve, NO.1
2019-09 → —
NGX10,50 —
88375D — Cap, Service Valve, NO.2
88899-F4190 Cap, Service Valve, NO.2
2016-10 → 2019-09 ended
NGX10,50 —
88375-30280 Cap, Service Valve, NO.2
2019-09 → —
ZYX10 —
88899-F4190 Cap, Service Valve, NO.2
2019-09 → —
NGX10,50 —
88460 — Condenser Assy, Cooler
88450-F4020 Condenser Assy, Cooler
2016-10 → 2019-09 ended
NGX10,50 —
88450-F4020 Condenser Assy, Cooler
2019-09 → 2021-06 ended
NGX10,50 —
88450-F4021 Condenser Assy, Cooler
2021-07 → —
NGX10,50 —
88460-F4040 Condenser Assy, Cooler
2019-09 → —
ZYX10 —
88474 — Dryer, Cooler
88899-F4140 Dryer, Cooler
2016-10 → 2019-09 ended
NGX10,50 —
88474-12020 Dryer, Cooler
2019-09 → —
ZYX10 —
88899-F4400 Dryer, Cooler
2019-09 → —
NGX10,50 —
88688E — Bracket, Cooler Refrigerant Hose, NO.1
88688-F4020 Bracket, Cooler Refrigerant Hose, NO.1
2016-10 → 2019-09 ended
NGX10 —
88688-F4030 Bracket, Cooler Refrigerant Hose, NO.1
2016-10 → 2019-09 ended
NGX50 —
88688-F4020 Bracket, Cooler Refrigerant Hose, NO.1
2019-09 → —
NGX10 —
88688-F4030 Bracket, Cooler Refrigerant Hose, NO.1
2019-09 → —
NGX50 —
88688-F4040 Bracket, Cooler Refrigerant Hose, NO.1
2019-09 → —
ZYX10 —
88703 — Hose Sub-assy, Discharge
88703-F4020 Hose Sub-assy, Discharge
2016-10 → 2019-09 ended
NGX10,50 —
88703-F4020 Hose Sub-assy, Discharge
2019-09 → —
NGX10,50 —
88703-F4030 Hose Sub-assy, Discharge
2019-09 → 2021-07 ended
ZYX10 —
88703-F4031 Hose Sub-assy, Discharge
2021-08 → —
ZYX10 —
88704 — Hose Sub-assy, Suction
88704-F4020 Hose Sub-assy, Suction
2016-10 → 2019-09 ended
NGX10,50 —
88704-F4020 Hose Sub-assy, Suction
2019-09 → —
NGX10,50 —
88704-F4030 Hose Sub-assy, Suction
2019-09 → 2021-07 ended
ZYX10 —
88704-F4031 Hose Sub-assy, Suction
2021-08 → —
ZYX10 —
88707 — Pipe Sub-assy, Suction
88717-F4040 Pipe Sub-assy, Suction
2016-10 → 2019-09 ended
NGX10,50 LHD —
88717-F4050 Pipe Sub-assy, Suction
2016-10 → 2019-09 ended
NGX10,50 RHD —
88707-02550 Pipe Sub-assy, Suction
2019-09 → —
ZYX10 —
88717-F4040 Pipe Sub-assy, Suction
2019-09 → —
NGX10,50 LHD —
88717-F4050 Pipe Sub-assy, Suction
2019-09 → —
NGX10 RHD —
88716A — Pipe, Cooler Refrigerant Liquid, A
88716-F4060 Pipe, Cooler Refrigerant Liquid, A
2016-10 → 2019-09 ended
NGX10,50 LHD —
88716-F4070 Pipe, Cooler Refrigerant Liquid, A
2016-10 → 2019-09 ended
NGX10,50 RHD —
88710-02E11 Pipe, Cooler Refrigerant Liquid, A
2019-09 → —
ZYX10 —
88716-F4060 Pipe, Cooler Refrigerant Liquid, A
2019-09 → —
NGX10,50 LHD —
88716-F4070 Pipe, Cooler Refrigerant Liquid, A
2019-09 → —
NGX10 RHD —
88719A — Sensor, Air Conditioner Pressure
88719-F4010 Sensor, Air Conditioner Pressure
2016-10 → 2019-09 ended
NGX10,50 —
88719-11010 Sensor, Air Conditioner Pressure
2019-09 → —
ZYX10 —
88719-F4010 Sensor, Air Conditioner Pressure
2019-09 → —
NGX10,50 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
