Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

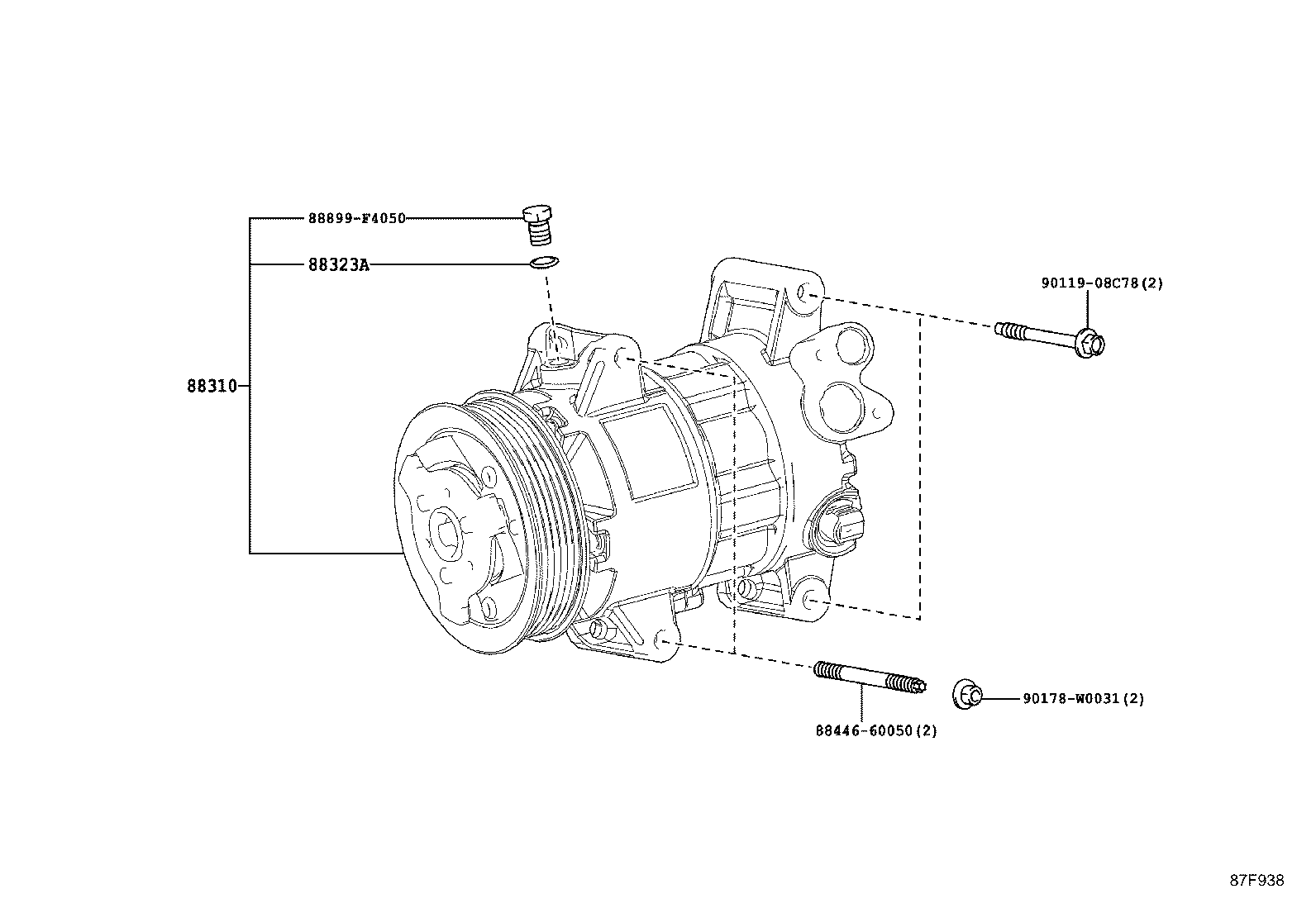

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310 — Compressor Assy, W/Pulley | ||||
| 88310-F4010 |
Compressor Assy, W/Pulley
2016-10 → 2016-12
ended
|
NGX10,50 | — | |
| 88310-F4050 |
Compressor Assy, W/Pulley
2016-12 → 2019-09
ended
|
NGX10,50 | — | |
| 88310-F4050 |
Compressor Assy, W/Pulley
2019-09 → —
|
NGX10,50 | — | |
| 88323A — Gasket, Compressor | ||||
| 88899-F4060 |
Gasket, Compressor
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 88899-F4060 |
Gasket, Compressor
2019-09 → —
|
NGX10,50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
