Toyota C-hr (TUP)

2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

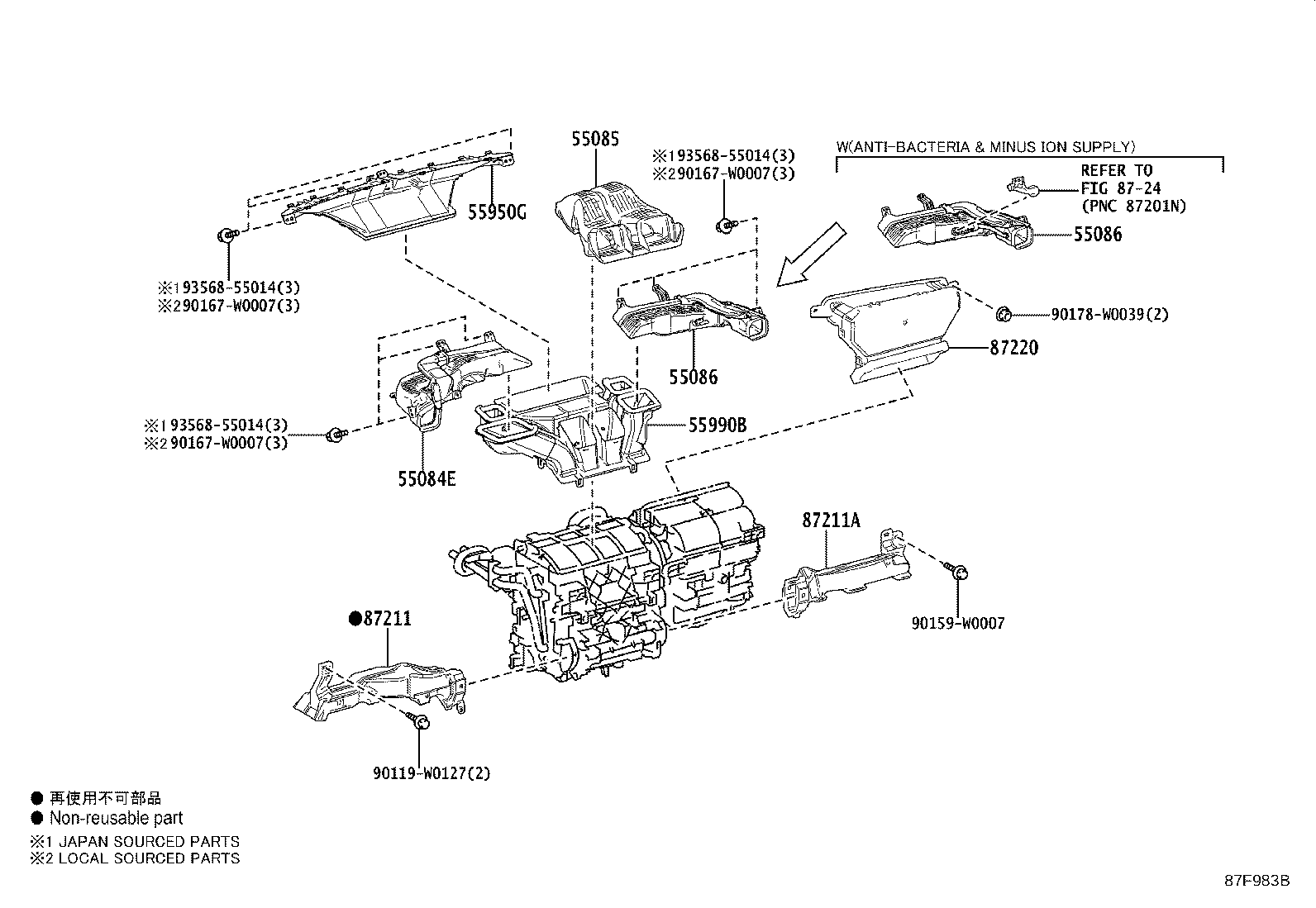

Exploded illustration 87F983B 55084E — DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 (8 parts) 55950G — NOZZLE ASSY, DEFROSTER (2 parts) 55990B — NOZZLE ASSY, DEFROSTER, LOWER (4 parts) 87211 — DUCT, AIR, NO.1 (5 parts) 87211A — DUCT, AIR, NO.2 (5 parts) 55086 — DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 (11 parts) 87220 — DUCT ASSY, AIR (4 parts) 55086 — DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 (11 parts) 55085 — DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 (4 parts) 90119W0127 — not listed in this catalogue 90178W0039 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 90159W0007 — not listed in this catalogue 8724 — not listed in this catalogue
87F983B · 9 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
55084E — Duct Sub-assy, Heater TO Register, NO.1
55084-F4010 Duct Sub-assy, Heater TO Register, NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD —
55086-F4020 Duct Sub-assy, Heater TO Register, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD (D,N) —
55086-F4040 note Duct Sub-assy, Heater TO Register, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD N —
55086-F4040 Duct Sub-assy, Heater TO Register, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD E —
55084-F4010 Duct Sub-assy, Heater TO Register, NO.1
2019-09 → —
NGX10,50,ZYX10 LHD —
55086-F4020 Duct Sub-assy, Heater TO Register, NO.1
2019-09 → —
NGX10 RHD (D,N) —
55086-F4040 Duct Sub-assy, Heater TO Register, NO.1
2019-09 → —
NGX10 RHD E —
55086-F4040 note Duct Sub-assy, Heater TO Register, NO.1
2019-09 → —
NGX10 RHD N —
55085 — Duct Sub-assy, Heater TO Register, NO.2
55085-F4010 Duct Sub-assy, Heater TO Register, NO.2
2016-10 → 2019-09 ended
NGX10,50 LHD —
55085-F4020 Duct Sub-assy, Heater TO Register, NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD —
55085-F4010 Duct Sub-assy, Heater TO Register, NO.2
2019-09 → —
NGX10,50,ZYX10 LHD —
55085-F4020 Duct Sub-assy, Heater TO Register, NO.2
2019-09 → —
NGX10 RHD —
55086 — Duct Sub-assy, Heater TO Register, NO.3
55084-F4020 Duct Sub-assy, Heater TO Register, NO.3
2016-10 → 2019-09 ended
NGX10,50 RHD —
55086-F4010 Duct Sub-assy, Heater TO Register, NO.3
2016-10 → 2018-05 ended
NGX10,50 LHD (D,N) —
55086-F4030 note Duct Sub-assy, Heater TO Register, NO.3
2016-10 → 2018-05 ended
NGX10,50 LHD N —
55086-F4030 Duct Sub-assy, Heater TO Register, NO.3
2016-10 → 2018-05 ended
NGX10,50 LHD E —
55086-F4120 Duct Sub-assy, Heater TO Register, NO.3
2018-05 → 2019-09 ended
NGX10,50 LHD (D,N) —
55086-F4130 Duct Sub-assy, Heater TO Register, NO.3
2018-05 → 2019-09 ended
NGX10,50 LHD E —
55086-F4130 note Duct Sub-assy, Heater TO Register, NO.3
2018-05 → 2019-09 ended
NGX10,50 LHD N —
55084-F4020 Duct Sub-assy, Heater TO Register, NO.3
2019-09 → —
NGX10 RHD —
55086-F4120 Duct Sub-assy, Heater TO Register, NO.3
2019-09 → —
NGX10,50,ZYX10 LHD N —
55086-F4130 Duct Sub-assy, Heater TO Register, NO.3
2019-09 → —
NGX10,50,ZYX10 LHD E —
55086-F4130 note Duct Sub-assy, Heater TO Register, NO.3
2019-09 → —
NGX10,50 LHD N —
55950G — Nozzle Assy, Defroster
55950-F4010 Nozzle Assy, Defroster
2016-10 → 2019-09 ended
NGX10,50 —
55950-F4010 Nozzle Assy, Defroster
2019-09 → —
NGX10,50,ZYX10 —
55990B — Nozzle Assy, Defroster, Lower
55990-F4010 Nozzle Assy, Defroster, Lower
2016-10 → 2019-09 ended
NGX10,50 LHD —
55990-F4020 Nozzle Assy, Defroster, Lower
2016-10 → 2019-09 ended
NGX10,50 RHD —
55990-F4010 Nozzle Assy, Defroster, Lower
2019-09 → —
NGX10,50,ZYX10 LHD —
55990-F4020 Nozzle Assy, Defroster, Lower
2019-09 → —
NGX10 RHD —
87211 — Duct, Air, NO.1
87211-F4010 Duct, Air, NO.1
2016-10 → 2019-09 ended
NGX10,50 LHD —
87211-F4040 Duct, Air, NO.1
2016-10 → 2019-09 ended
NGX10,50 RHD —
87211-F4010 Duct, Air, NO.1
2019-09 → —
NGX10,50 LHD —
87211-F4040 Duct, Air, NO.1
2019-09 → —
NGX10 RHD —
87211-F4070 Duct, Air, NO.1
2019-09 → —
ZYX10 —
87211A — Duct, Air, NO.2
87211-F4020 Duct, Air, NO.2
2016-10 → 2019-09 ended
NGX10,50 LHD —
87211-F4030 Duct, Air, NO.2
2016-10 → 2019-09 ended
NGX10,50 RHD —
87211-F4020 Duct, Air, NO.2
2019-09 → —
NGX10,50 LHD —
87211-F4030 Duct, Air, NO.2
2019-09 → —
NGX10 RHD —
87211-F4080 Duct, Air, NO.2
2019-09 → —
ZYX10 —
87220 — Duct Assy, Air
87220-F4010 Duct Assy, Air
2016-10 → 2019-09 ended
NGX10,50 LHD —
87220-F4020 Duct Assy, Air
2016-10 → 2019-09 ended
NGX10,50 RHD —
87220-F4060 Duct Assy, Air
2019-09 → —
NGX10,50,ZYX10 LHD —
87220-F4070 Duct Assy, Air
2019-09 → —
NGX10 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
