Toyota C-hr (TUP)
2016-10 → present · chassis NGX10,50,ZYX10 · catalogue 528310 · General
Supported model
Data version 2019-09

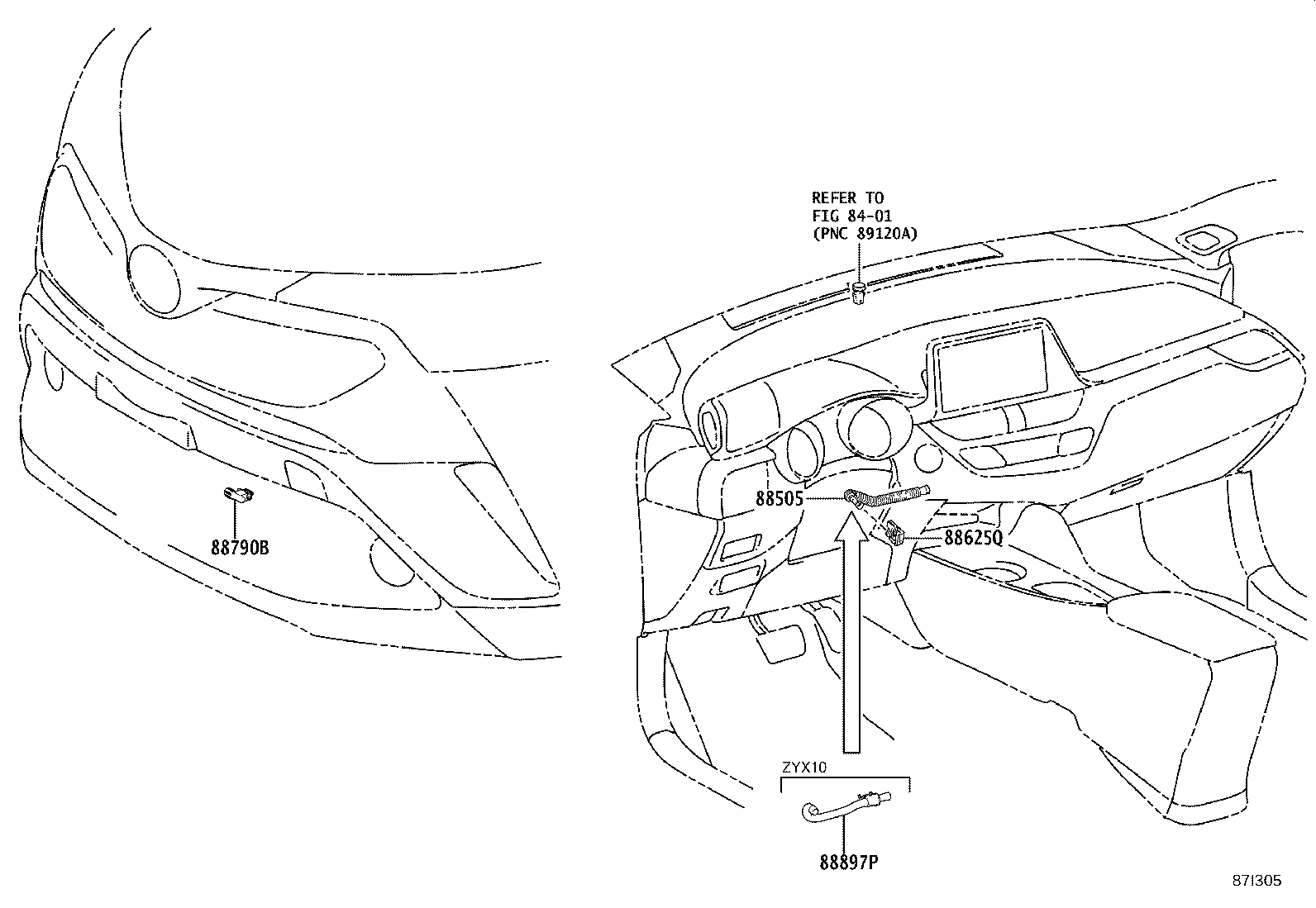

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88505 — Duct Sub-assy,Air Conditioner | ||||
| 88505-F4010 |
Duct Sub-assy,Air Conditioner
2016-10 → 2019-09
ended
|
NGX10,50 E,N | — | |
| 88505-F4010 |
Duct Sub-assy,Air Conditioner
2019-09 → —
|
NGX10,50 E,N | — | |
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2016-10 → 2019-09
ended
|
NGX10,50 E,N | — | |
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2019-09 → —
|
NGX10,50,ZYX10 E,N | — | |
| 88790B — Thermistor Assy | ||||
| 88790-28100 |
Thermistor Assy
2016-10 → 2019-09
ended
|
NGX10,50 | — | |
| 88790-28100 |
Thermistor Assy
2019-09 → —
|
NGX10,50,ZYX10 | — | |
| 88897P — Aspirator | ||||
| 88505-F4030 |
Aspirator
2019-09 → —
|
ZYX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
