Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 3 illustrations

Illustrations

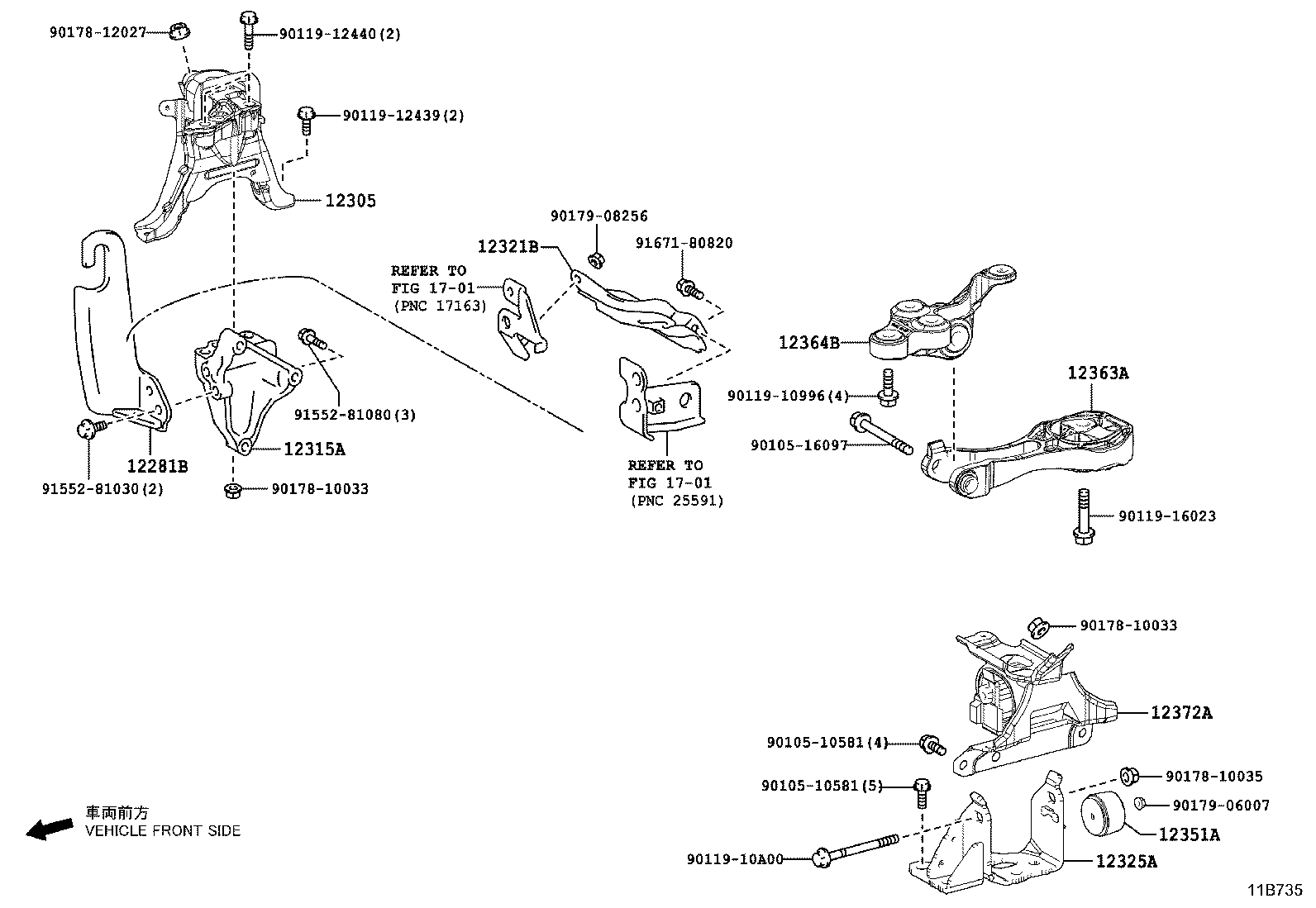

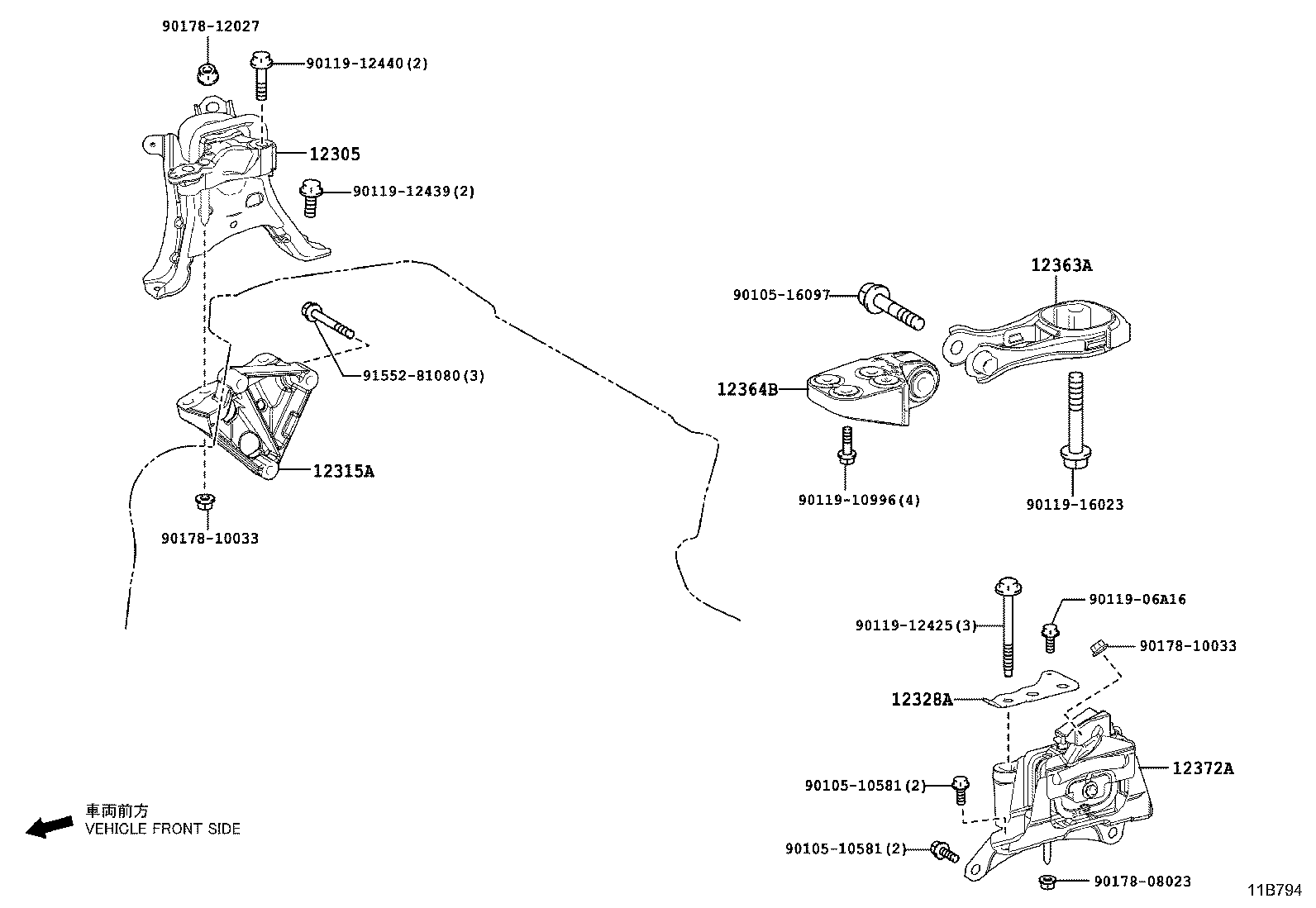

Figure 11B733B 11B733B 2016-12 → — Figure 11B735 11B735 2016-12 → — Figure 11B794 11B794 2019-10 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12328A Stay, Engine Mounting, NO.2 LH
12351A Damper, Engine Mounting(FOR INSULATOR)
12363A Rod, Engine Moving Control
12364B Rod, Engine Moving Control, NO.2
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
