Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

31 part groups · 2 illustrations

Illustrations

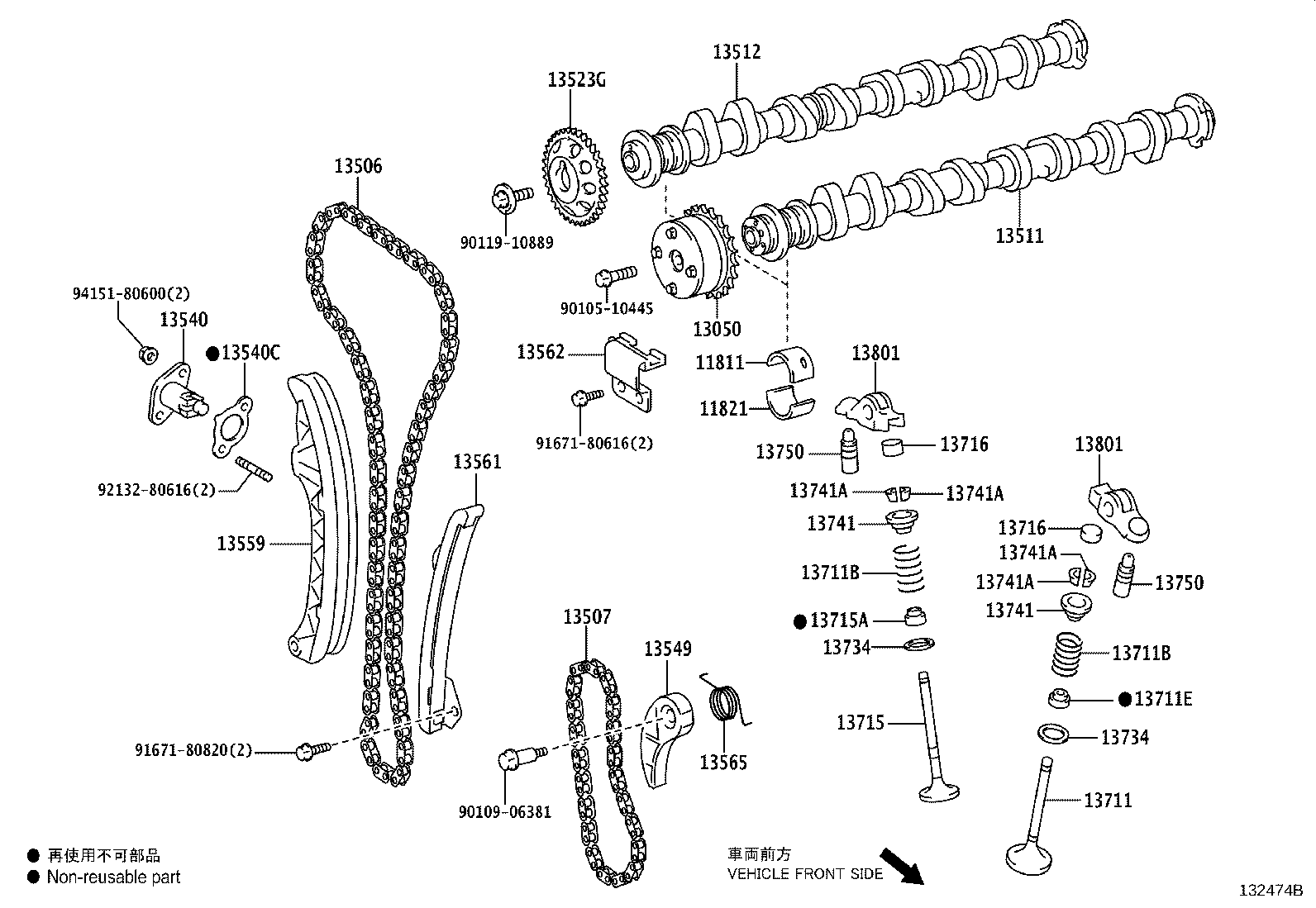

Figure 132983A 132983A 2016-12 → — Figure 132474B 132474B 2019-10 → —

Part groups

PNCDescription
11811 Bearing, Camshaft, NO.1
11821 Bearing, Camshaft, NO.2
13050 Gear Assy, Camshaft Timing
13070A Gear Assy, Camshaft Timing Exhaust
13506 Chain Sub-assy
13507 Chain Sub-assy, NO.2
13511 Camshaft
13512 Camshaft, NO.2
13523F Bolt(FOR CAMSHAFT TIMING GEAR)
13523G Sprocket, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13540C Gasket(FOR CHAIN TENSIONER)
13549 Plate, Chain Tensioner
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13562 Damper, Chain Vibration, NO.2
13565 Spring, Chain Damper
13566B Guide, Timing Chain
13711 Valve, Intake
13711B Spring, Compression(FOR INNER)
13711E Seal, Intake Valve Stem Oil
13711M Spring, Compression(FOR INTAKE VALVE)
13715 Valve, Exhaust
13715A Seal, Exhaust Valve Stem Oil
13715H Spring, Compression(FOR EXHAUST VALVE)
13716 Cap, Valve Stem
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13750 Adjuster Assy, Valve Lash
13801 Arm Sub-assy, Valve Rocker, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
