Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

6 part groups · 2 illustrations

Illustrations

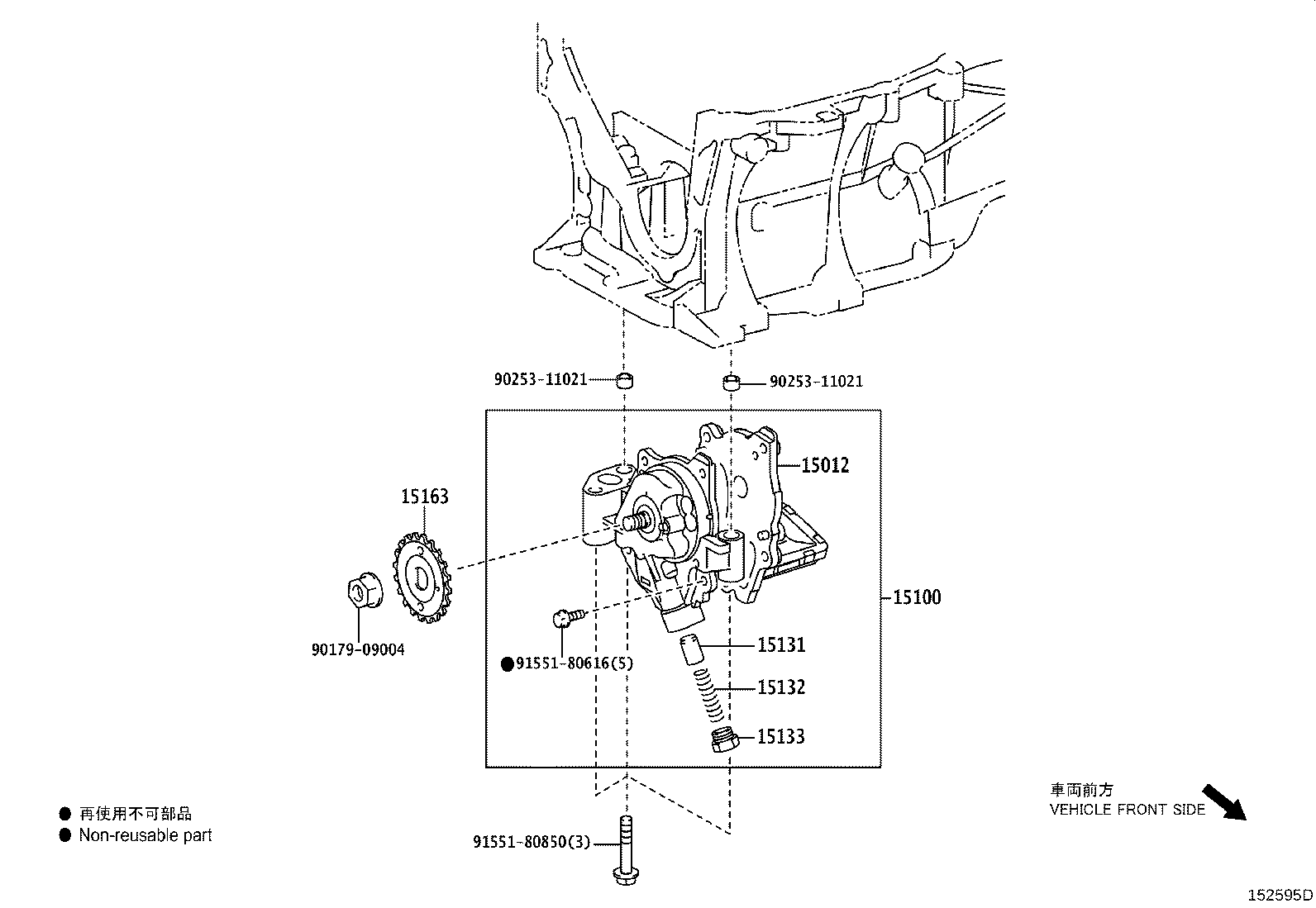

Figure 152580 152580 2016-12 → — Figure 152595D 152595D 2019-10 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15163 Gear, Oil Pump Drive Shaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
