Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

3 part groups · 2 illustrations

Illustrations

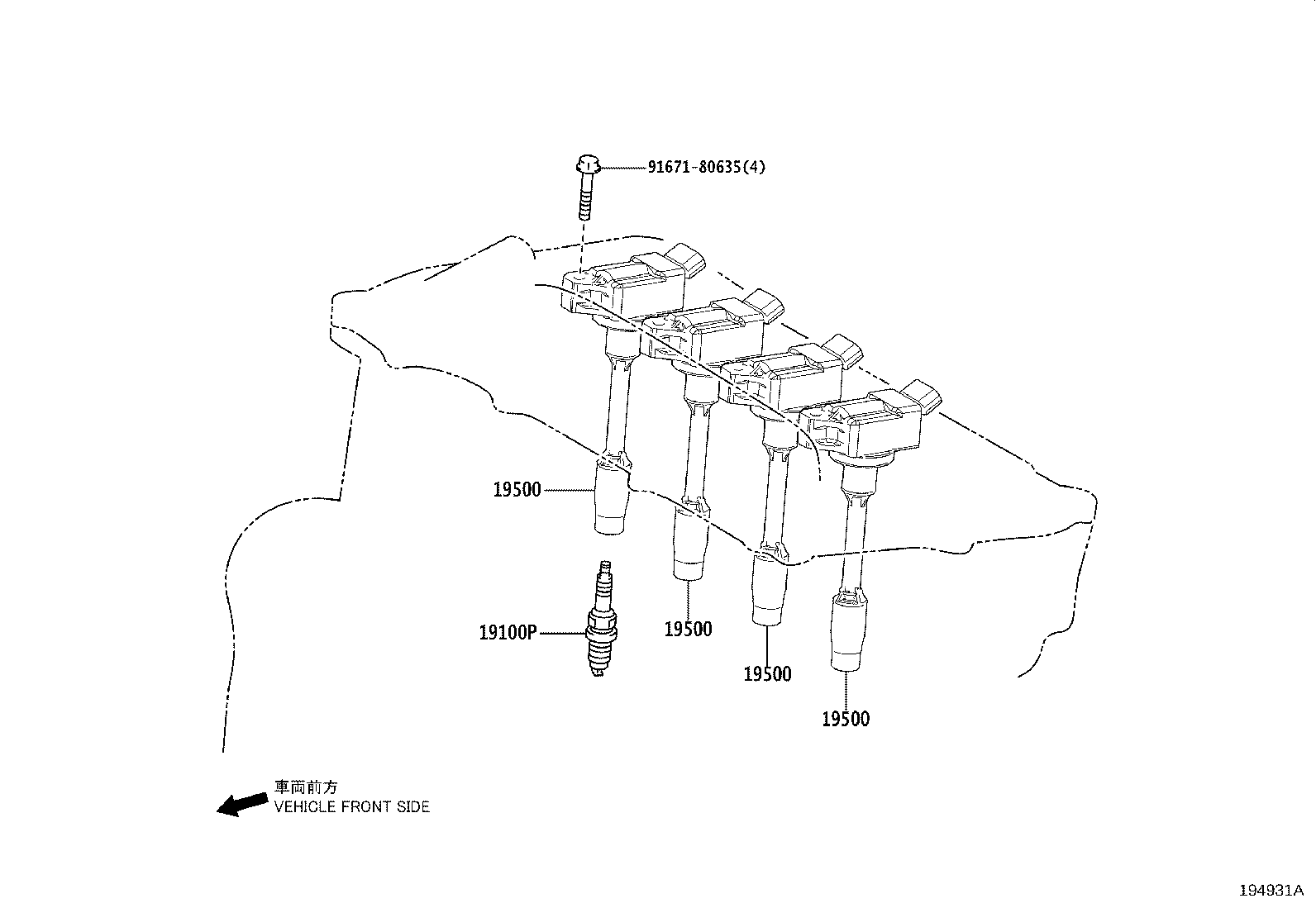

Figure 194923 194923 2016-12 → — Figure 194931A 194931A 2019-10 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19500D Coil, Ignition, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
