Toyota C-hr (JPP)
2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General
Supported model
Data version 2019-10

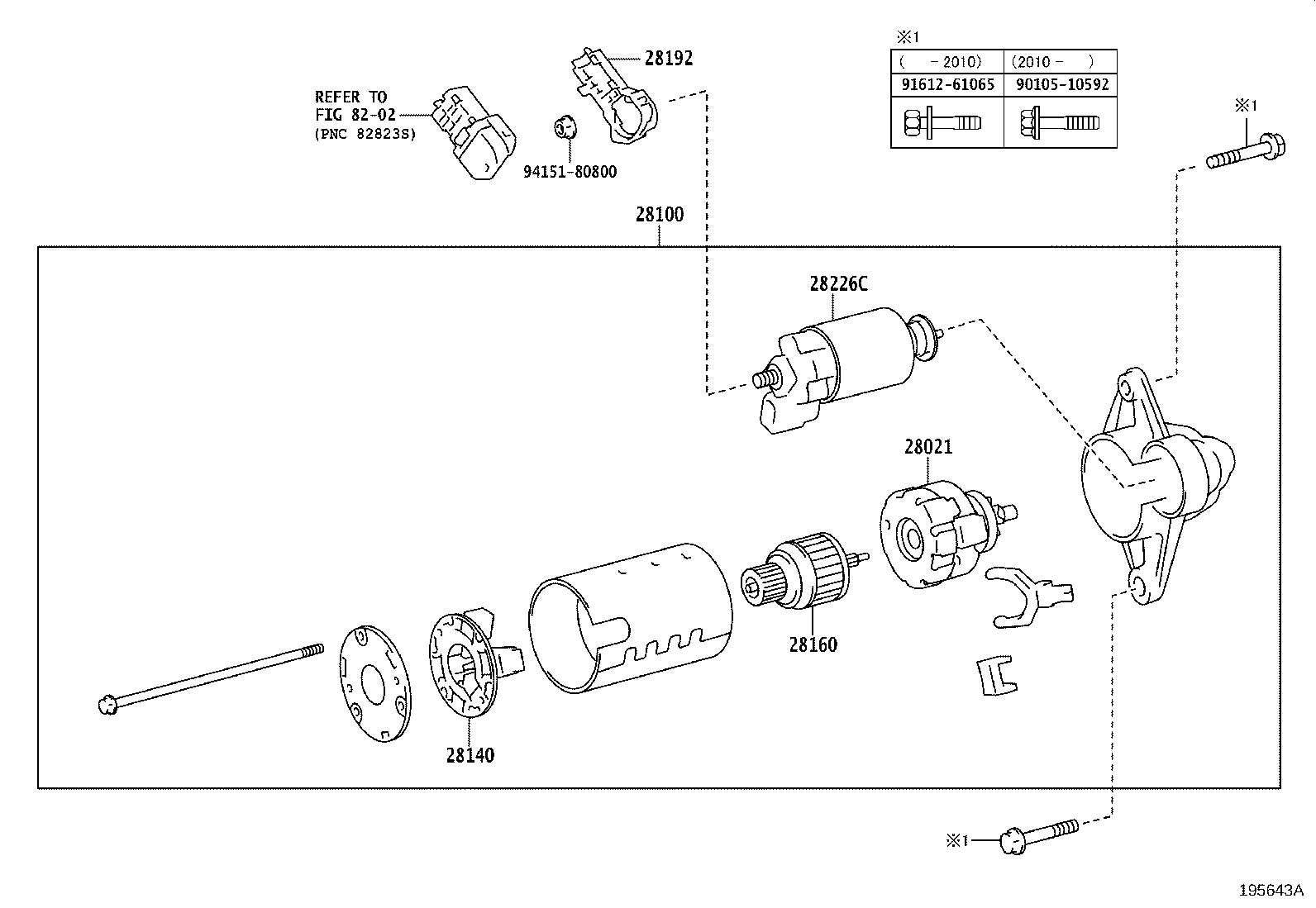

Starter
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28140 | Holder Assy, Starter Brush |
| 28160 | Armature Assy, Starter |
| 28192 | Cover, Starter |
| 28226C | Starter Kit, Repair Service, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
