Clutch Pedal & Flexible Hose

16 part groups · 2 illustrations

Illustrations

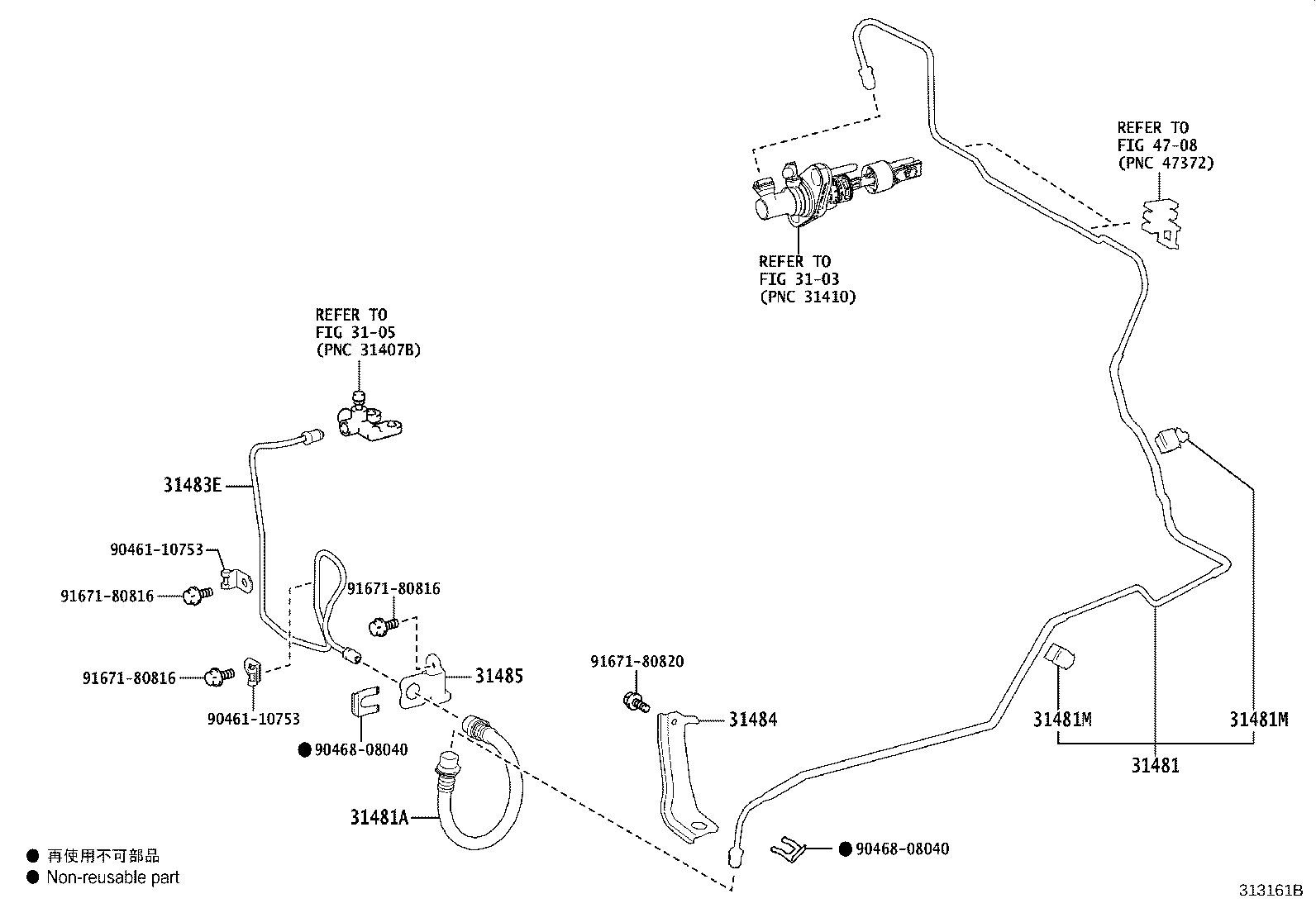

Figure 313160B 313160B 2016-12 → — Figure 313161B 313161B 2016-12 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31481M Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
31483E Tube, Bleeder Clutch Release
31484 Bracket, Flexible Hose(FOR CLUTCH)
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
55107A Support Sub-assy, Clutch Pedal
