Brake Master Cylinder

17 part groups · 3 illustrations

Illustrations

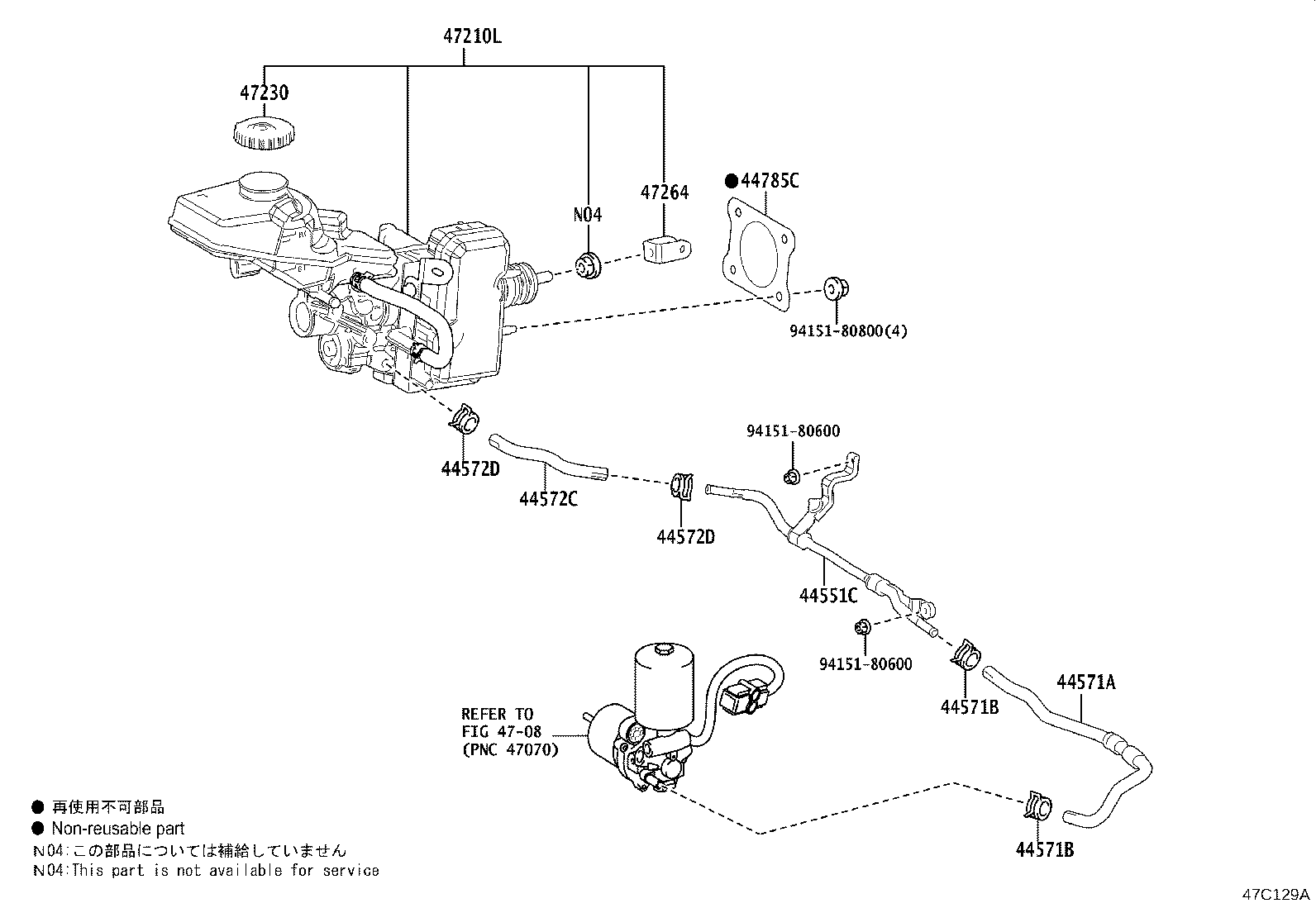

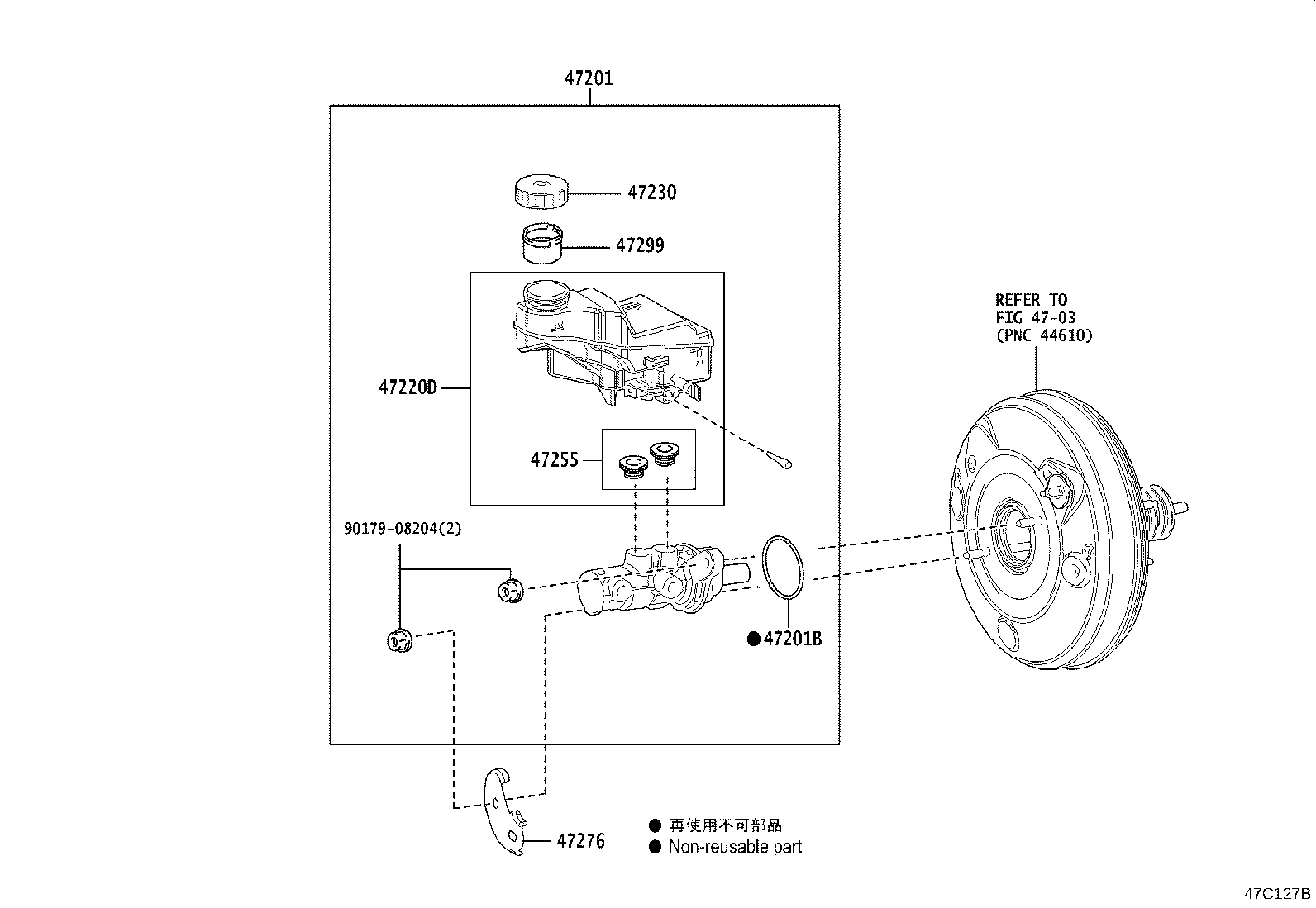

Figure 47A751C 47A751C 2016-12 → 2019-10 Figure 47C127C 47C127C 2019-10 → — Figure 47C129A 47C129A 2019-10 → —

Part groups

PNCDescription
44551C Tube, Brake Actuator, NO.1
44571A Hose, Brake Actuator, NO.1
44571B Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1)
44572C Hose, Brake Actuator, NO.2
44572D Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2)
44785C Gasket, Brake Booster
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47210L Brake Booster Assy, W/Master Cylinder
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47275 Gasket, Brake Master Cylinder
47276 Bracket, Brake Master Cylinder
47288A Label, Brake Fluid Notice
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
