Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10

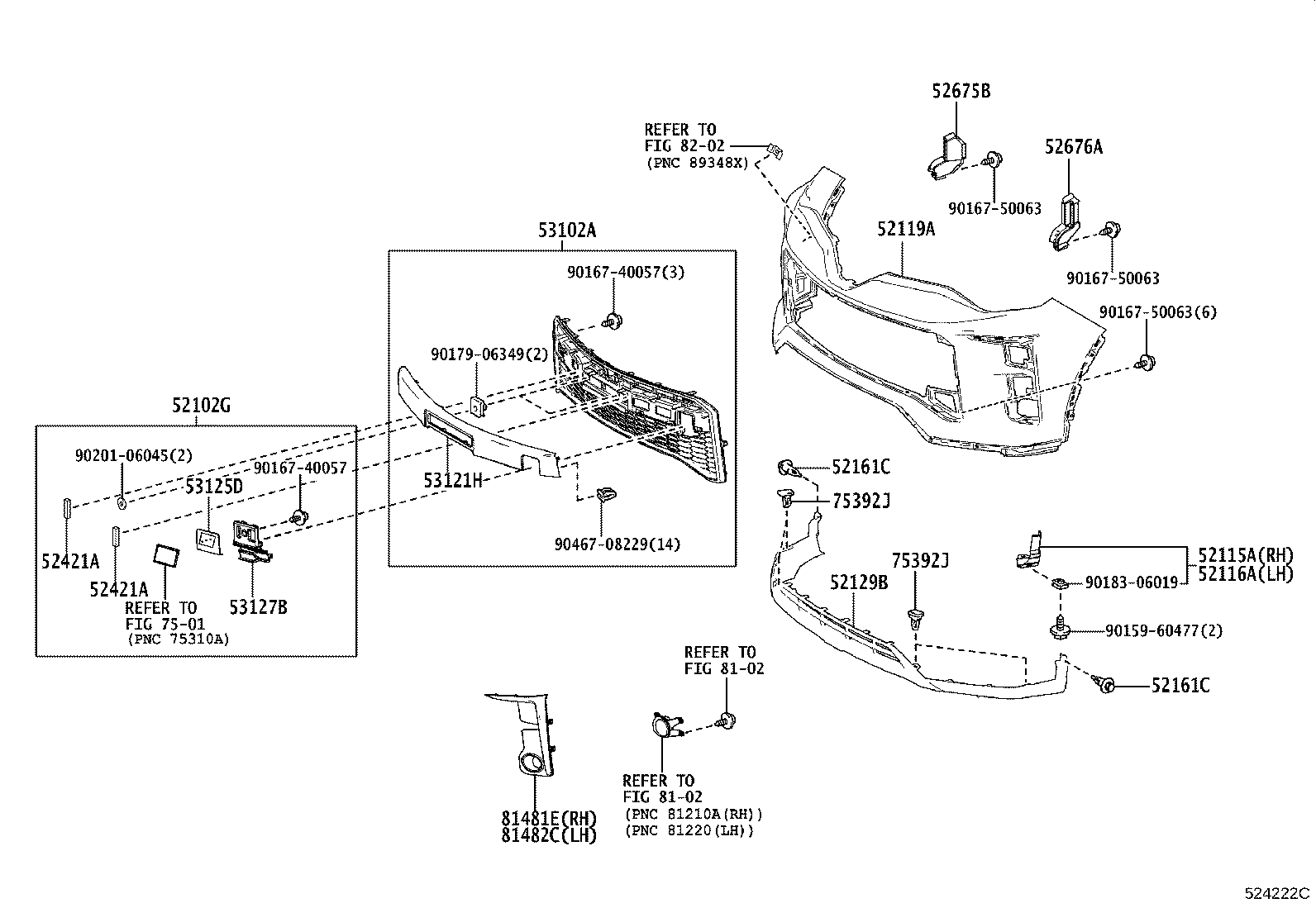

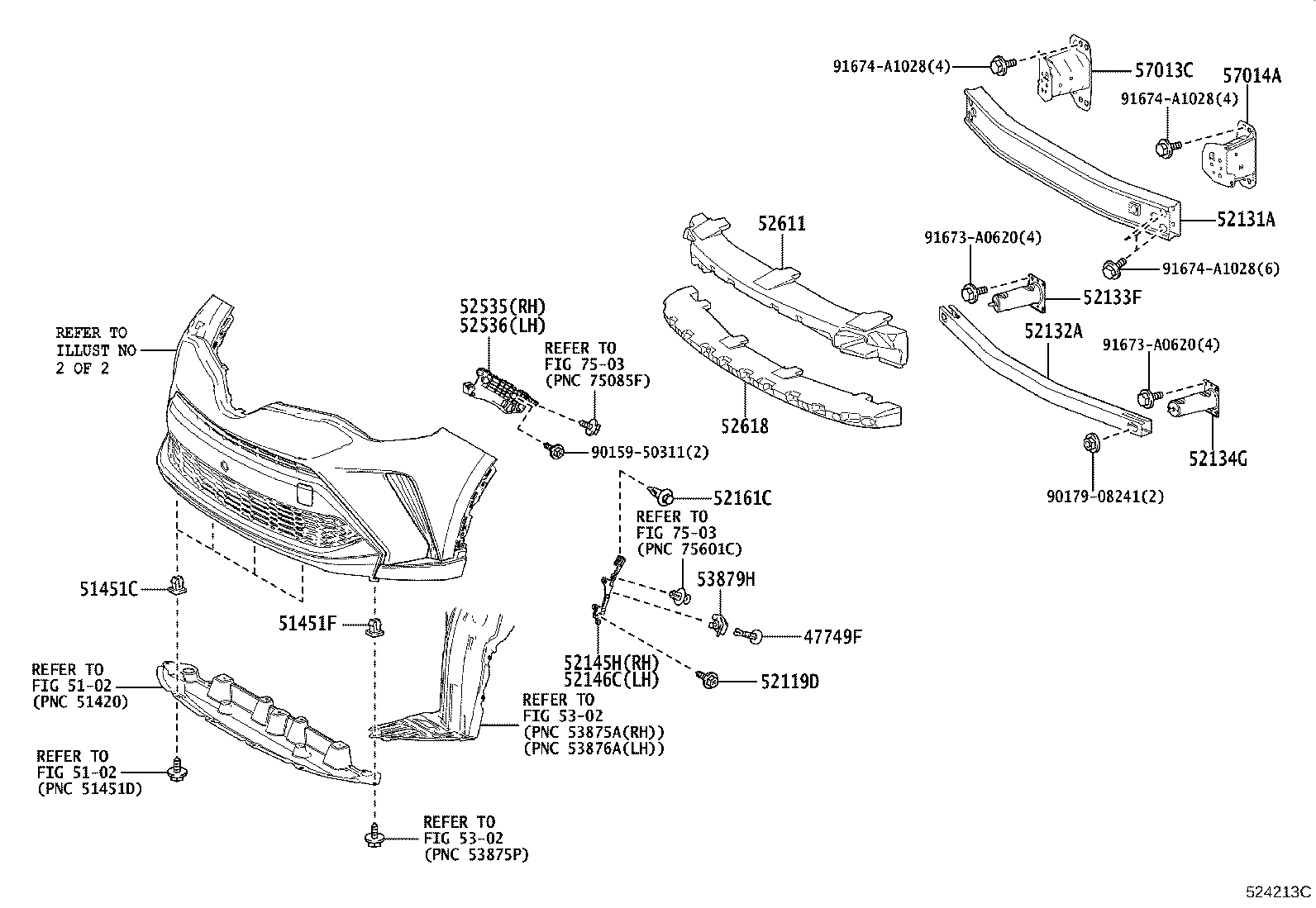

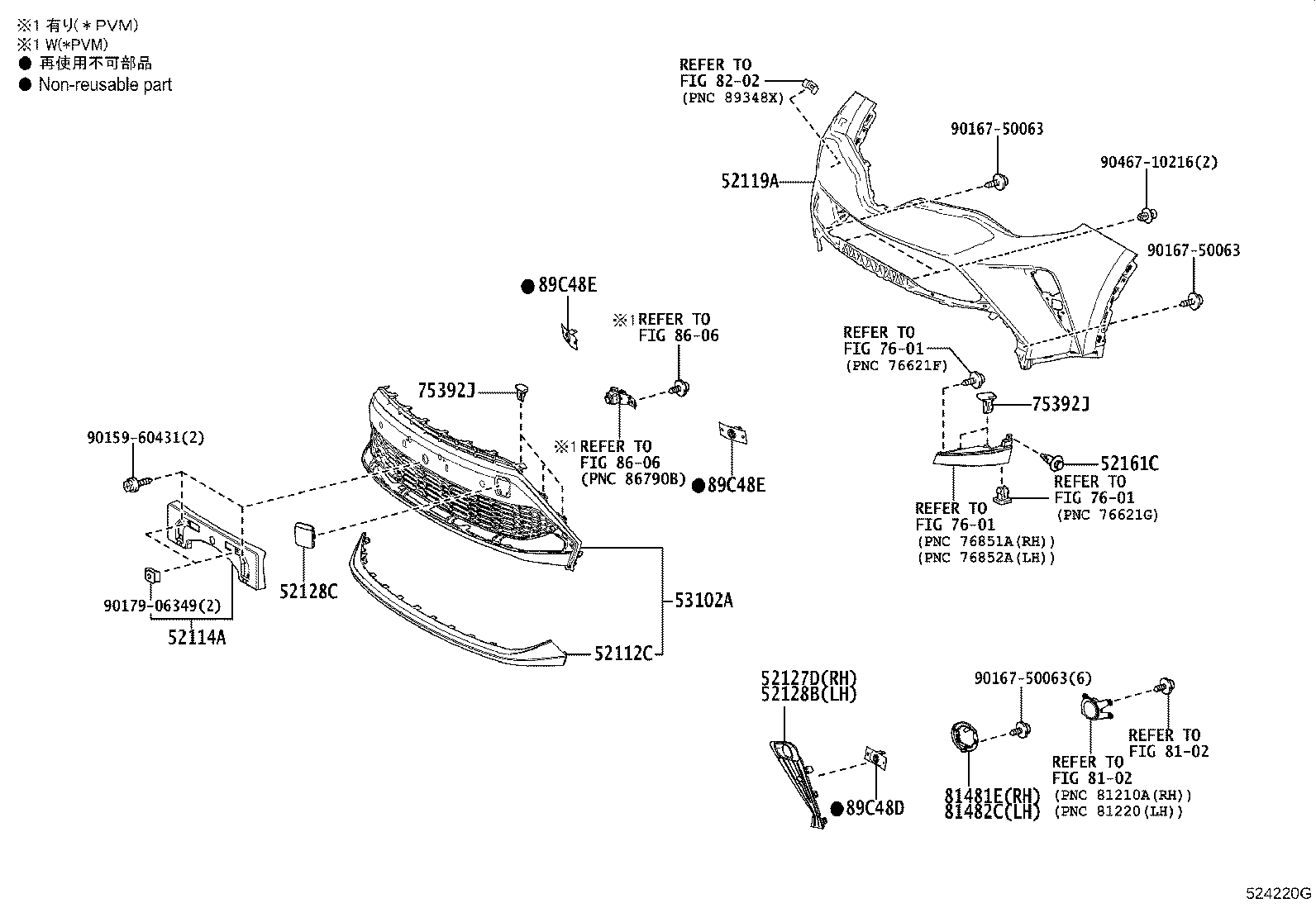

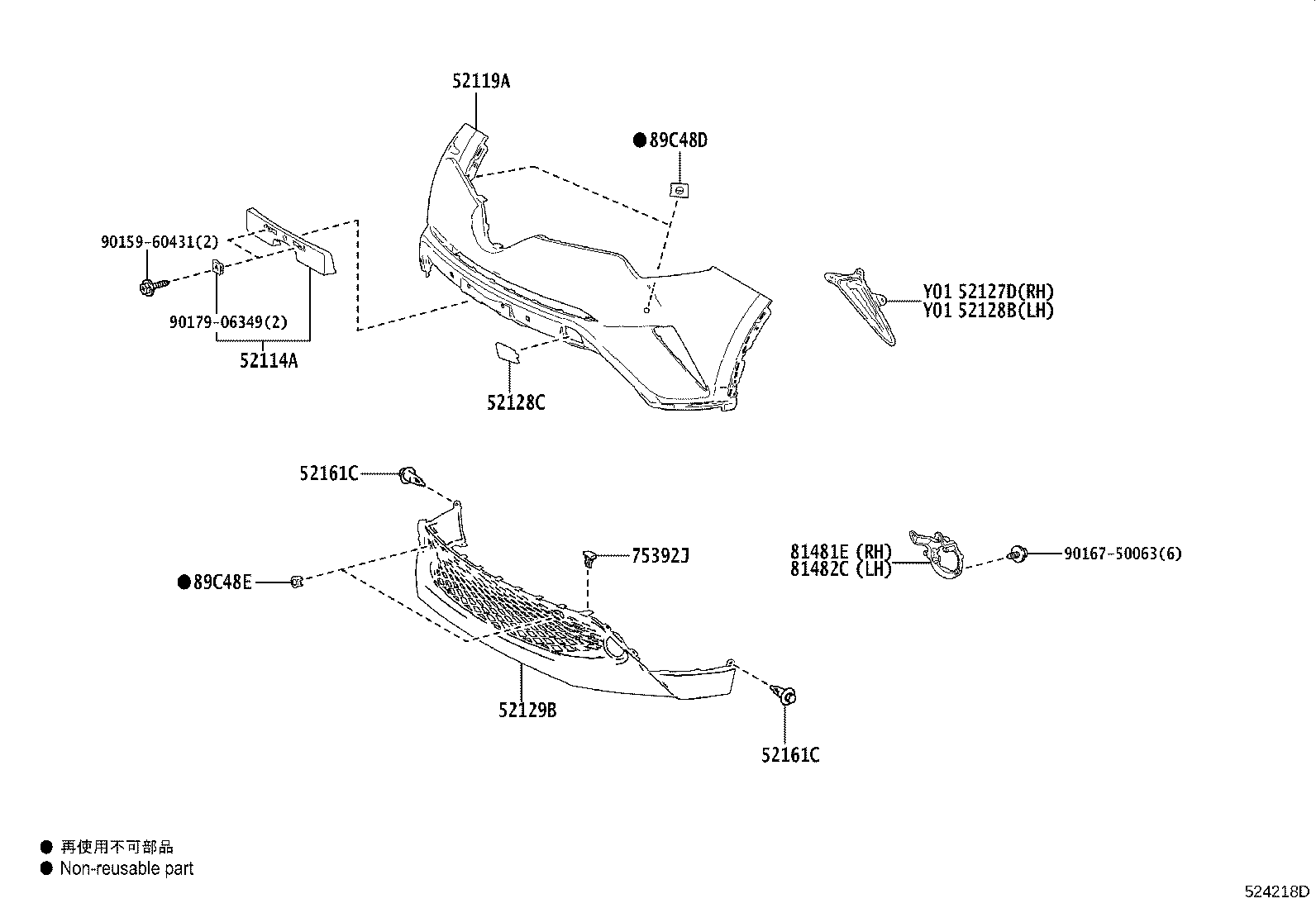

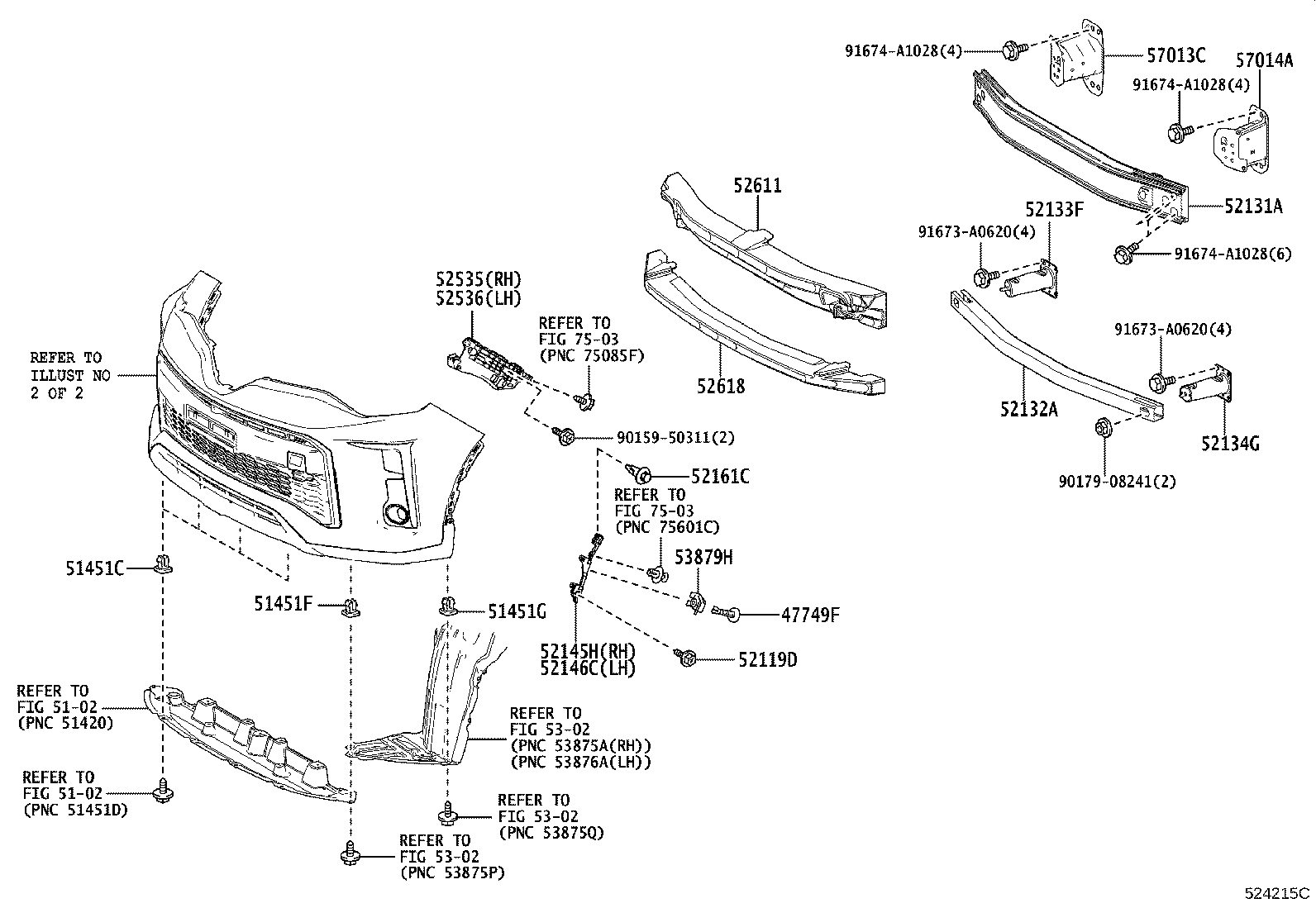

Front Bumper & Bumper Stay

42 part groups · 6 illustrations

PNC	Description
47749F	Clip, Pin Hold
51451C	Grommet(FOR ENGINE UNDER COVER)
51451F	Grommet, NO.1
51451G	Grommet, NO.2
52102G	Bracket Set, Front License Plate
52112C	Extension, Front Bumper
52114A	Bracket, Front Bumper Extension Mounting
52115A	Support, Front Bumper Side, RH
52116A	Support, Front Bumper Side, LH
52119A	Cover, Front Bumper
52119D	Screw, NO.1
52127D	Cover, Front Bumper Hole, RH
52128B	Cover, Front Bumper Hole, LH
52128C	Cover, Front Bumper Hole, LH
52129B	Cover, Front Bumper, Lower
52131A	Reinforcement, Front Bumper
52132A	Reinforcement, Front Bumper, NO.2
52133F	Bracket, Front Bumper, RH
52134G	Bracket, Front Bumper, LH
52145H	Stay, Front Bumper Side, RH
52146C	Stay, Front Bumper Side, LH
52161C	Piece, Front Bumper
52421A	Pad, Front Bumper
52535	Retainer, Front Bumper Side, RH
52536	Retainer, Front Bumper Side, LH
52611	Absorber, Front Bumper Energy
52618	Absorber, Front Bumper, Lower
52675B	Support, Front Bumper Side, NO.1 RH
52676A	Support, Front Bumper Side, NO.1 LH
53102A	Grille Sub-assy, Radiator, Lwr
53114C	Grille, Radiator, Inner
53121H	Moulding, Radiator Grille, NO.1
53125D	Moulding, Radiator Grille, NO.5
53127B	Moulding, Radiator Grille, NO.7
53879H	Retainer, Front Fender Liner
57013C	Bracket Sub-assy, Front Side Member, RH
57014A	Bracket Sub-assy, Front Side Member, LH
75392J	Retainer, Outside Moulding
81481E	Cover, Fog Lamp, RH
81482C	Cover, Fog Lamp, LH
89C48D	Retainer, Ultrasonic Sensor, Front Corner
89C48E	Retainer, Ultrasonic Sensor, Front Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
