Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 2 illustrations

Illustrations

Figure 535181B

535181B 2016-12 → 2019-10

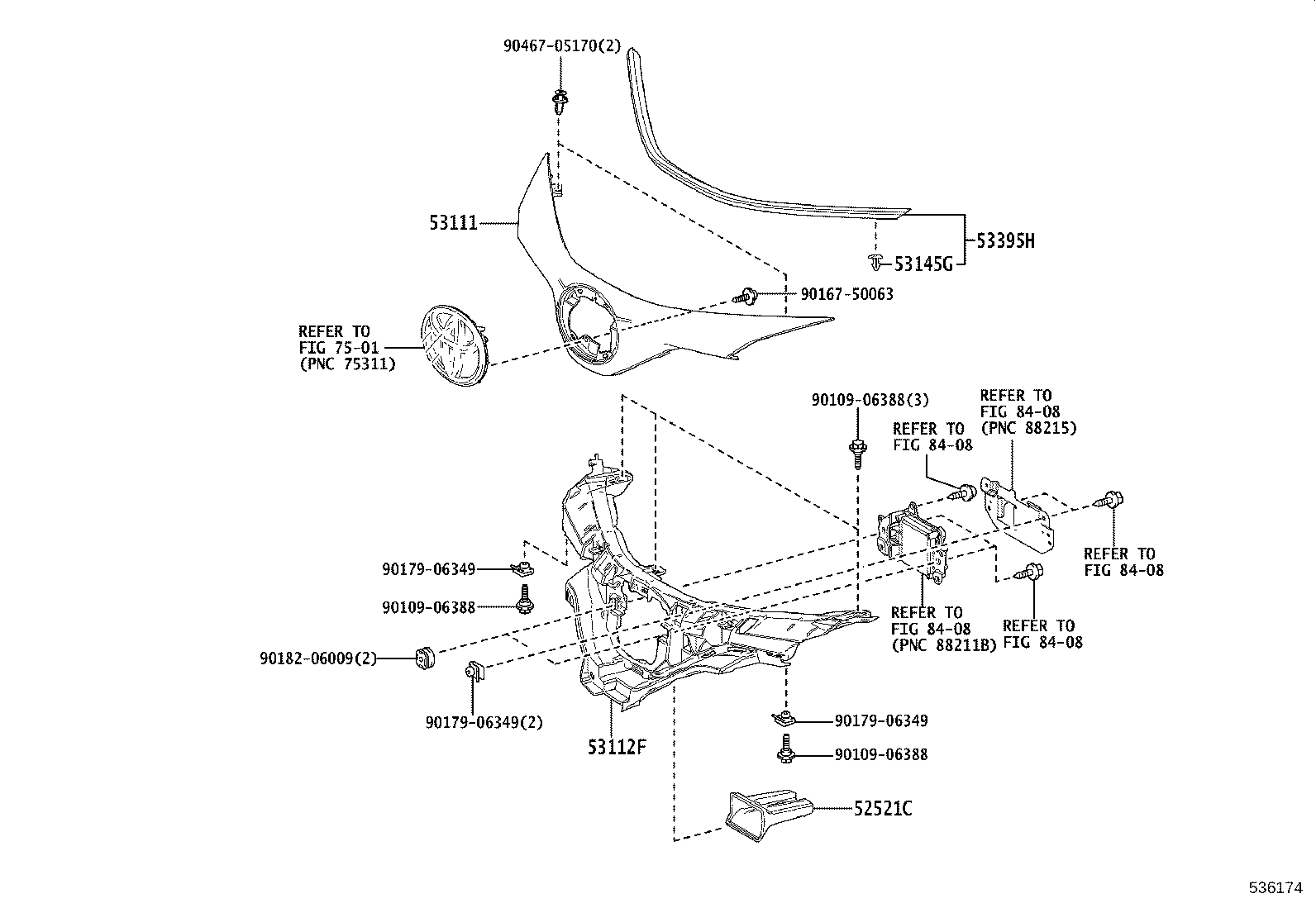

536174 2019-10 → —

Part groups

PNC	Description
52521C	Retainer, Front Bumper, Upper
53111	Grille, Radiator
53112F	Grille, Radiator, Inside
53145G	Clip, Radiator Grille
53395H	Seal, Hood TO Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
