Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

27 part groups · 3 illustrations

Illustrations

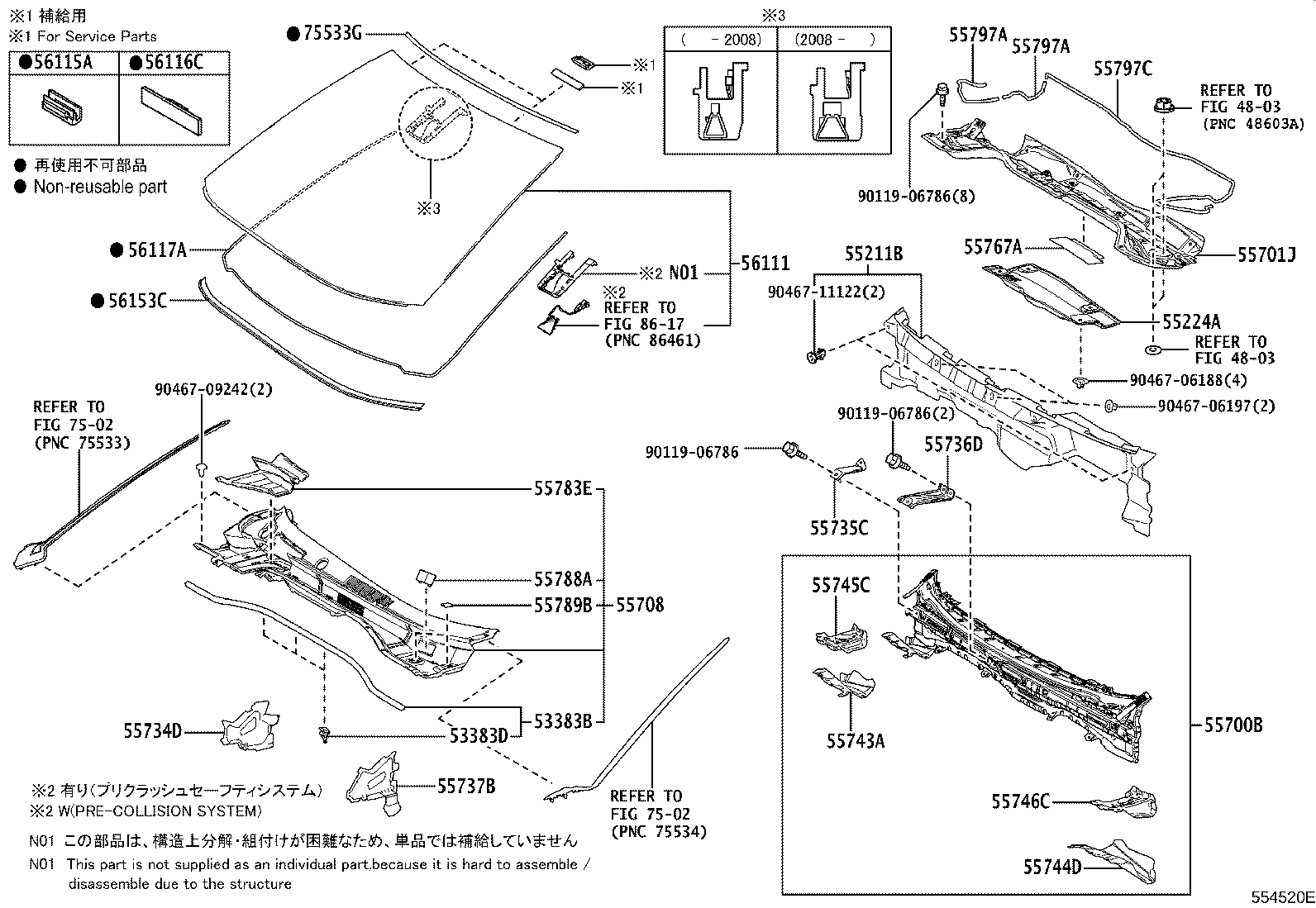

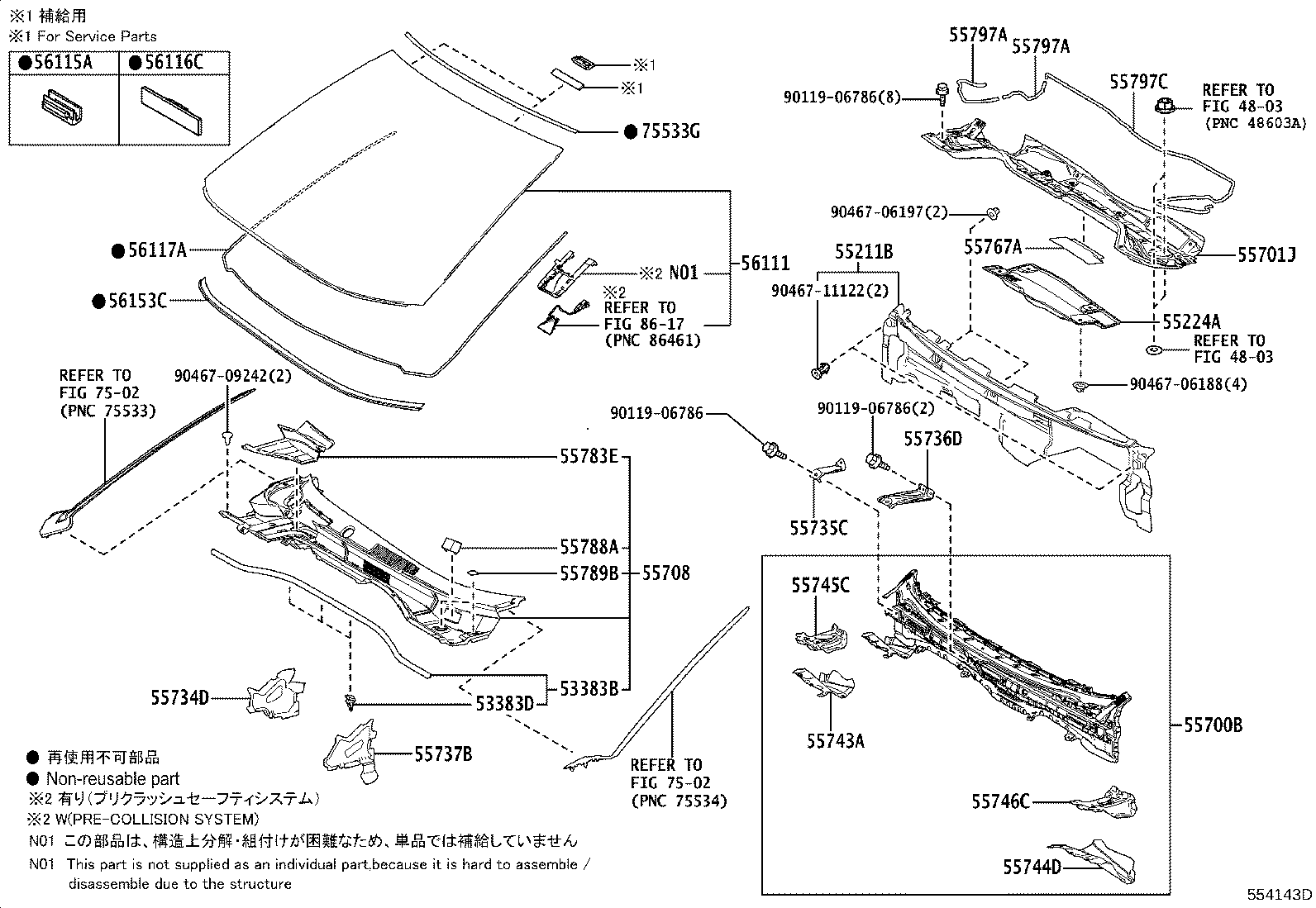

Figure 553880H 553880H 2016-12 → 2018-03 Figure 554143D 554143D 2018-03 → 2019-10 Figure 554520E 554520E 2019-10 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
55211B Silencer, Front Panel
55224A Insulator, Dash Panel, Outer NO.2
55700B Cowl Assy
55701J Panel Sub-assy, Cowl Top, Outer
55708 Louver Sub-assy, Cowl Top Ventilator
55734D Plate, Water Guard
55735C Reinforcement, Cowl Body Mounting, RH
55736D Reinforcement, Cowl Body Mounting, LH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55743A Extension, Cowl TO Cowl Side, RH
55744D Extension, Cowl TO Cowl Side, LH
55745C Reinforcement, Cowl Top, Inner RH
55746C Reinforcement, Cowl Top, Inner LH
55767A Sheet, Cowl Top Insulator, NO.5
55783E Louver, Cowl Top Ventilator, Center
55788A Protector, Cowl Top Ventilator Louver
55789B Protector, Cowl Top Venttinator Louver, NO.2
55797A Seal, Cowl Water Extract
55797C Seal, Cowl Water Extract, NO.2
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56153C Moulding, Front Window, Inner Center
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
