Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 2 illustrations

Illustrations

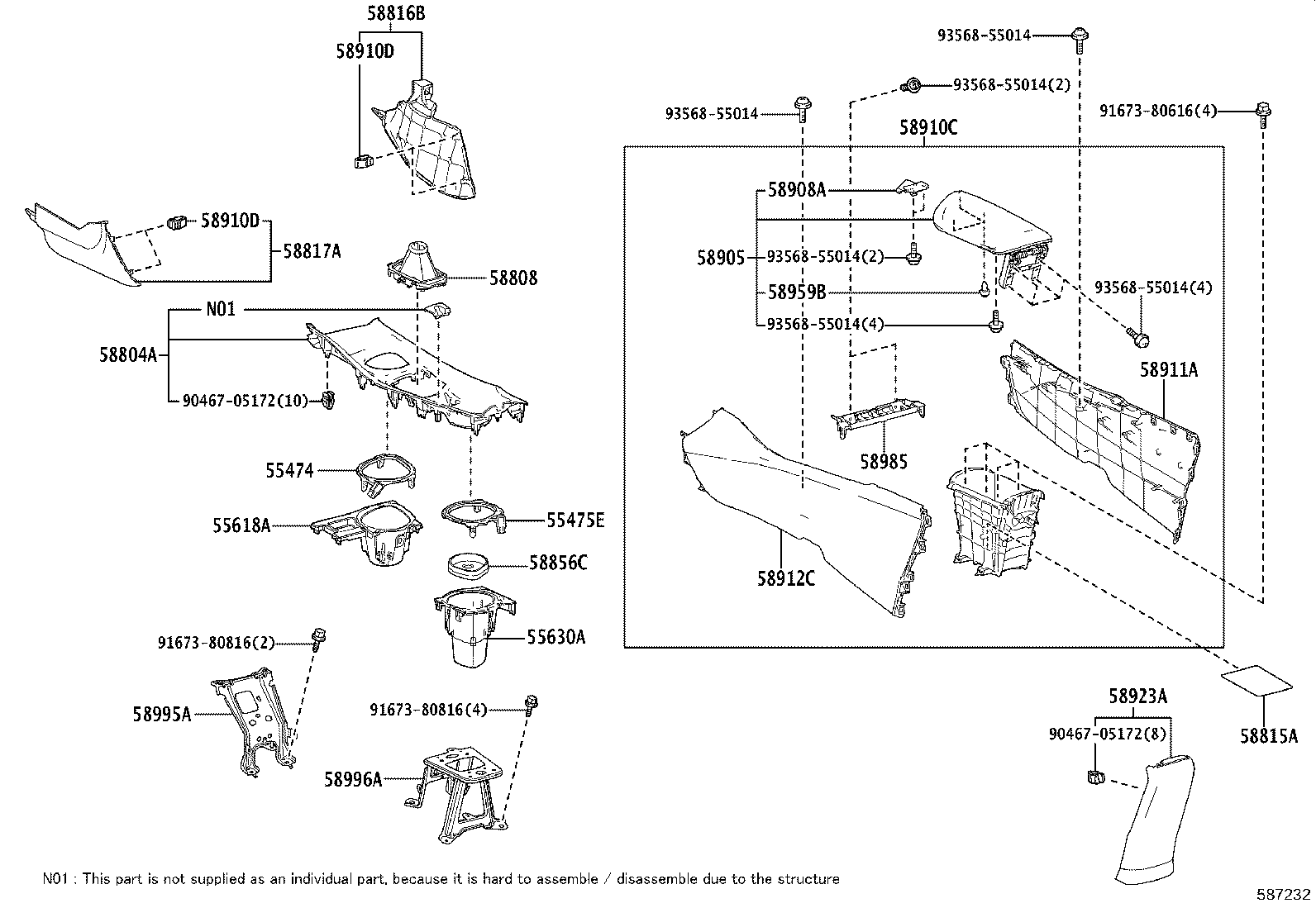

Figure 586224G 586224G 2016-12 → 2019-10 Figure 587232 587232 2019-10 → —

Part groups

PNCDescription
55474 Garnish, Instrument Cluster Finish Panel, Center
55475E Garnish, Instrument Cluster Finish Panel, Center
55618A Holder, Console Box Cup
55630A Holder, Rear Console Box, Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58856C Holder, Console
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58910D Clip(FOR CONSOLE BOX)
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58923A Panel, Console Rear End
58959B Cushion, Console Compartment Door
58985 Retainer, Console Box
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
