Toyota C-hr (JPP)
2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General
Supported model
Data version 2019-10

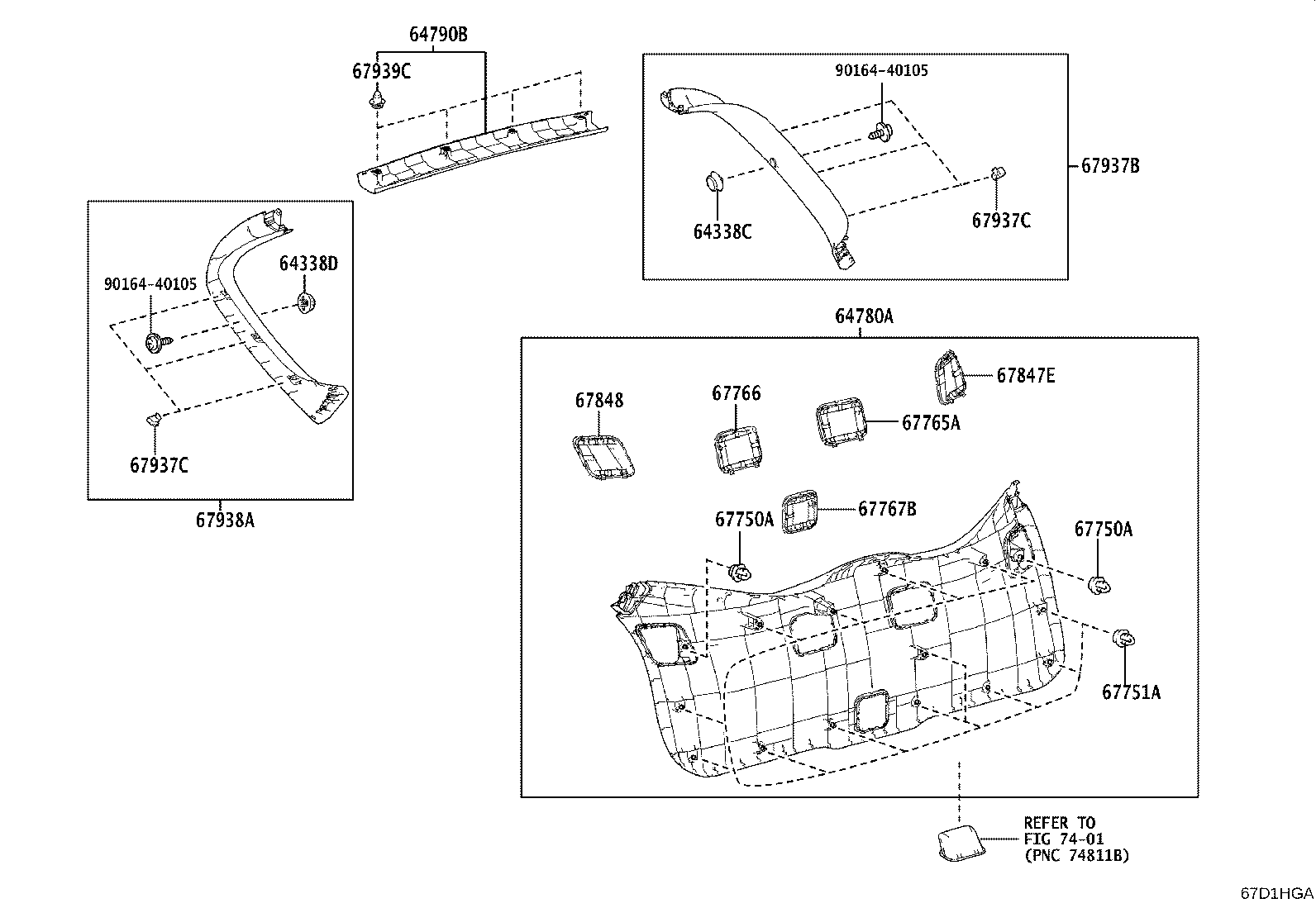

Back Door Panel & Glass
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785P | Spacer, Quarter Window Glass |
| 62785Q | Spacer, Quarter Window Glass, NO.2 |
| 64338C | Hook, Package Tray Trim Garnish, RH |
| 64338D | Hook, Package Tray Trim Garnish, LH |
| 64780A | Panel Assy, Back Door Trim |
| 64790B | Panel Assy, Back Door Trim, Upper |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67281G | Stopper, Back Door, Lower RH |
| 67282F | Stopper, Back Door, Lwr LH |
| 67293 | Cushion, Back Door Lower Stopper |
| 67294D | Cushion, Back Door Stopper, LH |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67847E | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67893A | Protector, Back Door Panel, NO.1 |
| 67894B | Protector, Back Door Panel, NO.2 |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 75574B | Moulding, Back Window, Outside LH |
| 75575D | Moulding, Back Window, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
