Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 4 illustrations

Illustrations

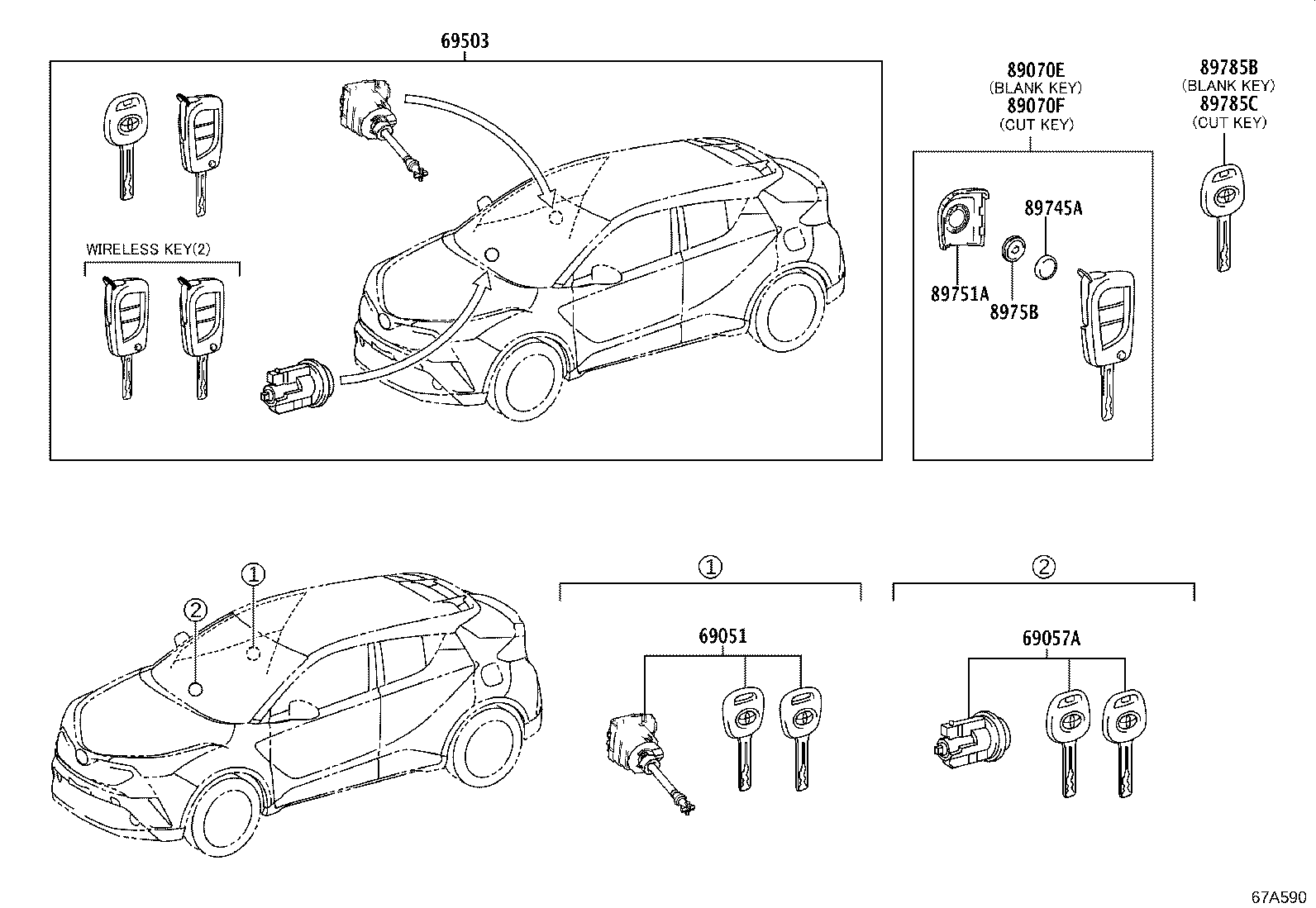

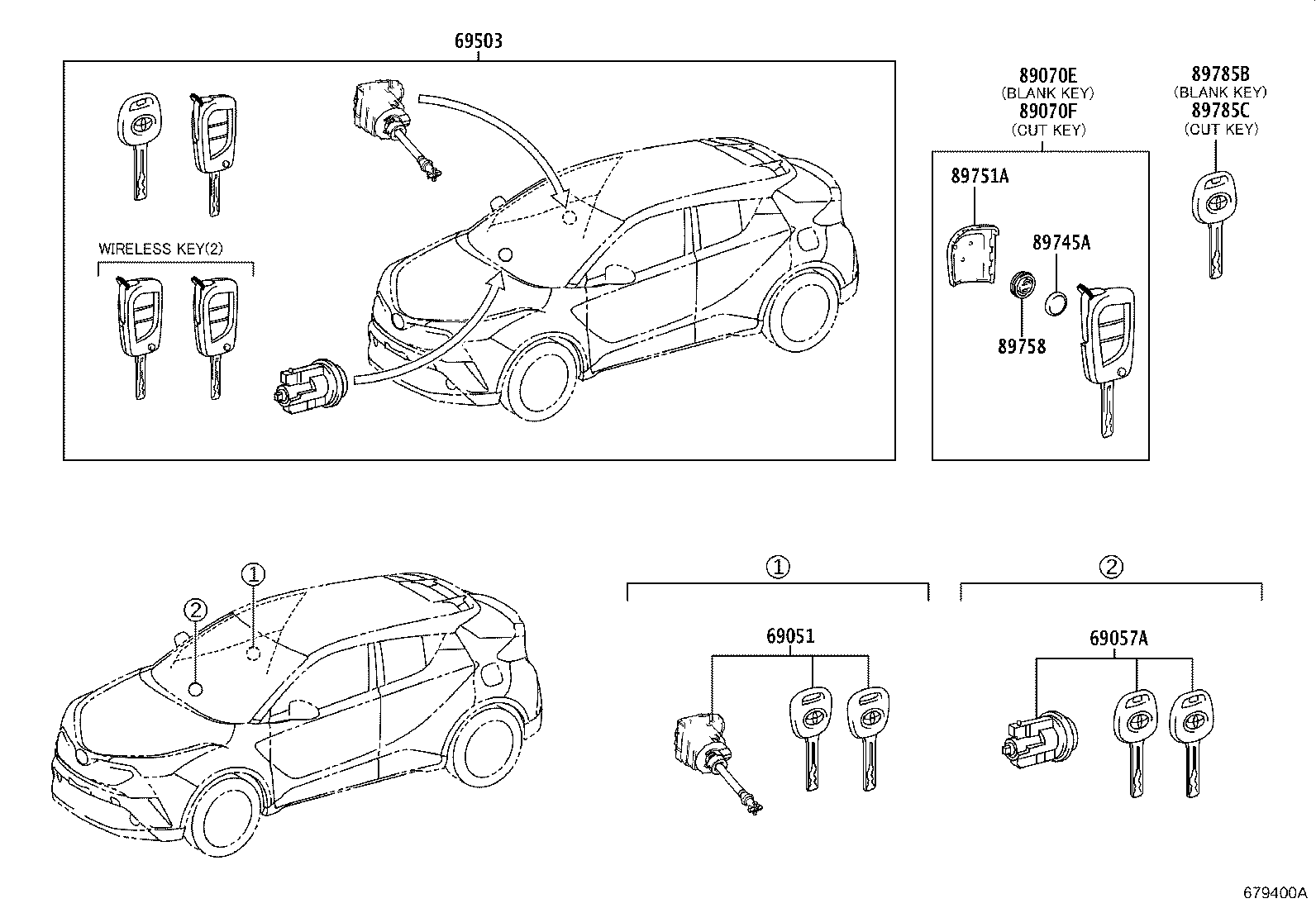

Figure 679399B 679399B 2016-12 → — Figure 679399B 679399B 2020-08 → — Figure 679400A 679400A 2016-12 → 2019-10 Figure 67A590 67A590 2019-10 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89070E Transmitter Assy, Door Control
89070F Transmitter Assy, Door Control (CUT KEY)
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
89758 Packing, Door Control Transmitter
8975B Cover, Transmitter Battery Housing
89785B Transmitter, Transponder Key Master
89785C Transmitter, Transponder Key Master
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
