Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 3 illustrations

Illustrations

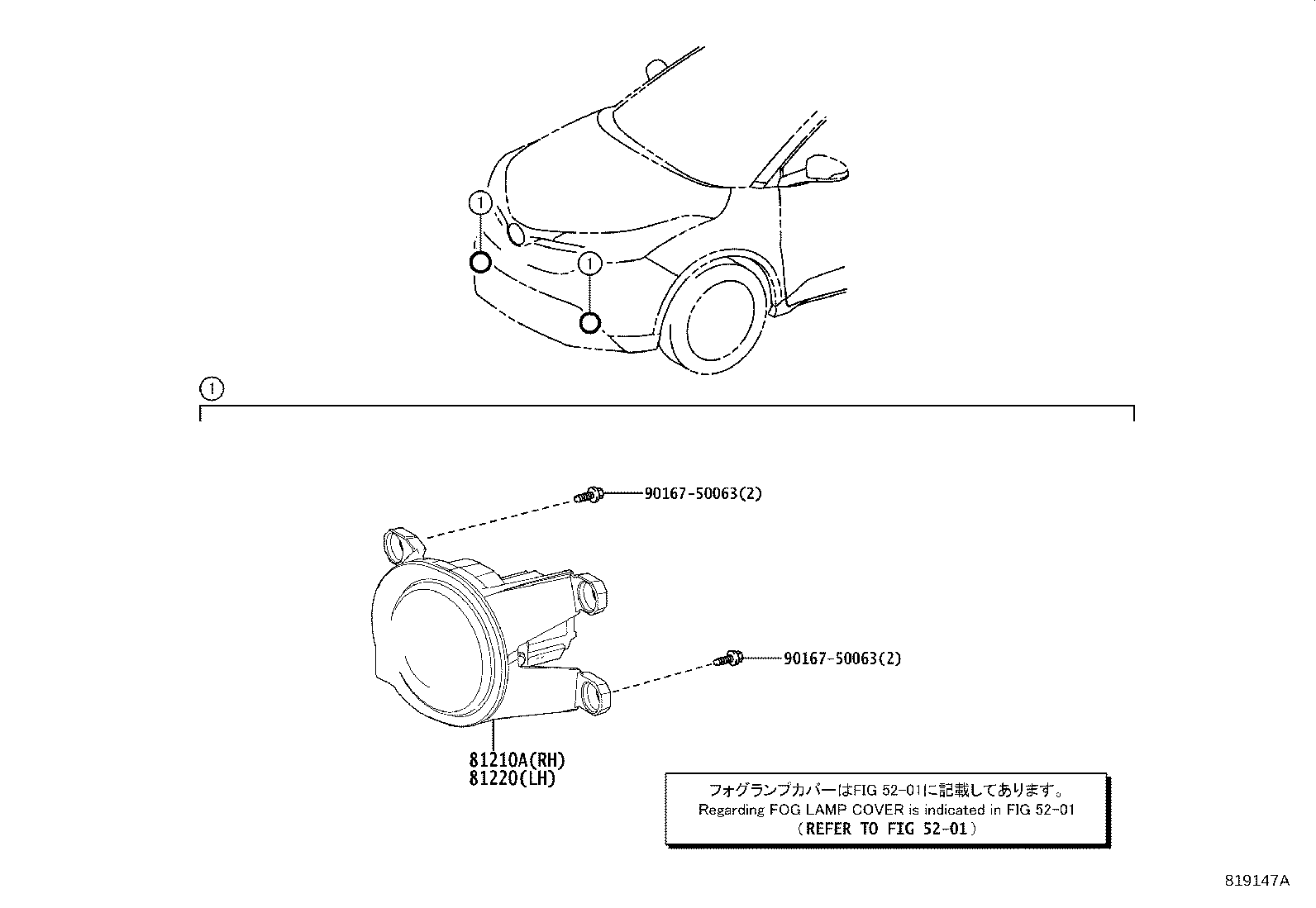

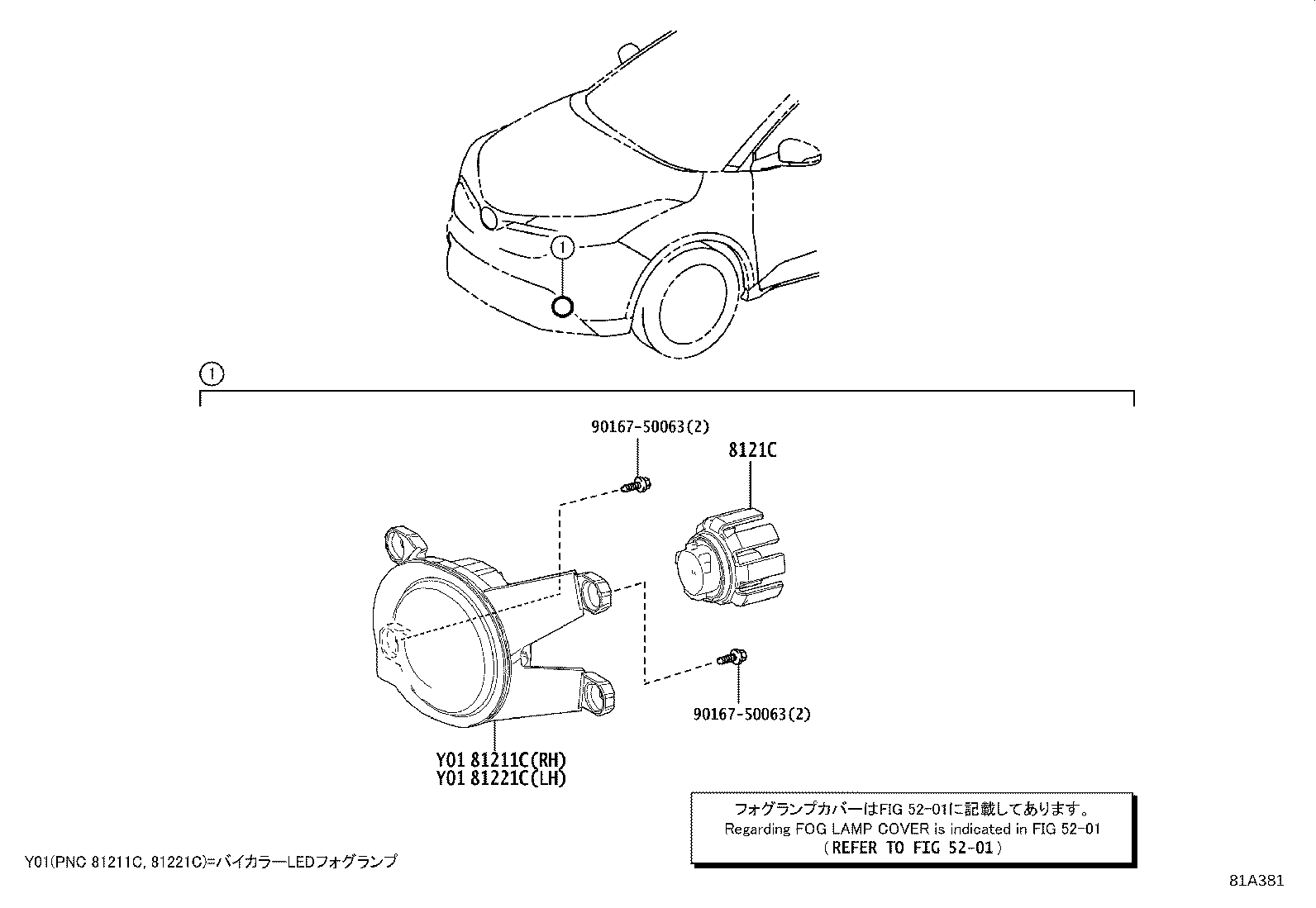

Figure 818050C 818050C 2016-12 → 2019-10 Figure 819147A 819147A 2019-10 → 2021-01 Figure 81A381 81A381 2021-02 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81211C Lamp Unit, Fog Lamp, RH
81219A Bracket, Fog Lamp, RH
8121C Led, Fog Lamp
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
