Toyota C-hr (JPP)
2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General
Supported model
Data version 2019-10

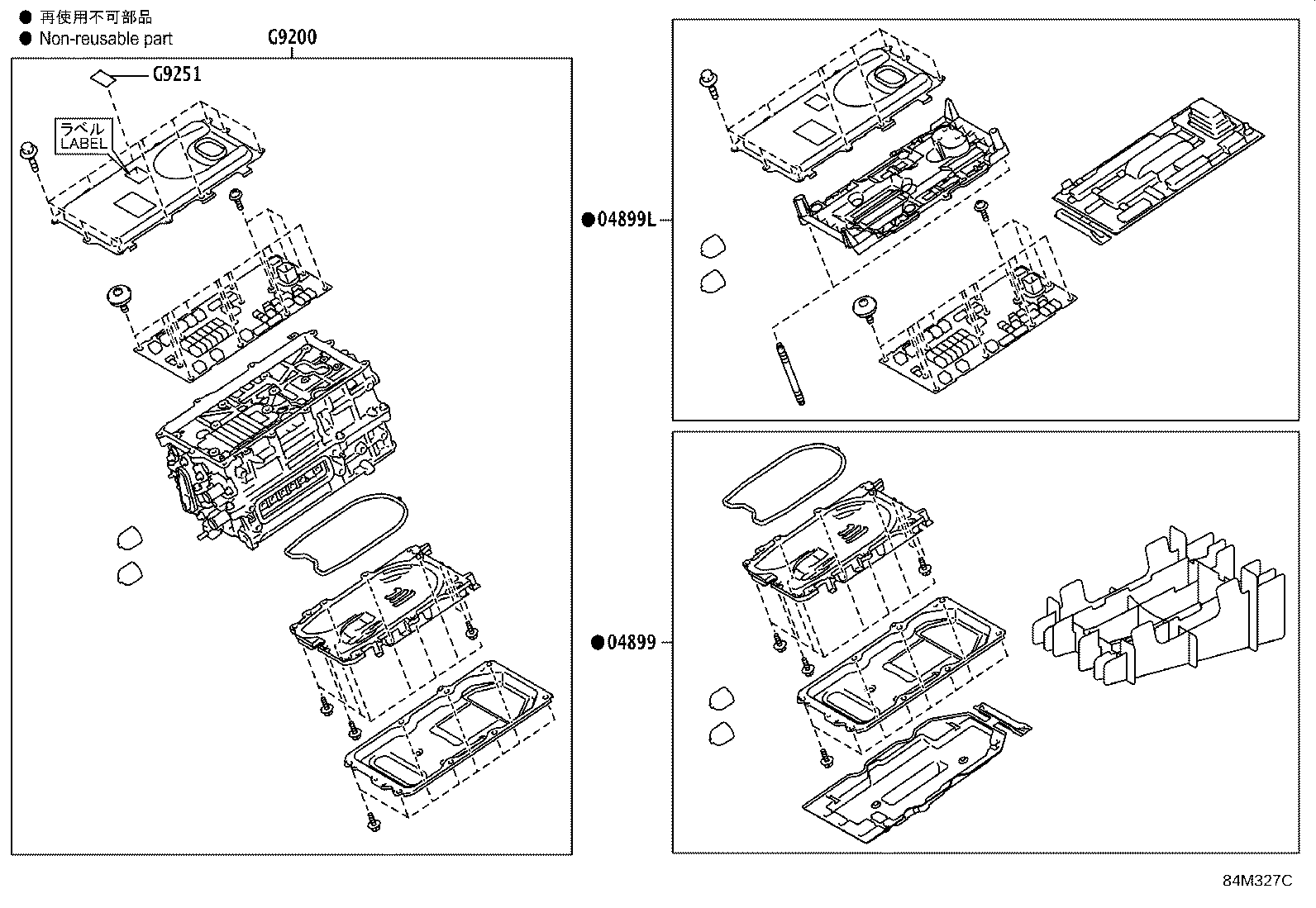

Hev Inverter
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04899 | Converter Kit, HV |
| 04899L | Computer Kit, Motor Generator Control |
| G9200 | Inverter Assy, W/Converter |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G921E | Protector, Inverter |
| G9221 | Cover, Inverter |
| G9251 | Seat, Inverter Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
