Toyota C-hr (JPP)

2016-12 → present · chassis NGX10,50,ZYX10 · catalogue 529310 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

12 part groups · 4 illustrations

Illustrations

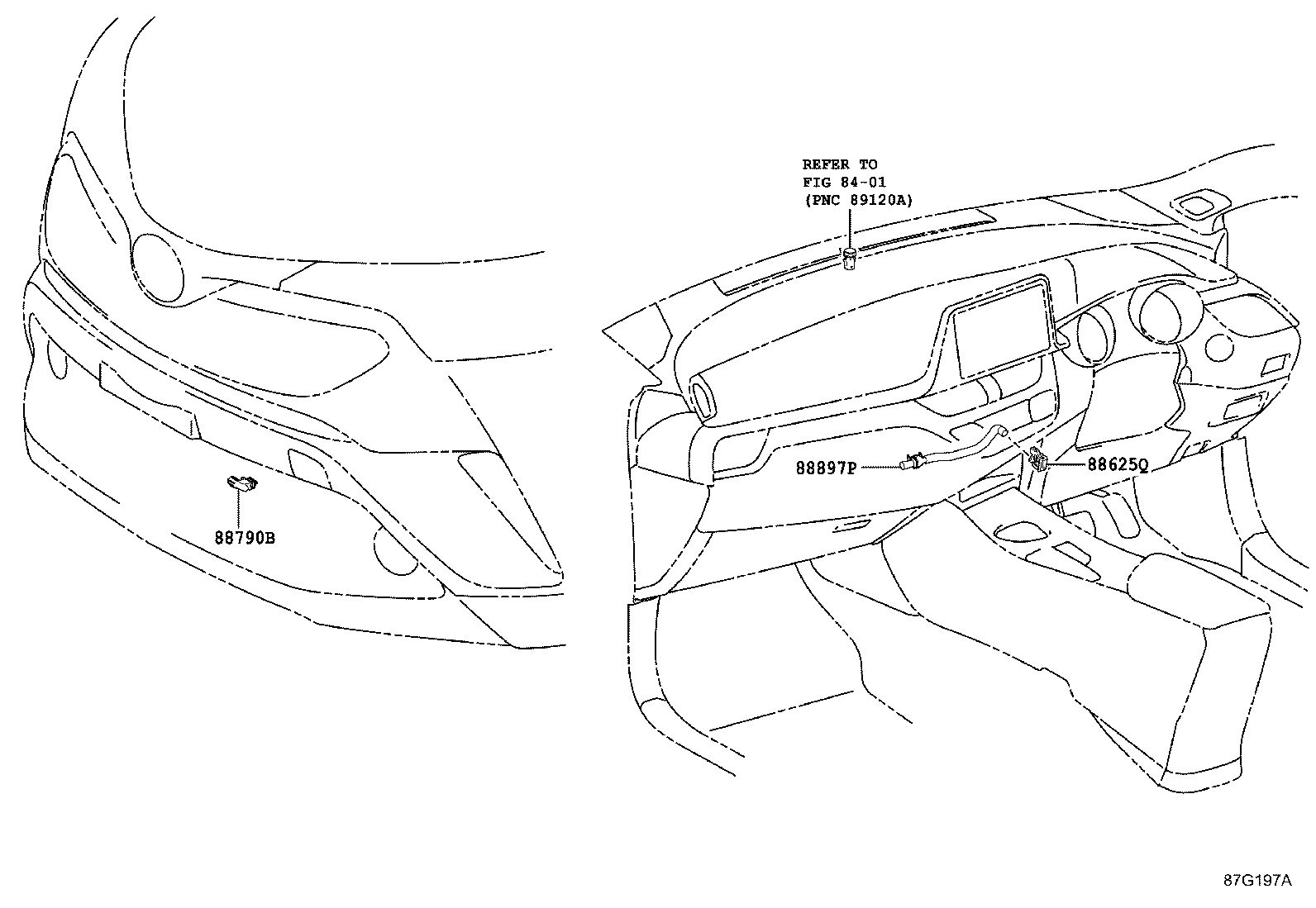

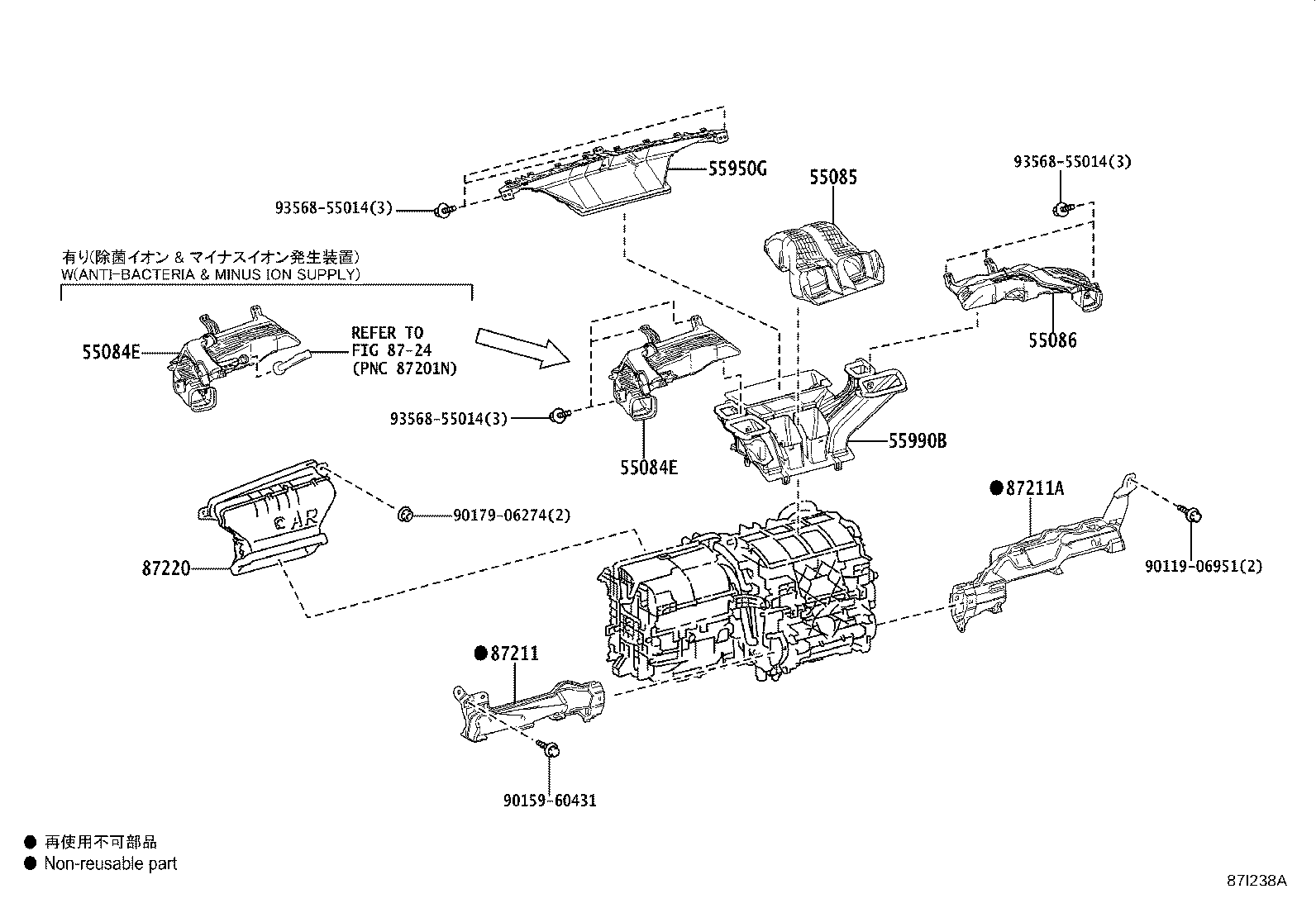

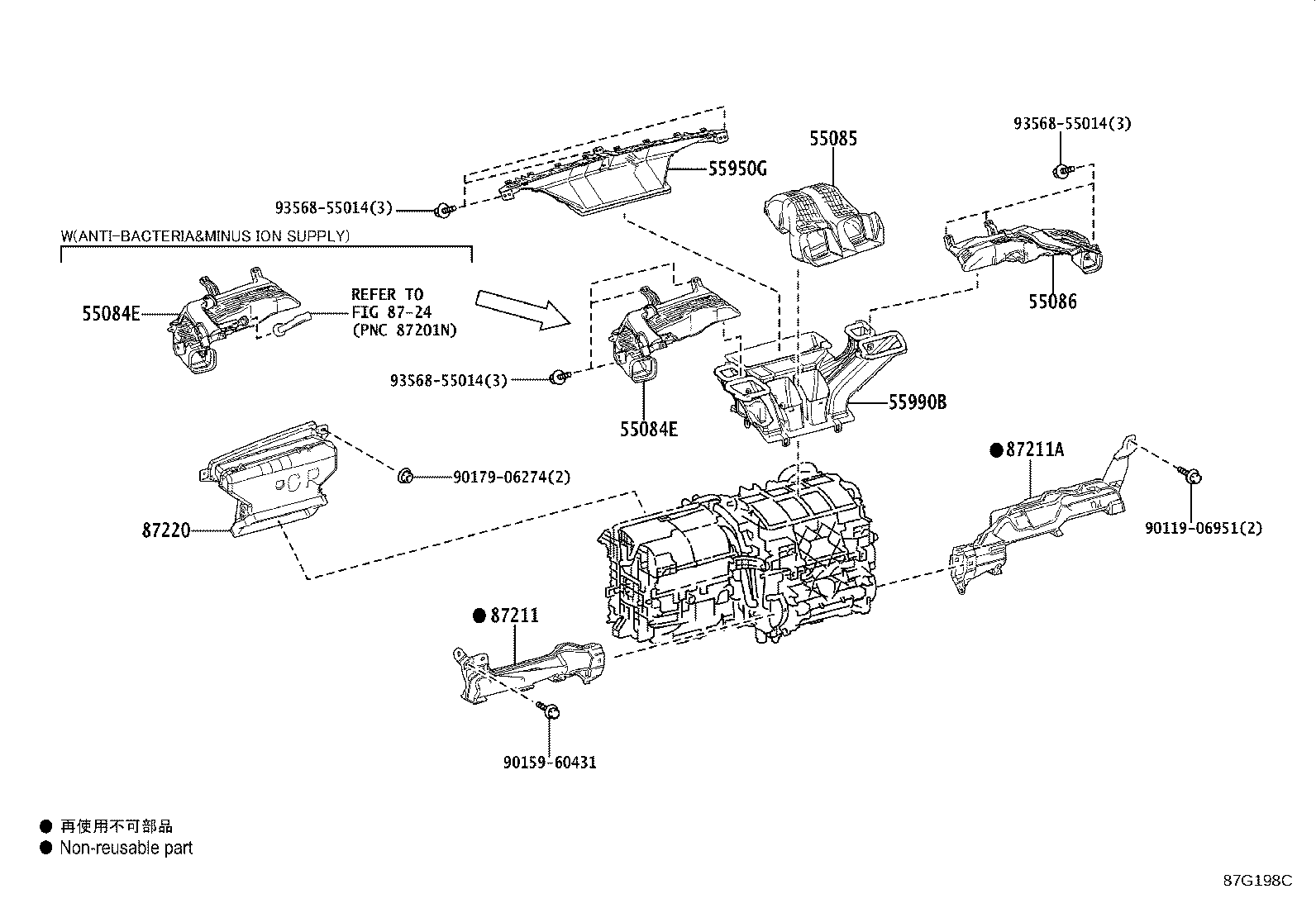

Figure 87G195A 87G195A 2016-12 → — Figure 87G198C 87G198C 2016-12 → 2019-10 Figure 87I238A 87I238A 2019-10 → — Figure 87G197A 87G197A 2016-12 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87220 Duct Assy, Air
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
