Toyota Crown Kluger
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General
Supported model
Data version 2024-04

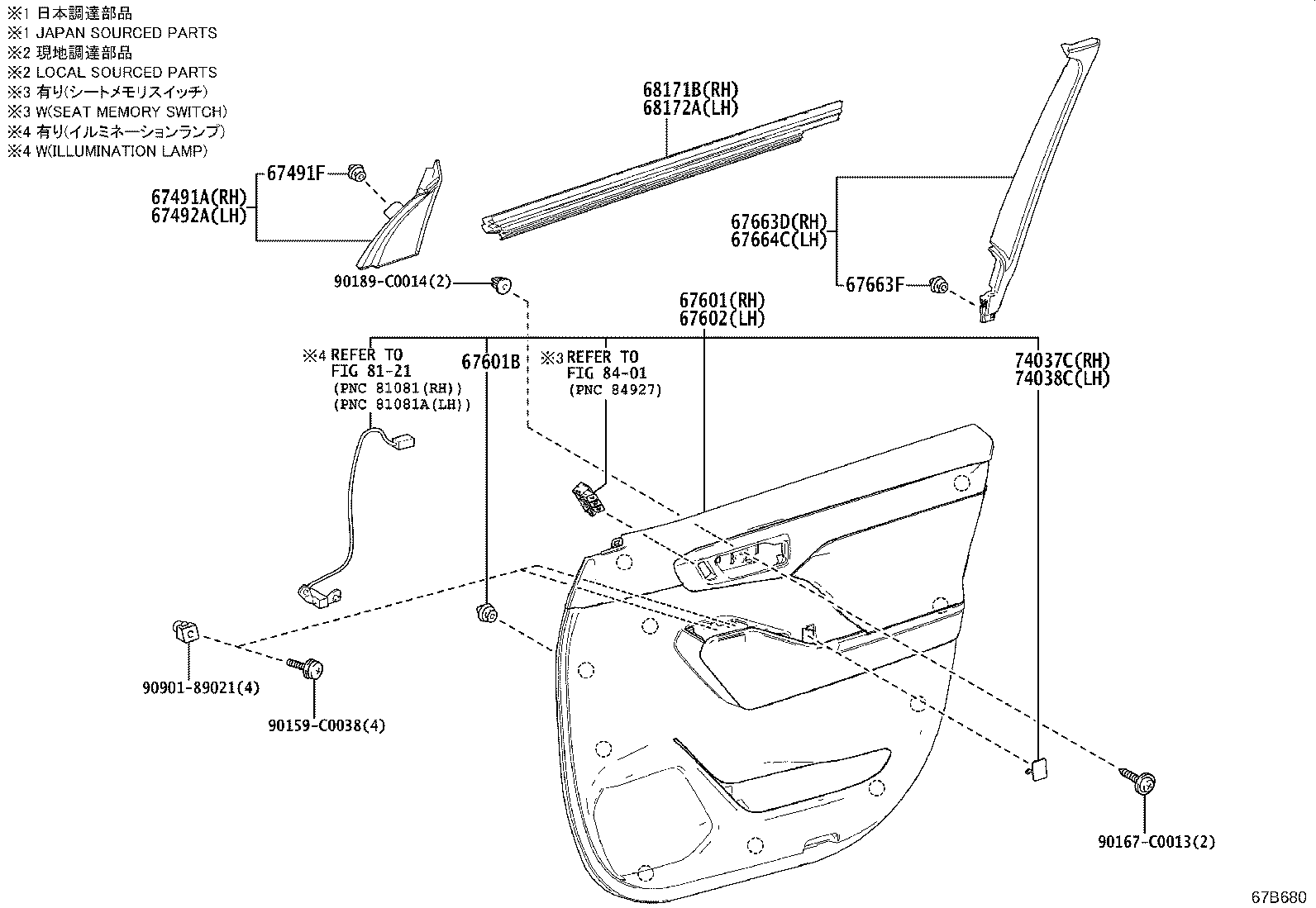

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67491A — Garnish, Front Door Lower Frame Bracket, RH | ||||
| 67491-0E070 |
Garnish, Front Door Lower Frame Bracket, RH
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 67491-0E070 |
Garnish, Front Door Lower Frame Bracket, RH
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 67491F — Clip(FOR DOOR TRIM) | ||||
| 90467-10167 |
Clip(FOR DOOR TRIM)
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 90467-10167 |
Clip(FOR DOOR TRIM)
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 67492A — Garnish, Front Door Lower Frame Bracket, LH | ||||
| 67492-0E070 |
Garnish, Front Door Lower Frame Bracket, LH
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 67492-0E070 |
Garnish, Front Door Lower Frame Bracket, LH
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-0E530-C0 note |
Board Sub-assy, Front Door Trim, RH
2021-08 → 2024-05
ended
|
AXUH7# N | — | |
| 67610-0E550-C2 note |
Board Sub-assy, Front Door Trim, RH
2021-08 → 2024-05
ended
|
SXUA75;AXUH79 G,M | — | |
| 67610-0E550-C2 note |
Board Sub-assy, Front Door Trim, RH
2021-08 → 2024-05
ended
|
AXUH79 N | — | |
| 67610-0E550-C3 note |
Board Sub-assy, Front Door Trim, RH
2021-08 → 2024-05
ended
|
AXUH79,SXUA75 G | — | |
| 67610-0E550-C2 note |
Board Sub-assy, Front Door Trim, RH
2024-05 → 2025-09
ended
|
AXUH7#,SXUA75 | — | |
| 67610-0E550-C3 note |
Board Sub-assy, Front Door Trim, RH
2024-05 → 2025-09
ended
|
AXUH79,SXUA75 G | — | |
| 67610-YK090-C0 note |
Board Sub-assy, Front Door Trim, RH
2024-05 → 2025-09
ended
|
AXUH7#,SXUA75 | — | |
| 67610-YK090-C1 note |
Board Sub-assy, Front Door Trim, RH
2024-05 → 2025-09
ended
|
AXUH79,SXUA75 G | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-C0033 |
Clip(FOR FRONT DOOR TRIM BOARD)
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 90467-C0033 |
Clip(FOR FRONT DOOR TRIM BOARD)
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-0E700-C0 note |
Board Sub-assy, Front Door Trim, LH
2021-08 → 2024-05
ended
|
AXUH7# N | — | |
| 67620-0E710-C1 note |
Board Sub-assy, Front Door Trim, LH
2021-08 → 2024-05
ended
|
AXUH79 M;SXUA75 M,N | — | |
| 67620-0E710-C1 note |
Board Sub-assy, Front Door Trim, LH
2021-08 → 2024-05
ended
|
AXUH79 N | — | |
| 67620-0E720-C2 note |
Board Sub-assy, Front Door Trim, LH
2021-08 → 2024-05
ended
|
AXUH79,SXUA75 G | — | |
| 67620-0E720-C3 note |
Board Sub-assy, Front Door Trim, LH
2021-08 → 2024-05
ended
|
AXUH79,SXUA75 G | — | |
| 67620-0E710-C1 note |
Board Sub-assy, Front Door Trim, LH
2024-05 → 2025-09
ended
|
AXUH7#,SXUA75 M,N | — | |
| 67620-0E720-C2 note |
Board Sub-assy, Front Door Trim, LH
2024-05 → 2025-09
ended
|
AXUH79,SXUA75 G | — | |
| 67620-0E720-C3 note |
Board Sub-assy, Front Door Trim, LH
2024-05 → 2025-09
ended
|
AXUH79,SXUA75 G | — | |
| 67620-YK090-C0 note |
Board Sub-assy, Front Door Trim, LH
2024-05 → 2025-09
ended
|
AXUH7#,SXUA75 M,N | — | |
| 67620-YK100-C0 note |
Board Sub-assy, Front Door Trim, LH
2024-05 → 2025-09
ended
|
AXUH79,SXUA75 G | — | |
| 67620-YK100-C1 note |
Board Sub-assy, Front Door Trim, LH
2024-05 → 2025-09
ended
|
AXUH79,SXUA75 G | — | |
| 67663D — Garnish, Door Frame, RH | ||||
| 67663-0E080 |
Garnish, Door Frame, RH
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 67663-0E080 |
Garnish, Door Frame, RH
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 67663F — Clip(FOR DOOR FRAME GARNISH) | ||||
| 90467-09206 note |
Clip(FOR DOOR FRAME GARNISH)
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 90467-C0033 note |
Clip(FOR DOOR FRAME GARNISH)
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 90467-09206 note |
Clip(FOR DOOR FRAME GARNISH)
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 90467-C0033 note |
Clip(FOR DOOR FRAME GARNISH)
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 67664C — Garnish, Door Frame, LH | ||||
| 67664-0E060 |
Garnish, Door Frame, LH
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 67664-0E060 |
Garnish, Door Frame, LH
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 68171B — Weatherstrip, Front Door Glass, Inner RH | ||||
| 68171-0E090 |
Weatherstrip, Front Door Glass, Inner RH
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 68171-0E090 |
Weatherstrip, Front Door Glass, Inner RH
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 68172A — Weatherstrip, Front Door Glass, Inner LH | ||||
| 68172-0E090 |
Weatherstrip, Front Door Glass, Inner LH
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 68172-0E090 |
Weatherstrip, Front Door Glass, Inner LH
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 74037C — Cover Sub-assy, Door Armrest, RH | ||||
| 74037-0E030-C0 note |
Cover Sub-assy, Door Armrest, RH
2021-08 → 2024-05
ended
|
AXUH79,SXUA75 G | — | |
| 74037-0E030-C0 note |
Cover Sub-assy, Door Armrest, RH
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 M,N | — | |
| 74037-0E030-C0 note |
Cover Sub-assy, Door Armrest, RH
2024-05 → —
|
AXUH79,SXUA75 G | — | |
| 74037-0E030-C0 note |
Cover Sub-assy, Door Armrest, RH
2024-05 → —
|
AXUH7#,SXUA75 M,N | — | |
| 74038C — Cover Sub-assy, Door Armrest, LH | ||||
| 74038-0E030-C0 note |
Cover Sub-assy, Door Armrest, LH
2021-08 → 2024-05
ended
|
AXUH79,SXUA75 G | — | |
| 74038-0E030-C0 note |
Cover Sub-assy, Door Armrest, LH
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 M,N | — | |
| 74038-0E030-C0 note |
Cover Sub-assy, Door Armrest, LH
2024-05 → —
|
AXUH79,SXUA75 G | — | |
| 74038-0E030-C0 note |
Cover Sub-assy, Door Armrest, LH
2024-05 → —
|
AXUH7#,SXUA75 M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
