Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

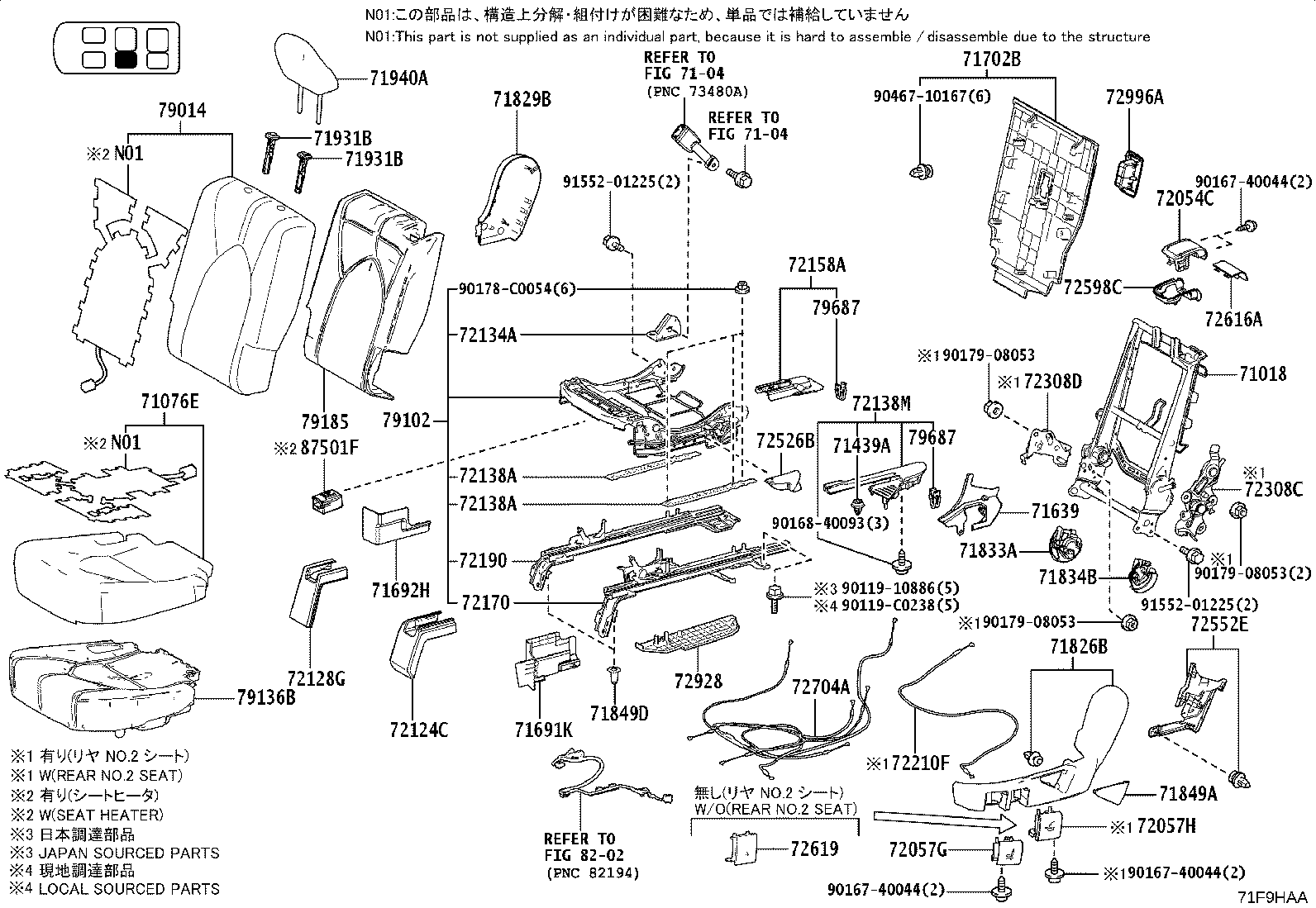

Exploded illustration 71F9HAA 71849D — CAP, SEAT ADJUSTER COVER, LH (1 parts) 90178C0054 — not listed in this catalogue 79102 — FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH (4 parts) 72190 — TRACK ASSY, REAR SEAT INNER, LH (4 parts) 72138A — COVER, REAR SEAT TRACK, LH (2 parts) 72138A — COVER, REAR SEAT TRACK, LH (2 parts) 72170 — TRACK ASSY, REAR SEAT, OUTER LH (2 parts) 72134A — BRACKET, FRONT INNER SEAT TRACK UPPER RAIL, LH (2 parts) 79136B — PAD, NO.1 SEAT CUSHION, LH (2 parts) 72308C — LINK SUB-ASSY, RECLINING CONTROL, LH NO.1 (2 parts) 79185 — PAD, NO.1 SEATBACK, LH (2 parts) 71931B — SUPPORT ASSY, REAR NO.1 SEAT HEADREST (10 parts) 71931B — SUPPORT ASSY, REAR NO.1 SEAT HEADREST (10 parts) 71940A — HEADREST ASSY, REAR SEAT (14 parts) 9046710167 — not listed in this catalogue 71702B — BOARD SUB-ASSY, REAR SEATBACK, LH (4 parts) 72996A — COVER, REAR SEATBACK (2 parts) 72616A — COVER, REAR SEATBACK LOCK STRIKER, LH (4 parts) 71639 — COVER, REAR SEAT CUSHION HINGE, LH (4 parts) 72308D — LINK SUB-ASSY, RECLINING CONTROL, LH NO.2 (2 parts) 72158A — COVER, REAR SEAT TRACK BRACKET, INNER LH (4 parts) 72138M — COVER, SEAT TRACK BRACKET, OUTER REAR LH (4 parts) 79687 — CLIP (2 parts) 79687 — CLIP (2 parts) 72552E — COVER, RECLINING HINGE, LH (4 parts) 71849A — CAP, SEAT ADJUSTER COVER, LH (4 parts) 72057G — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1 (4 parts) 72057H — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.2 (4 parts) 72210F — CABLE ASSY, SEAT TRACK CONTROL (2 parts) 71692H — COVER, REAR SEAT CUSHION HINGE, NO.3 (4 parts) 71691K — COVER, REAR SEAT CUSHION HINGE, NO.4 (4 parts) 71826B — MOULDING, REAR SEAT CUSHION, LH (4 parts) 71829B — MOULDING, REAR SEAT CUSHION, REAR LH (4 parts) 71834B — COVER, REAR SEAT RECLINING, NO.2 LH (2 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (2 parts) 72054C — LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH (4 parts) 72598C — BEZEL, RECLINING REMOTE CONTROL, LH (2 parts) 72526B — HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH (4 parts) 9016740044 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9155201225 — not listed in this catalogue 9155201225 — not listed in this catalogue 9017908053 — not listed in this catalogue 9017908053 — not listed in this catalogue 9016840093 — not listed in this catalogue 9017908053 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72124C — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (4 parts) 72128G — COVER, SEAT TRACK BRACKET, INNER FRONT LH (8 parts) 72928 — COVER, REAR SEAT CUSHION UNDER, LH (2 parts) 72704A — CABLE, REAR SEAT RECLINING CONTROL (3 parts) 79014 — COVER SUB-ASSY, NO.1 SEATBACK, LH (11 parts) 71076E — COVER SUB-ASSY, REAR SEAT CUSHION, LH (11 parts) 87501F — CONTROL SUB-ASSY, SEAT HEATER, LH (2 parts) 72619 — COVER, REAR SEATBACK LOCK STRIKER (5 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (2 parts) 71439A — CLIP (2 parts) 90119C0238 — not listed in this catalogue 9011910886 — not listed in this catalogue
71F9HAA · 46 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
169 parts on this figure
Part number Description Fitment Price
71018 — Frame Sub-assy, Rear Seatback, LH
71018-0E200 Frame Sub-assy, Rear Seatback, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71018-0E200 Frame Sub-assy, Rear Seatback, LH
2024-05 → —
AXUH7#,SXUA75 —
71076E — Cover Sub-assy, Rear Seat Cushion, LH
71076-0E660-C2 note Cover Sub-assy, Rear Seat Cushion, LH
2021-08 → 2024-05 ended
AXUH7# N —
71076-0E670-C4 note Cover Sub-assy, Rear Seat Cushion, LH
2021-08 → 2024-05 ended
AXUH79 M;SXUA75 M,N —
71076-0E670-C4 note Cover Sub-assy, Rear Seat Cushion, LH
2021-08 → 2024-05 ended
AXUH79 N —
71076-0E680-C4 note Cover Sub-assy, Rear Seat Cushion, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71076-0E680-D4 note Cover Sub-assy, Rear Seat Cushion, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71076-0E670-C4 note Cover Sub-assy, Rear Seat Cushion, LH
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71076-0E680-C4 note Cover Sub-assy, Rear Seat Cushion, LH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71076-0E680-D4 note Cover Sub-assy, Rear Seat Cushion, LH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71076-YK010-C1 note Cover Sub-assy, Rear Seat Cushion, LH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71076-YK010-D1 note Cover Sub-assy, Rear Seat Cushion, LH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71076-YK020-C1 note Cover Sub-assy, Rear Seat Cushion, LH
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71439A — Clip
90467-09232 Clip
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
90467-09232 Clip
2024-05 → —
AXUH7#,SXUA75 —
71639 — Cover, Rear Seat Cushion Hinge, LH
71639-0E070-C0 note Cover, Rear Seat Cushion Hinge, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71639-0E070-C0 note Cover, Rear Seat Cushion Hinge, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71639-0E070-C0 note Cover, Rear Seat Cushion Hinge, LH
2024-05 → —
AXUH79,SXUA75 G —
71639-0E070-C0 note Cover, Rear Seat Cushion Hinge, LH
2024-05 → —
AXUH7#,SXUA75 M,N —
71691K — Cover, Rear Seat Cushion Hinge, NO.4
71691-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.4
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71691-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.4
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71691-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.4
2024-05 → —
AXUH79,SXUA75 G —
71691-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.4
2024-05 → —
AXUH7#,SXUA75 M,N —
71692H — Cover, Rear Seat Cushion Hinge, NO.3
71692-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.3
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71692-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.3
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71692-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.3
2024-05 → —
AXUH79,SXUA75 G —
71692-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.3
2024-05 → —
AXUH7#,SXUA75 M,N —
71702B — Board Sub-assy, Rear Seatback, LH
71702-0E030-C0 note Board Sub-assy, Rear Seatback, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71702-0E030-C0 note Board Sub-assy, Rear Seatback, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71702-0E030-C0 note Board Sub-assy, Rear Seatback, LH
2024-05 → —
AXUH79,SXUA75 G —
71702-0E030-C0 note Board Sub-assy, Rear Seatback, LH
2024-05 → —
AXUH7#,SXUA75 M,N —
71826B — Moulding, Rear Seat Cushion, LH
71826-0E130-C0 note Moulding, Rear Seat Cushion, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71826-0E130-C0 note Moulding, Rear Seat Cushion, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71826-0E130-C0 note Moulding, Rear Seat Cushion, LH
2024-05 → —
AXUH7#,SXUA75 M,N —
71826-0E130-C0 note Moulding, Rear Seat Cushion, LH
2024-05 → —
AXUH79,SXUA75 G —
71829B — Moulding, Rear Seat Cushion, Rear LH
71829-0E120-C0 note Moulding, Rear Seat Cushion, Rear LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71829-0E120-C0 note Moulding, Rear Seat Cushion, Rear LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71829-0E120-C0 note Moulding, Rear Seat Cushion, Rear LH
2024-05 → —
AXUH79,SXUA75 G —
71829-0E120-C0 note Moulding, Rear Seat Cushion, Rear LH
2024-05 → —
AXUH7#,SXUA75 M,N —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-0E100 Cover, Rear Seat Reclining, NO.1 RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71833-0E100 Cover, Rear Seat Reclining, NO.1 RH
2024-05 → —
AXUH7#,SXUA75 —
71834B — Cover, Rear Seat Reclining, NO.2 LH
71834-0E120 Cover, Rear Seat Reclining, NO.2 LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71834-0E120 Cover, Rear Seat Reclining, NO.2 LH
2024-05 → —
AXUH7#,SXUA75 —
71849A — Cap, Seat Adjuster Cover, LH
71849-0E030-C0 note Cap, Seat Adjuster Cover, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71849-0E030-C0 note Cap, Seat Adjuster Cover, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71849-0E030-C0 note Cap, Seat Adjuster Cover, LH
2024-05 → —
AXUH79,SXUA75 G —
71849-0E030-C0 note Cap, Seat Adjuster Cover, LH
2024-05 → —
AXUH7#,SXUA75 M,N —
71849D — Cap, Seat Adjuster Cover, LH
71848-0E100 Cap, Seat Adjuster Cover, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71931B — Support Assy, Rear NO.1 Seat Headrest
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
SXUA75 M,N —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
SXUA75 M,N —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71940A — Headrest Assy, Rear Seat
71940-0E440-C1 note Headrest Assy, Rear Seat
2021-08 → 2024-05 ended
AXUH7# N —
71940-0E450-C3 note Headrest Assy, Rear Seat
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
71940-0E450-C3 note Headrest Assy, Rear Seat
2021-08 → 2024-02 ended
AXUH79 M;SXUA75 M,N —
71940-0E450-C3 note Headrest Assy, Rear Seat
2021-08 → 2024-02 ended
AXUH79 N —
71940-0E450-D3 note Headrest Assy, Rear Seat
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
71940-0E451-C3 note Headrest Assy, Rear Seat
2024-02 → 2024-05 ended
AXUH79 N —
71940-0E451-C3 note Headrest Assy, Rear Seat
2024-02 → 2024-05 ended
AXUH79 M;SXUA75 M,N —
71940-0E451-C3 note Headrest Assy, Rear Seat
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
71940-0E451-D3 note Headrest Assy, Rear Seat
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
71940-0E450-C3 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH7#,SXUA75 —
71940-0E450-D3 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71940-YK110-C8 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71940-YK110-C9 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71940-YK170-C0 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
72054C — Lever Sub-assy, Reclining Remote Control, LH
72054-0E050-C0 note Lever Sub-assy, Reclining Remote Control, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72054-0E050-C0 note Lever Sub-assy, Reclining Remote Control, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72054-0E050-C0 note Lever Sub-assy, Reclining Remote Control, LH
2024-05 → —
AXUH7#,SXUA75 M,N —
72054-0E050-C0 note Lever Sub-assy, Reclining Remote Control, LH
2024-05 → —
AXUH79,SXUA75 G —
72057G — Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72058-0E120-C0 note Lever Sub-assy, Rear Seat Lock Control, LH NO.1
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72058-0E120-C0 note Lever Sub-assy, Rear Seat Lock Control, LH NO.1
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72058-0E120-C0 note Lever Sub-assy, Rear Seat Lock Control, LH NO.1
2024-05 → —
AXUH79,SXUA75 G —
72058-0E120-C0 note Lever Sub-assy, Rear Seat Lock Control, LH NO.1
2024-05 → —
AXUH7#,SXUA75 M,N —
72057H — Lever Sub-assy, Rear Seat Lock Control, LH NO.2
72058-0E130-C0 note Lever Sub-assy, Rear Seat Lock Control, LH NO.2
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72058-0E130-C0 note Lever Sub-assy, Rear Seat Lock Control, LH NO.2
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72058-0E130-C0 note Lever Sub-assy, Rear Seat Lock Control, LH NO.2
2024-05 → —
AXUH79,SXUA75 G —
72058-0E130-C0 note Lever Sub-assy, Rear Seat Lock Control, LH NO.2
2024-05 → —
AXUH7#,SXUA75 M,N —
72124C — Cover, Seat Track Bracket, Outer Front LH
72124-0E150-C0 note Cover, Seat Track Bracket, Outer Front LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72124-0E150-C0 note Cover, Seat Track Bracket, Outer Front LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72124-0E150-C0 note Cover, Seat Track Bracket, Outer Front LH
2024-05 → —
AXUH79,SXUA75 G —
72124-0E150-C0 note Cover, Seat Track Bracket, Outer Front LH
2024-05 → —
AXUH7#,SXUA75 M,N —
72128G — Cover, Seat Track Bracket, Inner Front LH
72128-0E170-C0 note Cover, Seat Track Bracket, Inner Front LH
2021-08 → 2024-05 ended
AXUH7# M,N —
72128-0E170-C0 note Cover, Seat Track Bracket, Inner Front LH
2021-08 → 2024-05 ended
AXUH79 G —
72128-0E190-C0 note Cover, Seat Track Bracket, Inner Front LH
2022-09 → 2024-05 ended
SXUA75 M,N —
72128-0E190-C0 note Cover, Seat Track Bracket, Inner Front LH
2022-09 → 2024-05 ended
SXUA75 G —
72128-0E170-C0 note Cover, Seat Track Bracket, Inner Front LH
2024-05 → —
AXUH79 G —
72128-0E170-C0 note Cover, Seat Track Bracket, Inner Front LH
2024-05 → —
AXUH7# M,N —
72128-0E190-C0 note Cover, Seat Track Bracket, Inner Front LH
2024-05 → —
SXUA75 M,N —
72128-0E190-C0 note Cover, Seat Track Bracket, Inner Front LH
2024-05 → —
SXUA75 G —
72134A — Bracket, Front Inner Seat Track Upper Rail, LH
72134-0E040 Bracket, Front Inner Seat Track Upper Rail, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72134-0E040 Bracket, Front Inner Seat Track Upper Rail, LH
2024-05 → —
AXUH7#,SXUA75 —
72138A — Cover, Rear Seat Track, LH
72137-0E290 Cover, Rear Seat Track, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72137-0E290 Cover, Rear Seat Track, LH
2024-05 → —
AXUH7#,SXUA75 —
72138M — Cover, Seat Track Bracket, Outer Rear LH
72138-0E170-C0 note Cover, Seat Track Bracket, Outer Rear LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72138-0E170-C0 note Cover, Seat Track Bracket, Outer Rear LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72138-0E170-C0 note Cover, Seat Track Bracket, Outer Rear LH
2024-05 → —
AXUH79,SXUA75 G —
72138-0E170-C0 note Cover, Seat Track Bracket, Outer Rear LH
2024-05 → —
AXUH7#,SXUA75 M,N —
72158A — Cover, Rear Seat Track Bracket, Inner LH
72158-0E160-C0 note Cover, Rear Seat Track Bracket, Inner LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72158-0E160-C0 note Cover, Rear Seat Track Bracket, Inner LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72158-0E160-C0 note Cover, Rear Seat Track Bracket, Inner LH
2024-05 → —
AXUH7#,SXUA75 M,N —
72158-0E160-C0 note Cover, Rear Seat Track Bracket, Inner LH
2024-05 → —
AXUH79,SXUA75 G —
72170 — Track Assy, Rear Seat, Outer LH
72170-0E130 Track Assy, Rear Seat, Outer LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72170-0E130 Track Assy, Rear Seat, Outer LH
2024-05 → —
AXUH7#,SXUA75 —
72190 — Track Assy, Rear Seat Inner, LH
72190-0E130 Track Assy, Rear Seat Inner, LH
2021-08 → 2024-05 ended
AXUH7# —
72190-0E150 Track Assy, Rear Seat Inner, LH
2022-09 → 2024-05 ended
SXUA75 —
72190-0E130 Track Assy, Rear Seat Inner, LH
2024-05 → —
AXUH7# —
72190-0E150 Track Assy, Rear Seat Inner, LH
2024-05 → —
SXUA75 —
72210F — Cable Assy, Seat Track Control
72210-0E090 Cable Assy, Seat Track Control
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72210-0E090 Cable Assy, Seat Track Control
2024-05 → —
AXUH7#,SXUA75 —
72308C — Link Sub-assy, Reclining Control, LH NO.1
72308-0E100 Link Sub-assy, Reclining Control, LH NO.1
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72308-0E100 Link Sub-assy, Reclining Control, LH NO.1
2024-05 → —
AXUH7#,SXUA75 —
72308D — Link Sub-assy, Reclining Control, LH NO.2
72308-0E110 Link Sub-assy, Reclining Control, LH NO.2
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72308-0E110 Link Sub-assy, Reclining Control, LH NO.2
2024-05 → —
AXUH7#,SXUA75 —
72526B — Handle, Reclining Adjuster Release, NO.1 LH
72526-0E100-C0 note Handle, Reclining Adjuster Release, NO.1 LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72526-0E100-C0 note Handle, Reclining Adjuster Release, NO.1 LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72526-0E100-C0 note Handle, Reclining Adjuster Release, NO.1 LH
2024-05 → —
AXUH79,SXUA75 G —
72526-0E100-C0 note Handle, Reclining Adjuster Release, NO.1 LH
2024-05 → —
AXUH7#,SXUA75 M,N —
72552E — Cover, Reclining Hinge, LH
72552-0E080-C0 note Cover, Reclining Hinge, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72552-0E080-C0 note Cover, Reclining Hinge, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72552-0E080-C0 note Cover, Reclining Hinge, LH
2024-05 → —
AXUH7#,SXUA75 M,N —
72552-0E080-C0 note Cover, Reclining Hinge, LH
2024-05 → —
AXUH79,SXUA75 G —
72598C — Bezel, Reclining Remote Control, LH
72598-0E090 Bezel, Reclining Remote Control, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72598-0E090 Bezel, Reclining Remote Control, LH
2024-05 → —
AXUH7#,SXUA75 —
72616A — Cover, Rear Seatback Lock Striker, LH
72615-0E220-C0 note Cover, Rear Seatback Lock Striker, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72615-0E220-C0 note Cover, Rear Seatback Lock Striker, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72615-0E220-C0 note Cover, Rear Seatback Lock Striker, LH
2024-05 → —
AXUH79,SXUA75 G —
72615-0E220-C0 note Cover, Rear Seatback Lock Striker, LH
2024-05 → —
AXUH7#,SXUA75 M,N —
72619 — Cover, Rear Seatback Lock Striker
72615-0E240-C0 note Cover, Rear Seatback Lock Striker
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72615-0E240-C0 note Cover, Rear Seatback Lock Striker
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72615-0E270-C0 note Cover, Rear Seatback Lock Striker
2021-08 → 2024-05 ended
AXUH71 —
72615-0E240-C0 note Cover, Rear Seatback Lock Striker
2024-05 → —
AXUH7#,SXUA75 M,N —
72615-0E240-C0 note Cover, Rear Seatback Lock Striker
2024-05 → —
AXUH79,SXUA75 G —
72704A — Cable, Rear Seat Reclining Control
72704-0E270 Cable, Rear Seat Reclining Control
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72704-0E290 note Cable, Rear Seat Reclining Control
2021-08 → 2024-05 ended
AXUH71 —
72704-0E270 Cable, Rear Seat Reclining Control
2024-05 → —
AXUH7#,SXUA75 —
72928 — Cover, Rear Seat Cushion Under, LH
72928-0E030 Cover, Rear Seat Cushion Under, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72928-0E030 Cover, Rear Seat Cushion Under, LH
2024-05 → —
AXUH7#,SXUA75 —
72996A — Cover, Rear Seatback
72996-0E230 Cover, Rear Seatback
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72996-0E230 Cover, Rear Seatback
2024-05 → —
AXUH7#,SXUA75 —
79014 — Cover Sub-assy, NO.1 Seatback, LH
71078-0E660-C2 note Cover Sub-assy, NO.1 Seatback, LH
2021-08 → 2024-05 ended
AXUH7# N —
71078-0E670-C4 note Cover Sub-assy, NO.1 Seatback, LH
2021-08 → 2024-05 ended
AXUH79 N —
71078-0E670-C4 note Cover Sub-assy, NO.1 Seatback, LH
2021-08 → 2024-05 ended
AXUH79 M;SXUA75 M,N —
71078-0E680-C5 note Cover Sub-assy, NO.1 Seatback, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71078-0E680-D3 note Cover Sub-assy, NO.1 Seatback, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71078-0E670-C5 note Cover Sub-assy, NO.1 Seatback, LH
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71078-0E680-C6 note Cover Sub-assy, NO.1 Seatback, LH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71078-0E680-D4 note Cover Sub-assy, NO.1 Seatback, LH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71078-YK100-C2 note Cover Sub-assy, NO.1 Seatback, LH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71078-YK100-D2 note Cover Sub-assy, NO.1 Seatback, LH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71078-YK120-C3 note Cover Sub-assy, NO.1 Seatback, LH
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
79102 — Frame Sub-assy, NO.1 Seat Cushion, LH
79102-0E210 Frame Sub-assy, NO.1 Seat Cushion, LH
2021-08 → 2024-05 ended
AXUH7# —
79102-0E230 Frame Sub-assy, NO.1 Seat Cushion, LH
2022-09 → 2024-05 ended
SXUA75 —
79102-0E210 Frame Sub-assy, NO.1 Seat Cushion, LH
2024-05 → —
AXUH7# —
79102-0E230 Frame Sub-assy, NO.1 Seat Cushion, LH
2024-05 → —
SXUA75 —
79136B — Pad, NO.1 Seat Cushion, LH
71612-0E190 Pad, NO.1 Seat Cushion, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71612-0E190 Pad, NO.1 Seat Cushion, LH
2024-05 → —
AXUH7#,SXUA75 —
79185 — Pad, NO.1 Seatback, LH
71652-0E200 Pad, NO.1 Seatback, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71652-0E200 Pad, NO.1 Seatback, LH
2024-05 → —
AXUH7#,SXUA75 —
79687 — Clip
67773-07020 Clip
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
67773-07020 Clip
2024-05 → —
AXUH7#,SXUA75 —
87501F — Control Sub-assy, Seat Heater, LH
87501-06020 Control Sub-assy, Seat Heater, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
87501-06020 Control Sub-assy, Seat Heater, LH
2024-05 → —
AXUH79,SXUA75 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
