Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

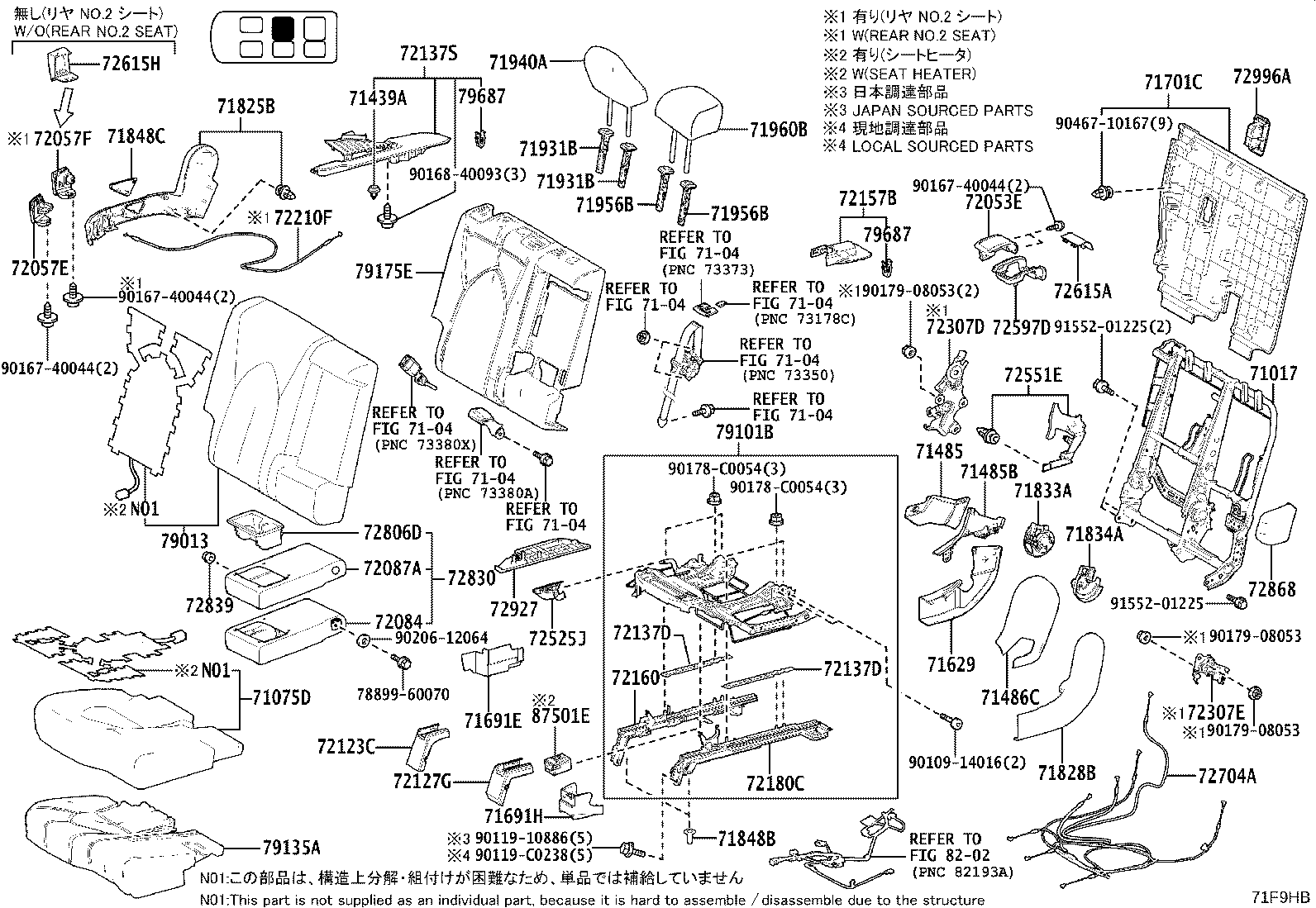

Exploded illustration 71F9HB 90178C0054 — not listed in this catalogue 90178C0054 — not listed in this catalogue 71848B — CAP, SEAT ADJUSTER COVER, RH (2 parts) 71825B — MOULDING, REAR SEAT CUSHION, RH (4 parts) 87501E — CONTROL SUB-ASSY, SEAT HEATER, RH (2 parts) 71701C — BOARD SUB-ASSY, REAR SEATBACK, RH (4 parts) 72160 — TRACK ASSY, REAR SEAT, OUTER RH (2 parts) 72180C — TRACK ASSY, REAR SEAT, INNER RH (4 parts) 72137D — COVER, REAR SEAT TRACK, RH (2 parts) 72137D — COVER, REAR SEAT TRACK, RH (2 parts) 71629 — COVER, REAR SEAT CUSHION HINGE (4 parts) 71828B — MOULDING, REAR SEAT CUSHION, REAR RH (4 parts) 71485 — COVER, REAR SEAT HINGE (4 parts) 72551E — COVER, RECLINING HINGE, RH (4 parts) 72053E — LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH (4 parts) 72615A — COVER, REAR SEATBACK LOCK STRIKER, RH (4 parts) 72597D — BEZEL, RECLINING REMOTE CONTROL, RH (2 parts) 71485B — COVER, REAR SEAT HINGE (4 parts) 79175E — PAD, NO.1 SEATBACK, RH (2 parts) 72830 — ARMREST ASSY, REAR SEAT, CENTER (12 parts) 72839 — SHIM, REAR SEAT ARMREST HINGE (2 parts) 71691H — COVER, REAR SEAT CUSHION HINGE, NO.2 (4 parts) 72525J — HANDLE, RECLINING ADJUSTER RELEASE, RH (4 parts) 72806D — HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP (4 parts) 72087A — COVER SUB-ASSY, REAR SEAT CENTER ARMREST (9 parts) 72084 — PAD SUB-ASSY, REAR SEAT CENTER ARMREST, NO.2 (2 parts) 71486C — COVER, REAR SEAT HINGE, LH (4 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (2 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (2 parts) 72868 — COVER, CENTER ARMREST HINGE, RH (4 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (2 parts) 71075D — COVER SUB-ASSY, REAR SEAT CUSHION, RH (13 parts) 72210F — CABLE ASSY, SEAT TRACK CONTROL (2 parts) 71848C — CAP, SEAT ADJUSTER COVER, RH (4 parts) 72057E — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1 (4 parts) 72057F — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.2 (4 parts) 72615H — COVER, REAR SEATBACK LOCK STRIKER, NO.1 (1 parts) 79013 — COVER SUB-ASSY, NO.1 SEATBACK, RH (13 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (8 parts) 79687 — CLIP (2 parts) 71439A — CLIP (2 parts) 79687 — CLIP (2 parts) 72157B — COVER, REAR SEAT TRACK BRACKET, INNER RH (4 parts) 72137S — COVER, SEAT TRACK BRACKET, OUTER REAR RH (4 parts) 71931B — SUPPORT ASSY, REAR NO.1 SEAT HEADREST (10 parts) 71931B — SUPPORT ASSY, REAR NO.1 SEAT HEADREST (10 parts) 71956B — SUPPORT, REAR SEAT HEADREST (8 parts) 71956B — SUPPORT, REAR SEAT HEADREST (8 parts) 71940A — HEADREST ASSY, REAR SEAT (14 parts) 9046710167 — not listed in this catalogue 7889960070 — not listed in this catalogue 9020612064 — not listed in this catalogue 72996A — COVER, REAR SEATBACK (2 parts) 9016740044 — not listed in this catalogue 8202 — not listed in this catalogue 72927 — COVER, REAR SEAT CUSHION UNDER, RH (2 parts) 72704A — CABLE, REAR SEAT RECLINING CONTROL (3 parts) 9017908053 — not listed in this catalogue 72307D — LINK SUB-ASSY, RECLINING CONTROL, RH NO.1 (2 parts) 9017908053 — not listed in this catalogue 9017908053 — not listed in this catalogue 9010914016 — not listed in this catalogue 9155201225 — not listed in this catalogue 9155201225 — not listed in this catalogue 72307E — LINK SUB-ASSY, RECLINING CONTROL, RH NO.2 (2 parts) 72123C — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (4 parts) 79135A — PAD, NO.1 SEAT CUSHION, RH (2 parts) 72127G — COVER, SEAT TRACK BRACKET, INNER FRONT RH (8 parts) 71691E — COVER, REAR SEAT CUSHION HINGE, NO.1 (4 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 79101B — FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH (4 parts) 9016740044 — not listed in this catalogue 9016840093 — not listed in this catalogue 9016740044 — not listed in this catalogue 90119C0238 — not listed in this catalogue 9011910886 — not listed in this catalogue
71F9HB · 57 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
229 parts on this figure
Part number Description Fitment Price
71017 — Frame Sub-assy, Rear Seatback, RH
71017-0E230 Frame Sub-assy, Rear Seatback, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71017-0E230 Frame Sub-assy, Rear Seatback, RH
2024-05 → —
AXUH7#,SXUA75 —
71075D — Cover Sub-assy, Rear Seat Cushion, RH
71075-0E650-C1 note Cover Sub-assy, Rear Seat Cushion, RH
2021-08 → 2024-05 ended
AXUH7# N —
71075-0E660-C3 note Cover Sub-assy, Rear Seat Cushion, RH
2021-08 → 2024-05 ended
AXUH79 M;SXUA75 M,N —
71075-0E660-C3 note Cover Sub-assy, Rear Seat Cushion, RH
2021-08 → 2024-05 ended
AXUH79 N —
71075-0E670-C3 note Cover Sub-assy, Rear Seat Cushion, RH
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
71075-0E670-D4 note Cover Sub-assy, Rear Seat Cushion, RH
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
71075-0E671-C3 note Cover Sub-assy, Rear Seat Cushion, RH
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
71075-0E671-D4 note Cover Sub-assy, Rear Seat Cushion, RH
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
71075-0E660-C3 note Cover Sub-assy, Rear Seat Cushion, RH
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71075-0E670-C3 note Cover Sub-assy, Rear Seat Cushion, RH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71075-0E670-D4 note Cover Sub-assy, Rear Seat Cushion, RH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71075-YK160-C1 note Cover Sub-assy, Rear Seat Cushion, RH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71075-YK160-D1 note Cover Sub-assy, Rear Seat Cushion, RH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71075-YK220-C1 note Cover Sub-assy, Rear Seat Cushion, RH
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71439A — Clip
90467-09232 Clip
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
90467-09232 Clip
2024-05 → —
AXUH7#,SXUA75 —
71485 — Cover, Rear Seat Hinge
71485-0E220-C0 note Cover, Rear Seat Hinge
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71485-0E220-C0 note Cover, Rear Seat Hinge
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71485-0E220-C0 note Cover, Rear Seat Hinge
2024-05 → —
AXUH79,SXUA75 G —
71485-0E220-C0 note Cover, Rear Seat Hinge
2024-05 → —
AXUH7#,SXUA75 M,N —
71485B — Cover, Rear Seat Hinge
71485-0E230-C0 note Cover, Rear Seat Hinge
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71485-0E230-C0 note Cover, Rear Seat Hinge
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71485-0E230-C0 note Cover, Rear Seat Hinge
2024-05 → —
AXUH79,SXUA75 G —
71485-0E230-C0 note Cover, Rear Seat Hinge
2024-05 → —
AXUH7#,SXUA75 M,N —
71486C — Cover, Rear Seat Hinge, LH
71486-0E130-C0 note Cover, Rear Seat Hinge, LH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71486-0E130-C0 note Cover, Rear Seat Hinge, LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71486-0E130-C0 note Cover, Rear Seat Hinge, LH
2024-05 → —
AXUH79,SXUA75 G —
71486-0E130-C0 note Cover, Rear Seat Hinge, LH
2024-05 → —
AXUH7#,SXUA75 M,N —
71629 — Cover, Rear Seat Cushion Hinge
71629-0E100-C0 note Cover, Rear Seat Cushion Hinge
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71629-0E100-C0 note Cover, Rear Seat Cushion Hinge
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71629-0E100-C0 note Cover, Rear Seat Cushion Hinge
2024-05 → —
AXUH79,SXUA75 G —
71629-0E100-C0 note Cover, Rear Seat Cushion Hinge
2024-05 → —
AXUH7#,SXUA75 M,N —
71691E — Cover, Rear Seat Cushion Hinge, NO.1
71691-0E070-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71691-0E070-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71691-0E070-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2024-05 → —
AXUH79,SXUA75 G —
71691-0E070-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2024-05 → —
AXUH7#,SXUA75 M,N —
71691H — Cover, Rear Seat Cushion Hinge, NO.2
71693-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71693-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71693-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2024-05 → —
AXUH79,SXUA75 G —
71693-0E080-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2024-05 → —
AXUH7#,SXUA75 M,N —
71701C — Board Sub-assy, Rear Seatback, RH
71701-0E040-C0 note Board Sub-assy, Rear Seatback, RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71701-0E040-C0 note Board Sub-assy, Rear Seatback, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71701-0E040-C0 note Board Sub-assy, Rear Seatback, RH
2024-05 → —
AXUH79,SXUA75 G —
71701-0E040-C0 note Board Sub-assy, Rear Seatback, RH
2024-05 → —
AXUH7#,SXUA75 M,N —
71825B — Moulding, Rear Seat Cushion, RH
71825-0E130-C0 note Moulding, Rear Seat Cushion, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71825-0E130-C0 note Moulding, Rear Seat Cushion, RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71825-0E130-C0 note Moulding, Rear Seat Cushion, RH
2024-05 → —
AXUH79,SXUA75 G —
71825-0E130-C0 note Moulding, Rear Seat Cushion, RH
2024-05 → —
AXUH7#,SXUA75 M,N —
71828B — Moulding, Rear Seat Cushion, Rear RH
71828-0E160-C0 note Moulding, Rear Seat Cushion, Rear RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71828-0E160-C0 note Moulding, Rear Seat Cushion, Rear RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71828-0E160-C0 note Moulding, Rear Seat Cushion, Rear RH
2024-05 → —
AXUH79,SXUA75 G —
71828-0E160-C0 note Moulding, Rear Seat Cushion, Rear RH
2024-05 → —
AXUH7#,SXUA75 M,N —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-0E100 Cover, Rear Seat Reclining, NO.1 RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71833-0E100 Cover, Rear Seat Reclining, NO.1 RH
2024-05 → —
AXUH7#,SXUA75 —
71834A — Cover, Rear Seat Reclining, NO.1 LH
71834-0E110 Cover, Rear Seat Reclining, NO.1 LH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71834-0E110 Cover, Rear Seat Reclining, NO.1 LH
2024-05 → —
AXUH7#,SXUA75 —
71848B — Cap, Seat Adjuster Cover, RH
71848-0E100 Cap, Seat Adjuster Cover, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71848-0E100 Cap, Seat Adjuster Cover, RH
2024-05 → 2025-09 ended
AXUH7#,SXUA75 —
71848C — Cap, Seat Adjuster Cover, RH
71848-0E190-C0 note Cap, Seat Adjuster Cover, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71848-0E190-C0 note Cap, Seat Adjuster Cover, RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71848-0E190-C0 note Cap, Seat Adjuster Cover, RH
2024-05 → —
AXUH7#,SXUA75 M,N —
71848-0E190-C0 note Cap, Seat Adjuster Cover, RH
2024-05 → —
AXUH79,SXUA75 G —
71931B — Support Assy, Rear NO.1 Seat Headrest
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71930-06070-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
SXUA75 M,N —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71931-06060-C0 note Support Assy, Rear NO.1 Seat Headrest
2024-05 → 2025-09 ended
SXUA75 M,N —
71940A — Headrest Assy, Rear Seat
71940-0E440-C1 note Headrest Assy, Rear Seat
2021-08 → 2024-05 ended
AXUH7# N —
71940-0E450-C3 note Headrest Assy, Rear Seat
2021-08 → 2024-02 ended
AXUH79 M;SXUA75 M,N —
71940-0E450-C3 note Headrest Assy, Rear Seat
2021-08 → 2024-02 ended
AXUH79 N —
71940-0E450-C3 note Headrest Assy, Rear Seat
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
71940-0E450-D3 note Headrest Assy, Rear Seat
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
71940-0E451-C3 note Headrest Assy, Rear Seat
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
71940-0E451-C3 note Headrest Assy, Rear Seat
2024-02 → 2024-05 ended
AXUH79 M;SXUA75 M,N —
71940-0E451-C3 note Headrest Assy, Rear Seat
2024-02 → 2024-05 ended
AXUH79 N —
71940-0E451-D3 note Headrest Assy, Rear Seat
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
71940-0E450-C3 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH7#,SXUA75 —
71940-0E450-D3 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71940-YK110-C8 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71940-YK110-C9 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71940-YK170-C0 note Headrest Assy, Rear Seat
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71956B — Support, Rear Seat Headrest
71930-06070-C0 note Support, Rear Seat Headrest
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71930-06070-C0 note Support, Rear Seat Headrest
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71931-06060-C0 note Support, Rear Seat Headrest
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71931-06060-C0 note Support, Rear Seat Headrest
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
71930-06070-C0 note Support, Rear Seat Headrest
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71930-06070-C0 note Support, Rear Seat Headrest
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71931-06060-C0 note Support, Rear Seat Headrest
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71931-06060-C0 note Support, Rear Seat Headrest
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71960B — Headrest Assy, Rear Seat, Center
71960-0E340-C1 note Headrest Assy, Rear Seat, Center
2021-08 → 2024-05 ended
AXUH7# N —
71960-0E350-C2 note Headrest Assy, Rear Seat, Center
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
71960-0E350-C2 note Headrest Assy, Rear Seat, Center
2021-08 → 2024-05 ended
AXUH79 M;SXUA75 M,N —
71960-0E350-C2 note Headrest Assy, Rear Seat, Center
2021-08 → 2024-05 ended
AXUH79 N —
71960-0E350-C2 note Headrest Assy, Rear Seat, Center
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71960-0E350-C2 note Headrest Assy, Rear Seat, Center
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71960-YK010-C0 note Headrest Assy, Rear Seat, Center
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71960-YK010-C0 note Headrest Assy, Rear Seat, Center
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
72053E — Lever Sub-assy, Reclining Remote Control, RH
72053-0E050-C0 note Lever Sub-assy, Reclining Remote Control, RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72053-0E050-C0 note Lever Sub-assy, Reclining Remote Control, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72053-0E050-C0 note Lever Sub-assy, Reclining Remote Control, RH
2024-05 → —
AXUH79,SXUA75 G —
72053-0E050-C0 note Lever Sub-assy, Reclining Remote Control, RH
2024-05 → —
AXUH7#,SXUA75 M,N —
72057E — Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057-0E130-C0 note Lever Sub-assy, Rear Seat Lock Control, RH NO.1
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72057-0E130-C0 note Lever Sub-assy, Rear Seat Lock Control, RH NO.1
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72057-0E130-C0 note Lever Sub-assy, Rear Seat Lock Control, RH NO.1
2024-05 → —
AXUH79,SXUA75 G —
72057-0E130-C0 note Lever Sub-assy, Rear Seat Lock Control, RH NO.1
2024-05 → —
AXUH7#,SXUA75 M,N —
72057F — Lever Sub-assy, Rear Seat Lock Control, RH NO.2
72057-0E140-C0 note Lever Sub-assy, Rear Seat Lock Control, RH NO.2
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72057-0E140-C0 note Lever Sub-assy, Rear Seat Lock Control, RH NO.2
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72057-0E140-C0 note Lever Sub-assy, Rear Seat Lock Control, RH NO.2
2024-05 → —
AXUH7#,SXUA75 M,N —
72057-0E140-C0 note Lever Sub-assy, Rear Seat Lock Control, RH NO.2
2024-05 → —
AXUH79,SXUA75 G —
72084 — Pad Sub-assy, Rear Seat Center Armrest, NO.2
72084-0E080 Pad Sub-assy, Rear Seat Center Armrest, NO.2
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72084-0E080 Pad Sub-assy, Rear Seat Center Armrest, NO.2
2024-05 → —
AXUH7#,SXUA75 —
72087A — Cover Sub-assy, Rear Seat Center Armrest
72087-0E270-C0 note Cover Sub-assy, Rear Seat Center Armrest
2021-08 → 2024-05 ended
AXUH7# N —
72087-0E280-C1 note Cover Sub-assy, Rear Seat Center Armrest
2021-08 → 2024-05 ended
AXUH79 M;SXUA75 M,N —
72087-0E280-C1 note Cover Sub-assy, Rear Seat Center Armrest
2021-08 → 2024-05 ended
AXUH79 N —
72087-0E280-C3 note Cover Sub-assy, Rear Seat Center Armrest
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
72087-0E290-C0 note Cover Sub-assy, Rear Seat Center Armrest
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
72087-0E280-C1 note Cover Sub-assy, Rear Seat Center Armrest
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
72087-0E290-C0 note Cover Sub-assy, Rear Seat Center Armrest
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
72087-YK030-C1 note Cover Sub-assy, Rear Seat Center Armrest
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
72087-YK030-C1 note Cover Sub-assy, Rear Seat Center Armrest
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
72123C — Cover, Seat Track Bracket, Outer Front RH
72123-0E210-C0 note Cover, Seat Track Bracket, Outer Front RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72123-0E210-C0 note Cover, Seat Track Bracket, Outer Front RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72123-0E210-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-05 → —
AXUH79,SXUA75 G —
72123-0E210-C0 note Cover, Seat Track Bracket, Outer Front RH
2024-05 → —
AXUH7#,SXUA75 M,N —
72127G — Cover, Seat Track Bracket, Inner Front RH
72127-0E150-C0 note Cover, Seat Track Bracket, Inner Front RH
2021-08 → 2024-05 ended
AXUH7# M,N —
72127-0E150-C0 note Cover, Seat Track Bracket, Inner Front RH
2021-08 → 2024-05 ended
AXUH79 G —
72127-0E170-C0 note Cover, Seat Track Bracket, Inner Front RH
2022-09 → 2024-05 ended
SXUA75 M,N —
72127-0E170-C0 note Cover, Seat Track Bracket, Inner Front RH
2022-09 → 2024-05 ended
SXUA75 G —
72127-0E150-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-05 → —
AXUH79 G —
72127-0E150-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-05 → —
AXUH7# M,N —
72127-0E170-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-05 → —
SXUA75 M,N —
72127-0E170-C0 note Cover, Seat Track Bracket, Inner Front RH
2024-05 → —
SXUA75 G —
72137D — Cover, Rear Seat Track, RH
72137-0E290 Cover, Rear Seat Track, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72137-0E290 Cover, Rear Seat Track, RH
2024-05 → —
AXUH7#,SXUA75 —
72137S — Cover, Seat Track Bracket, Outer Rear RH
72137-0E260-C0 note Cover, Seat Track Bracket, Outer Rear RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72137-0E260-C0 note Cover, Seat Track Bracket, Outer Rear RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72137-0E260-C0 note Cover, Seat Track Bracket, Outer Rear RH
2024-05 → —
AXUH7#,SXUA75 M,N —
72137-0E260-C0 note Cover, Seat Track Bracket, Outer Rear RH
2024-05 → —
AXUH79,SXUA75 G —
72157B — Cover, Rear Seat Track Bracket, Inner RH
72157-0E210-C0 note Cover, Rear Seat Track Bracket, Inner RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72157-0E210-C0 note Cover, Rear Seat Track Bracket, Inner RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72157-0E210-C0 note Cover, Rear Seat Track Bracket, Inner RH
2024-05 → —
AXUH79,SXUA75 G —
72157-0E210-C0 note Cover, Rear Seat Track Bracket, Inner RH
2024-05 → —
AXUH7#,SXUA75 M,N —
72160 — Track Assy, Rear Seat, Outer RH
72160-0E170 Track Assy, Rear Seat, Outer RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72160-0E170 Track Assy, Rear Seat, Outer RH
2024-05 → —
AXUH7#,SXUA75 —
72180C — Track Assy, Rear Seat, Inner RH
72180-0E180 Track Assy, Rear Seat, Inner RH
2021-08 → 2024-05 ended
AXUH7# —
72180-0E200 Track Assy, Rear Seat, Inner RH
2022-09 → 2024-05 ended
SXUA75 —
72180-0E180 Track Assy, Rear Seat, Inner RH
2024-05 → —
AXUH7# —
72180-0E200 Track Assy, Rear Seat, Inner RH
2024-05 → —
SXUA75 —
72210F — Cable Assy, Seat Track Control
72210-0E090 Cable Assy, Seat Track Control
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72210-0E090 Cable Assy, Seat Track Control
2024-05 → —
AXUH7#,SXUA75 —
72307D — Link Sub-assy, Reclining Control, RH NO.1
72307-0E160 Link Sub-assy, Reclining Control, RH NO.1
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72307-0E160 Link Sub-assy, Reclining Control, RH NO.1
2024-05 → —
AXUH7#,SXUA75 —
72307E — Link Sub-assy, Reclining Control, RH NO.2
72307-0E170 Link Sub-assy, Reclining Control, RH NO.2
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72307-0E170 Link Sub-assy, Reclining Control, RH NO.2
2024-05 → —
AXUH7#,SXUA75 —
72525J — Handle, Reclining Adjuster Release, RH
72525-0E080-C0 note Handle, Reclining Adjuster Release, RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72525-0E080-C0 note Handle, Reclining Adjuster Release, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72525-0E080-C0 note Handle, Reclining Adjuster Release, RH
2024-05 → —
AXUH79,SXUA75 G —
72525-0E080-C0 note Handle, Reclining Adjuster Release, RH
2024-05 → —
AXUH7#,SXUA75 M,N —
72551E — Cover, Reclining Hinge, RH
72551-0E100-C0 note Cover, Reclining Hinge, RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72551-0E100-C0 note Cover, Reclining Hinge, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72551-0E100-C0 note Cover, Reclining Hinge, RH
2024-05 → —
AXUH79,SXUA75 G —
72551-0E100-C0 note Cover, Reclining Hinge, RH
2024-05 → —
AXUH7#,SXUA75 M,N —
72597D — Bezel, Reclining Remote Control, RH
72597-0E090 Bezel, Reclining Remote Control, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72597-0E090 Bezel, Reclining Remote Control, RH
2024-05 → —
AXUH7#,SXUA75 —
72615A — Cover, Rear Seatback Lock Striker, RH
72615-0E220-C0 note Cover, Rear Seatback Lock Striker, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72615-0E220-C0 note Cover, Rear Seatback Lock Striker, RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72615-0E220-C0 note Cover, Rear Seatback Lock Striker, RH
2024-05 → —
AXUH79,SXUA75 G —
72615-0E220-C0 note Cover, Rear Seatback Lock Striker, RH
2024-05 → —
AXUH7#,SXUA75 M,N —
72615H — Cover, Rear Seatback Lock Striker, NO.1
72615-0E260-C0 note Cover, Rear Seatback Lock Striker, NO.1
2021-08 → 2024-05 ended
AXUH71 —
72704A — Cable, Rear Seat Reclining Control
72704-0E270 Cable, Rear Seat Reclining Control
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72704-0E290 note Cable, Rear Seat Reclining Control
2021-08 → 2024-05 ended
AXUH71 —
72704-0E270 Cable, Rear Seat Reclining Control
2024-05 → —
AXUH7#,SXUA75 —
72806D — Holder Sub-assy, Rear Seat Center Armrest Cup
72806-0E030-C0 note Holder Sub-assy, Rear Seat Center Armrest Cup
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72806-0E030-C0 note Holder Sub-assy, Rear Seat Center Armrest Cup
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72806-0E030-C0 note Holder Sub-assy, Rear Seat Center Armrest Cup
2024-05 → —
AXUH79,SXUA75 G —
72806-0E030-C0 note Holder Sub-assy, Rear Seat Center Armrest Cup
2024-05 → —
AXUH7#,SXUA75 M,N —
72830 — Armrest Assy, Rear Seat, Center
72830-0E410-C2 note Armrest Assy, Rear Seat, Center
2021-08 → 2024-05 ended
AXUH7# N —
72830-0E420-C3 note Armrest Assy, Rear Seat, Center
2021-08 → 2024-05 ended
AXUH79 N —
72830-0E420-C3 note Armrest Assy, Rear Seat, Center
2021-08 → 2024-05 ended
AXUH79 M;SXUA75 M,N —
72830-0E420-C4 note Armrest Assy, Rear Seat, Center
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
72830-0E420-D0 note Armrest Assy, Rear Seat, Center
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
72830-0E430-C2 note Armrest Assy, Rear Seat, Center
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
72830-0E430-D0 note Armrest Assy, Rear Seat, Center
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
72830-0E420-C3 note Armrest Assy, Rear Seat, Center
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
72830-0E430-C2 note Armrest Assy, Rear Seat, Center
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
72830-0E430-D0 note Armrest Assy, Rear Seat, Center
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
72830-YK030-C1 note Armrest Assy, Rear Seat, Center
2024-05 → 2025-09 ended
AXUH7#,SXUA75 —
72830-YK030-D1 note Armrest Assy, Rear Seat, Center
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
72839 — Shim, Rear Seat Armrest Hinge
72839-22010 Shim, Rear Seat Armrest Hinge
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72839-22010 Shim, Rear Seat Armrest Hinge
2024-05 → —
AXUH7#,SXUA75 —
72868 — Cover, Center Armrest Hinge, RH
72868-0E080-C0 note Cover, Center Armrest Hinge, RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
72868-0E080-C0 note Cover, Center Armrest Hinge, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 M,N —
72868-0E080-C0 note Cover, Center Armrest Hinge, RH
2024-05 → —
AXUH79,SXUA75 G —
72868-0E080-C0 note Cover, Center Armrest Hinge, RH
2024-05 → —
AXUH7#,SXUA75 M,N —
72927 — Cover, Rear Seat Cushion Under, RH
72927-0E030 Cover, Rear Seat Cushion Under, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72927-0E030 Cover, Rear Seat Cushion Under, RH
2024-05 → —
AXUH7#,SXUA75 —
72996A — Cover, Rear Seatback
72996-0E230 Cover, Rear Seatback
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
72996-0E230 Cover, Rear Seatback
2024-05 → —
AXUH7#,SXUA75 —
79013 — Cover Sub-assy, NO.1 Seatback, RH
71077-0E760-C2 note Cover Sub-assy, NO.1 Seatback, RH
2021-08 → 2024-05 ended
AXUH7# N —
71077-0E770-C4 note Cover Sub-assy, NO.1 Seatback, RH
2021-08 → 2024-05 ended
AXUH79 M;SXUA75 M,N —
71077-0E770-C4 note Cover Sub-assy, NO.1 Seatback, RH
2021-08 → 2024-05 ended
AXUH79 N —
71077-0E780-C5 note Cover Sub-assy, NO.1 Seatback, RH
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
71077-0E780-D3 note Cover Sub-assy, NO.1 Seatback, RH
2021-08 → 2024-02 ended
AXUH79,SXUA75 G —
71077-0E781-C5 note Cover Sub-assy, NO.1 Seatback, RH
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
71077-0E781-D3 note Cover Sub-assy, NO.1 Seatback, RH
2024-02 → 2024-05 ended
AXUH79,SXUA75 G —
71077-0E770-C5 note Cover Sub-assy, NO.1 Seatback, RH
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
71077-0E780-C6 note Cover Sub-assy, NO.1 Seatback, RH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71077-0E780-D4 note Cover Sub-assy, NO.1 Seatback, RH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71077-YK170-C2 note Cover Sub-assy, NO.1 Seatback, RH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71077-YK170-D2 note Cover Sub-assy, NO.1 Seatback, RH
2024-05 → 2025-09 ended
AXUH79,SXUA75 G —
71077-YK200-C2 note Cover Sub-assy, NO.1 Seatback, RH
2024-05 → 2025-09 ended
AXUH7#,SXUA75 M,N —
79101B — Frame Sub-assy, NO.1 Seat Cushion, RH
79101-0E330 Frame Sub-assy, NO.1 Seat Cushion, RH
2021-08 → 2024-05 ended
AXUH7# —
79101-0E350 Frame Sub-assy, NO.1 Seat Cushion, RH
2022-09 → 2024-05 ended
SXUA75 —
79101-0E330 Frame Sub-assy, NO.1 Seat Cushion, RH
2024-05 → —
AXUH7# —
79101-0E350 Frame Sub-assy, NO.1 Seat Cushion, RH
2024-05 → —
SXUA75 —
79135A — Pad, NO.1 Seat Cushion, RH
71611-0E170 Pad, NO.1 Seat Cushion, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71611-0E170 Pad, NO.1 Seat Cushion, RH
2024-05 → —
AXUH7#,SXUA75 —
79175E — Pad, NO.1 Seatback, RH
71651-0E230 Pad, NO.1 Seatback, RH
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
71651-0E230 Pad, NO.1 Seatback, RH
2024-05 → —
AXUH7#,SXUA75 —
79687 — Clip
67773-07020 Clip
2021-08 → 2024-05 ended
AXUH7#,SXUA75 —
67773-07020 Clip
2024-05 → —
AXUH7#,SXUA75 —
87501E — Control Sub-assy, Seat Heater, RH
87501-06020 Control Sub-assy, Seat Heater, RH
2021-08 → 2024-05 ended
AXUH79,SXUA75 G —
87501-06020 Control Sub-assy, Seat Heater, RH
2024-05 → —
AXUH79,SXUA75 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
