Toyota Crown Kluger
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General
Supported model
Data version 2024-04

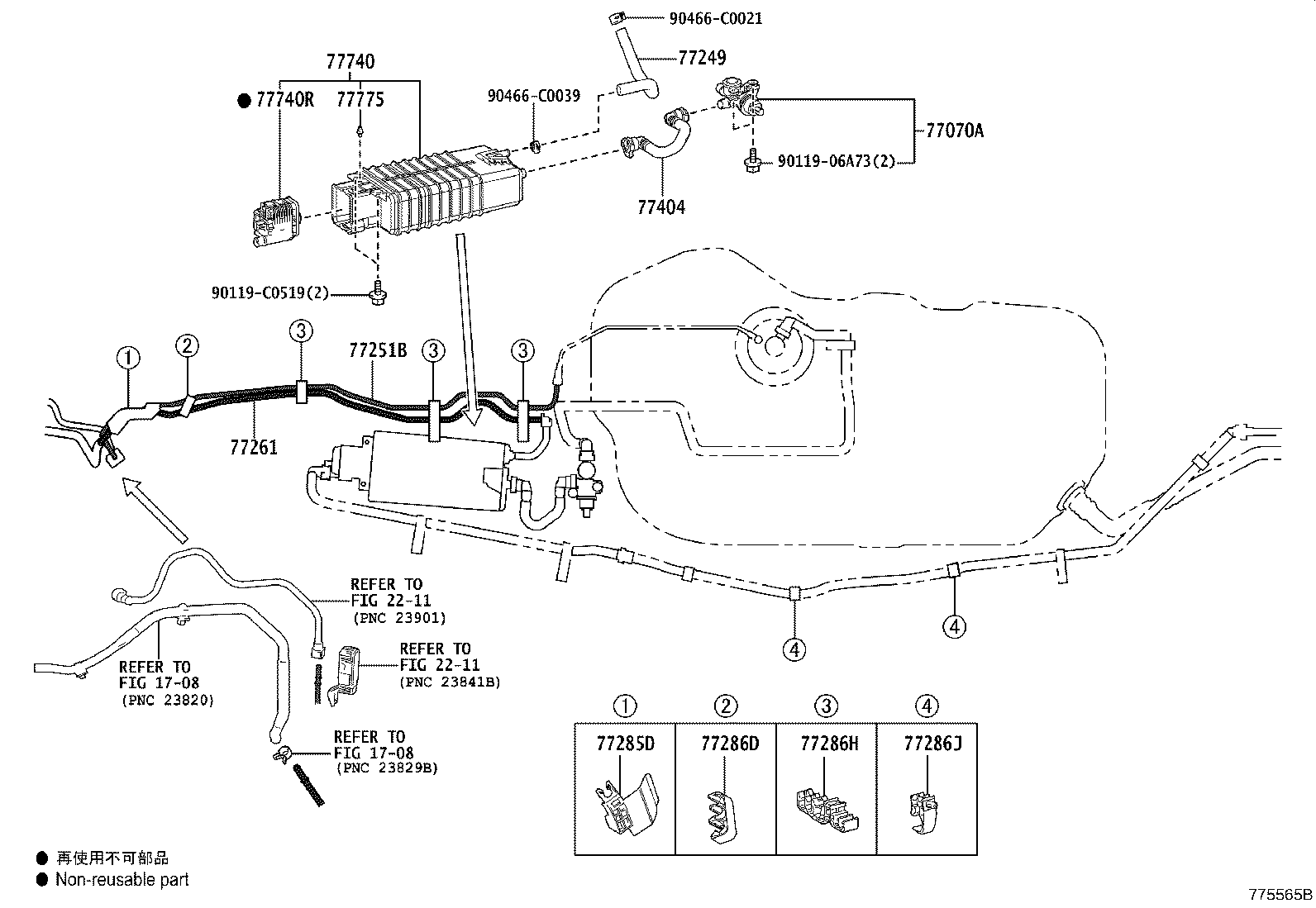

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77070A — Valve Assy, Close Tank | ||||
| 77070-0R010 note |
Valve Assy, Close Tank
2022-05 → 2024-05
ended
|
AXUH7# | — | |
| 77070-48010 note |
Valve Assy, Close Tank
2022-05 → 2022-10
ended
|
AXUH7# | — | |
| 77070-48010 |
Valve Assy, Close Tank
2021-08 → 2022-05
ended
|
AXUH7# | — | |
| 77070-0R010 note |
Valve Assy, Close Tank
2024-05 → —
|
AXUH7# | — | |
| 77249 — Hose, Fuel Emission | ||||
| 77249-0R070 |
Hose, Fuel Emission
2022-09 → 2024-05
ended
|
SXUA75 | — | |
| 77249-0R080 |
Hose, Fuel Emission
2021-08 → 2024-05
ended
|
AXUH7# | — | |
| 77249-0R070 |
Hose, Fuel Emission
2024-05 → —
|
SXUA75 | — | |
| 77249-0R080 |
Hose, Fuel Emission
2024-05 → —
|
AXUH7# | — | |
| 77251B — Tube, Fuel Main | ||||
| 77251-0E210 |
Tube, Fuel Main
2021-08 → 2024-05
ended
|
AXUH7# | — | |
| 77251-0E270 |
Tube, Fuel Main
2022-09 → 2024-05
ended
|
SXUA75 | — | |
| 77251-0E210 |
Tube, Fuel Main
2024-05 → —
|
AXUH7# | — | |
| 77251-0E270 |
Tube, Fuel Main
2024-05 → —
|
SXUA75 | — | |
| 77261 — Tube Sub-assy, Fuel Emission | ||||
| 77261-0E210 |
Tube Sub-assy, Fuel Emission
2021-08 → 2024-05
ended
|
AXUH7# | — | |
| 77261-0E270 |
Tube Sub-assy, Fuel Emission
2022-09 → 2024-05
ended
|
SXUA75 | — | |
| 77261-0E210 |
Tube Sub-assy, Fuel Emission
2024-05 → —
|
AXUH7# | — | |
| 77261-0E270 |
Tube Sub-assy, Fuel Emission
2024-05 → —
|
SXUA75 | — | |
| 77285D — Clamp, Fuel Tube, NO.1 | ||||
| 77285-0E220 |
Clamp, Fuel Tube, NO.1
2021-08 → 2024-05
ended
|
AXUH7# | — | |
| 77285-0E320 |
Clamp, Fuel Tube, NO.1
2022-09 → 2024-05
ended
|
SXUA75 | — | |
| 77285-0E220 |
Clamp, Fuel Tube, NO.1
2024-05 → —
|
AXUH7# | — | |
| 77285-0E320 |
Clamp, Fuel Tube, NO.1
2024-05 → —
|
SXUA75 | — | |
| 77286D — Clamp, Fuel Tube, NO.2 | ||||
| 77285-0R130 |
Clamp, Fuel Tube, NO.2
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 77285-0R130 |
Clamp, Fuel Tube, NO.2
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 77286H — Clamp, Fuel Tube, NO.3 | ||||
| 77285-0R110 |
Clamp, Fuel Tube, NO.3
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 77285-0R110 |
Clamp, Fuel Tube, NO.3
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 77286J — Clamp, Fuel Tube, NO.4 | ||||
| 77285-0R140 |
Clamp, Fuel Tube, NO.4
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 77285-0R140 |
Clamp, Fuel Tube, NO.4
2024-05 → —
|
AXUH7#,SXUA75 | — | |
| 77404 — Hose Sub-assy, Fuel Tank Vent | ||||
| 77404-0E130 |
Hose Sub-assy, Fuel Tank Vent
2021-08 → 2024-05
ended
|
AXUH7# | — | |
| 77404-0E130 |
Hose Sub-assy, Fuel Tank Vent
2024-05 → —
|
AXUH7# | — | |
| 77740 — Canister Assy, Charcoal | ||||
| 77740-07030 |
Canister Assy, Charcoal
2021-08 → 2024-05
ended
|
AXUH7# | — | |
| 77740-0E170 |
Canister Assy, Charcoal
2022-09 → 2024-05
ended
|
SXUA75 | — | |
| 77740-07031 |
Canister Assy, Charcoal
2024-05 → —
|
AXUH7# | — | |
| 77740-0E170 |
Canister Assy, Charcoal
2024-05 → —
|
SXUA75 | — | |
| 77740R — Pump Sub-assy, Leak Detection | ||||
| 90910-CF002 |
Pump Sub-assy, Leak Detection
2021-08 → 2024-05
ended
|
AXUH7# | — | |
| 90910-CF002 |
Pump Sub-assy, Leak Detection
2024-05 → —
|
AXUH7# | — | |
| 77775 — Guide, Charcoal Canister Outlet | ||||
| 77775-33010 |
Guide, Charcoal Canister Outlet
2021-08 → 2024-05
ended
|
AXUH7# | — | |
| 77775-33010 |
Guide, Charcoal Canister Outlet
2024-05 → —
|
AXUH7# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
