Toyota Crown Kluger
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General
Supported model
Data version 2024-04

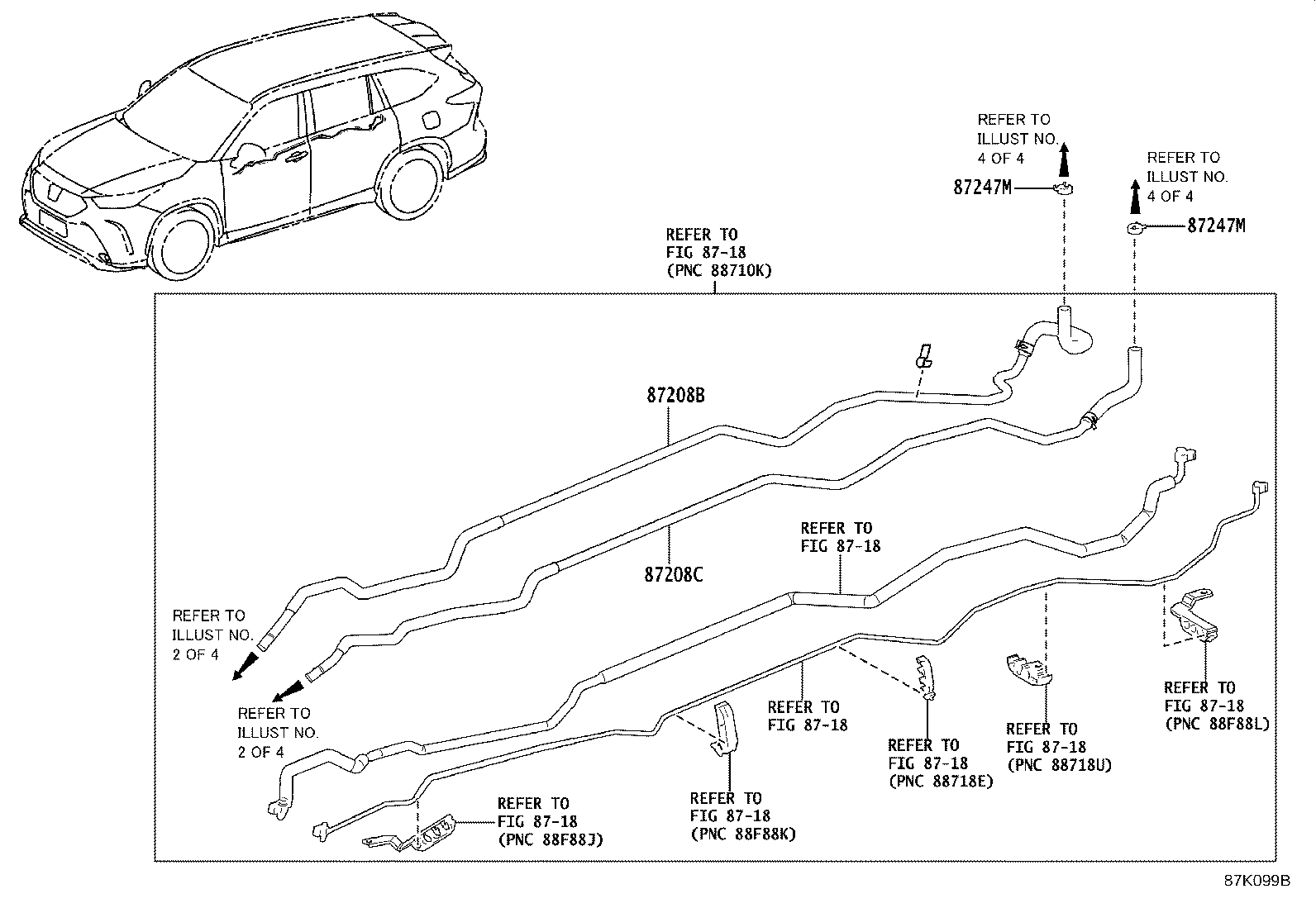

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87208B — Pipe Sub-assy, Heater Water, B | ||||
| 87207-0E090 |
Pipe Sub-assy, Heater Water, B
2021-08 → 2023-04
ended
|
AXUH7# | — | |
| 87207-0E091 |
Pipe Sub-assy, Heater Water, B
2023-04 → 2024-05
ended
|
AXUH7# | — | |
| 87207-0E260 |
Pipe Sub-assy, Heater Water, B
2022-09 → 2023-04
ended
|
SXUA75 | — | |
| 87207-0E261 |
Pipe Sub-assy, Heater Water, B
2023-04 → 2024-05
ended
|
SXUA75 | — | |
| 87207-0E091 |
Pipe Sub-assy, Heater Water, B
2024-05 → —
|
AXUH7# | — | |
| 87207-0E261 |
Pipe Sub-assy, Heater Water, B
2024-05 → —
|
SXUA75 | — | |
| 87208C — Pipe Sub-assy, Heater Water, C | ||||
| 87207-0E080 |
Pipe Sub-assy, Heater Water, C
2021-08 → 2023-04
ended
|
AXUH7# | — | |
| 87207-0E081 |
Pipe Sub-assy, Heater Water, C
2023-04 → 2024-05
ended
|
AXUH7# | — | |
| 87207-0E270 |
Pipe Sub-assy, Heater Water, C
2022-09 → 2023-04
ended
|
SXUA75 | — | |
| 87207-0E271 |
Pipe Sub-assy, Heater Water, C
2023-04 → 2024-05
ended
|
SXUA75 | — | |
| 87207-0E081 |
Pipe Sub-assy, Heater Water, C
2024-05 → —
|
AXUH7# | — | |
| 87207-0E271 |
Pipe Sub-assy, Heater Water, C
2024-05 → —
|
SXUA75 | — | |
| 87247M — Clip, Hose | ||||
| 90466-C0014 |
Clip, Hose
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 90466-C0014 |
Clip, Hose
2024-05 → —
|
AXUH7#,SXUA75 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
