Toyota Crown Kluger
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General
Supported model
Data version 2024-04

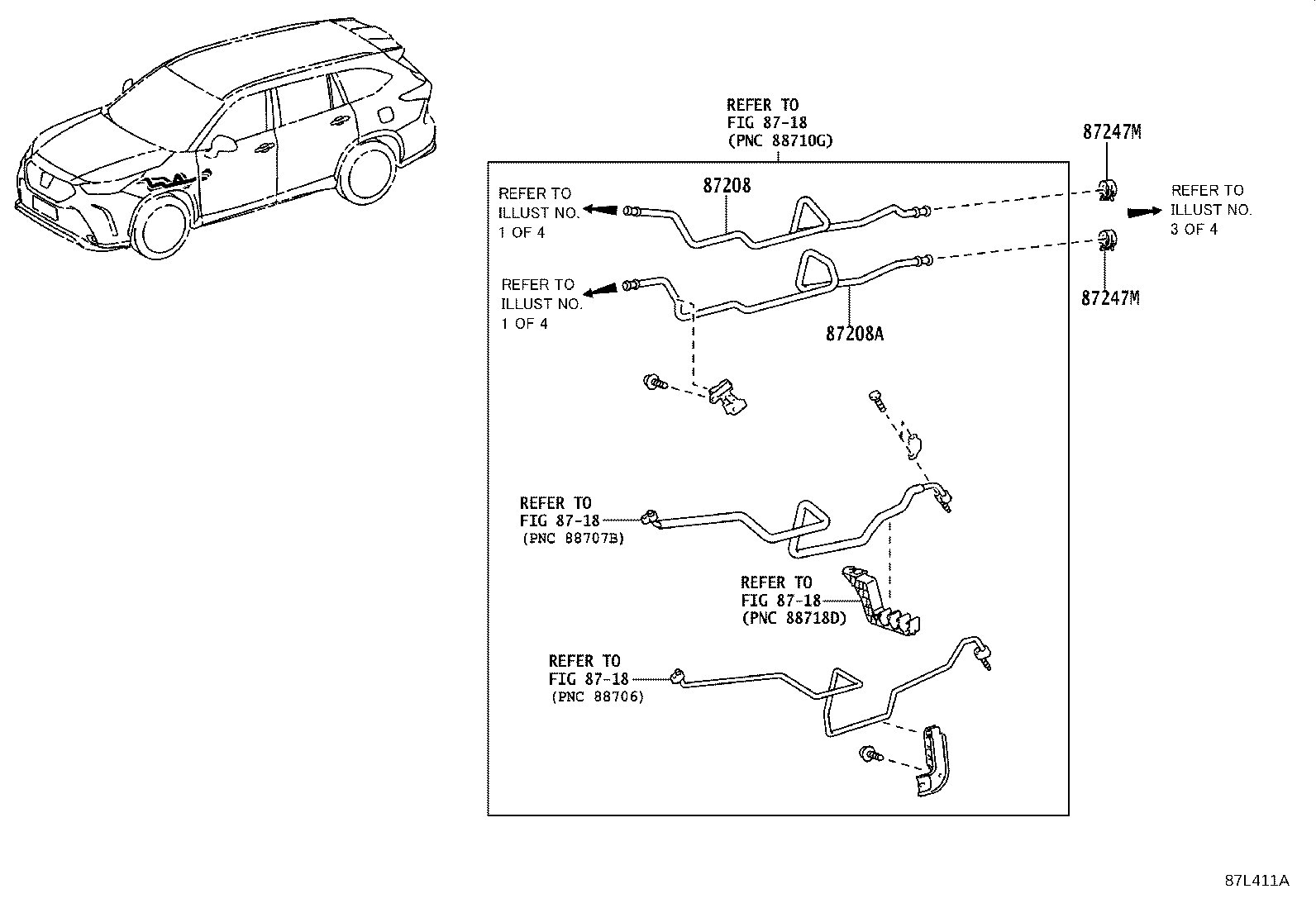

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87208 — Pipe Sub-assy, Heater Water | ||||
| 87208-0E340 |
Pipe Sub-assy, Heater Water
2022-09 → 2024-05
ended
|
SXUA75 | — | |
| 87208-0E340 |
Pipe Sub-assy, Heater Water
2024-05 → —
|
SXUA75 | — | |
| 87208A — Pipe Sub-assy, Heater Water, A | ||||
| 87208-0E350 |
Pipe Sub-assy, Heater Water, A
2022-09 → 2024-05
ended
|
SXUA75 | — | |
| 87208-0E350 |
Pipe Sub-assy, Heater Water, A
2024-05 → —
|
SXUA75 | — | |
| 87247M — Clip, Hose | ||||
| 90466-C0014 |
Clip, Hose
2021-08 → 2024-05
ended
|
AXUH7#,SXUA75 | — | |
| 90466-C0014 |
Clip, Hose
2024-05 → —
|
AXUH7#,SXUA75 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
