Toyota Crown Kluger
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General
Supported model
Data version 2024-04

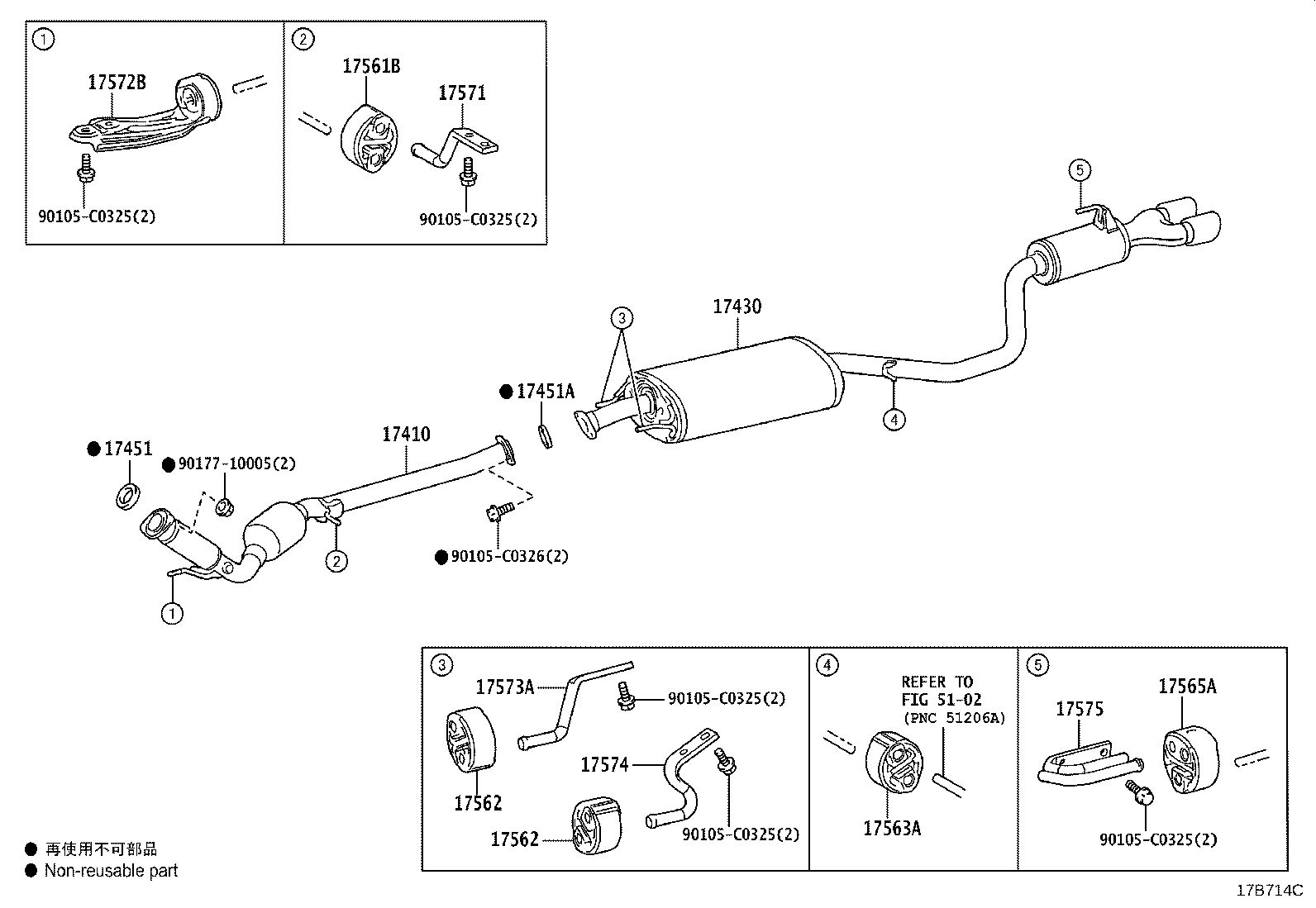

Exhaust Pipe
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
