Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

16 part groups · 2 illustrations

Illustrations

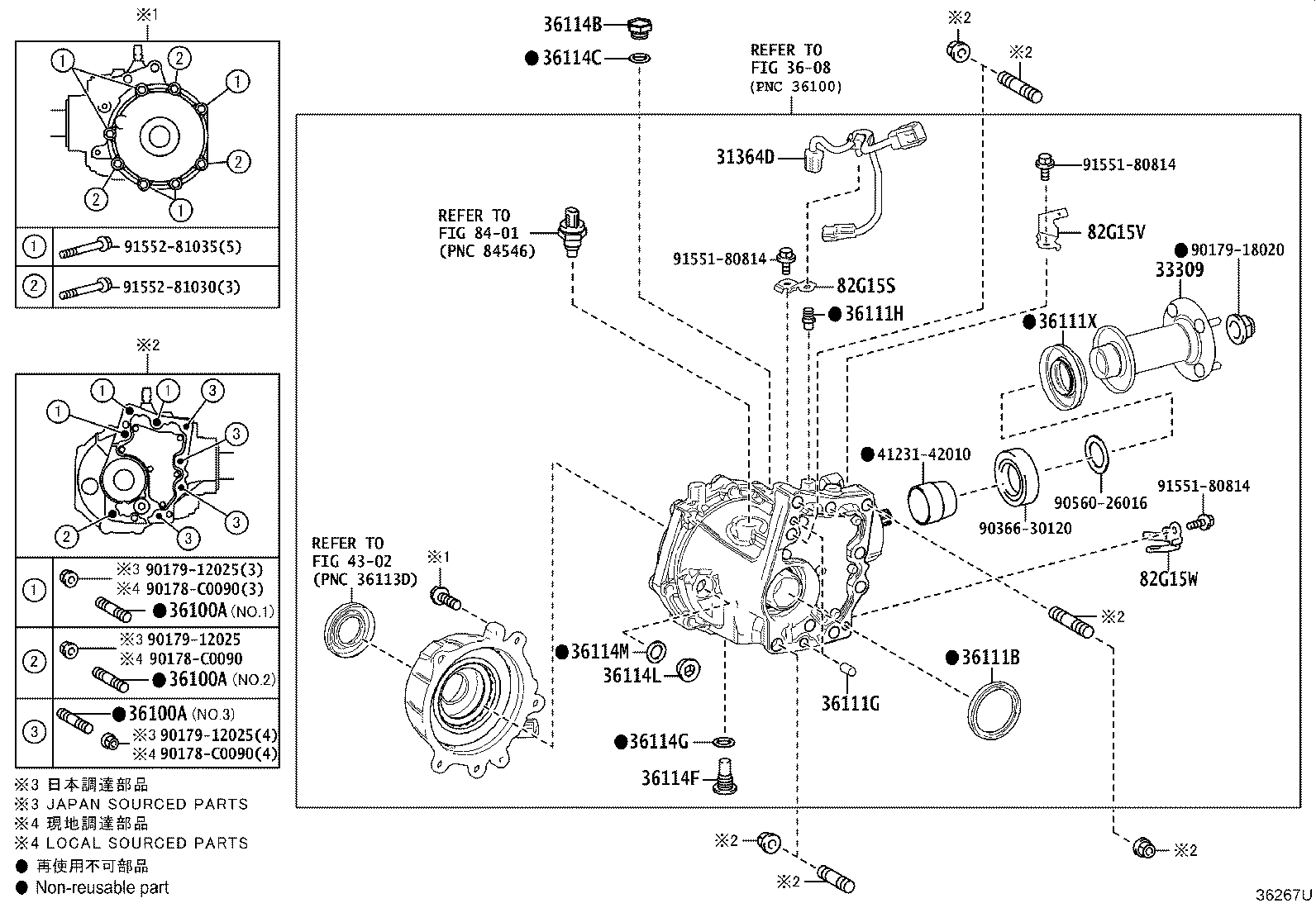

Figure 362594C 362594C 2022-09 → — Figure 36267U 36267U 2024-05 → —

Part groups

PNCDescription
31364D Wire, Clutch Control Solenoid
33309 Flange Sub-assy, Transfer Output Shaft Companion
36100A Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING)
36111B Seal, Oil (FOR TRANSFER CASE)
36111G Pin, Straight (FOR TRANSFER CASE)
36111H Plug, Breather (FOR TRANSFER CASE)
36111X Seal, Oil (FOR TRANSFER CASE), NO.2
36114B Plug, NO.1 (FOR TRANSFER CASE)
36114C Gasket, NO.1 (FOR TRANSFER CASE)
36114F Plug (FOR TRANSFER DRAIN)
36114G Gasket (FOR TRANSFER DRAIN PLUG)
36114L Plug, Filler(FOR TRANSFER)
36114M Gasket (FOR TRANSFER FILLER PLUG)
82G15S Bracket, Wiring Harness Clamp
82G15V Bracket, Wiring Harness Clamp, NO.2
82G15W Bracket, Wiring Harness Clamp, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
