Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04

Suspension Crossmember & Under Cover

38 part groups · 4 illustrations

PNC	Description

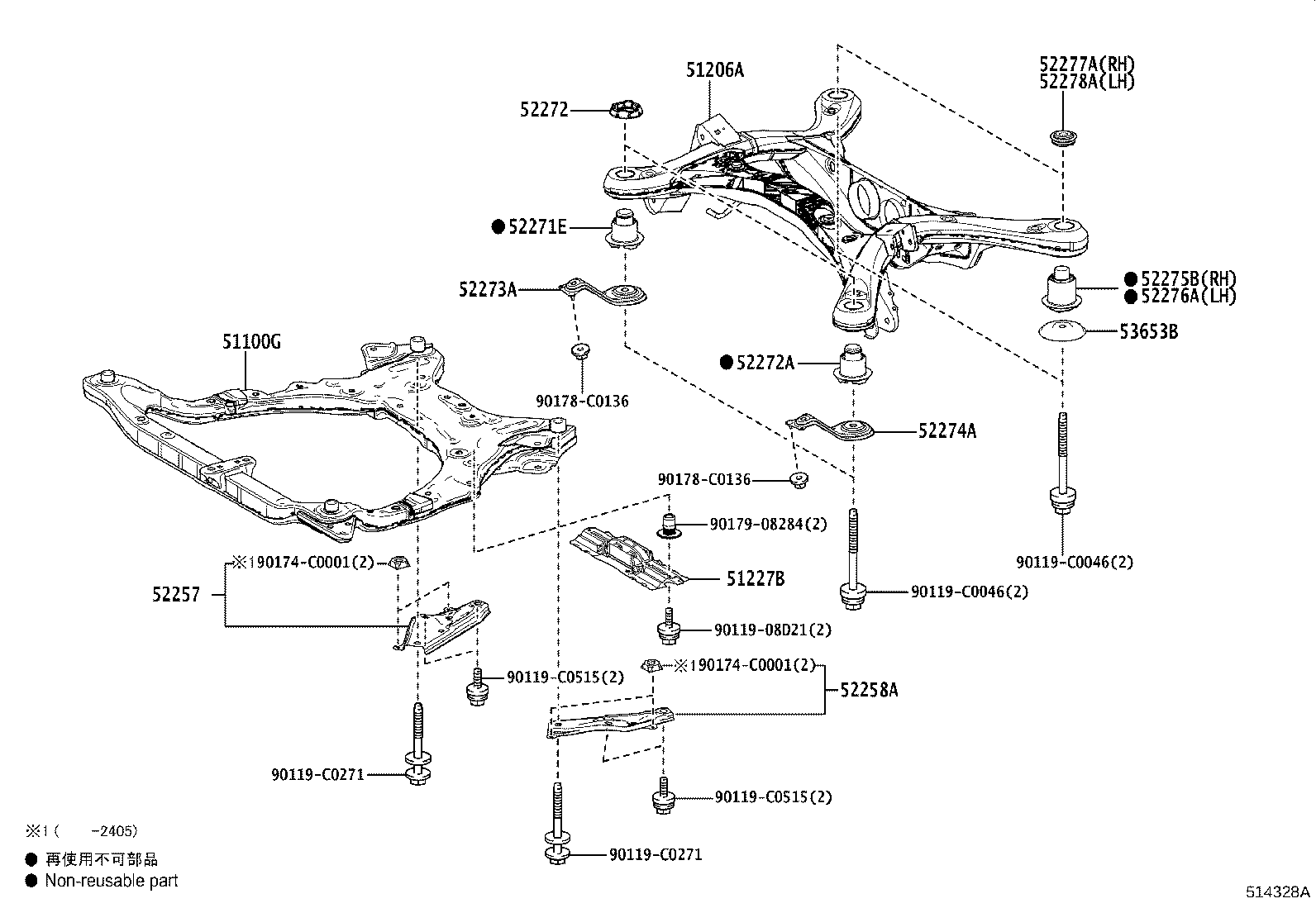

51100G	Frame Assy, Front
51206A	Member Sub-assy, Rear Suspension
51227B	Damper, Front Suspension Member Dynamic

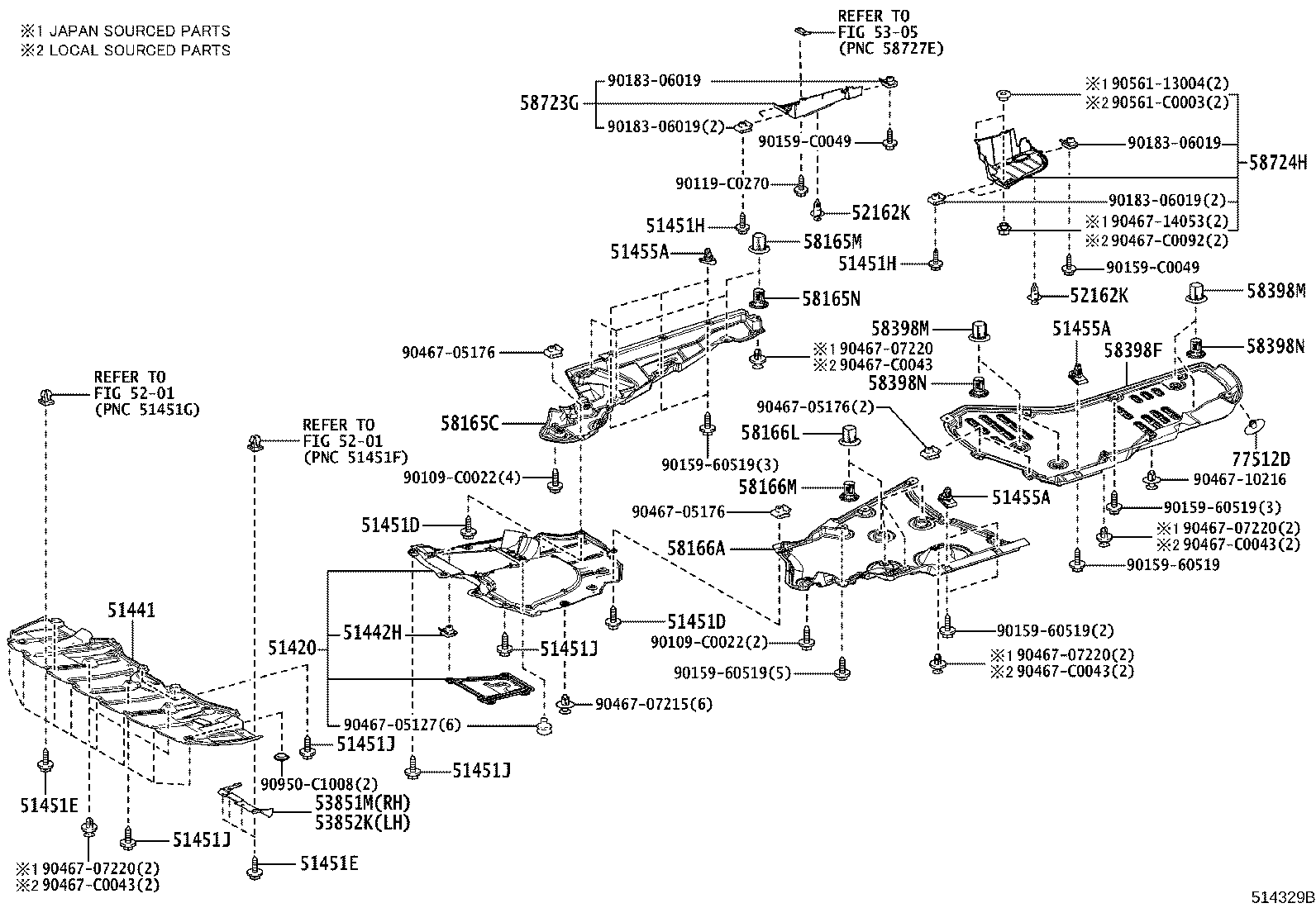

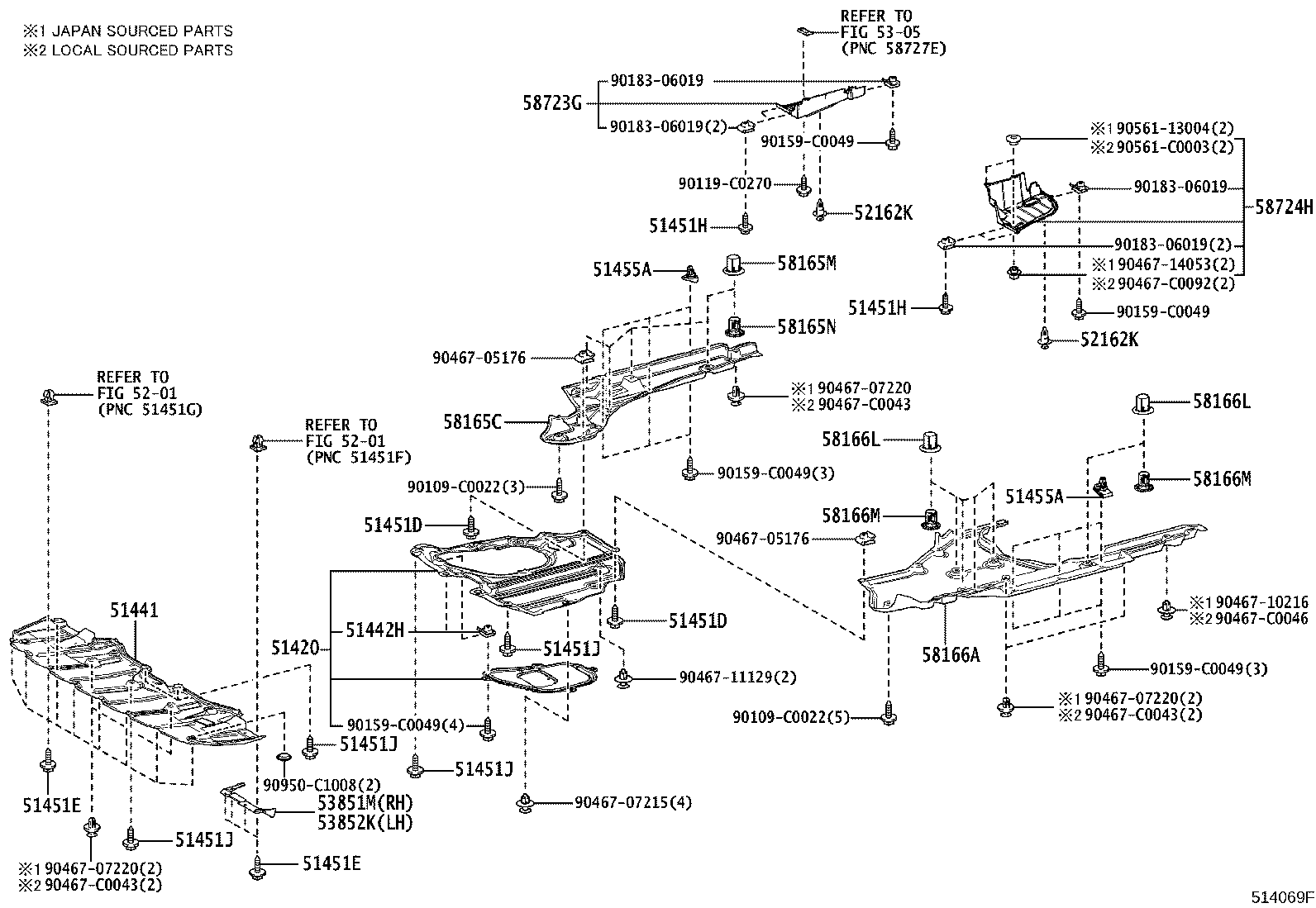

51420	Cover Assy, Engine Under, NO.2
51441	Cover, Engine Under, NO.1
51442H	Clip, Engine Under Cover, NO.2
51451D	Screw, NO.1
51451E	Screw, NO.2
51451H	Screw, NO.3
51451J	Bolt, NO.1
51455A	Seal, Engine Under Cover, NO.1
52162K	Piece, Rear Bumper
52257	Brace, Front Suspension Member, Rear RH
52258A	Brace, Front Suspension Member, Rear LH
52271E	Cushion, Rear Suspension Member Body Mounting, Front RH
52272	Stopper, Rear Suspension Member, Upper
52272A	Cushion, Rear Suspension Member Body Mounting, Front LH
52273A	Stopper, Rear Suspension Member, Lower RH
52274A	Stopper, Rear Suspension Member, Lower LH
52275B	Cushion, Rear Suspension Member Body Mount, Rear RH
52276A	Cushion, Rear Suspension Member Body Mount, Rear LH
52277A	Retainer, Rear Suspension Member Lower Stopper, RH
52278A	Retainer, Rear Suspension Menber Lower Stopper, LH
53653B	Brace, Rear Suspension, Lower
53851M	Pad, Front Wheel Opening Extension, RH
53852K	Pad, Front Wheel Opening Extension, LH
58165C	Cover, Front Floor, RH
58165M	Clip, Front Floor Cover, NO.1
58165N	Clip, Front Floor Cover, NO.2
58166A	Cover, Front Floor, LH
58166L	Clip, Front Floor Cover, NO.1
58166M	Clip, Front Floor Cover, NO.2
58398F	Cover, Floor Under, NO.1
58398M	Clip, Floor Under Cover, NO.1
58398N	Clip, Floor Under Cover, NO.2
58723G	Protector, Luggage Compartment Side Cover, NO.1
58724H	Protector, Luggage Compartment Side Cover, NO.2
77512D	Bracket, Fuel Tank

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
