Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

30 part groups · 3 illustrations

Illustrations

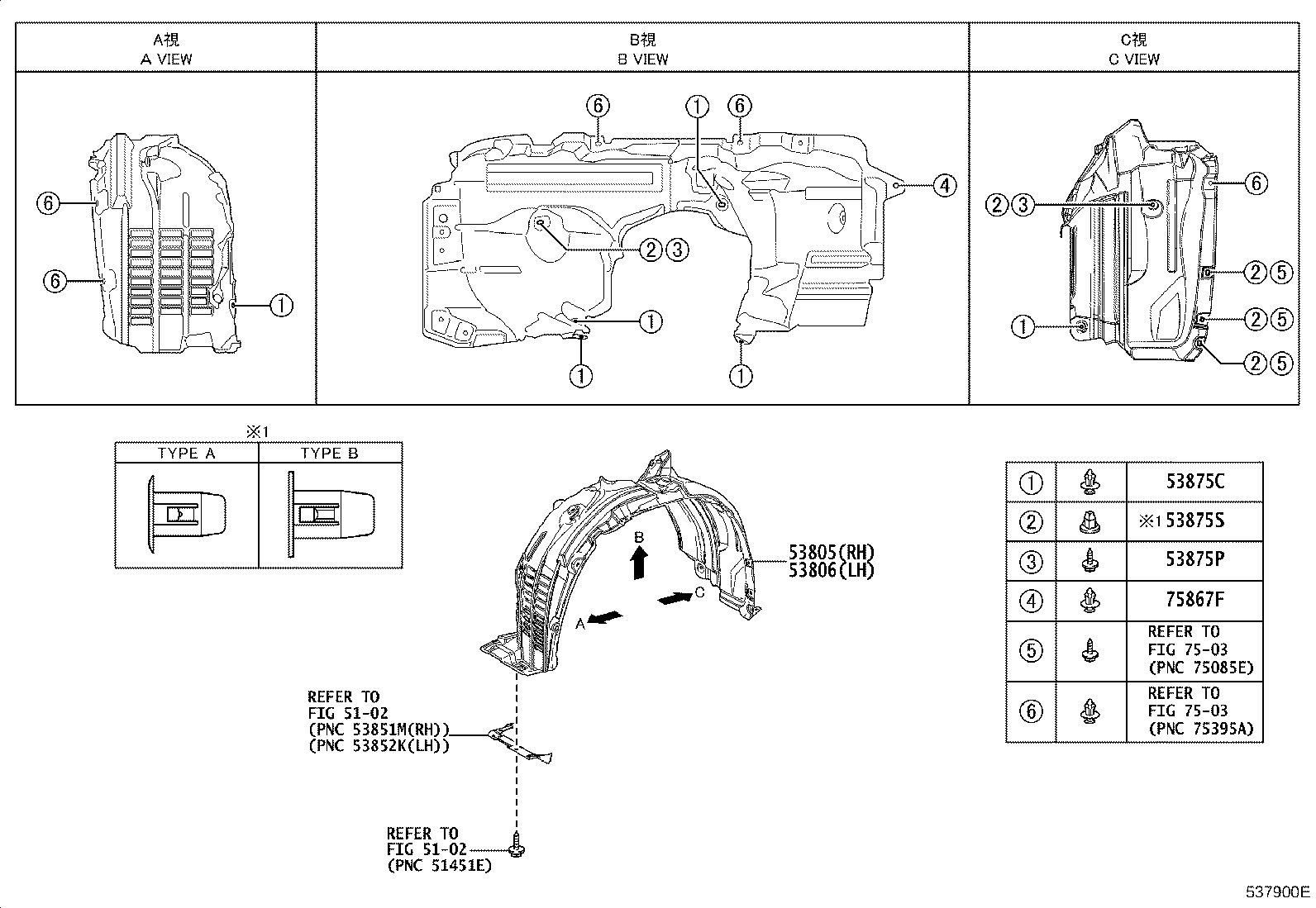

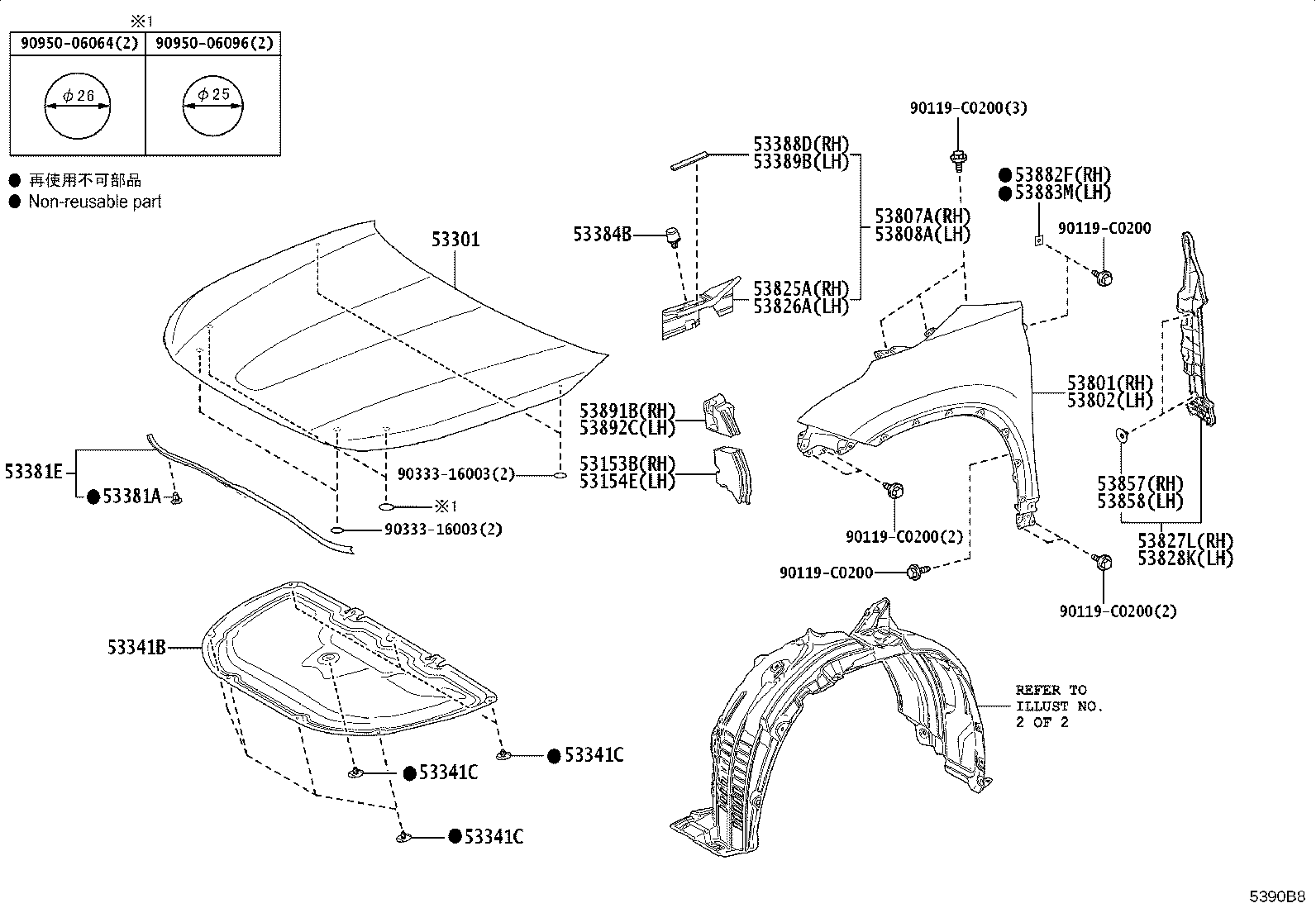

Figure 537899B 537899B 2021-08 → 2024-05 Figure 5390B8 5390B8 2024-05 → — Figure 537900E 537900E 2021-08 → —

Part groups

PNCDescription
53153B Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381E Seal, Hood TO Radiator Support
53384B Cushion, Hood, Center
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53807A Shield Sub-assy, Fender Splash, Rear RH
53808A Shield Sub-assy, Fender Splash, Rear LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53857 Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53875S Grommet, NO.1
53882F Seal, Front Fender
53883M Seal, Front Fender
53891B Seal, Front Fender Splash Shield, Front RH
53892C Seal, Front Fender Splash Shield, Front LH
75867F Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
