Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

18 part groups · 2 illustrations

Illustrations

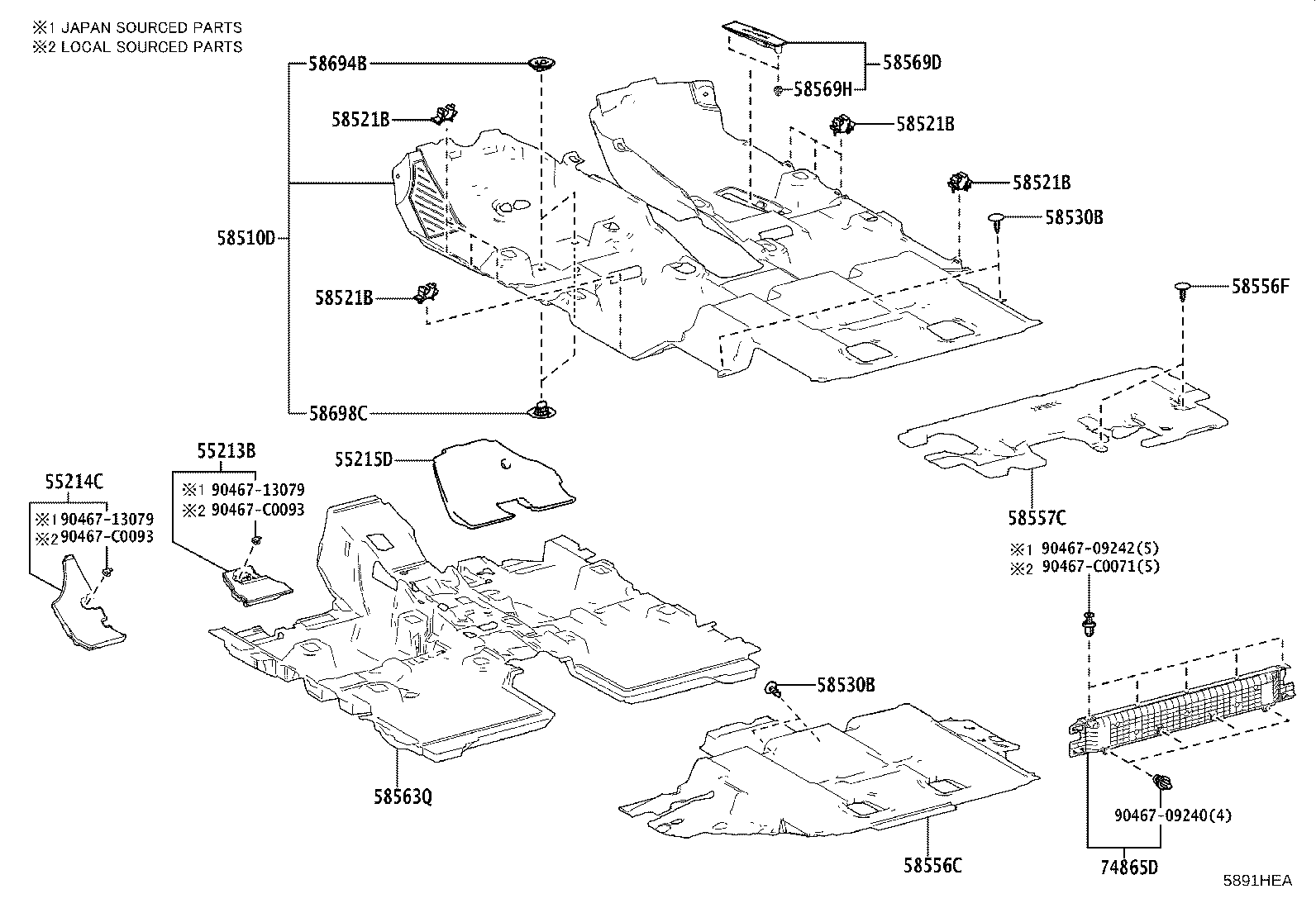

Figure 588000A 588000A 2021-08 → — Figure 5891HEA 5891HEA 2022-09 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58556C Silencer, Rear Floor
58556F Clip, Rear Floor Silencer
58557C Silencer, Rear Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58569D Cover, Front Floor Caution Plate
58569H Clip, Front Floor Caution Plate Cover, NO.1
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
65341 Board, Floor, NO.1
65342 Board, Floor, NO.2
65343 Board, Floor, NO.3
74865D Cover, Center Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
