Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

80 part groups · 3 illustrations

Illustrations

617061 2021-08 → —

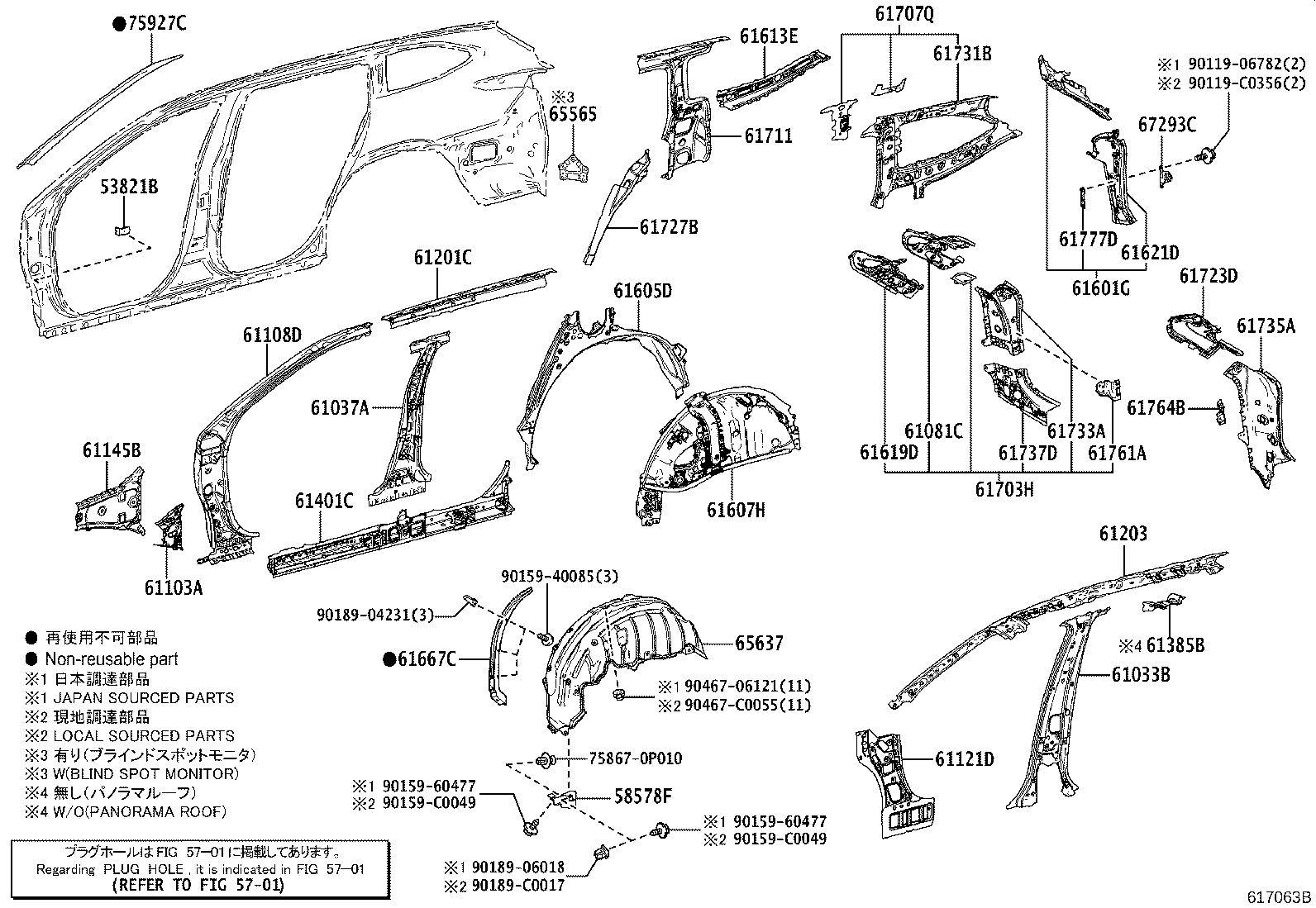

617063B 2021-08 → —

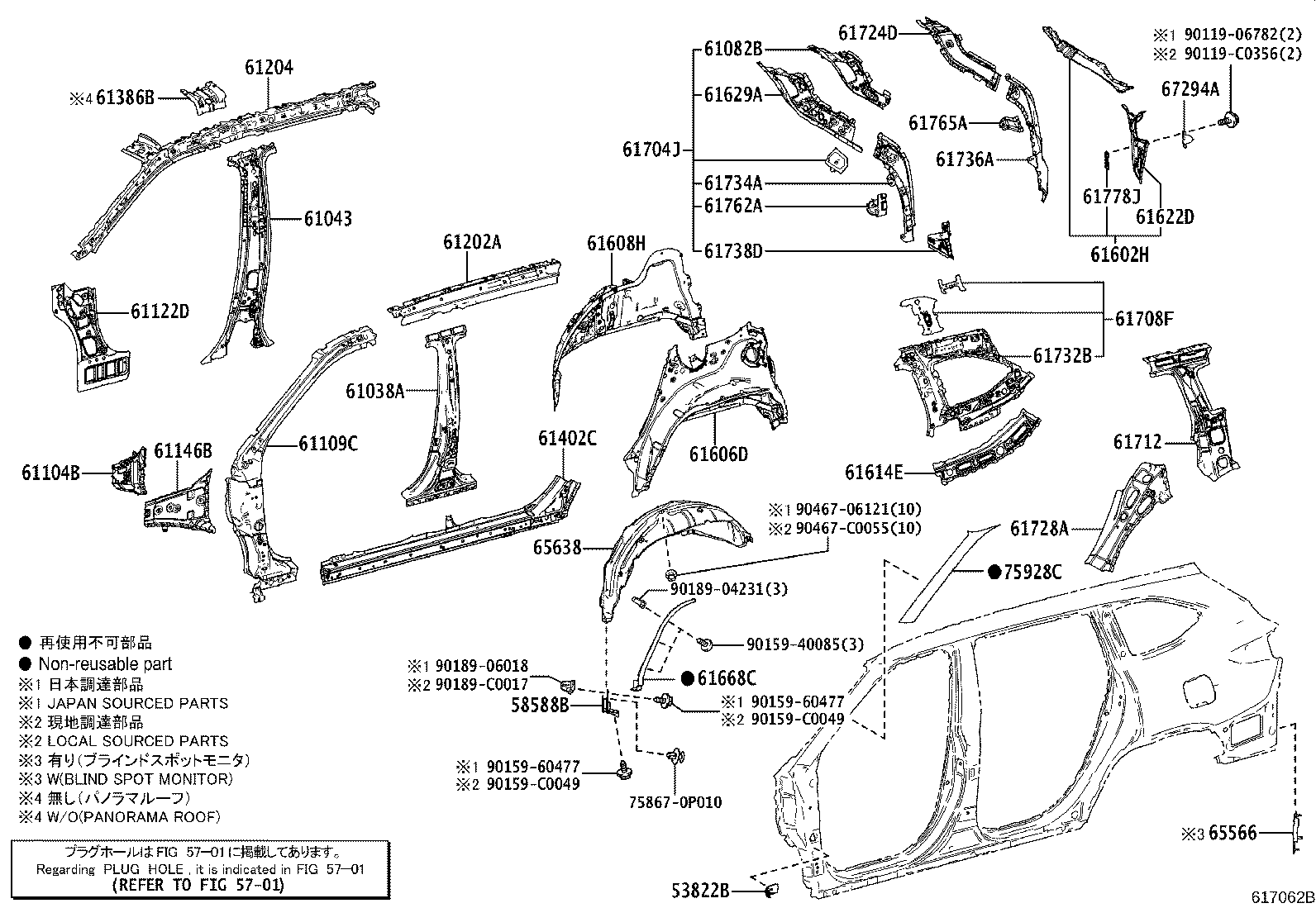

617062B 2021-08 → —

Part groups

PNC	Description
53821B	Bracket, Front Fender, Rear RH
53822B	Bracket, Front Fender, Rear LH
58578F	Pad, Rear Wheel House, RH
58588B	Pad, Rear Wheel House, LH
61017A	Member Sub-assy, Side, Rear RH
61018A	Member Sub-assy, Side, Rear LH
61033B	Pillar Sub-assy, NO.2 Inner, RH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61043	Pillar Sub-assy, NO.2 Inner, LH
61081C	Reinforce, Roof Side, Inner RH
61082B	Reinforce, Roof Side, Inner LH
61103A	Reinforcement Sub-assy, Cowl Side, RH
61104B	Reinforcement Sub-assy, Cowl Side, LH
61108D	Reinforcement Sub-assy, Front Pillar, Lower RH
61109C	Reinforcement Sub-assy, Front Pillar, Lower LH
61113A	Panel, Side, Outer NO.2 RH
61114B	Panel, Side, Outer NO.2 LH
61121D	Panel, Cowl Side, RH
61122D	Panel, Cowl Side, LH
61145B	Gusset, Front Body Pillar, Lower RH
61146B	Gusset, Front Body Pillar, Lower LH
61201C	Rail Sub-assy, Roof Side, Outer RH
61202A	Rail Sub-assy, Roof Side, Outer LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61210A	Rail Assy, Roof Side, RH
61220A	Rail Assy, Roof Side, LH
61311C	Panel, Rear Body Front Outside, RH
61312C	Panel, Rear Body Front Outside, LH
61385B	Extension, Center Body Pillar, Inner RH
61386B	Extension, Center Body Pillar, Inner LH
61401C	Panel Sub-assy, Rocker, Outer RH
61402C	Panel Sub-assy, Rocker, Outer LH
61601G	Panel Sub-assy, Rear Body Rear Side, RH
61602H	Panel Sub-assy, Rear Body Rear Side, LH
61605D	Panel Sub-assy, Quarter Wheel House, Outer RH
61606D	Panel Sub-assy, Quarter Wheel House, Outer LH
61607H	Panel Sub-assy, Quarter Wheel House, Inner RH
61608H	Panel Sub-assy, Quarter Wheel House, Inner LH
61613E	Panel, Quarter, Inner RH
61614E	Panel, Quarter, Inner LH
61619D	Reinforcement, Quarter Panel, RH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61629A	Reinforcement, Quarter Panel, LH
61667C	Seal, Qaurter Panel, NO.1
61668C	Seal, Quarter Panel, NO.2
61703H	Reinforcement Sub-assy, Roof Side, Inner RH
61704J	Reinforcement Sub-assy, Roof Side, Inner LH
61707Q	Plate Sub-assy, Quarter Window Lock Gusset, RH
61708F	Plate Sub-assy, Quarter Window Lock Gusset, LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61723D	Reinforcement, Quarter Window Opening, RH
61724D	Reinforcement, Quarter Window Opening, LH
61727B	Extension, Quarter Panel Reinforcement, RH
61728A	Extension, Quarter Panel Reinforcement, LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61761A	Reinforce, Seat Belt Anchor, NO.1 Upper RH
61762A	Reinforce, Seat Belt Anchor, NO.1 Upper LH
61764B	Reinforcement, Seat Belt Anchor, NO.2 RH
61765A	Reinforcement, Seat Belt Anchor, NO.2 LH
61777D	Retainer, Back Door Side Stopper, RH
61778J	Retainer, Back Door Side Stopper, LH
65565	Patch, Side Panel Rear End, RH
65566	Patch, Side Panel Rear End, LH
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH
67293C	Cushion, Back Door Stopper
67294A	Bracket, Back Door Stopper, LH
75927C	Tape, Black Out, NO.4 RH
75928C	Tape, Black Out, NO.4 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
