Toyota Crown Kluger
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General
Supported model
Data version 2024-04
Rear Door Panel & Glass

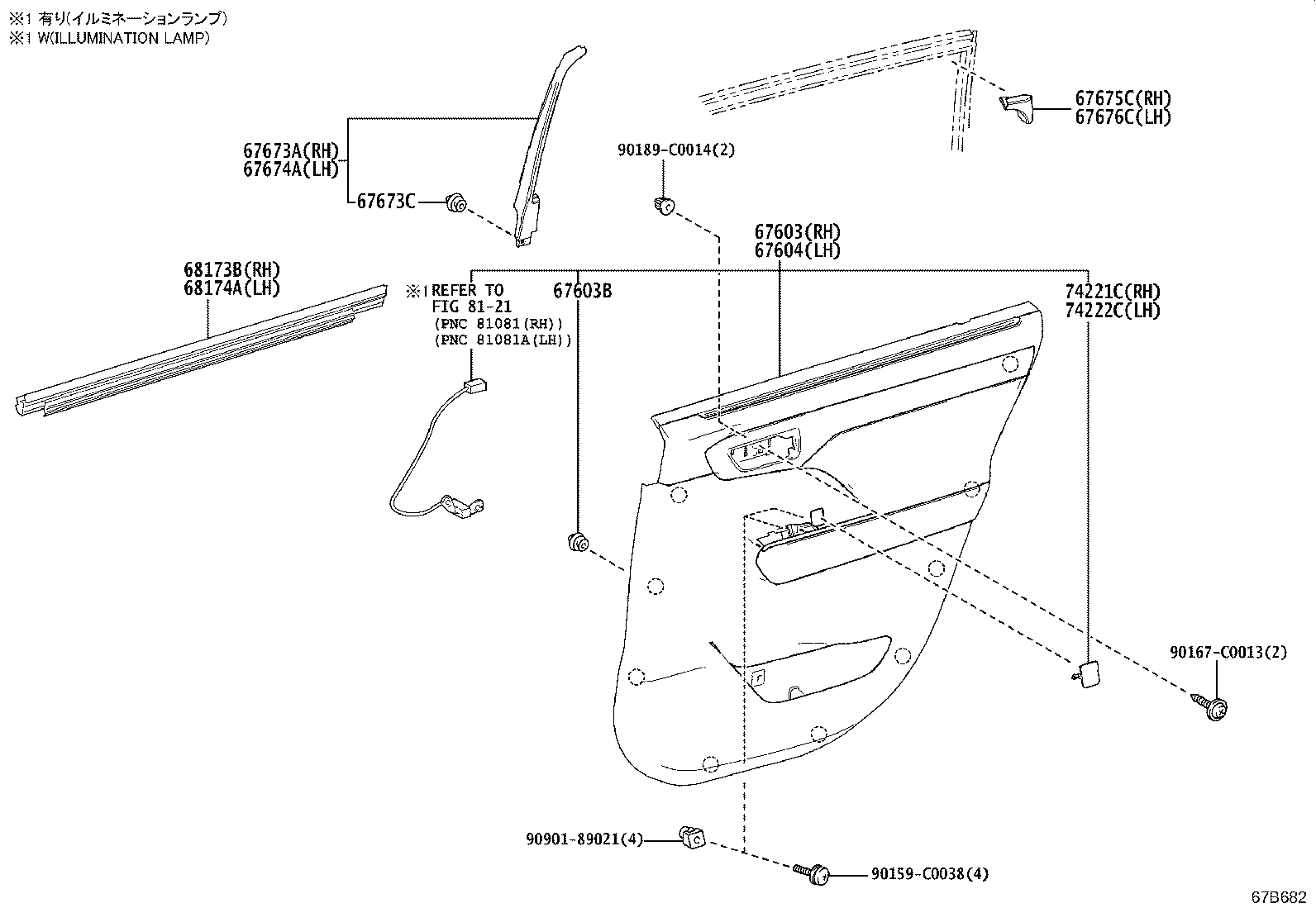

49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67215E | Stop, Quarter Window, Upper RH |
| 67225A | Stop, Quarter Window, Upper LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67673C | Clip(FOR REAR DOOR FRAME GARNISH) |
| 67674A | Garnish, Rear Door Frame, LH |
| 67675C | Garnish, Rear Door Frame, NO.2 RH |
| 67676C | Garnish, Rear Door Frame, NO.2 LH |
| 67837C | Seal, Rear Door Dust Proof |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67845D | Seal, Rear Door Front Outside, RH |
| 67846A | Seal, Rear Door Front Outside, LH |
| 67847B | Seal, Rear Door Vent, RH NO.1 |
| 67848A | Seal, Rear Door Vent, LH NO.1 |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67869L | Clip, Rear Door Weatherstrip |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 74221C | Cover, Rear Door Armrest, RH |
| 74222C | Cover, Rear Door Armrest, LH |
| 75937A | Tape, Black Out, Inner Upper RH |
| 75938 | Tape, Black Out, Inner Upper LH |
| 75953A | Tape, Black Out, Inner Rear RH |
| 75954A | Tape, Black Out, Inner Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
