Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

27 part groups · 3 illustrations

Illustrations

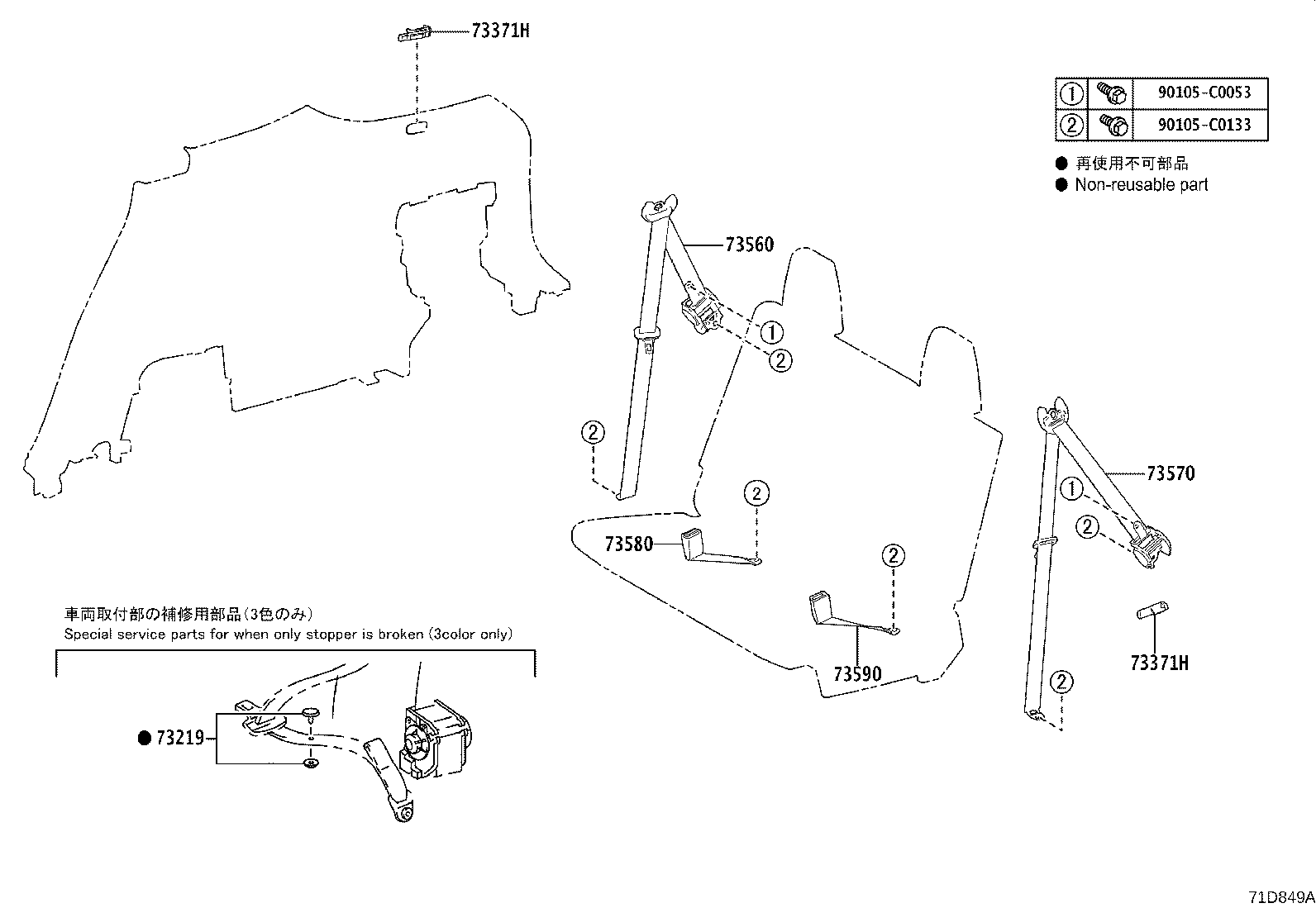

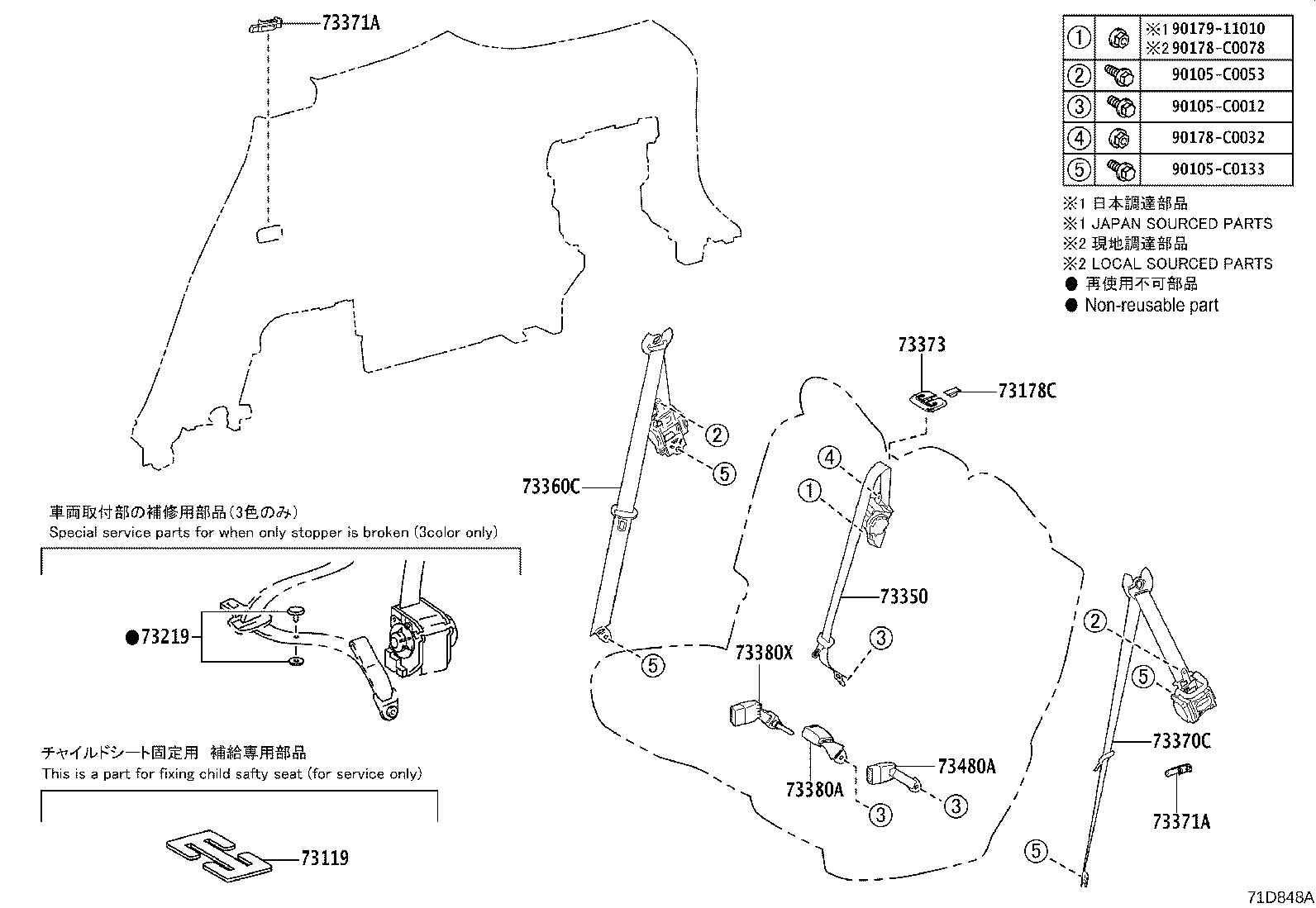

Figure 71D847A 71D847A 2021-08 → — Figure 71D848A 71D848A 2021-08 → — Figure 71D849A 71D849A 2021-08 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73178C Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73371H Hanger, Rear NO.2 Seat Shoulder Belt
73373 Cover, Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73380X Belt Assy, Rear Seat, Inner RH
73480A Belt Assy, Rear Seat, Inner LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
