Toyota Crown Kluger
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General
Supported model
Data version 2024-04

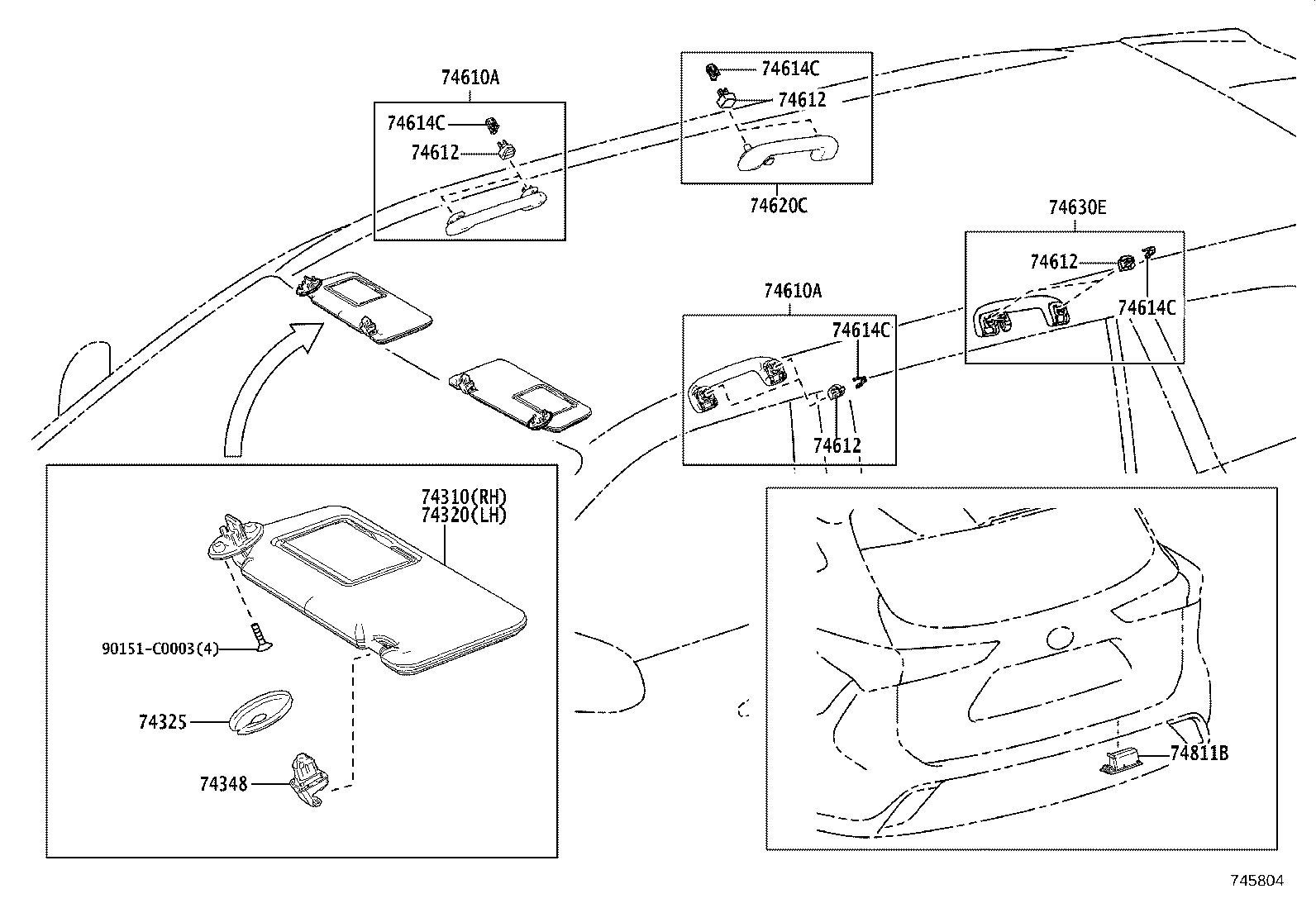

Armrest & Visor
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74325 | Cover, Visor Bracket |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74614C | Plate, Assist Grip Lock |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
| 74811B | Handle, Door Pull |
| 74836C | Bracket, Separator, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
