Toyota Crown Kluger
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General
Supported model
Data version 2024-04

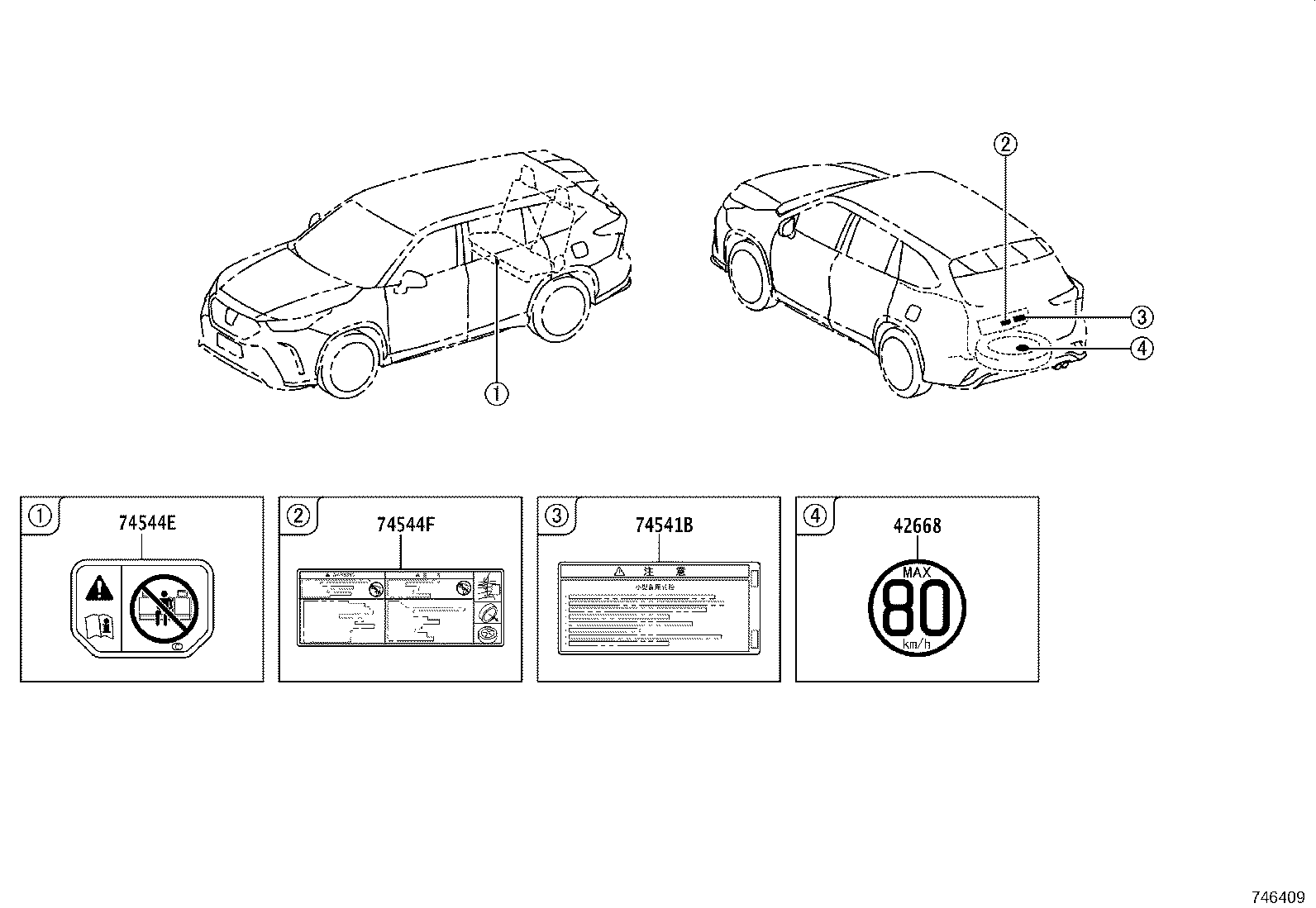

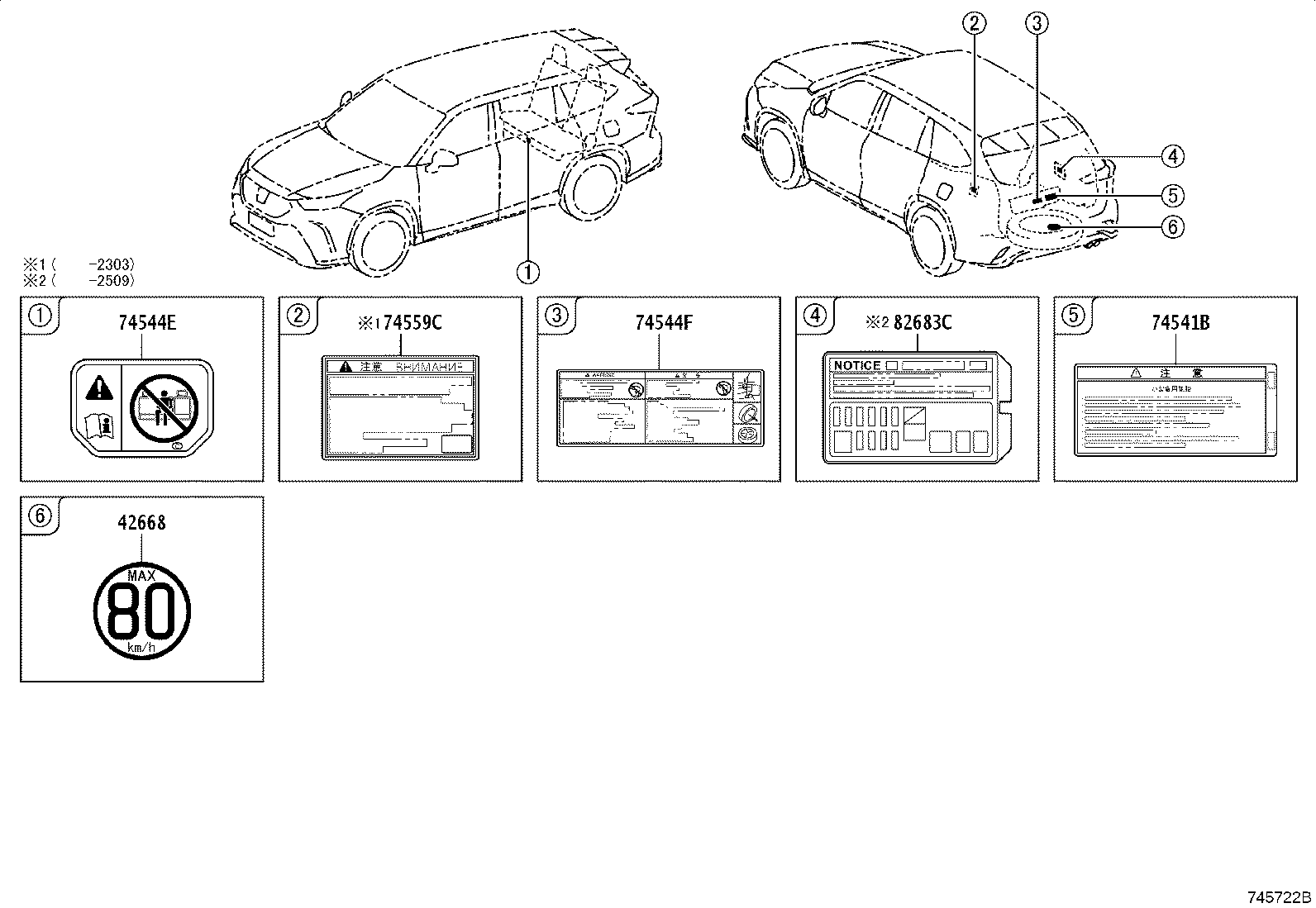

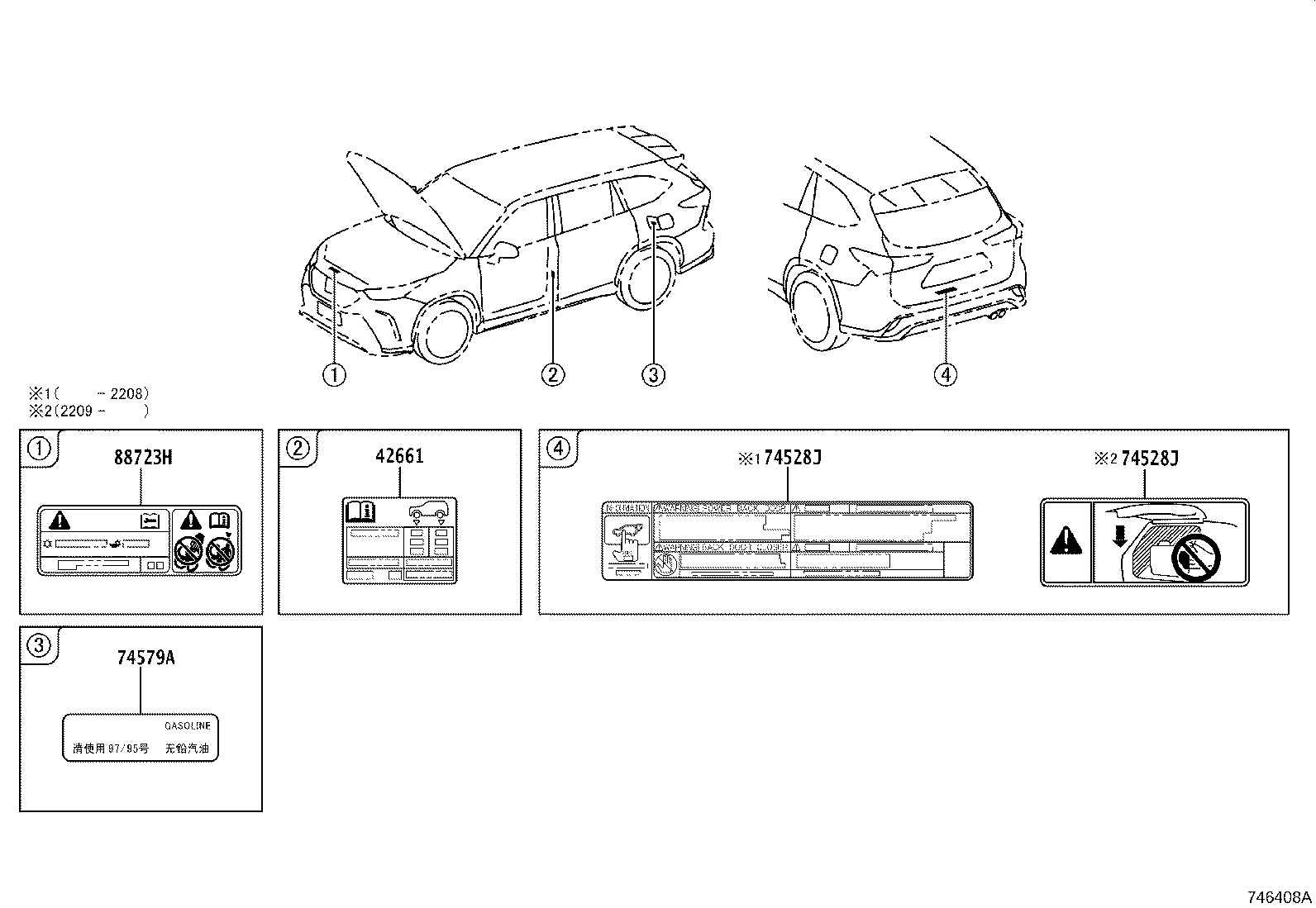

Caution Plate (EXTERIOR & INTERIOR)
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 288A2 | Label, Battery Location |
| 41992 | Label, Differential Notice |
| 42661 | Label, Tire Pressure Information |
| 42668 | Label, Compact Spare Tire Caution |
| 74528J | Label, Power Back Door Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74544E | Label, Rear NO.2 Seat Information |
| 74544F | Label, Tire Carrier Caution |
| 74559B | Label, Fuel Information |
| 74559C | Label, Fuel Information, NO.2 |
| 74579A | Label, Unleaded Fuel Information |
| 82683C | Label, Fuse Block Notice |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
