Toyota Crown Kluger
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General
Supported model
Data version 2024-04

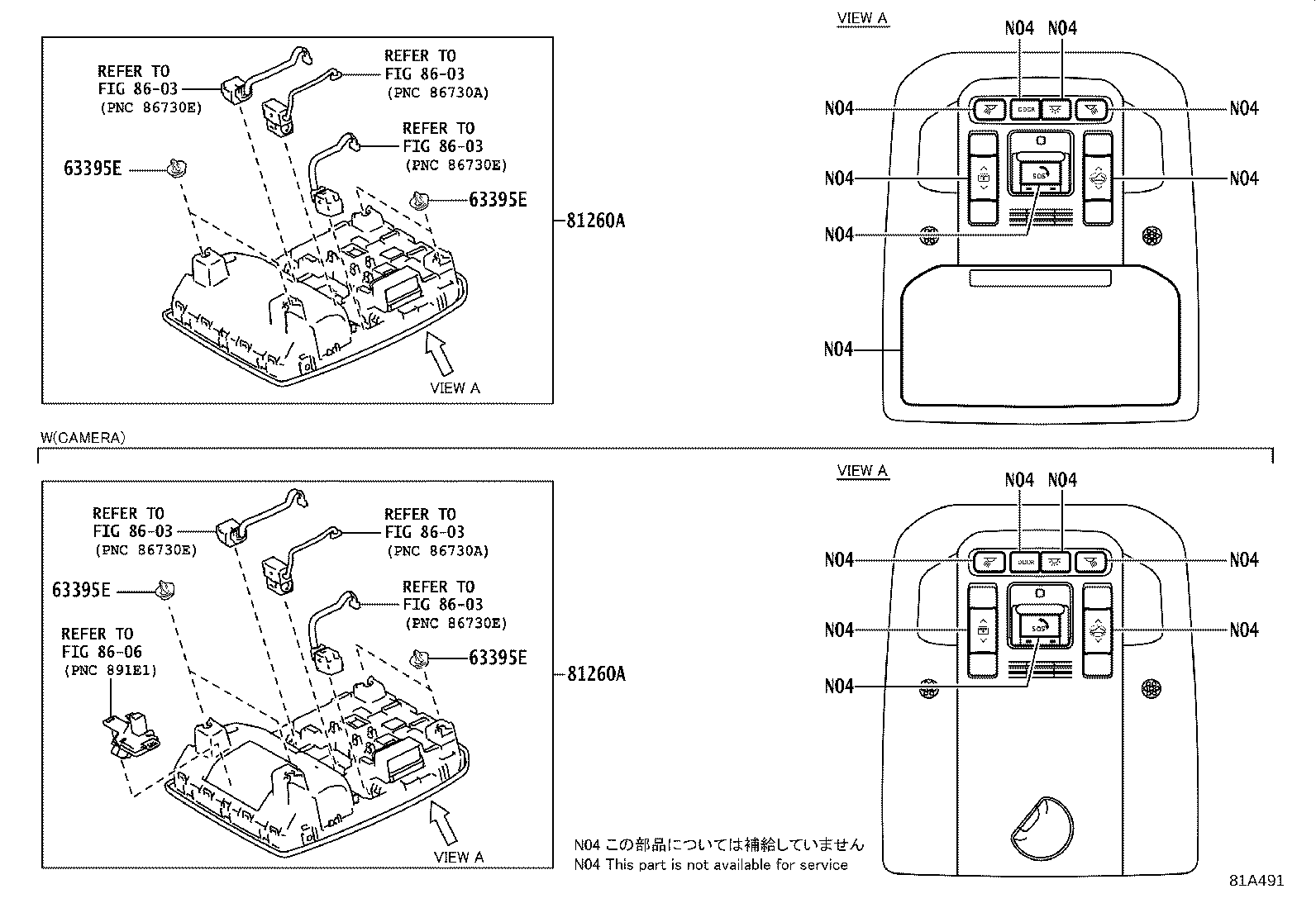

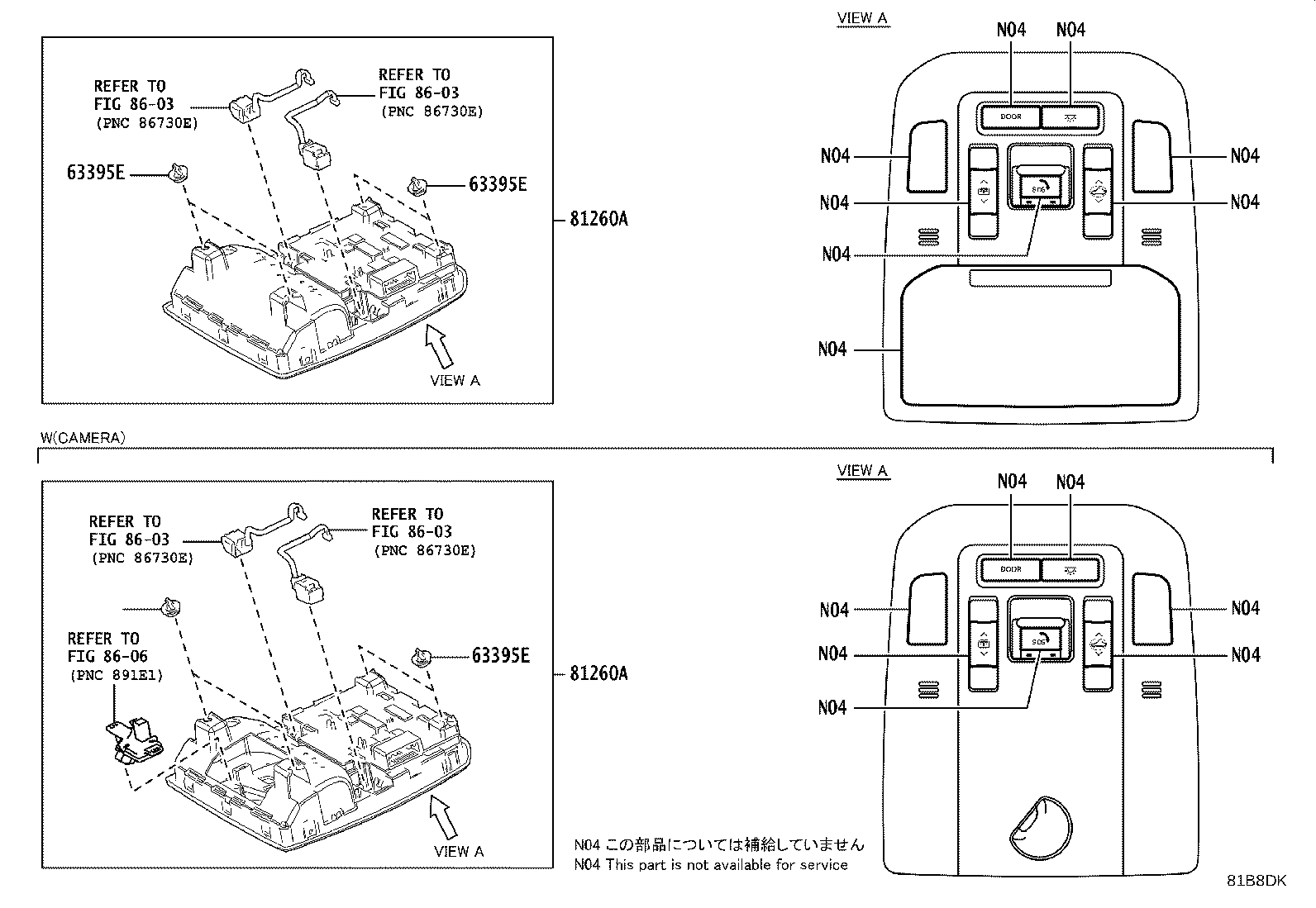

Interior Lamp
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81081 | Lamp Sub-assy, Interior Illumination |
| 81081A | Lamp Sub-assy, Interior Illumination, NO.2 |
| 81230 | Lamp Assy, Courtesy |
| 81240J | Lamp Assy, Room |
| 81252 | Packing, Room Lamp |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81340 | Lamp Assy, Vanity |
| 81360T | Lamp Assy, Spot |
| 81361E | Lens, Spot Lamp, NO.2 |
| 81390C | Lamp Assy, Spot, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
