Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

146 part groups · 20 illustrations

Illustrations

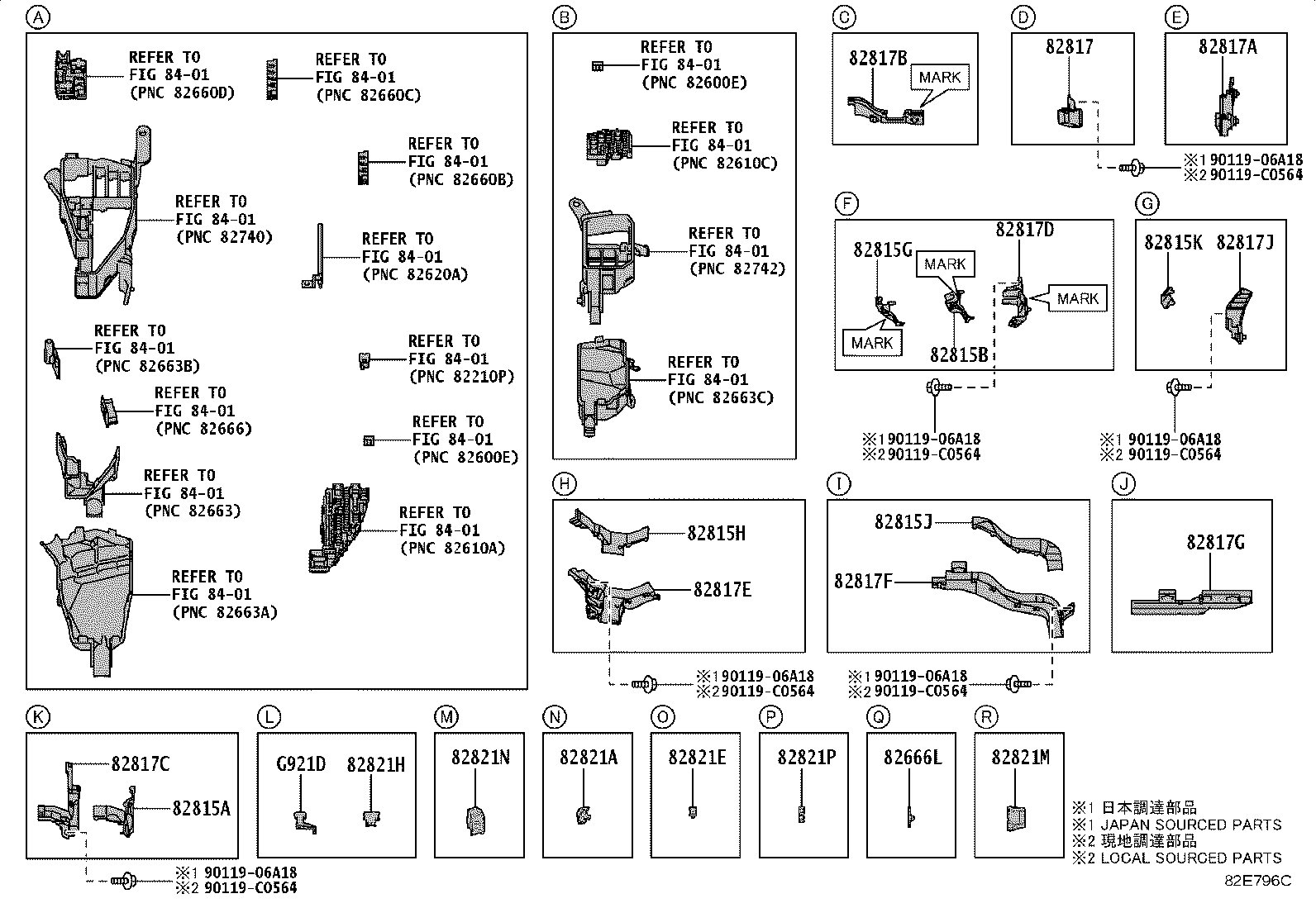

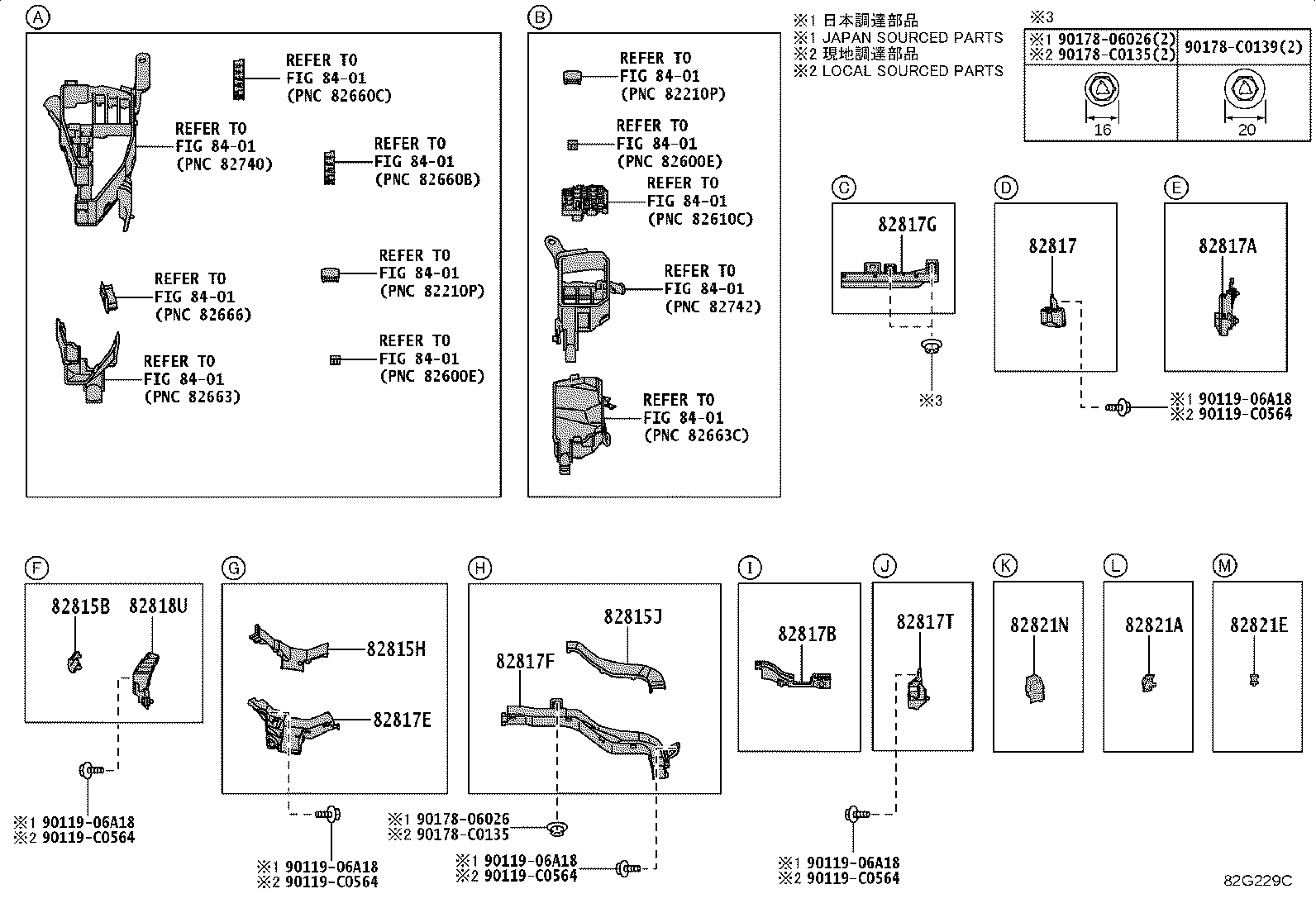

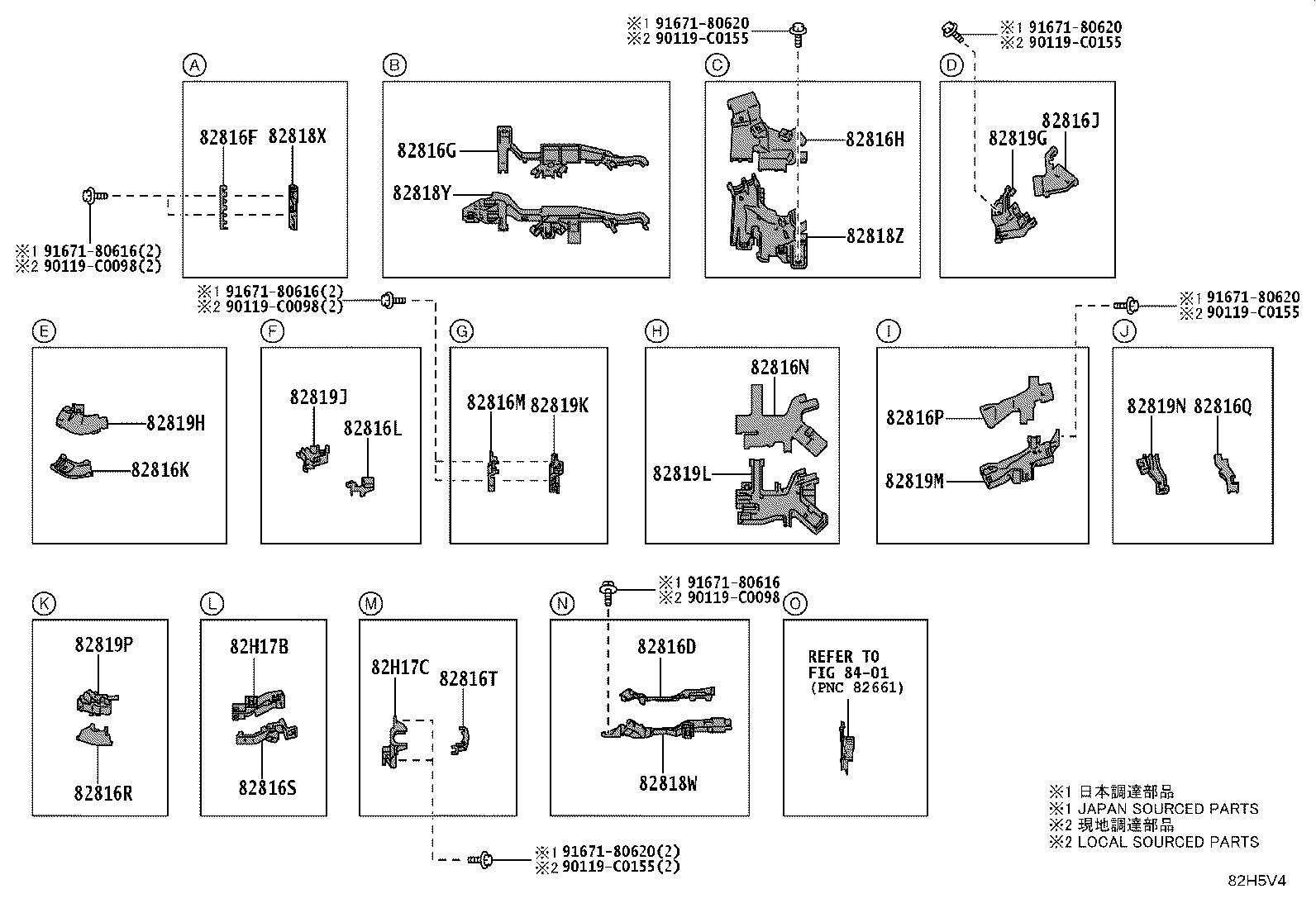

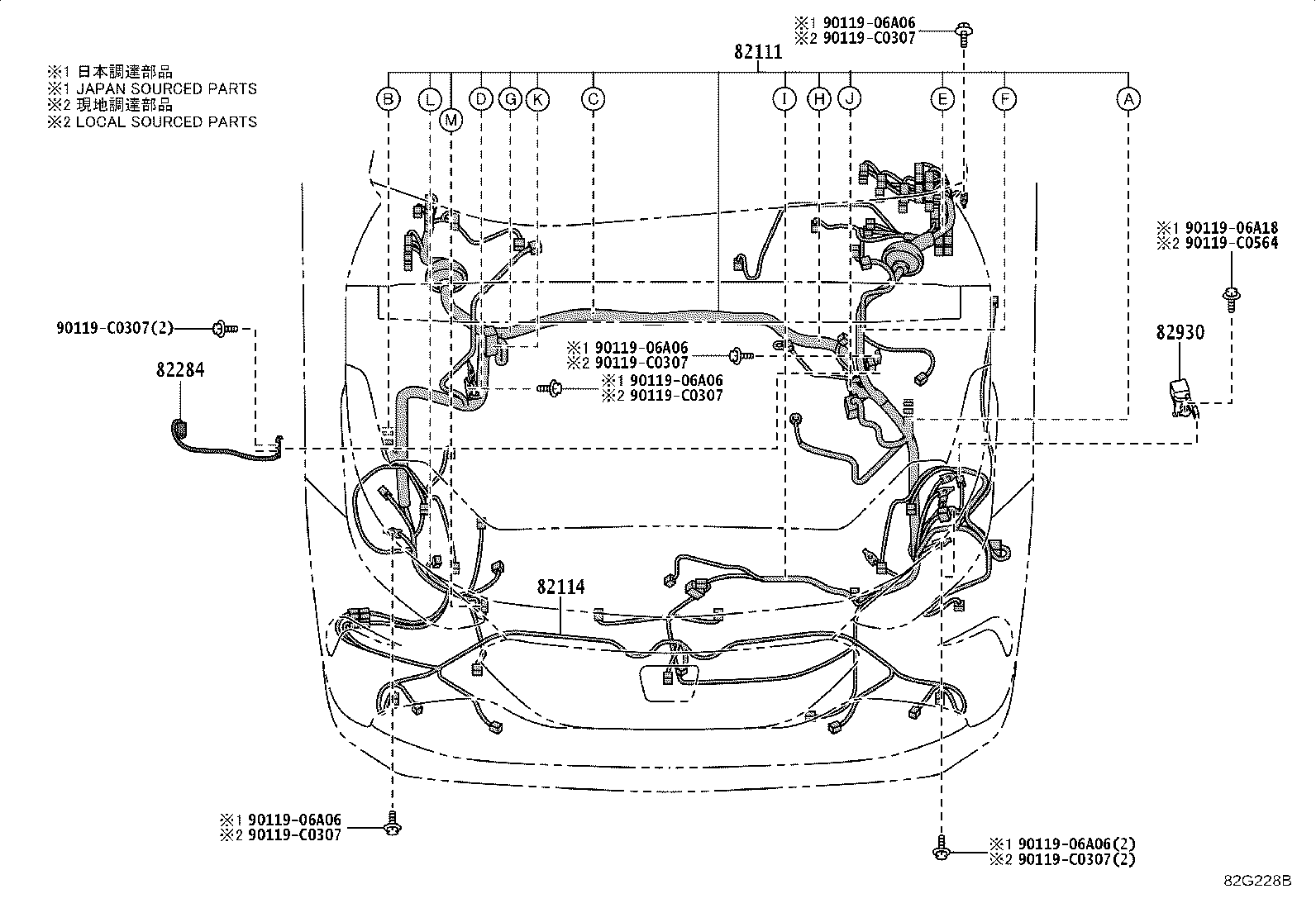

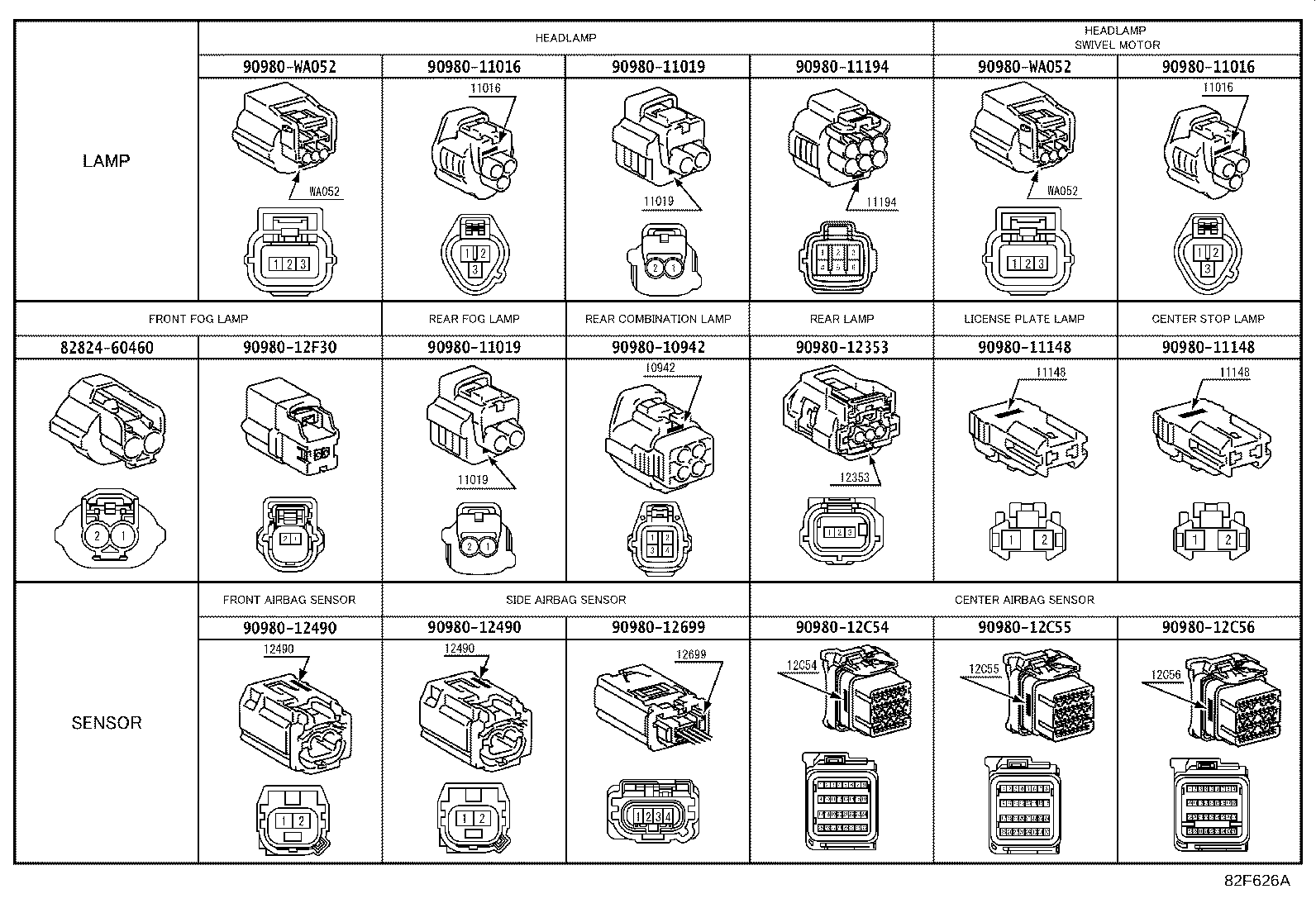

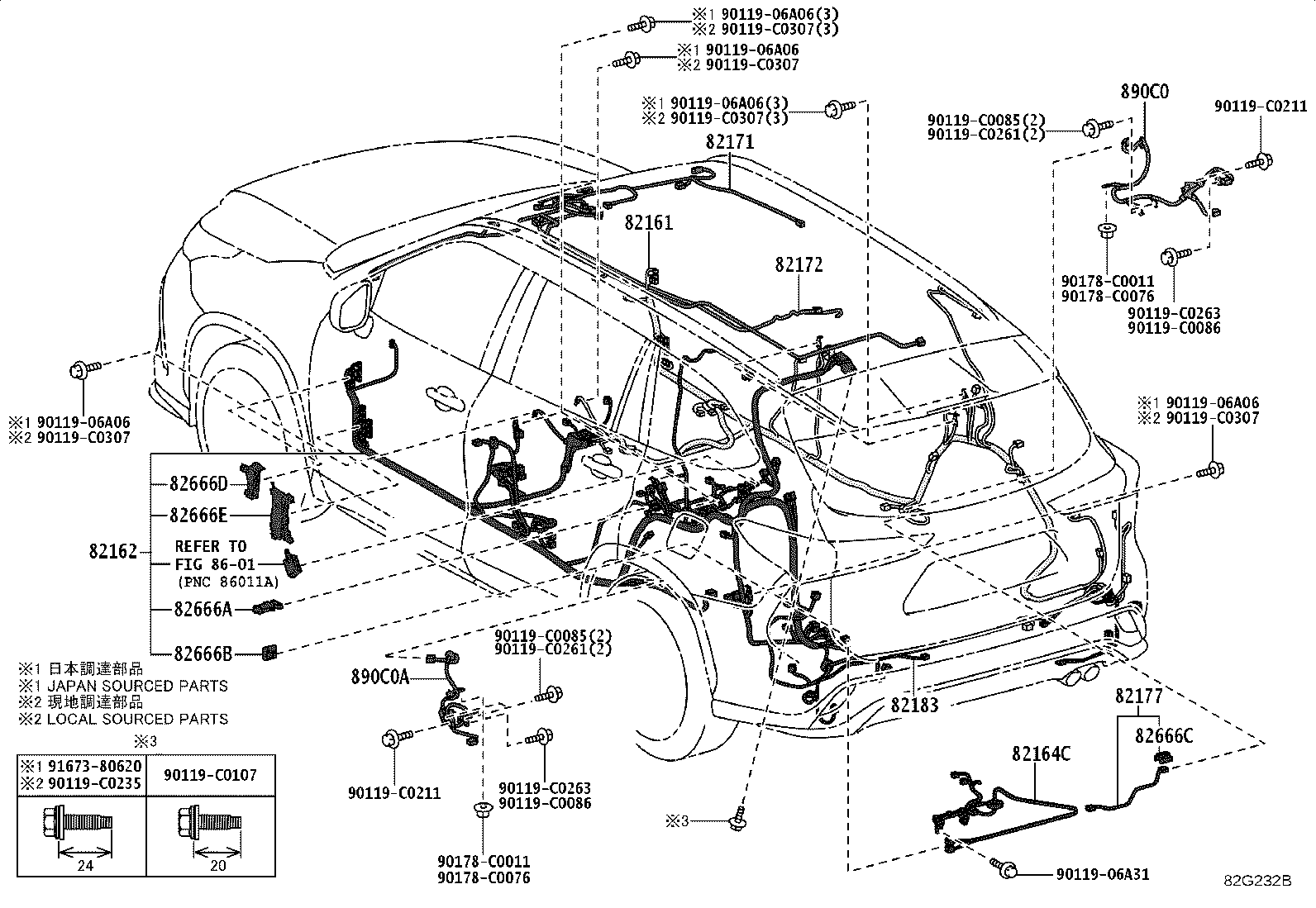

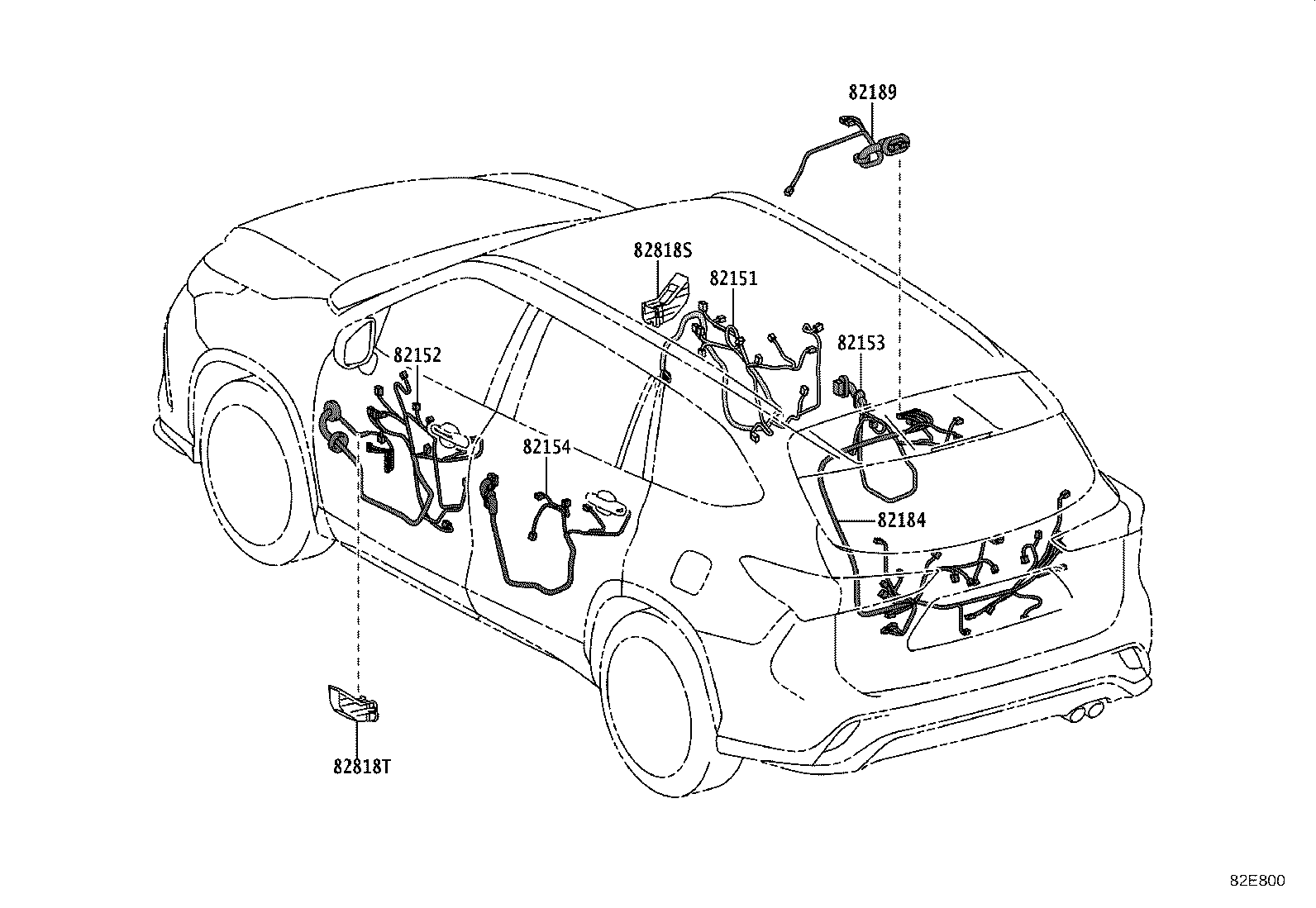

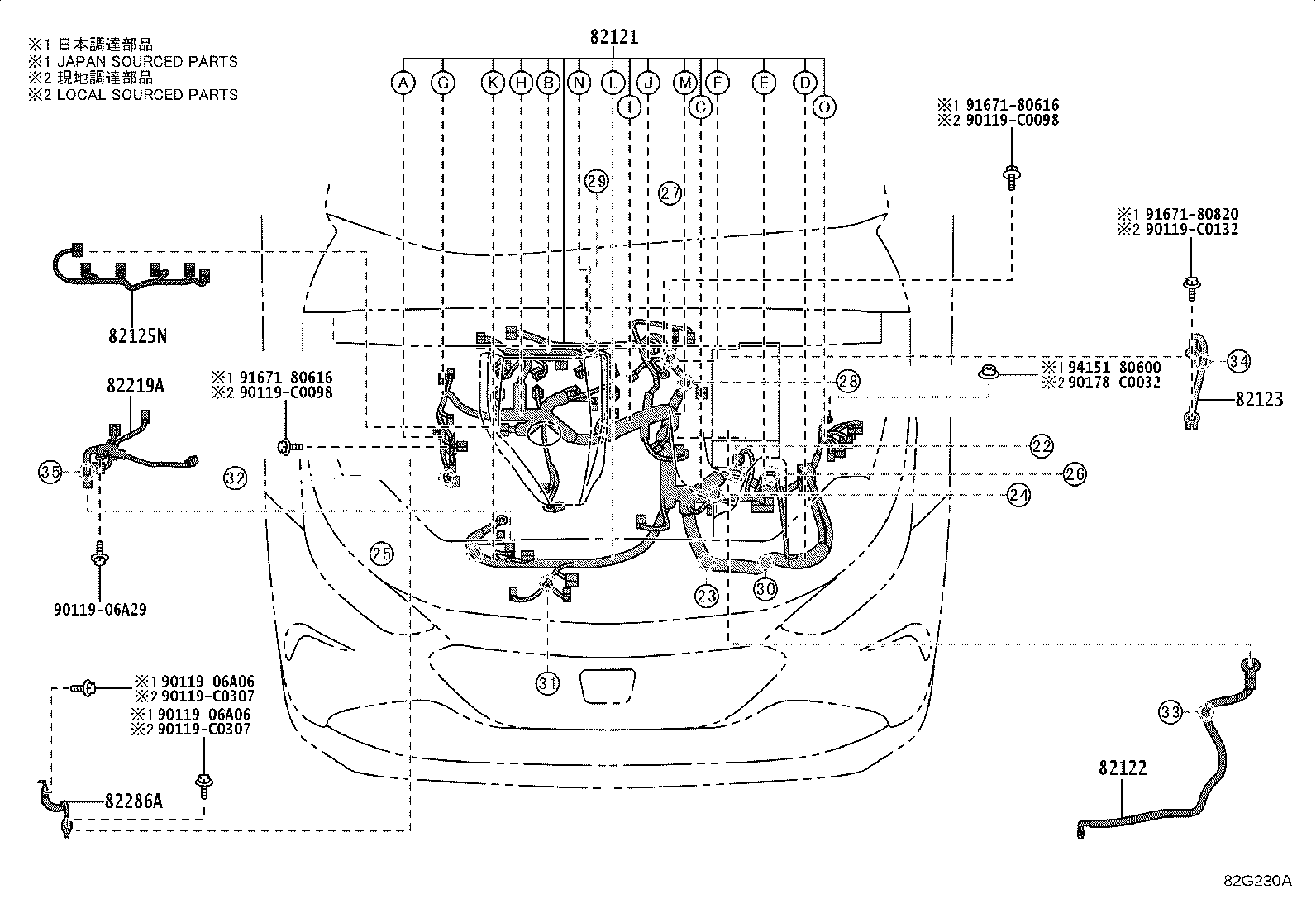

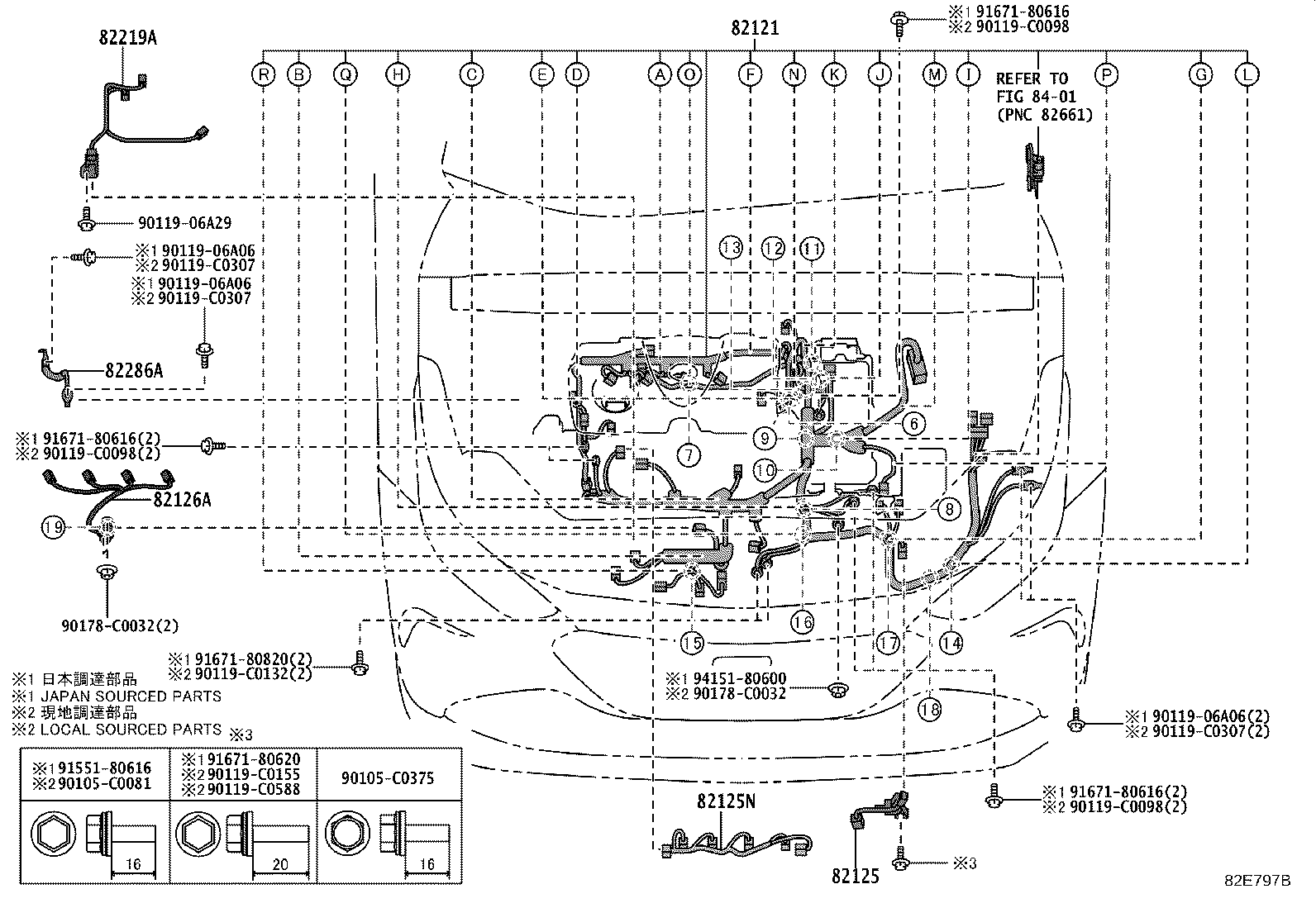

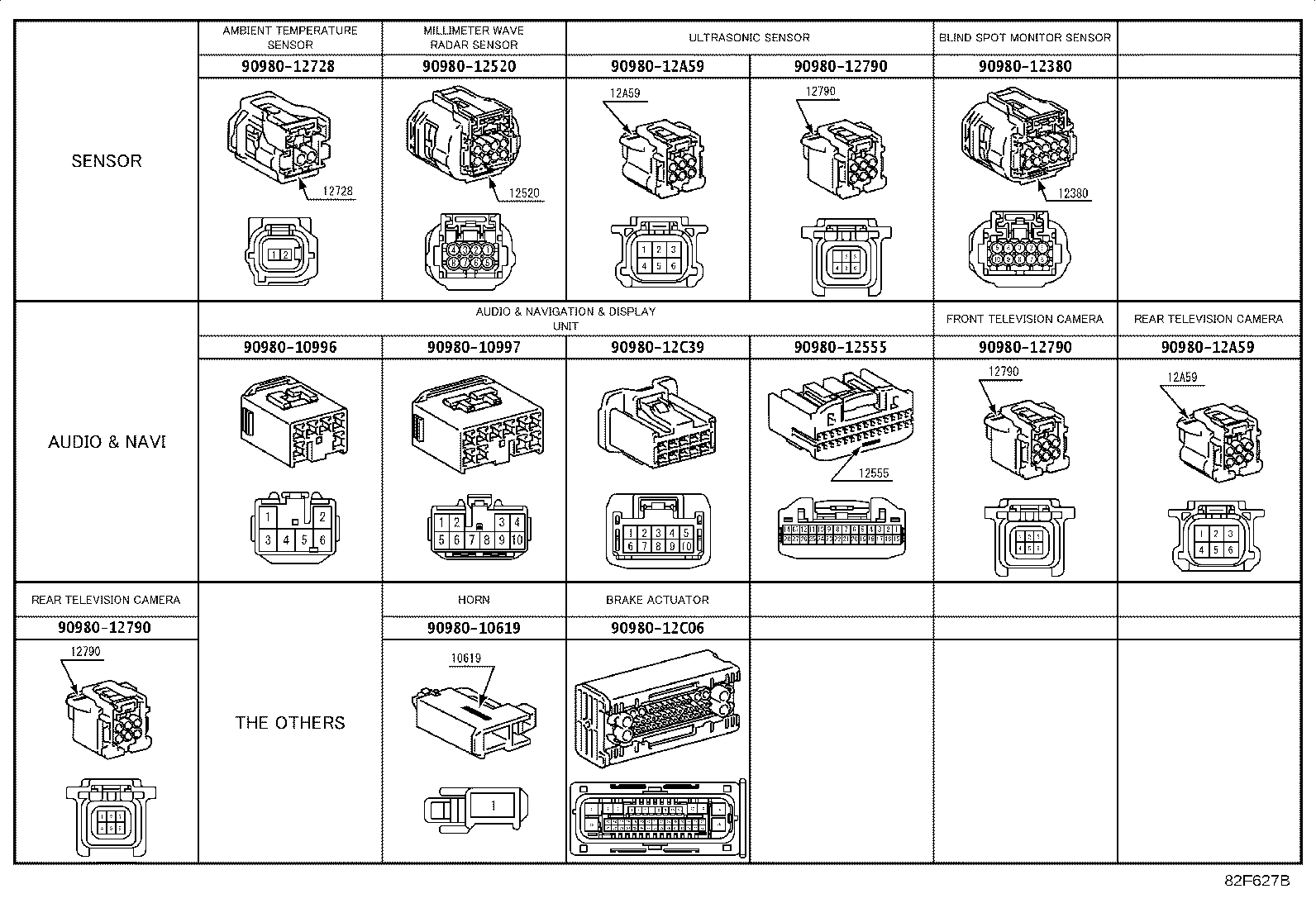

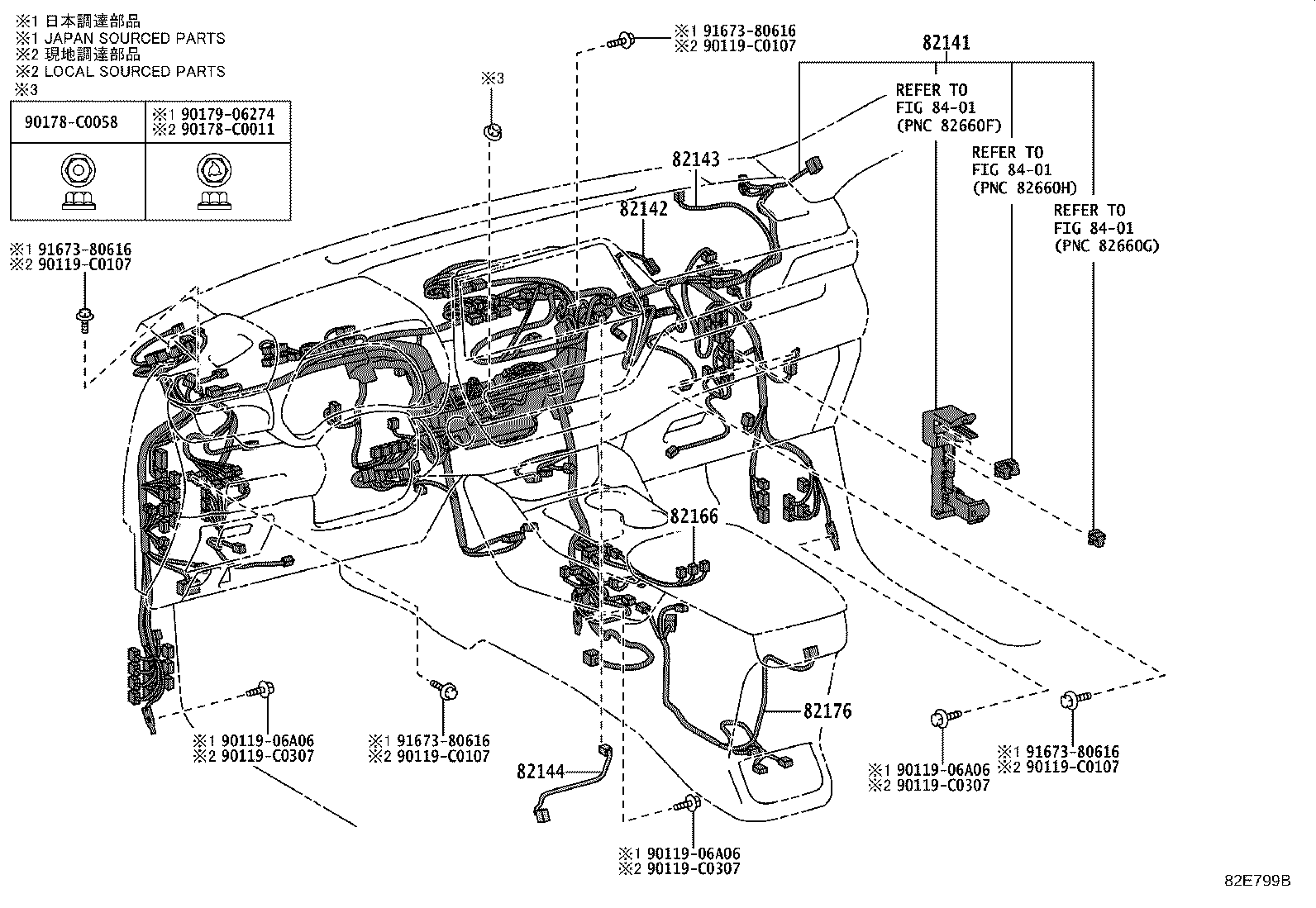

Figure 82E795D 82E795D 2021-08 → — Figure 82E796C 82E796C 2021-08 → — Figure 82G228B 82G228B 2022-09 → — Figure 82G229C 82G229C 2022-09 → — Figure 82E797B 82E797B 2021-08 → — Figure 82E798A 82E798A 2021-08 → — Figure 82G230A 82G230A 2022-09 → — Figure 82H5V4 82H5V4 2022-09 → — Figure 82E799B 82E799B 2021-08 → — Figure 82E800 82E800 2021-08 → — Figure 82E801D 82E801D 2021-08 → — Figure 82G232B 82G232B 2022-09 → — Figure 82E802A 82E802A 2021-08 → — Figure 82E803A 82E803A 2021-08 → — Figure 82E877 82E877 2021-08 → — Figure 82E804D 82E804D 2021-08 → — Figure 82G231B 82G231B 2021-08 → — Figure 82E805 82E805 2021-08 → — Figure 82F626A 82F626A 2021-08 → — Figure 82F627B 82F627B 2021-08 → —

Part groups

PNCDescription

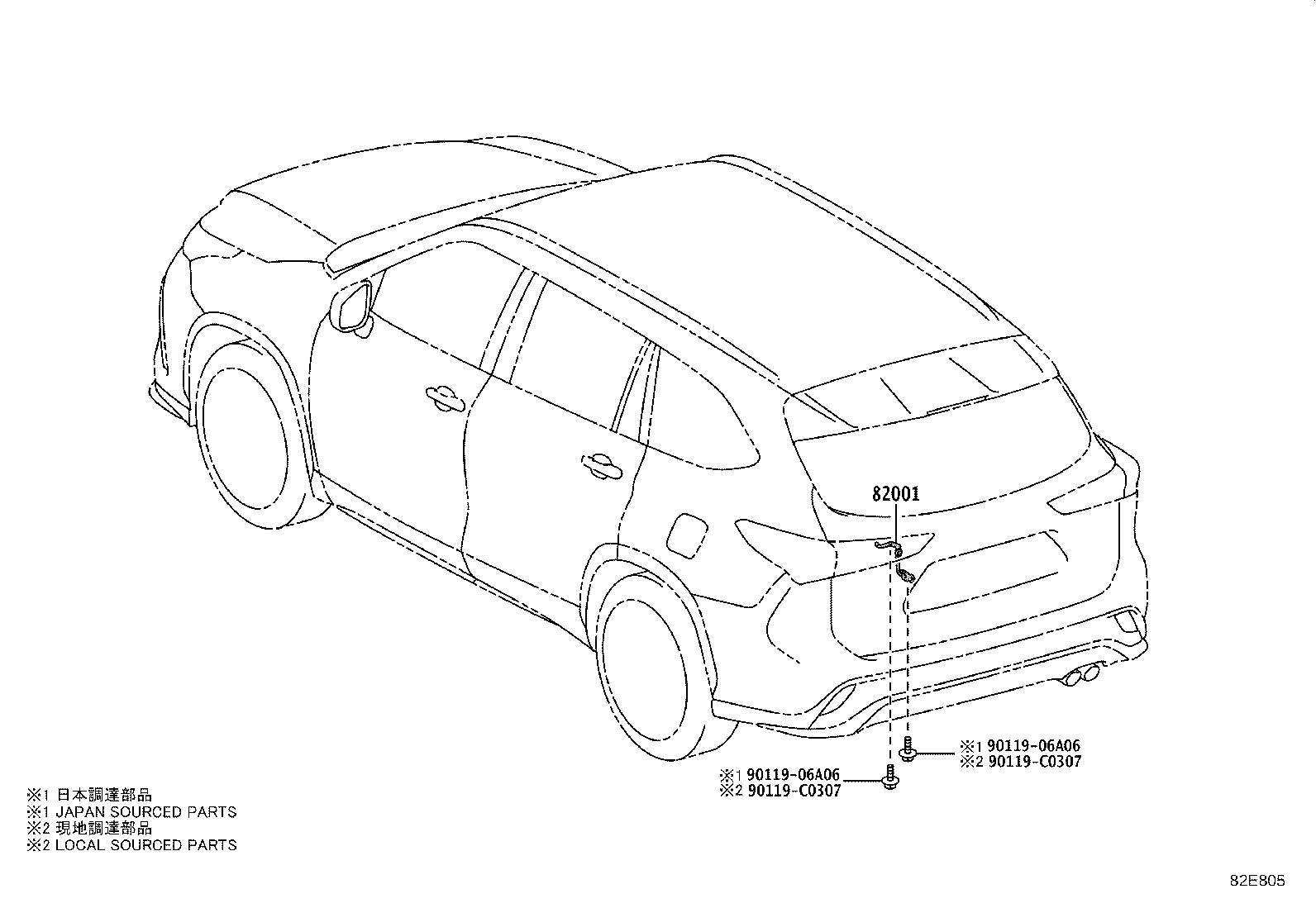

82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

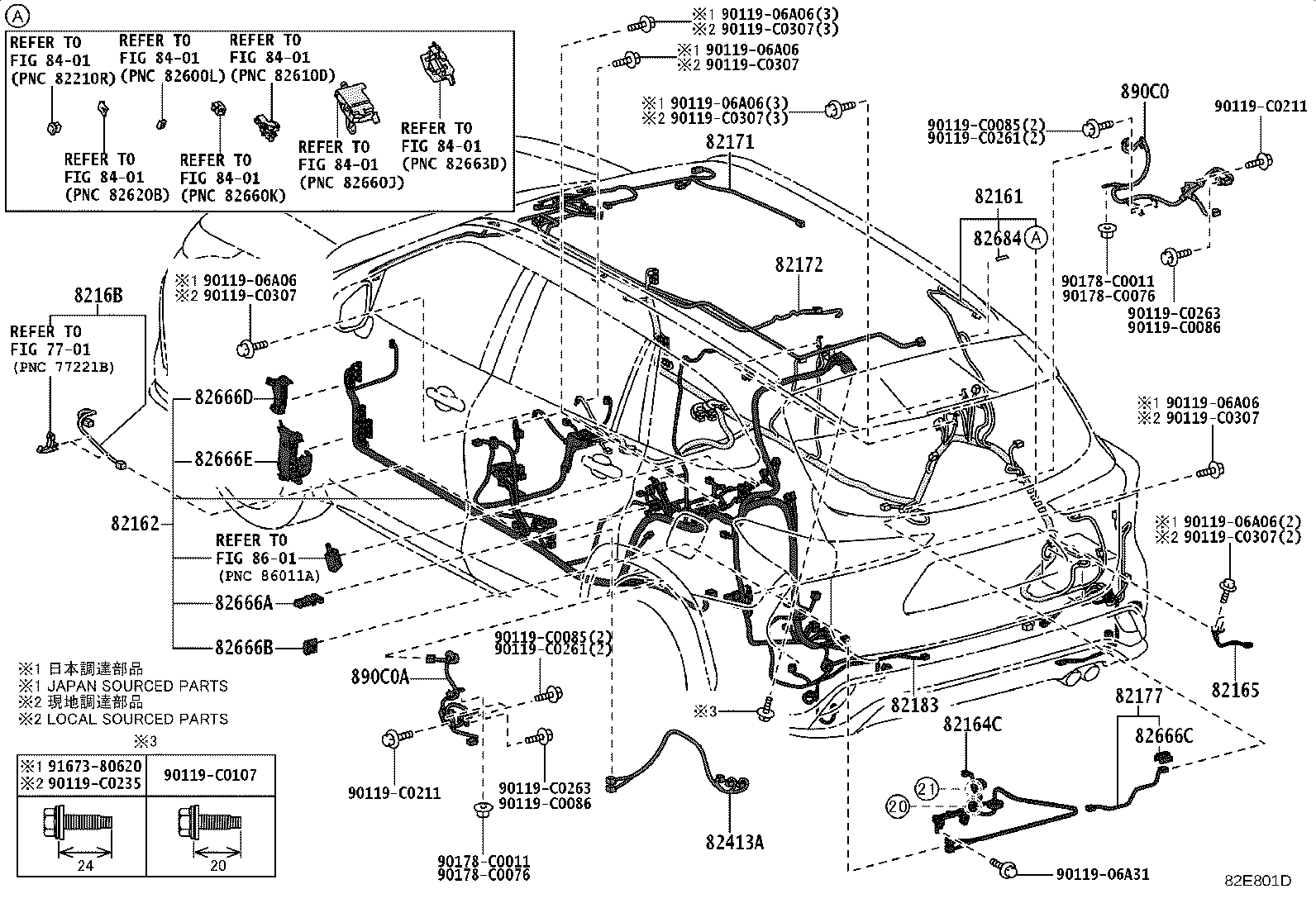

82161 Wire, Floor
82162 Wire, Floor, NO.2
82164C Wire, Floor, NO.4
82165 Wire, Frame, NO.2
82166 Wire, Console Box
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82176 Wire, Rear Console Box
82177 Wire, Rear Body
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82189 Wire, Back Door, NO.4

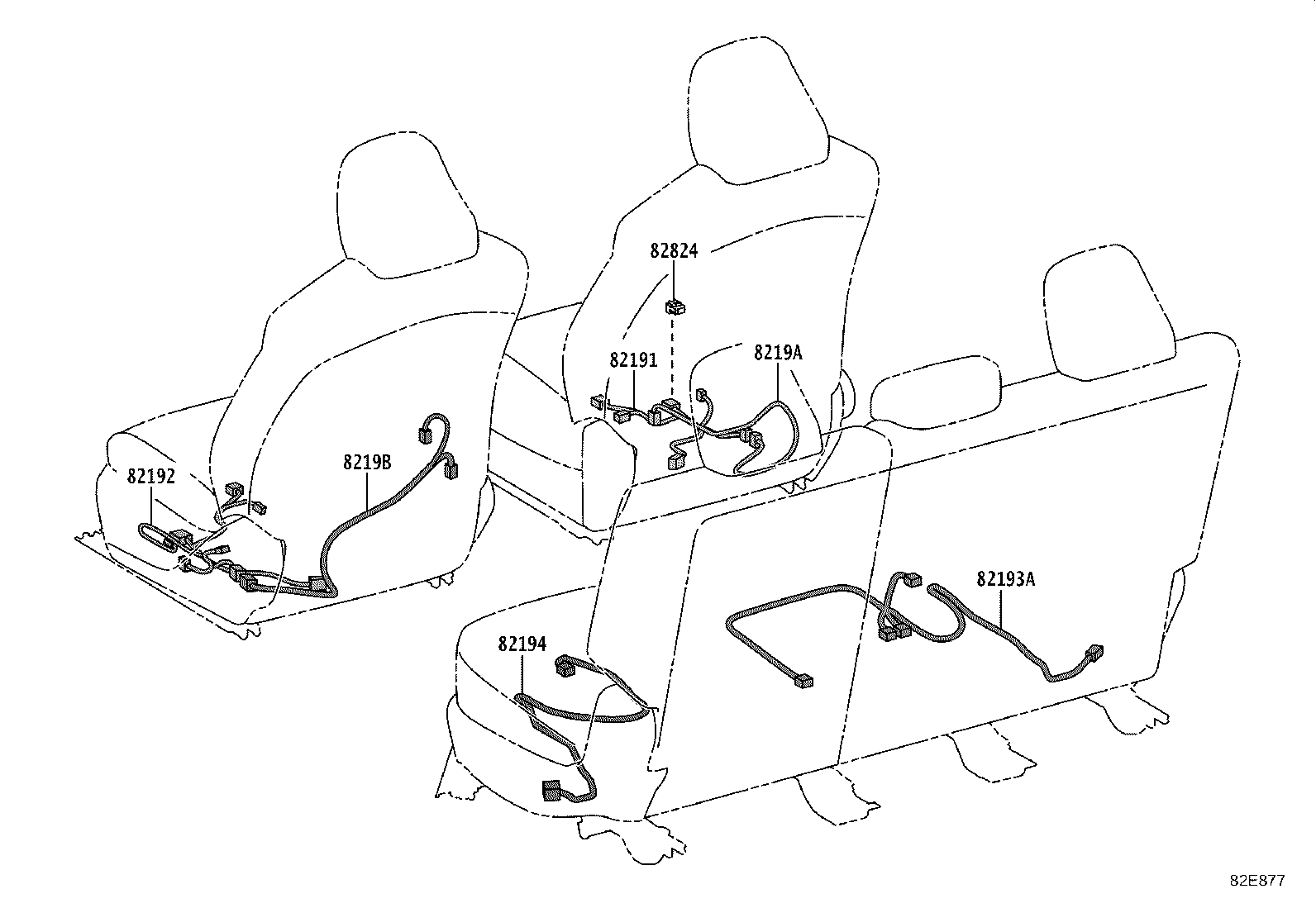

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193A Wire, Rear Seat, NO.1
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2

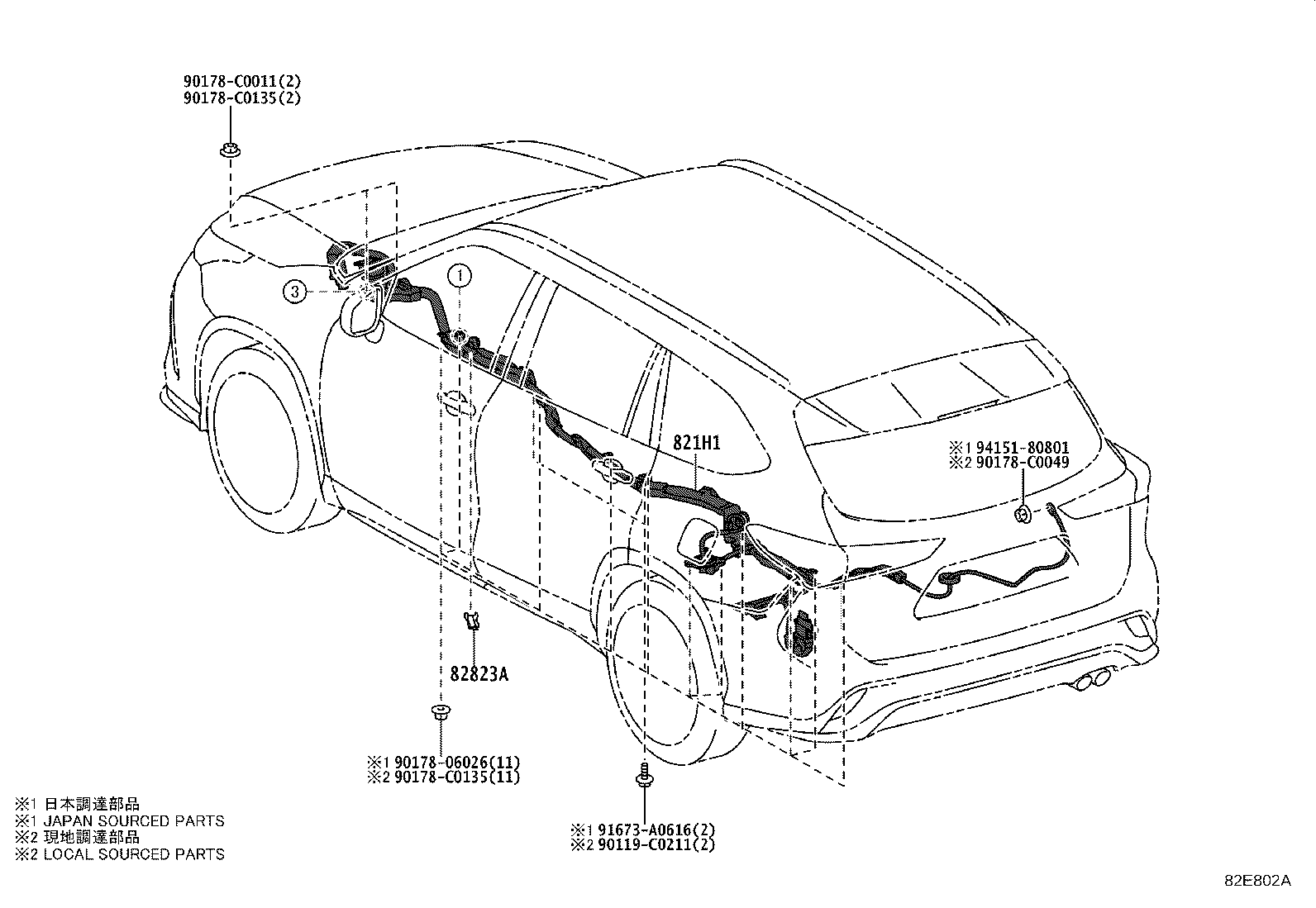

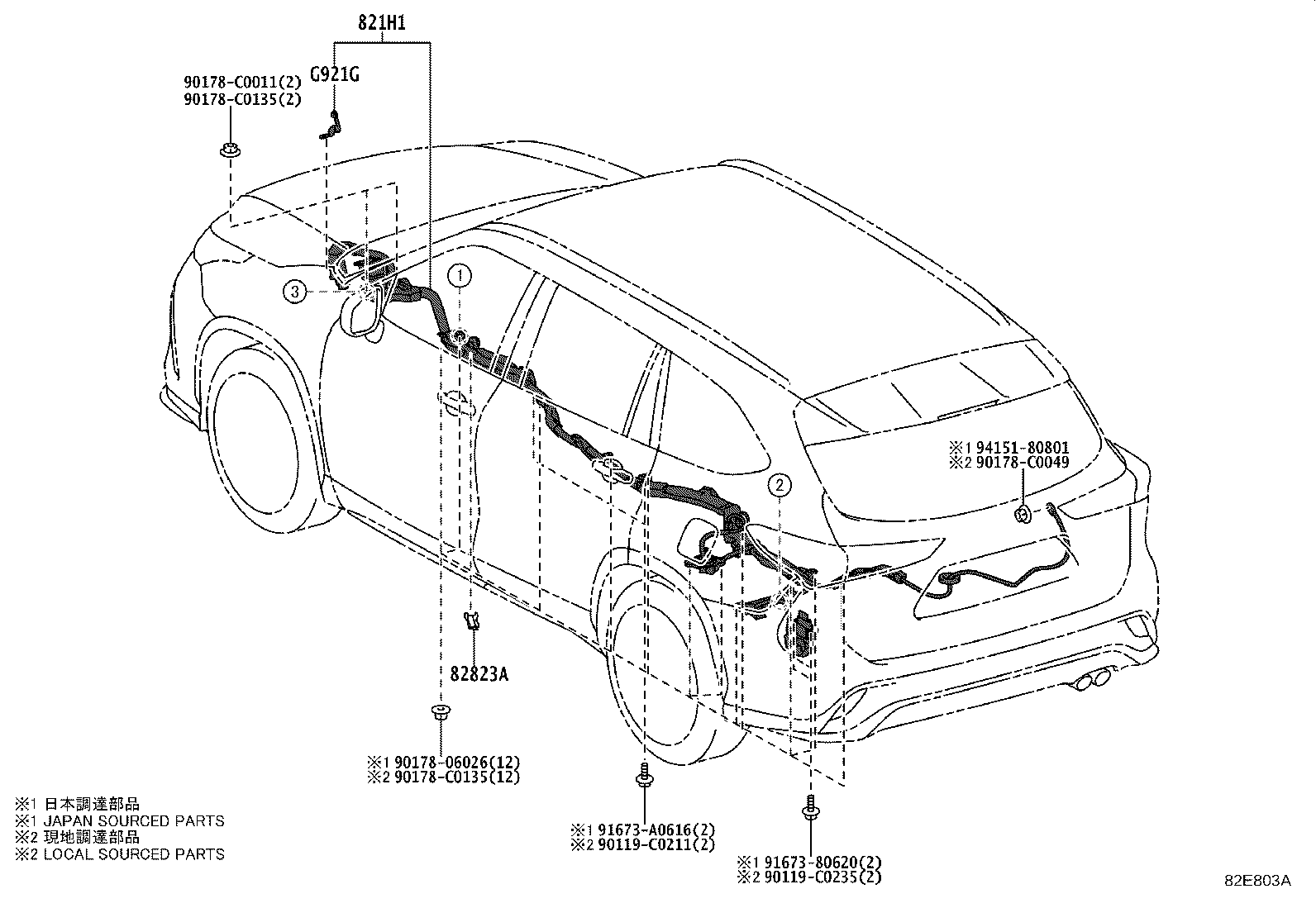

821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219A Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82413A Wire, Fuel Tank
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666L Holder, Connector NO.9
82684 Label, Cut High Voltage Electricity

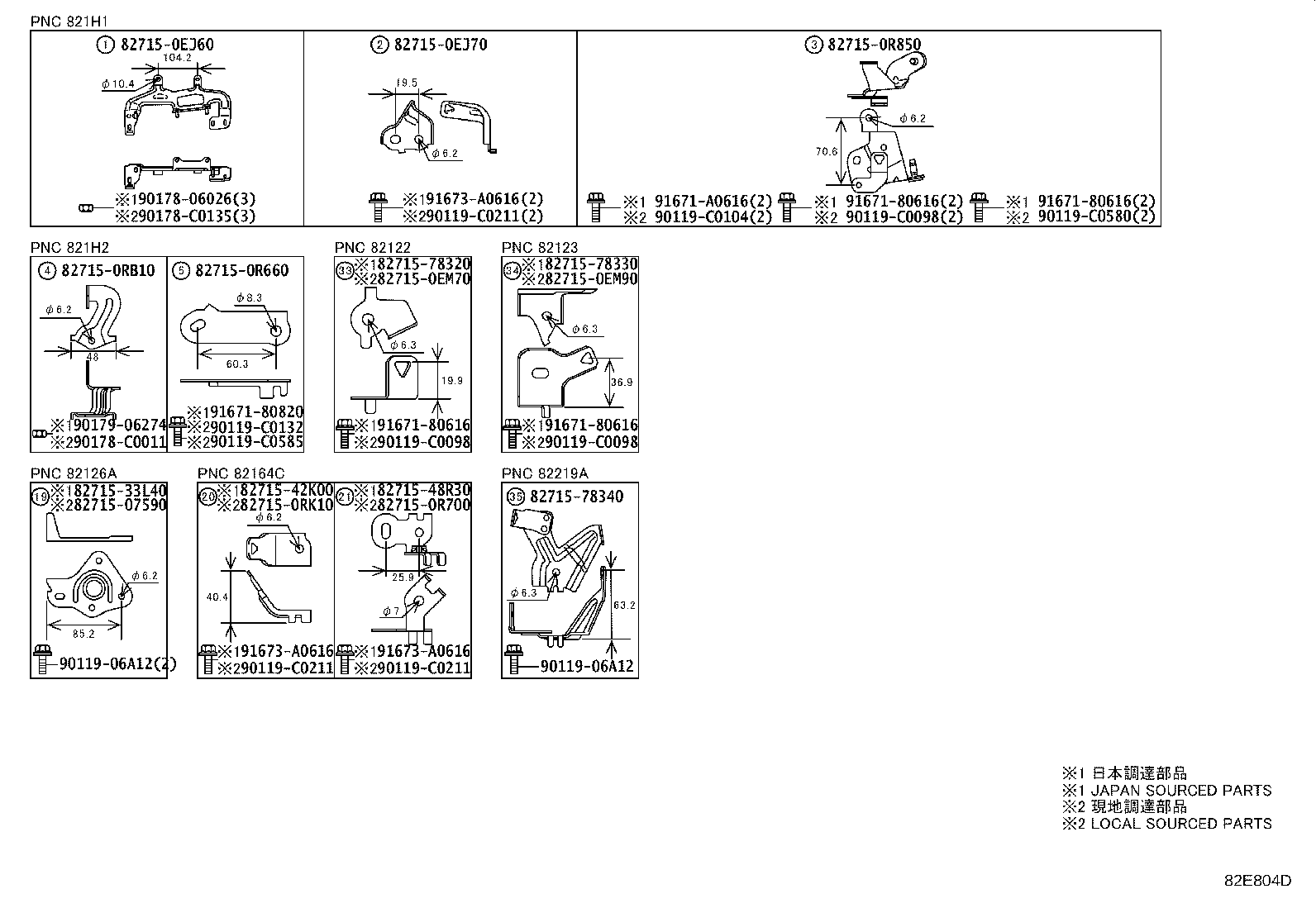

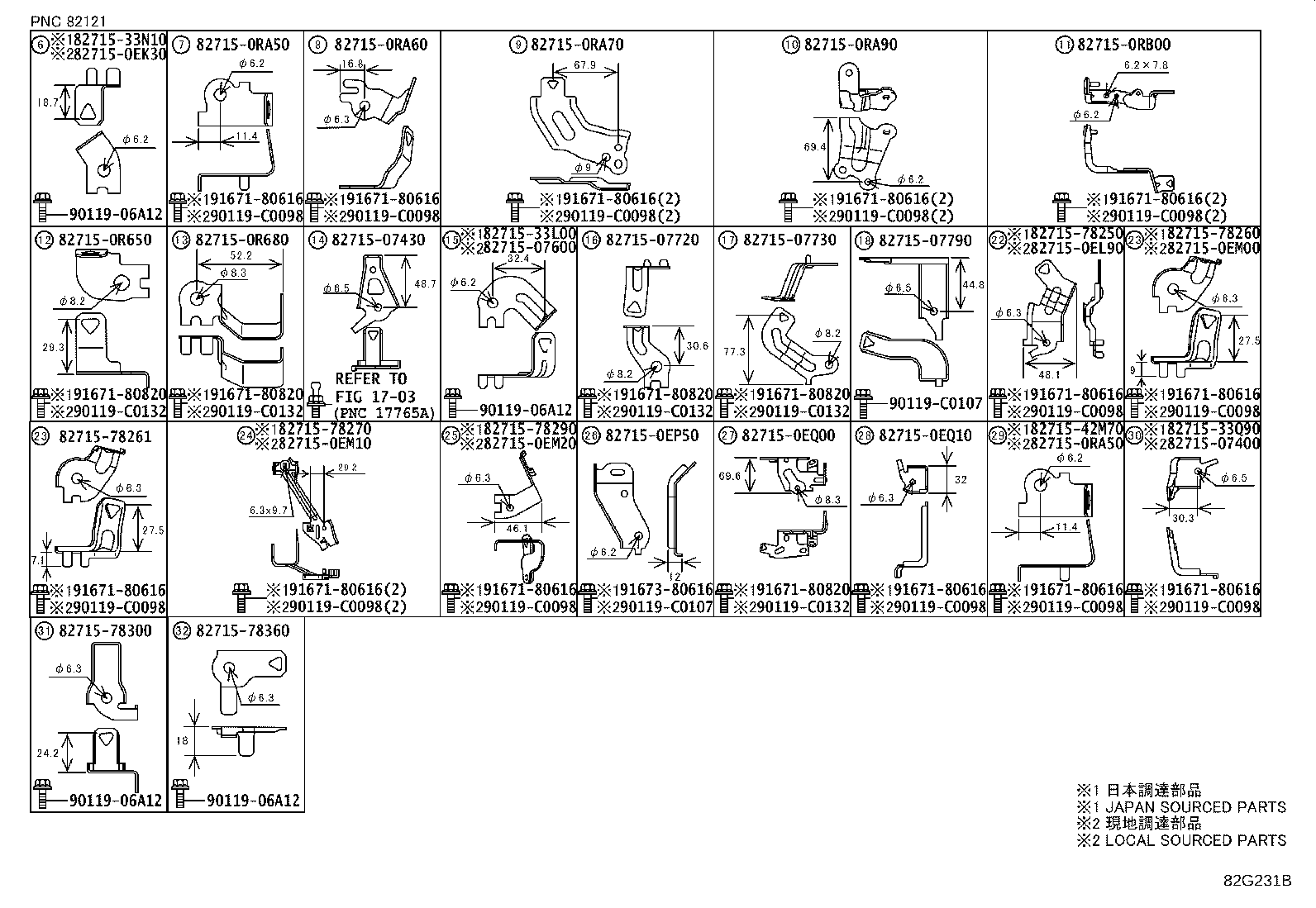

82712A Support, Wiring Harness

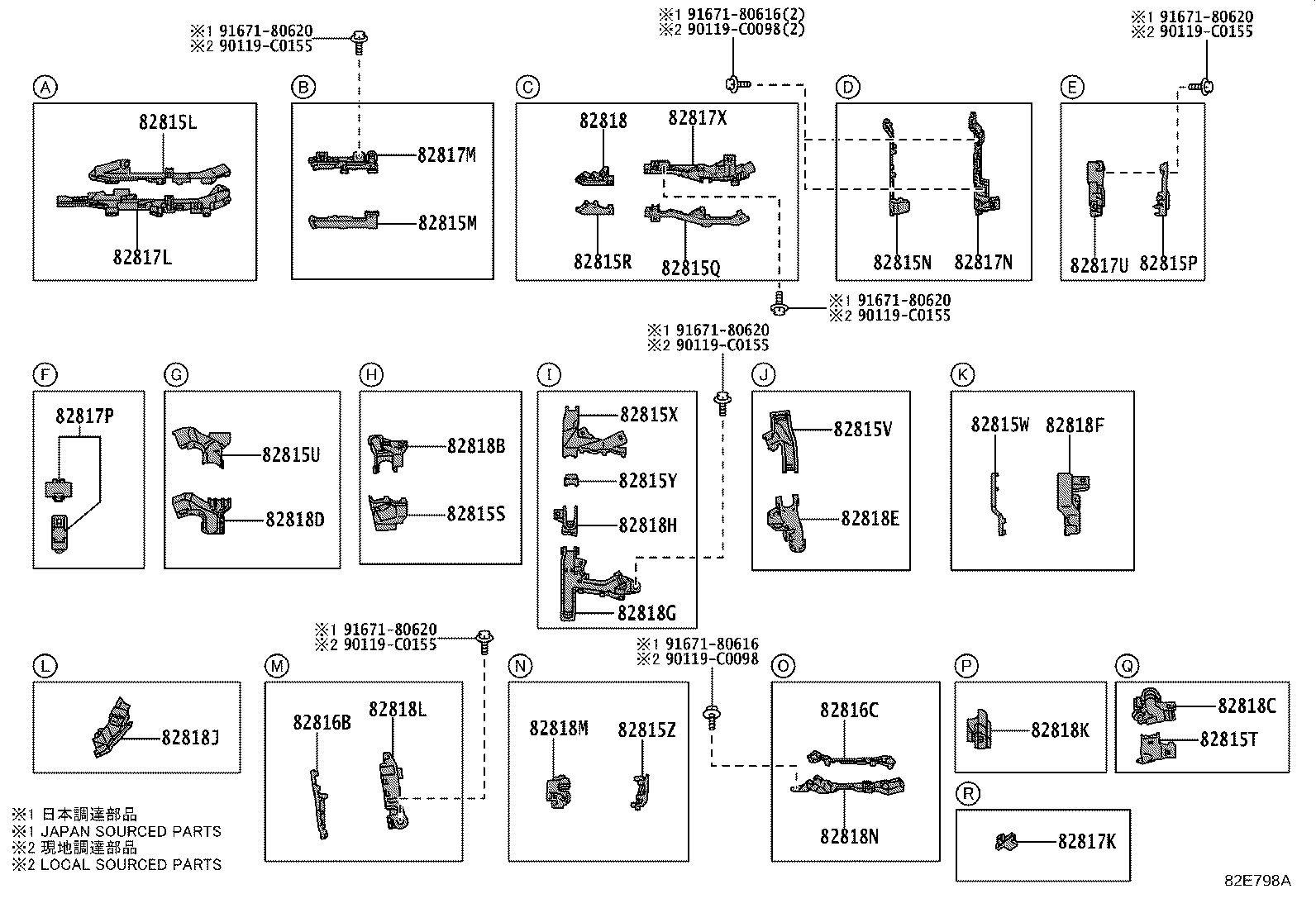

82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816M Cover, Wiring Harness Protector, NO.10
82816N Cover, Wiring Harness Protector, NO.11
82816P Cover, Wiring Harness Protector, NO.12
82816Q Cover, Wiring Harness Protector, NO.13
82816R Cover, Wiring Harness Protector, NO.14
82816S Cover, Wiring Harness Protector, NO.15
82816T Cover, Wiring Harness Protector, NO.16
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82818Y Protector, Wiring Harness, NO.21
82818Z Protector, Wiring Harness, NO.22
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82819K Protector, Wiring Harness, NO.26
82819L Protector, Wiring Harness, NO.27
82819M Protector, Wiring Harness, NO.28
82819N Protector, Wiring Harness, NO.29
82819P Protector, Wiring Harness, NO.30
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82823A Cap, Terminal, NO.2
82824 Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
82H17B Protector, Wiring Harness, NO.1
82H17C Protector, Wiring Harness, NO.2
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G921D Protector, Inverter Connector Cover
G921G Protector, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
