Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

162 part groups · 21 illustrations

Illustrations

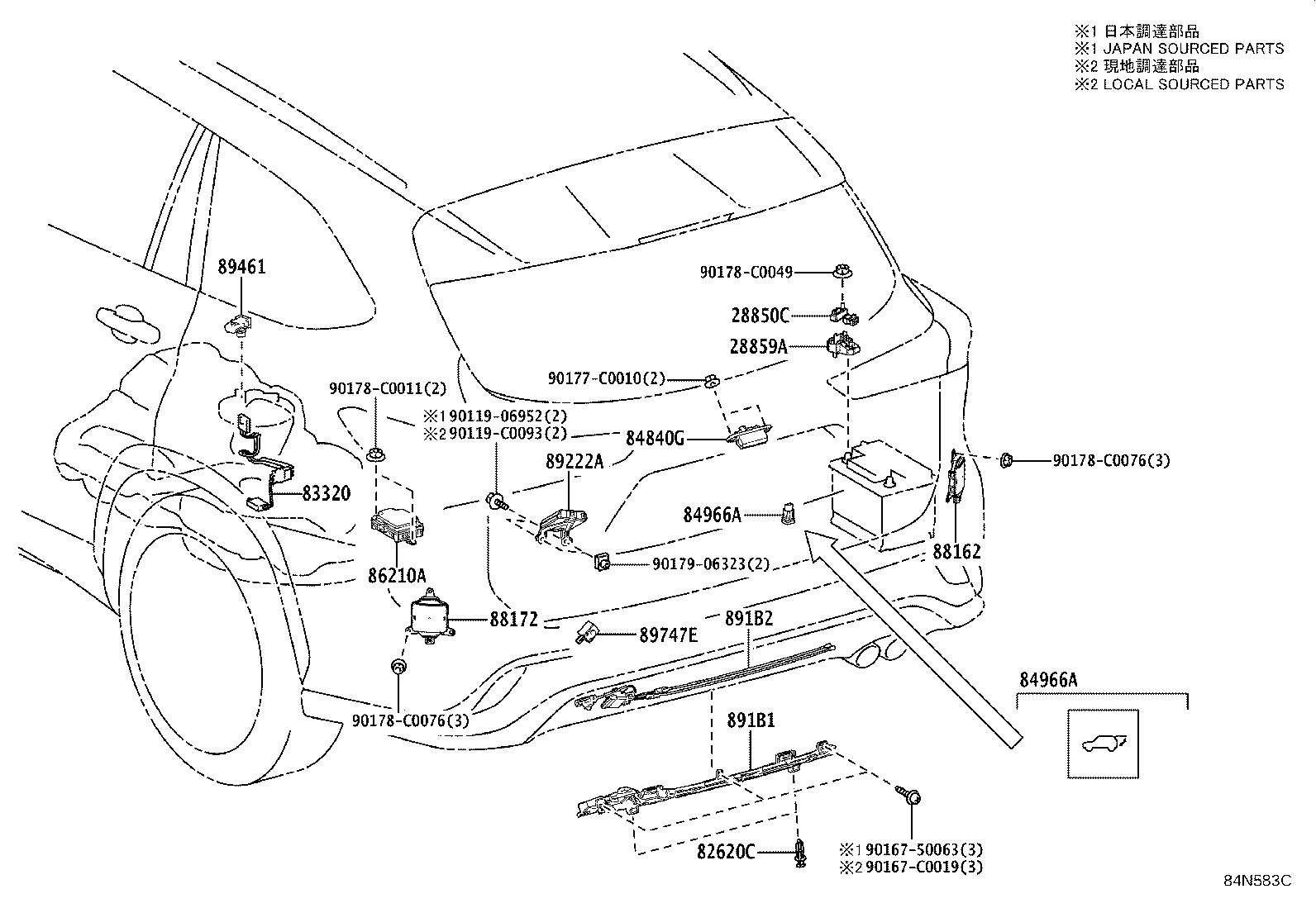

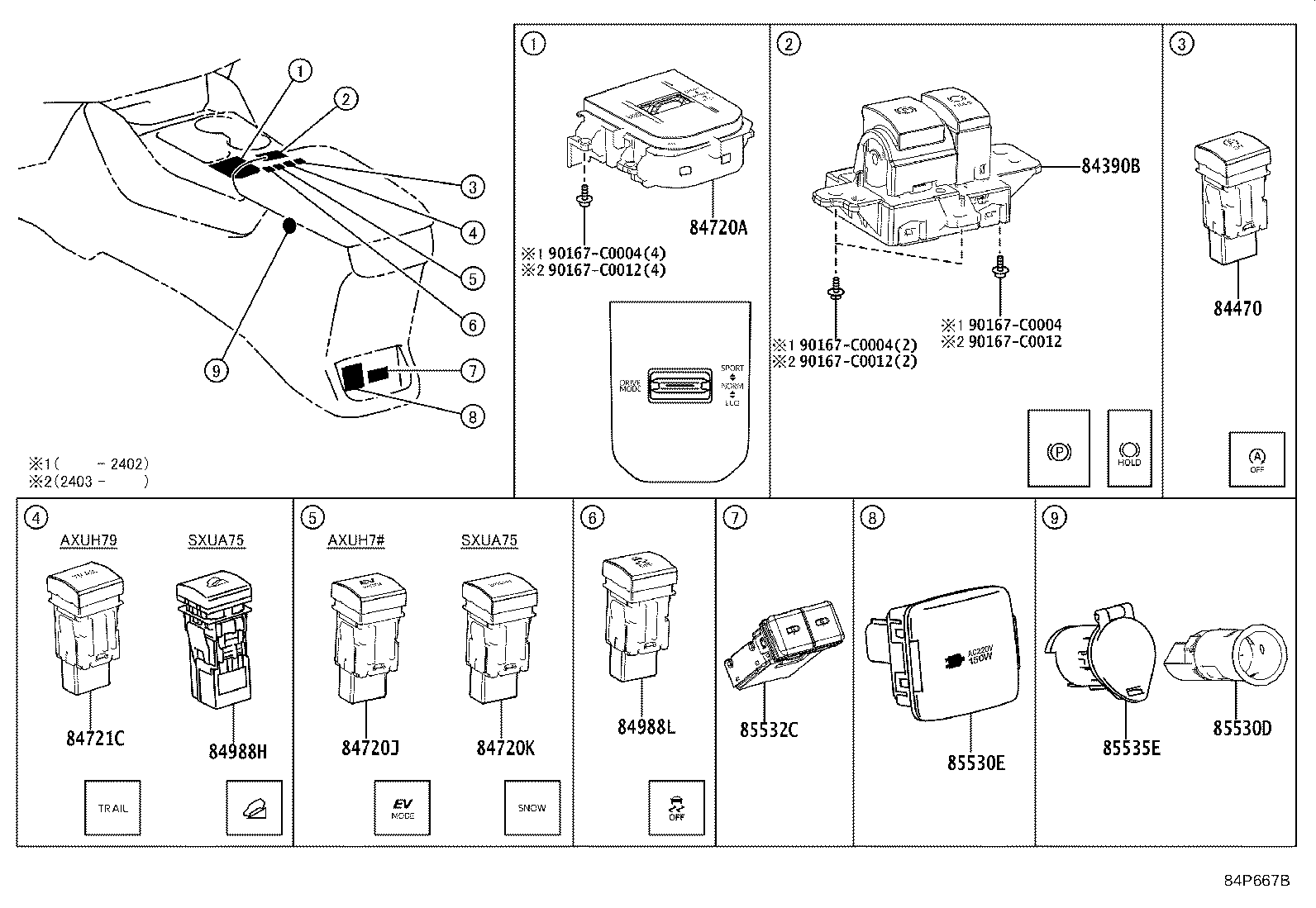

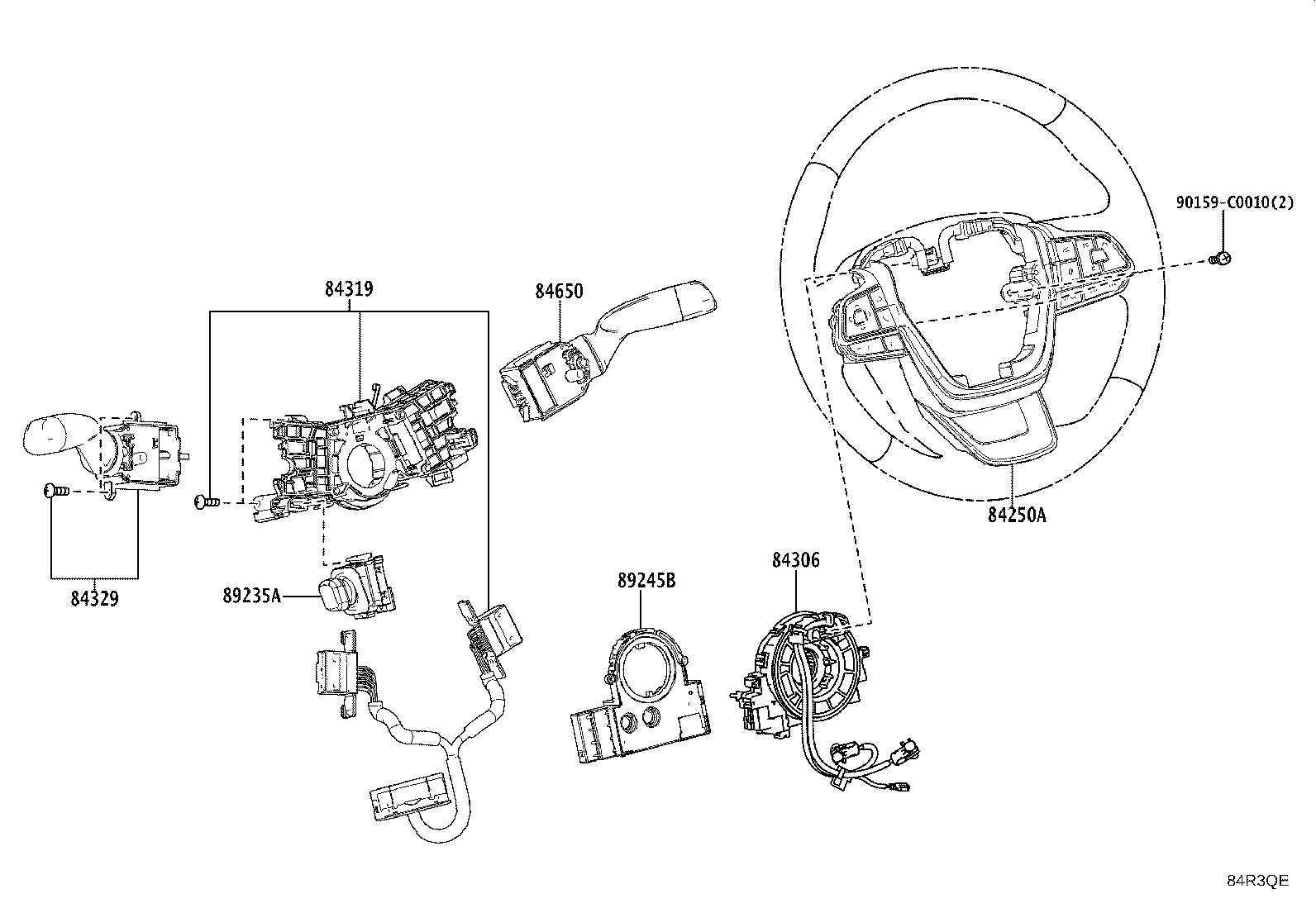

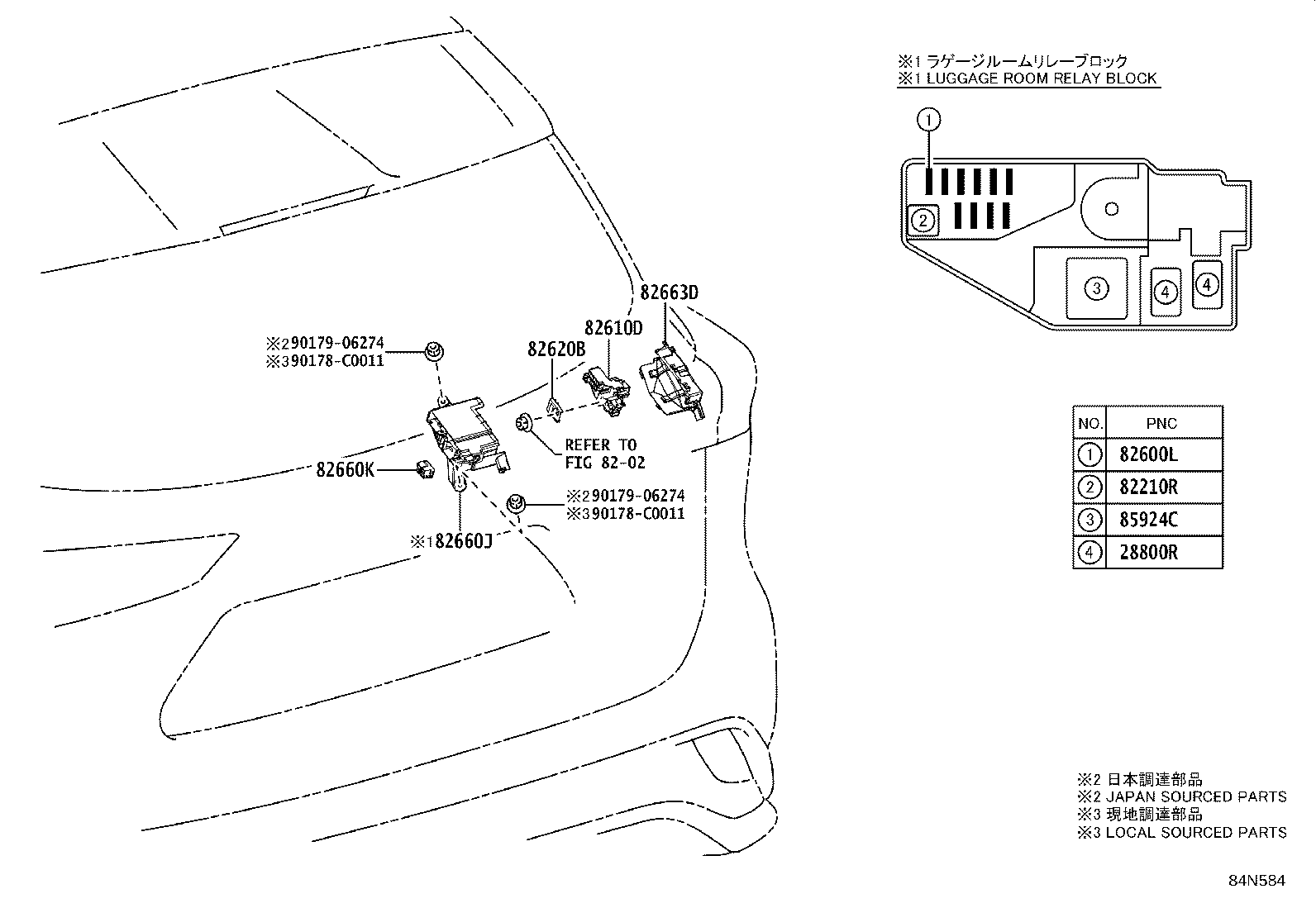

84N585C 2021-08 → 2023-03

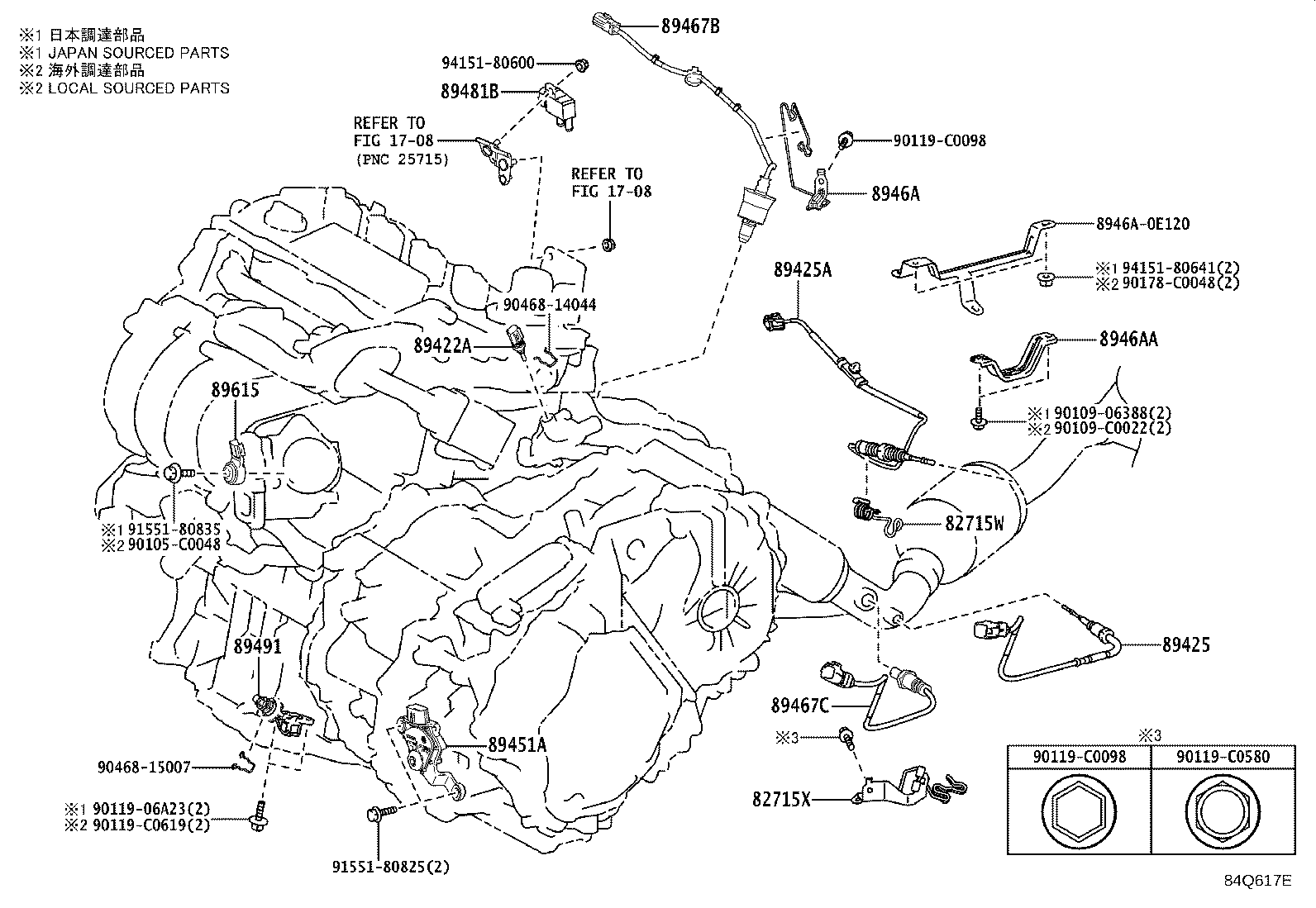

84Q617E 2023-03 → —

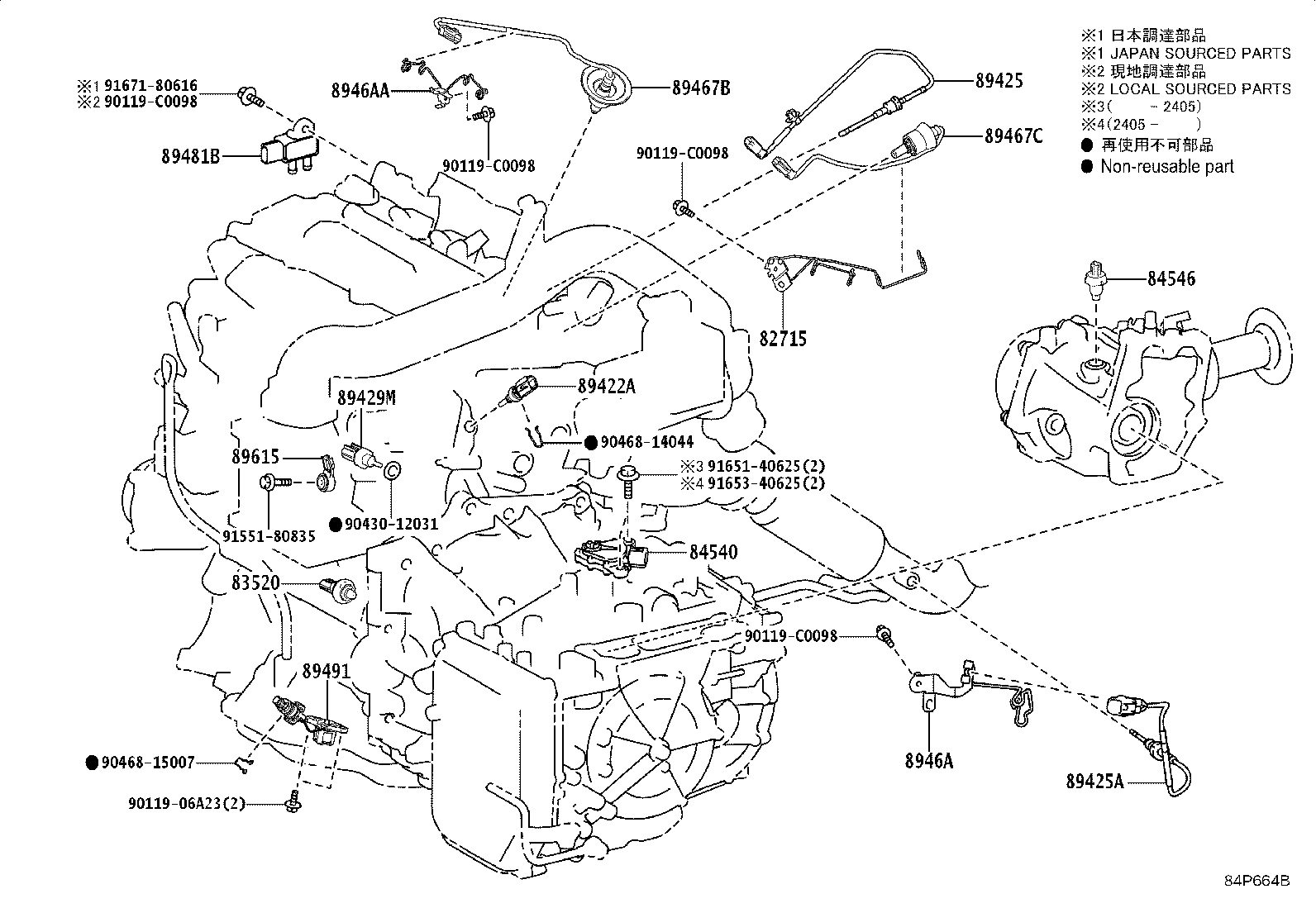

84P664B 2022-09 → —

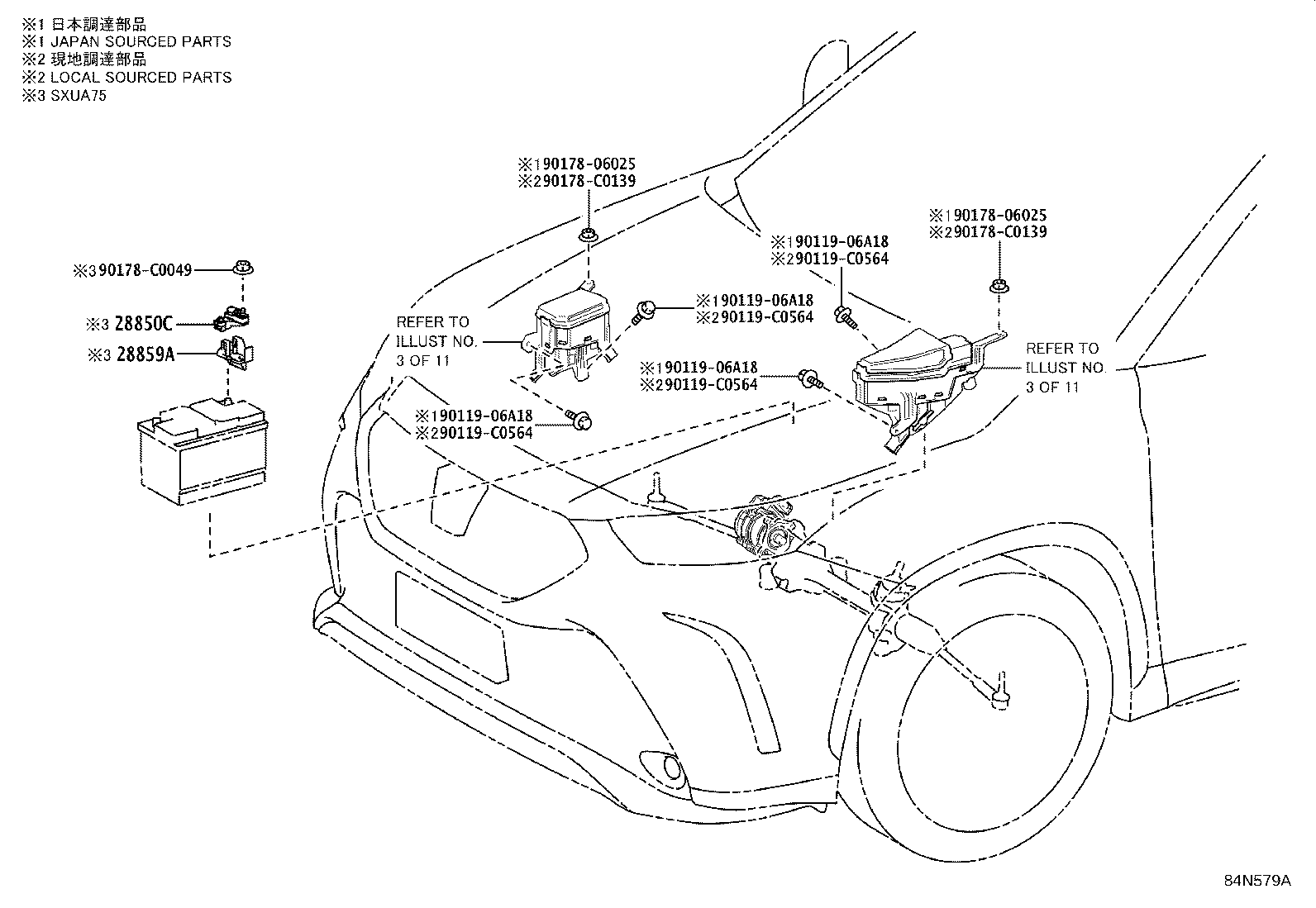

84N579A 2021-08 → —

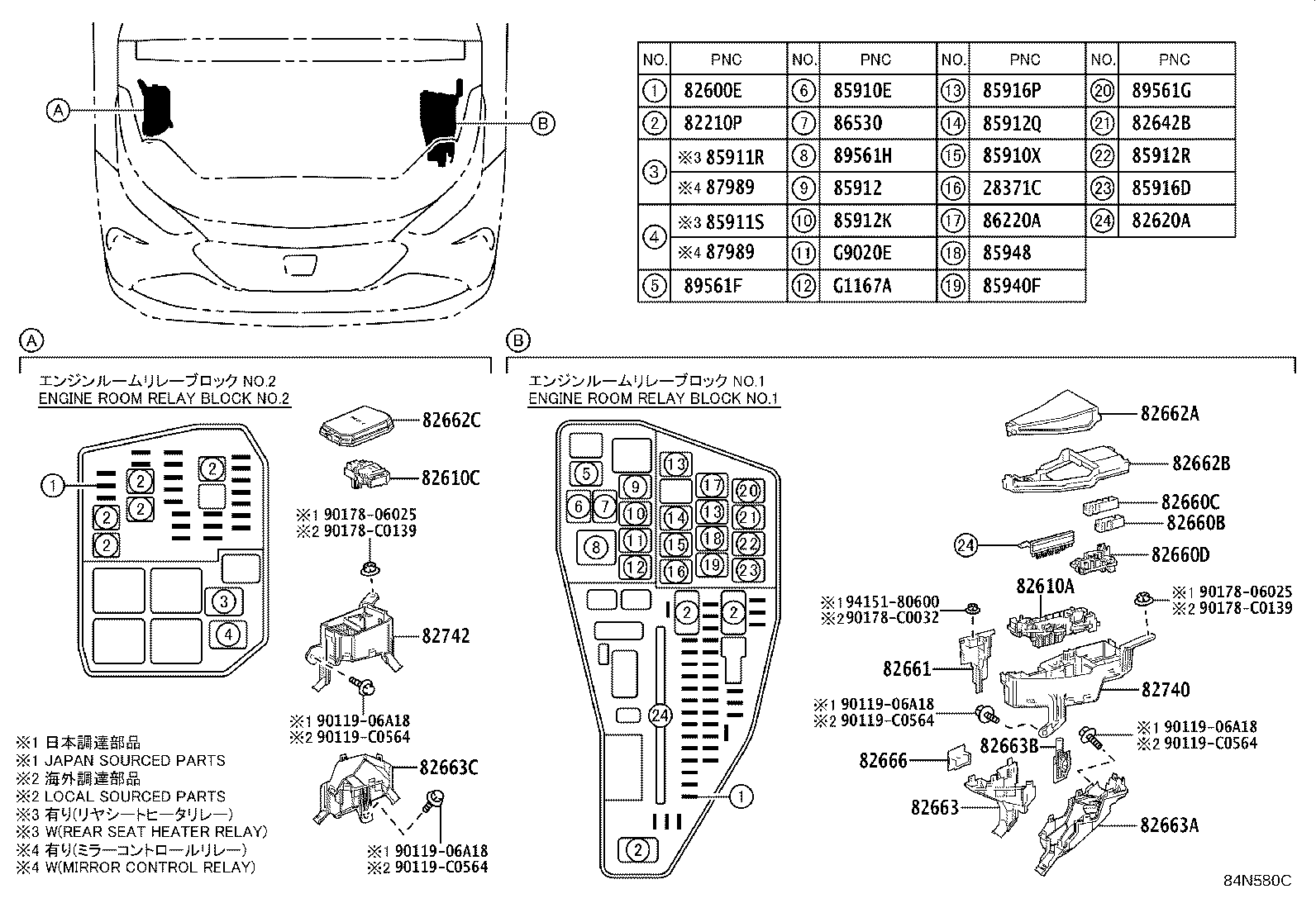

84N580C 2021-08 → 2024-05

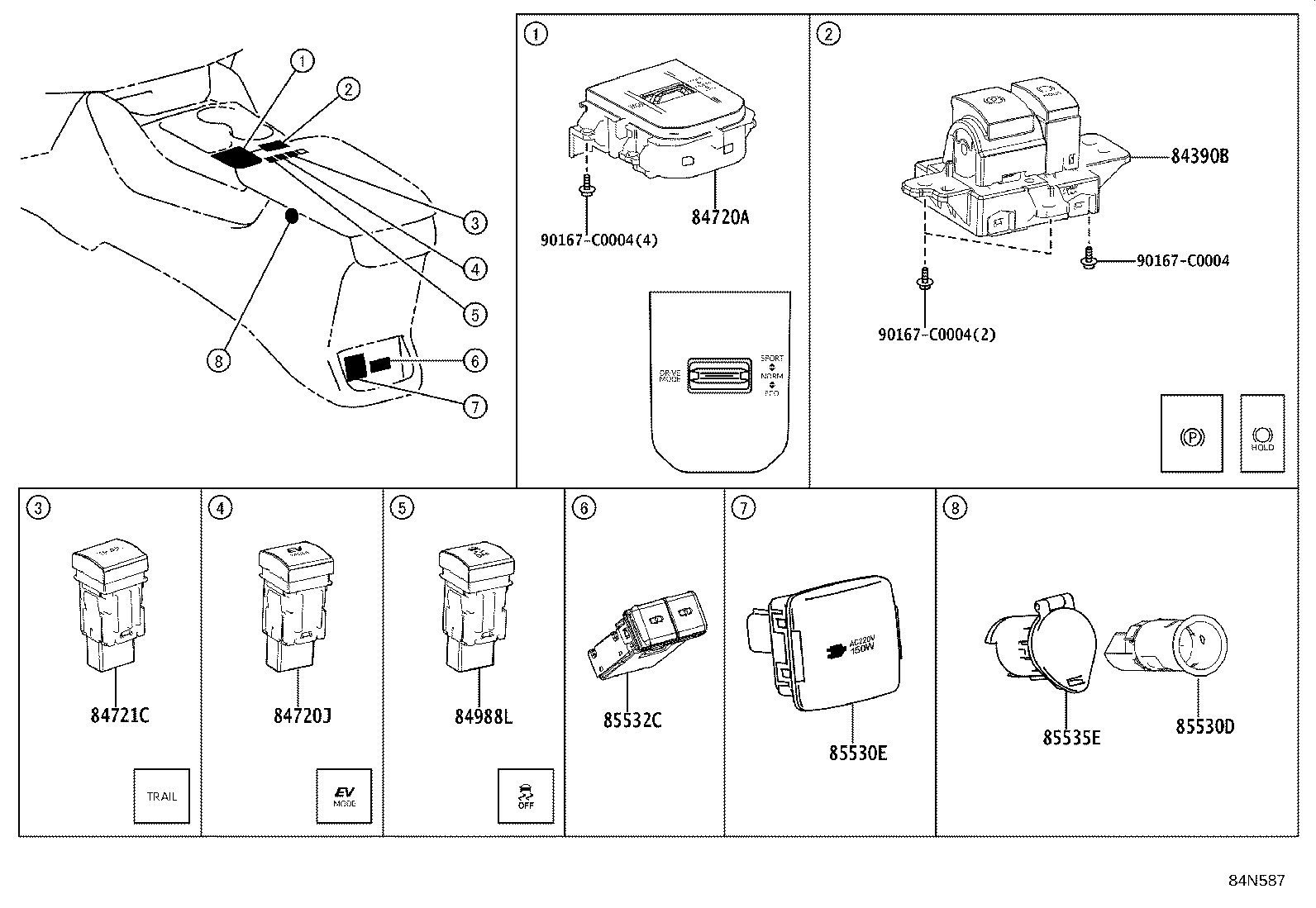

84R3QBB 2024-05 → —

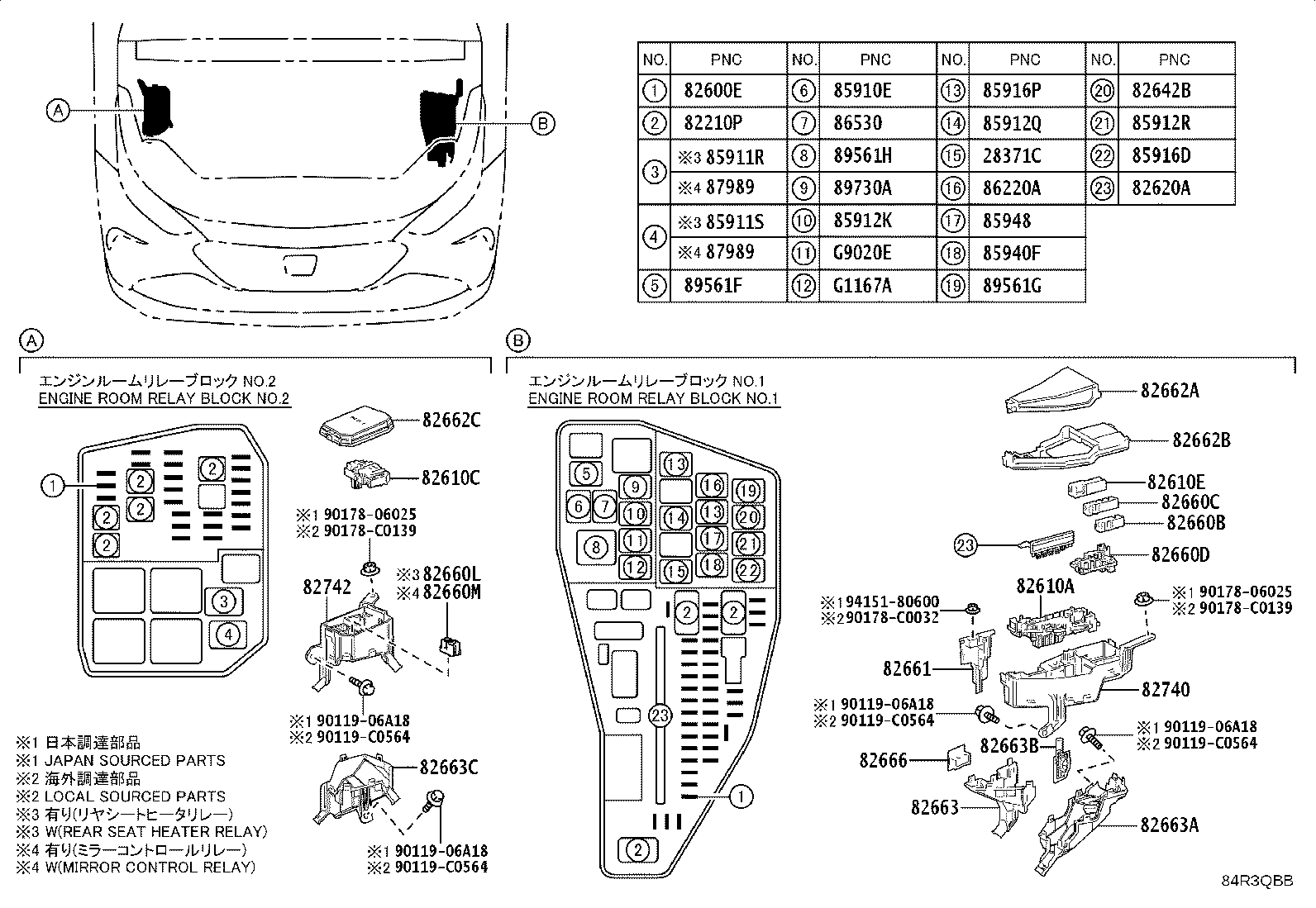

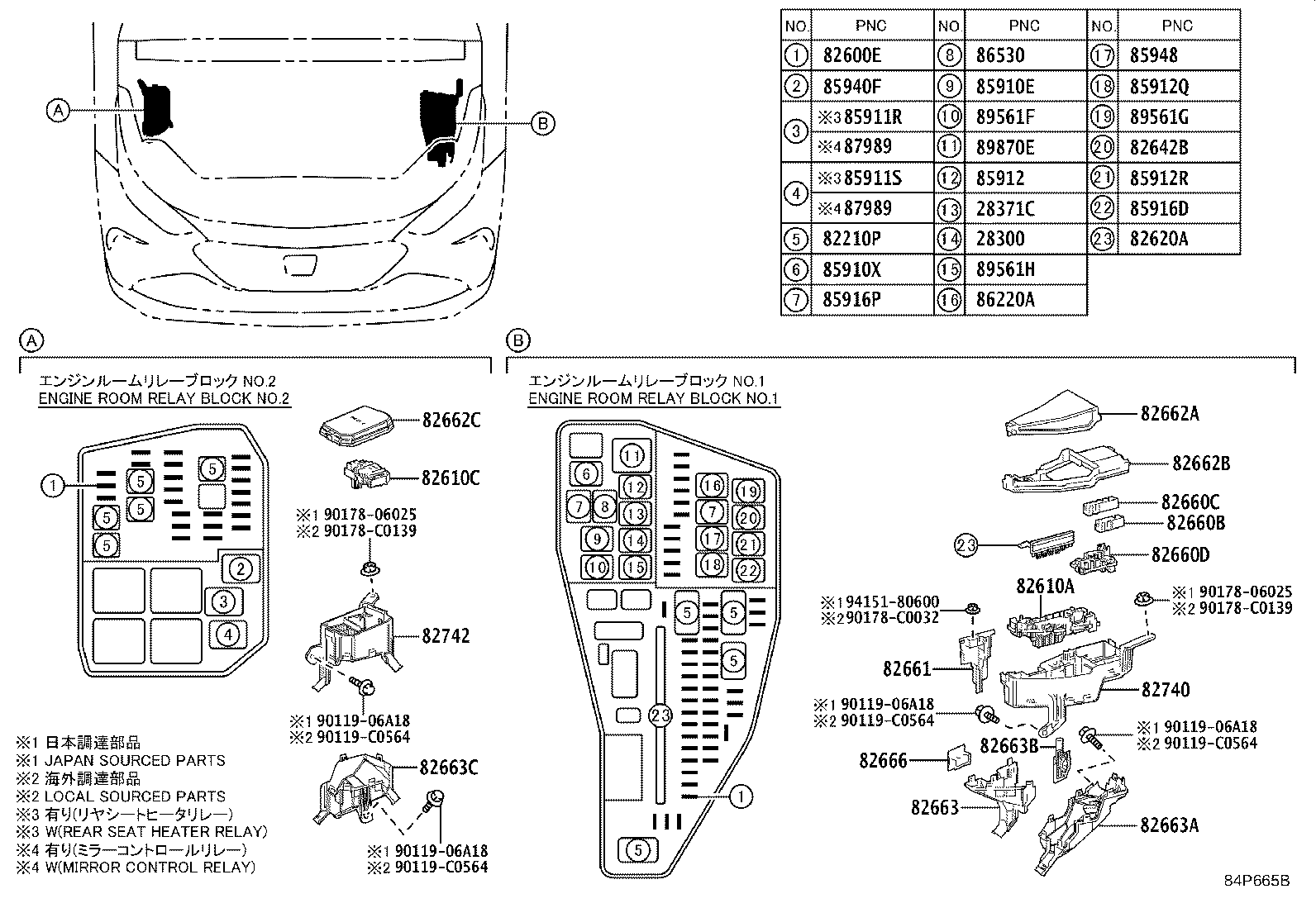

84P665B 2022-09 → 2024-05

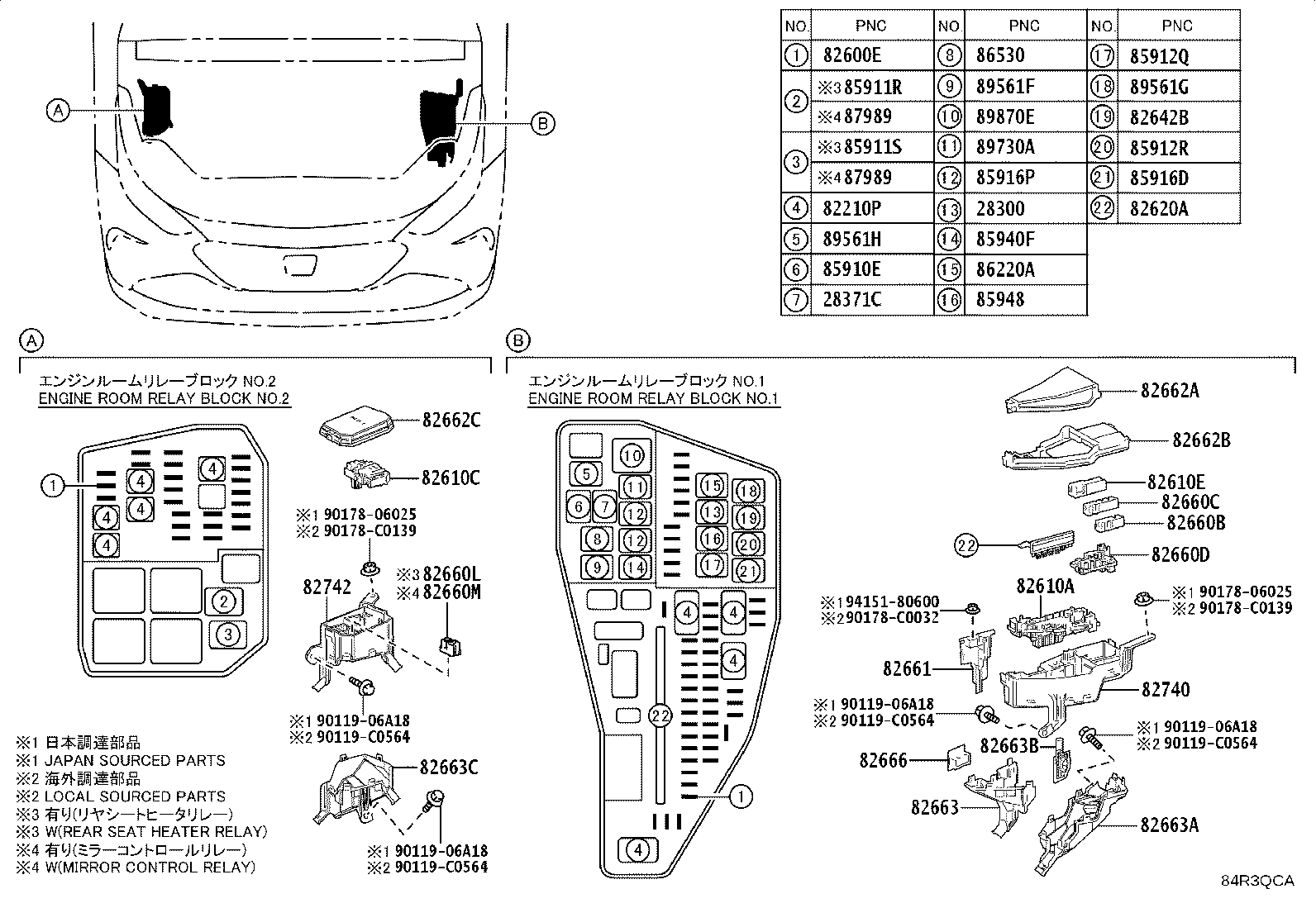

84R3QCA 2024-05 → —

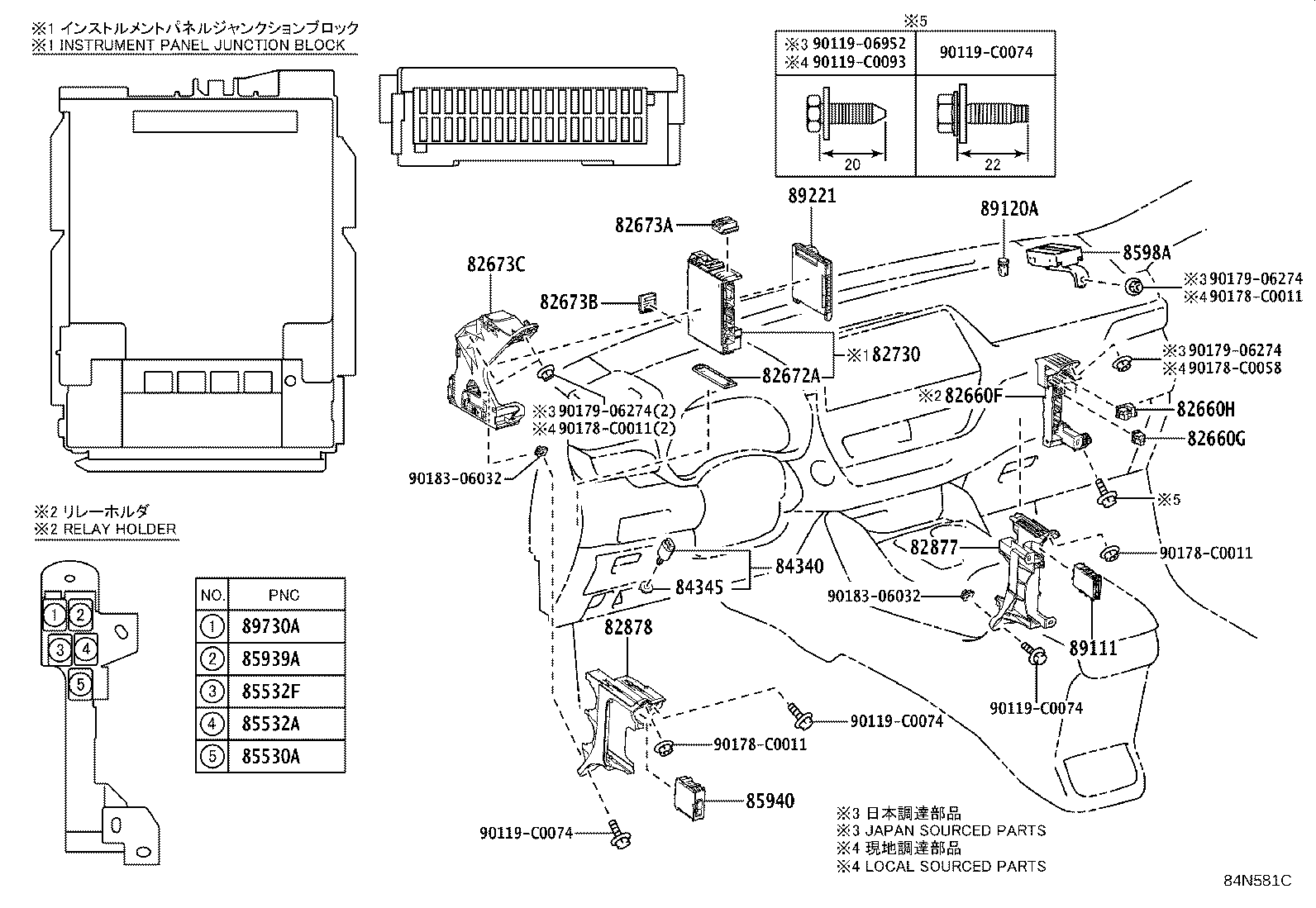

84N581C 2021-08 → 2024-05

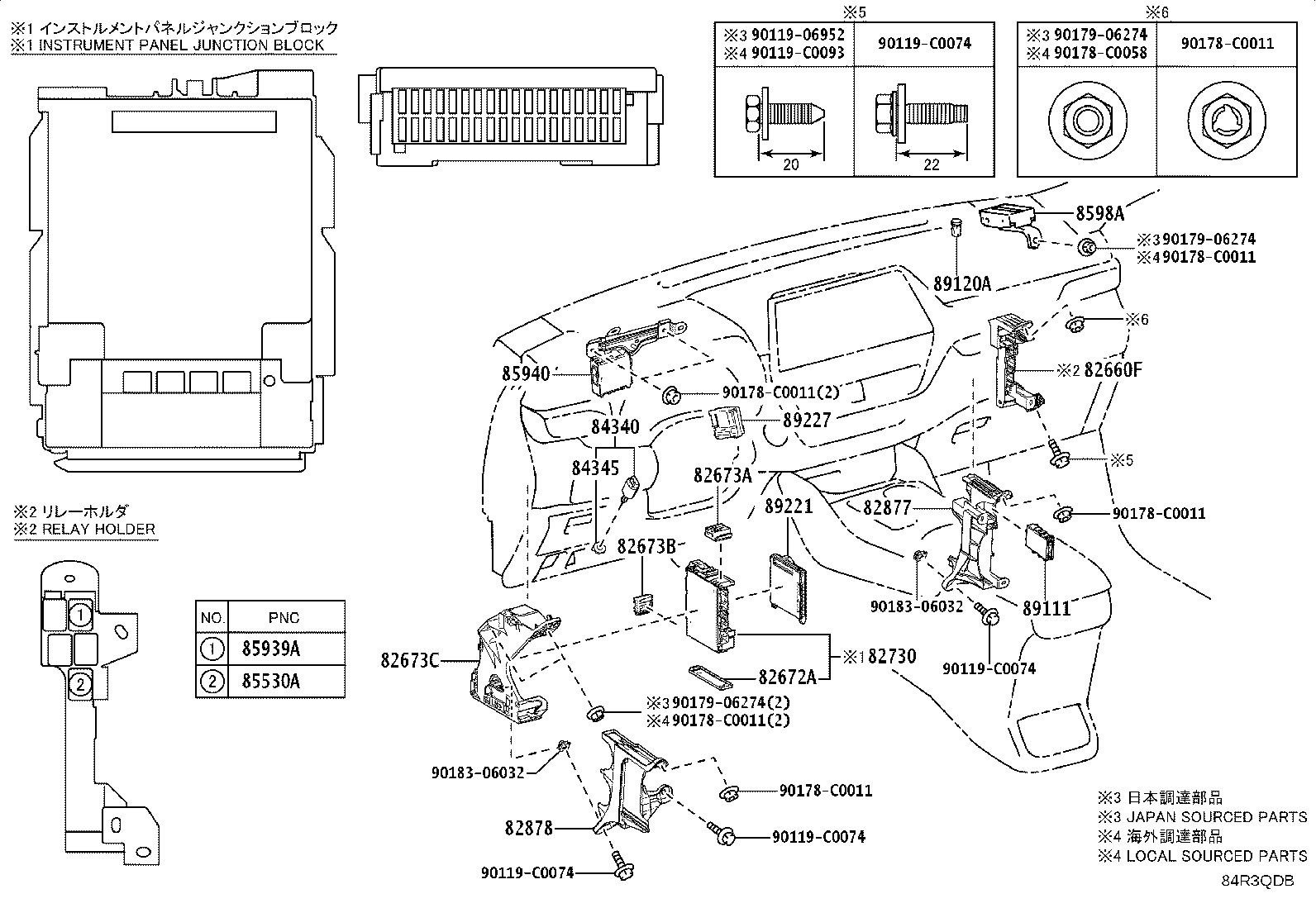

84R3QDB 2024-05 → —

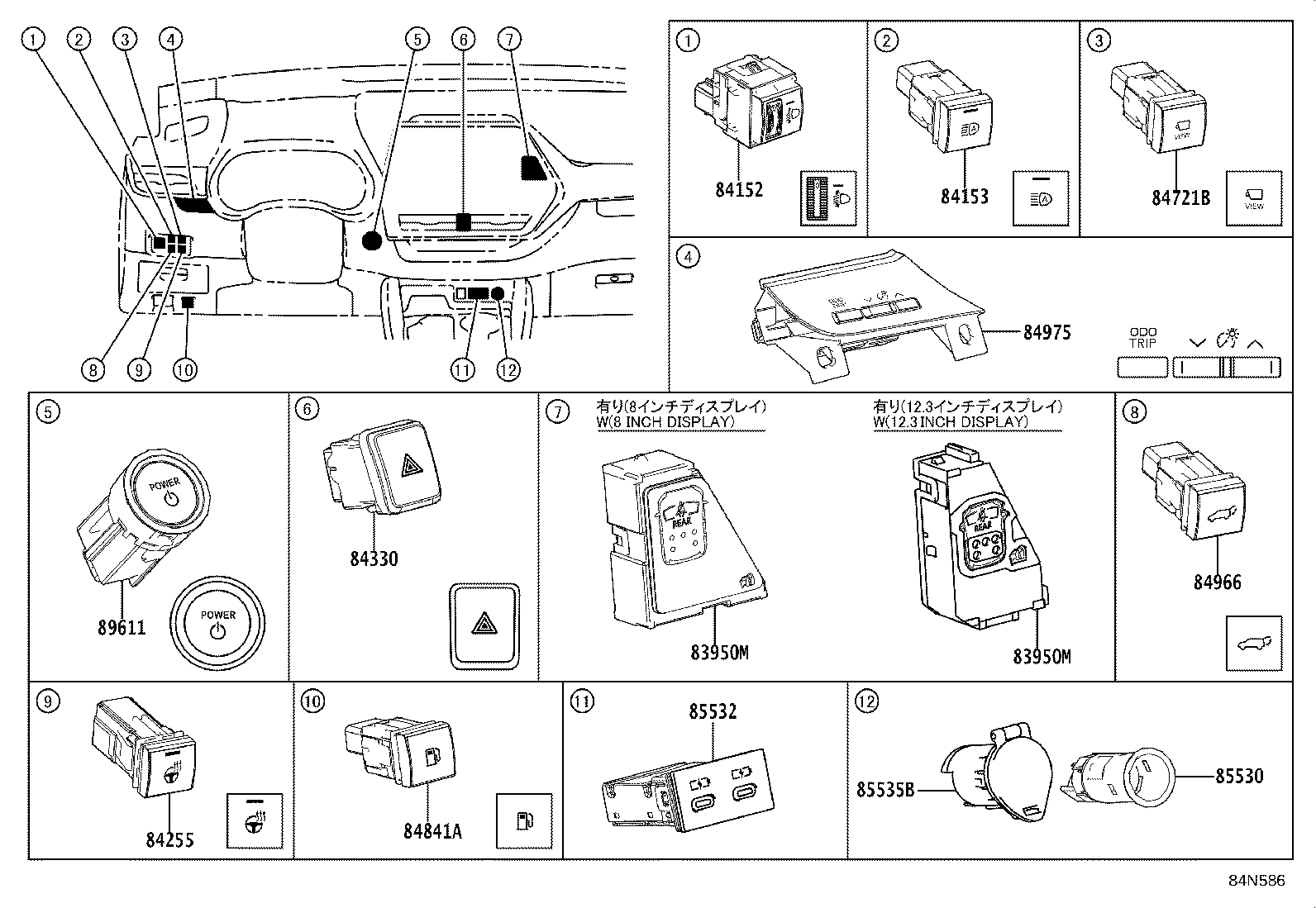

84N586 2021-08 → 2022-09

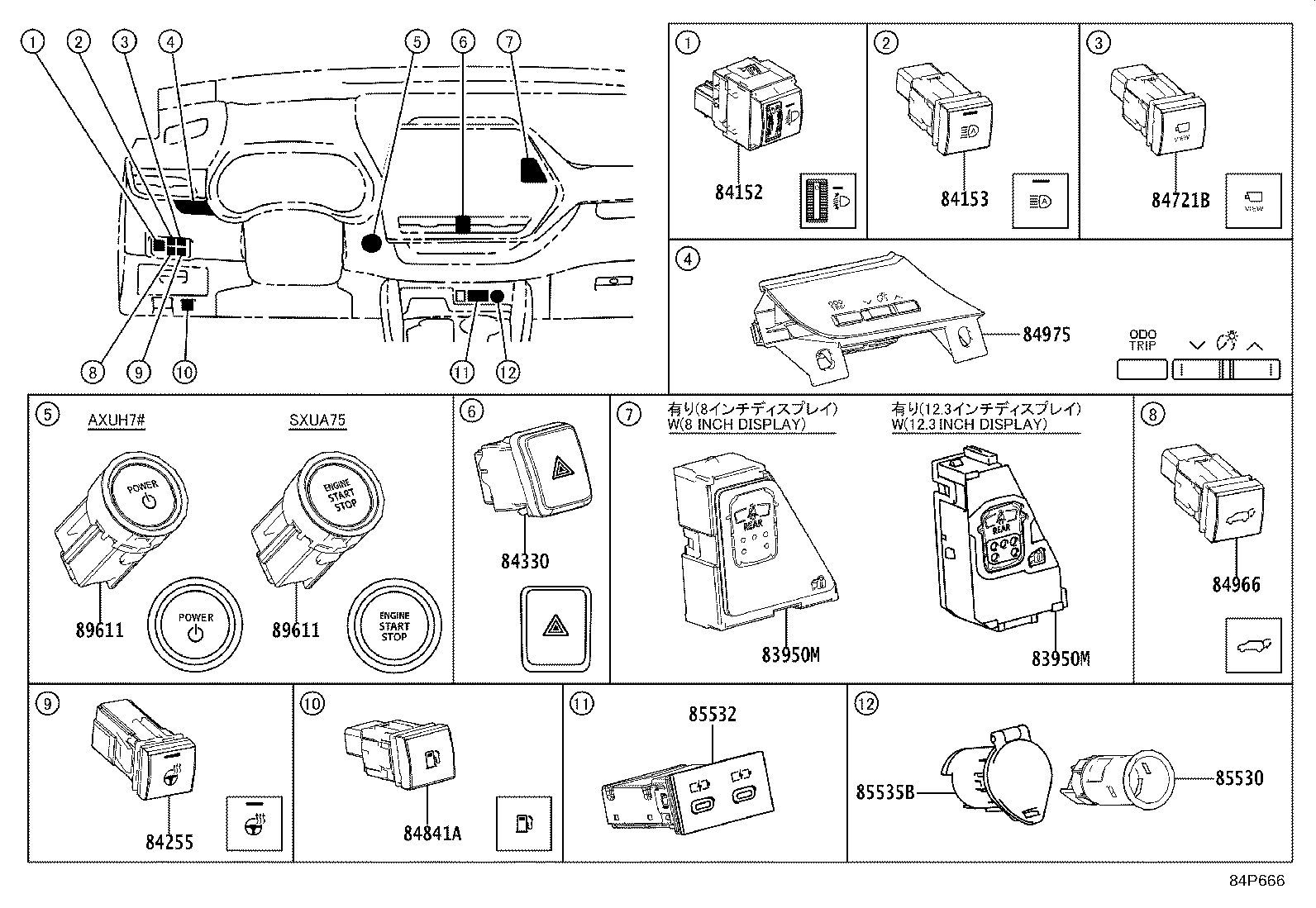

84P666 2022-09 → —

84N587 2021-08 → 2022-09

84P667B 2022-09 → —

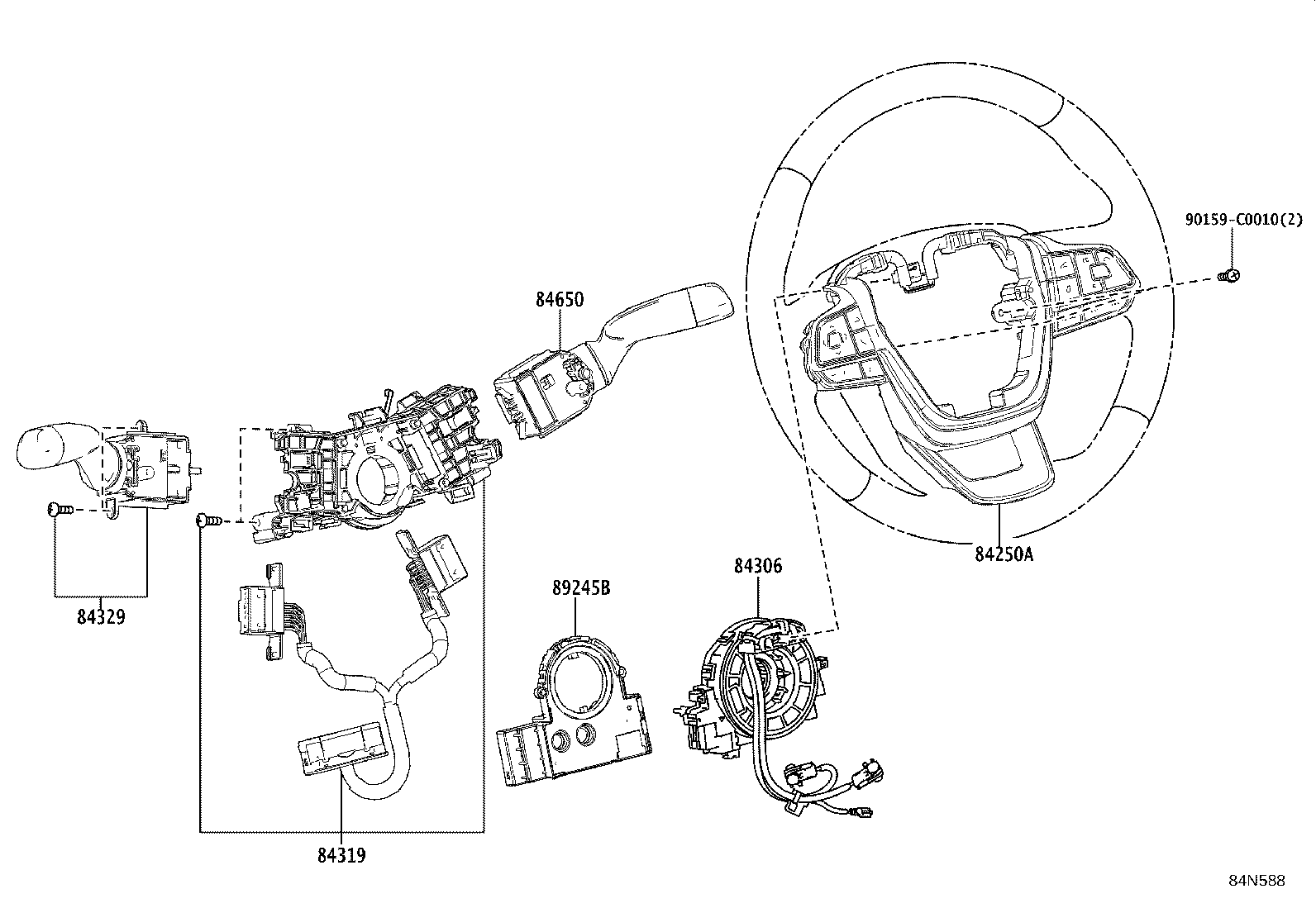

84N588 2021-08 → 2024-05

84R3QE 2024-05 → —

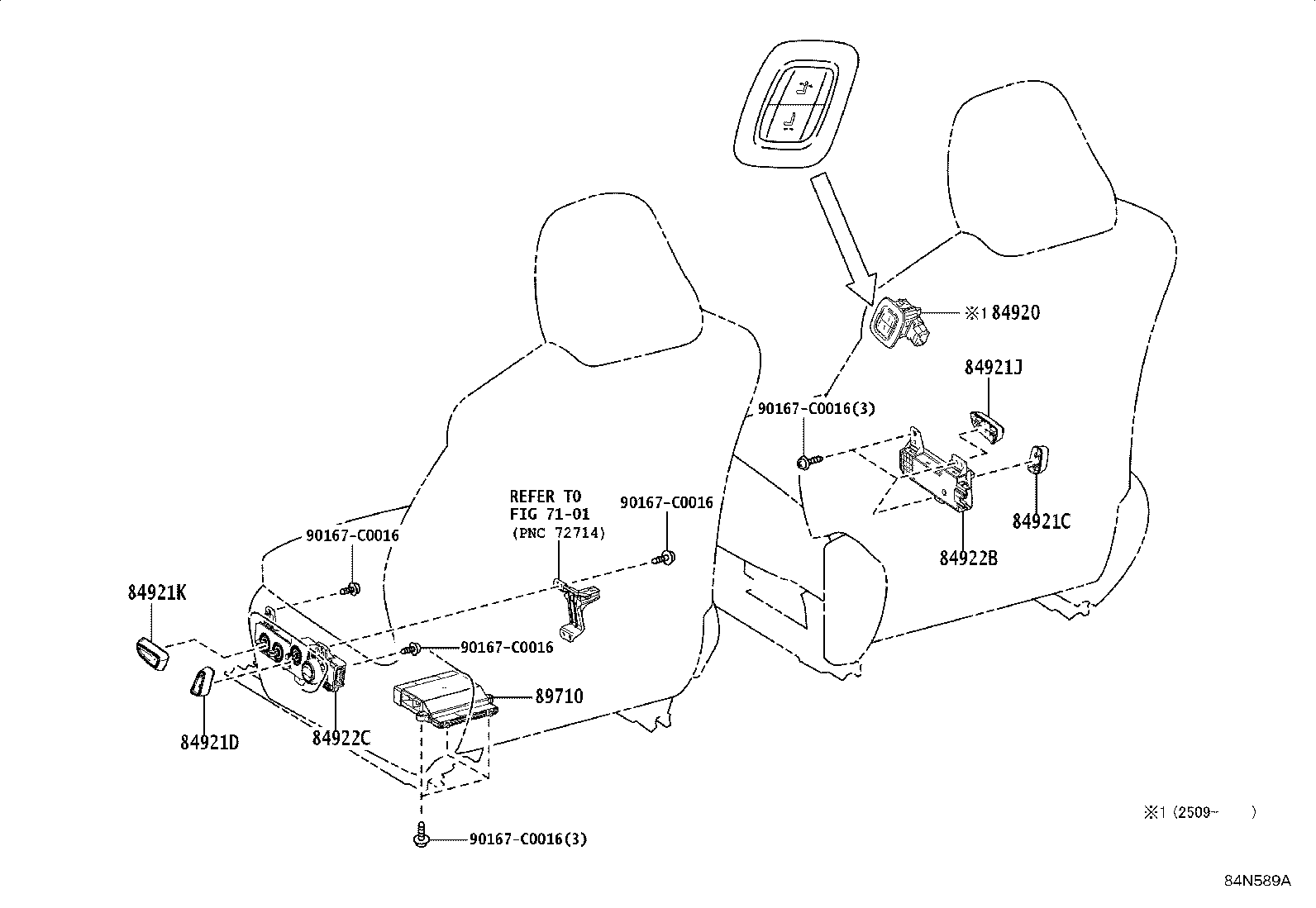

84N589A 2021-08 → —

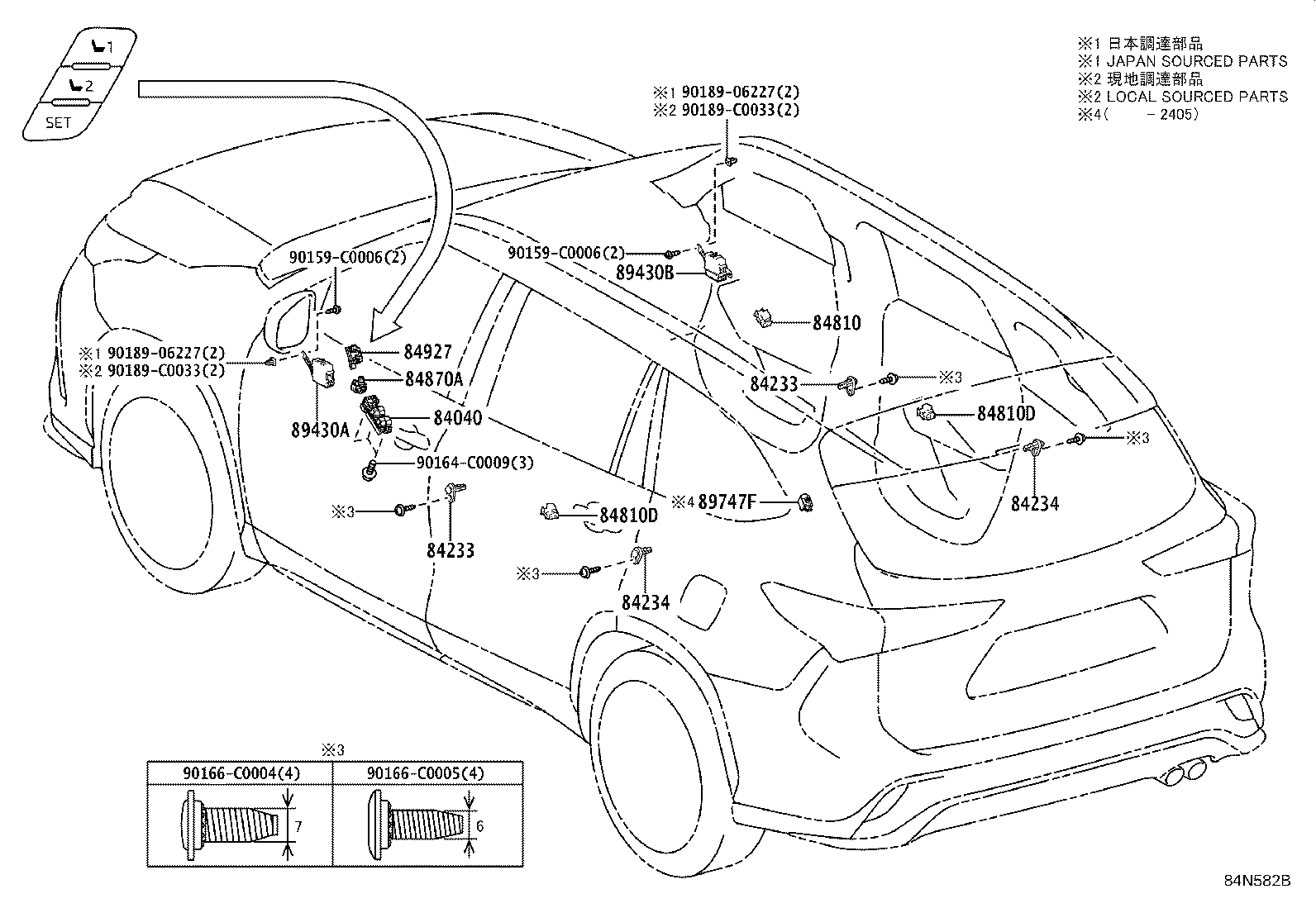

84N582B 2021-08 → —

84N583C 2021-08 → 2022-09

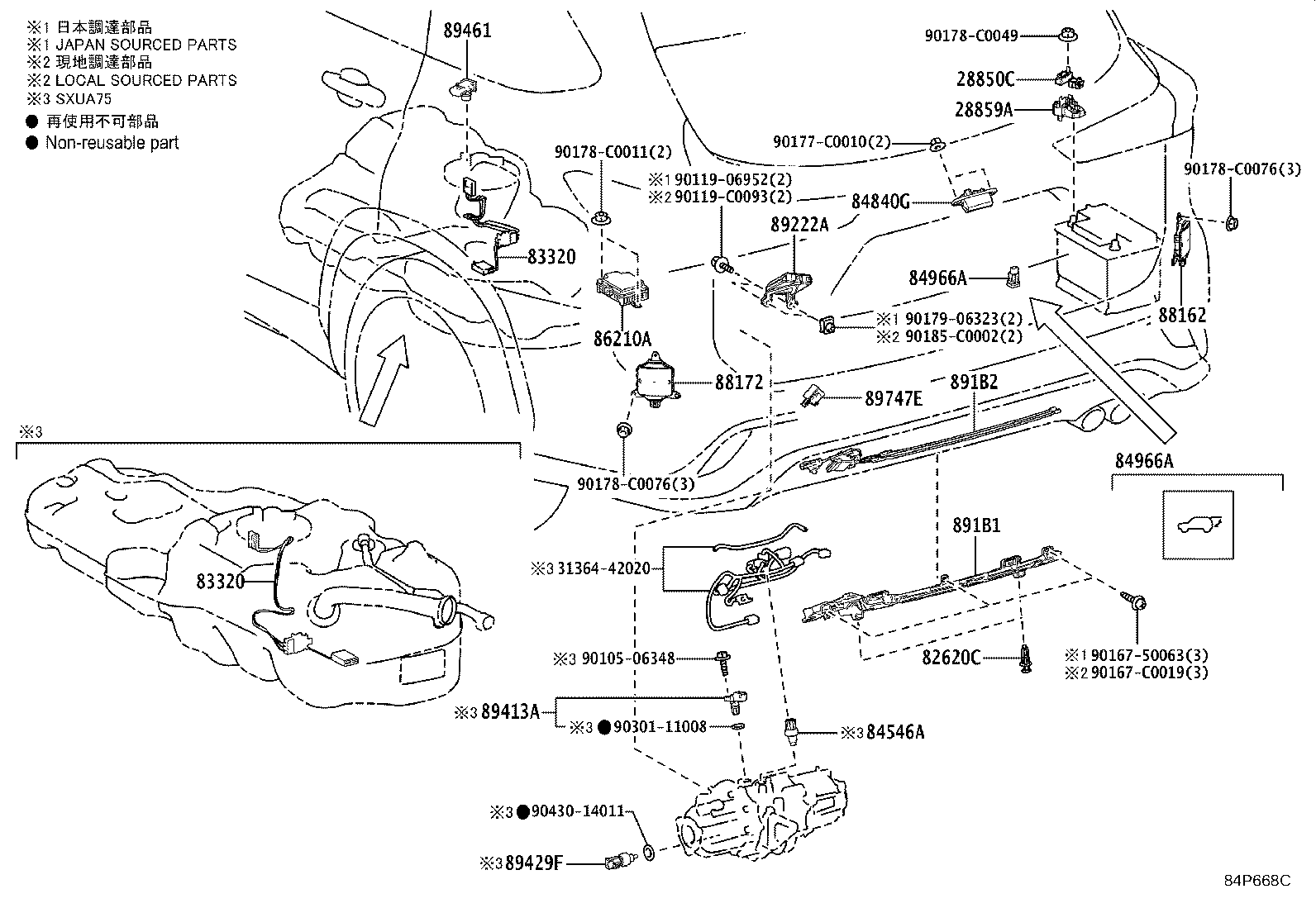

84P668C 2022-09 → —

84N584 2021-08 → —

Part groups

PNC	Description
28300	Relay Assy, Starter
28371C	Relay, Ignition, NO.2
28800R	Relay, Battery Fan
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
82210P	Engine Room Fusible Link
82210R	Luggage Room Fusible Link
82600E	Engine Room Fuse
82600L	Luggage Room Fuse
82610A	Block Assy, Fuse
82610C	Block Assy, Fuse
82610D	Block Assy, Fuse
82610E	Block Assy, Fuse
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620C	Clip
82642B	Relay, Day Time Running Light, NO.1
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660F	Block Assy, Relay
82660G	Block Assy, Relay
82660H	Block Assy, Relay
82660J	Block Assy, Relay
82660K	Block Assy, Relay
82660L	Block Assy, Relay
82660M	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663C	Cover, Relay Block Lower, NO.4
82663D	Cover, Relay Block, Lower, NO.5
82666	Holder, Connector
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82673C	Bracket, Junction Block
82715	Bracket,Wiring Harness Clamp
82715W	Bracket, Wiring Harness Clamp
82715X	Bracket, Wiring Harness Clamp, NO.2
82730	Block Assy, Instrument Panel Junction
82740	Block Assy, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82877	Box, Computer Integration, RH
82878	Box, Computer Integration, LH
83320	Gage Assy, Fuel Sender
83520	Gage Assy,Oil Pressure Sender
83950M	Lamp Assy, Telltale
84040	Master Switch Assy,Multiplex Network
84152	Switch, Headlamp Leveling
84153	Switch, Auto High Beam
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84255	Switch, Steering Heater
84306	Cable Sub-assy, Spiral
84319	Housing, Steering Wheel Switch
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84390B	Switch Assy, Electric Parking Brake
84470	Switch Assy, Warning Canceling
84540	Switch Assy, Neutral Start
84546	Switch, 4 Wheel Drive Position, NO.1
84546A	Switch, 4 Wheel Drive Position, NO.2
84650	Switch Assy, Windshield Wiper
84720A	Switch Assy, Pattern Select, NO.1
84720J	Switch Assy, Pattern Select
84720K	Switch Assy, Pattern Select
84721B	Switch, Panoramic View Monitor
84721C	Switch, Pattern Select
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener
84841A	Switch, Fuel Lid Opener
84870A	Switch Assy, Outer Mirror
84921C	Knob, Power Seat Switch, RH
84921D	Knob, Power Seat Switch, LH
84921J	Knob, Power Seat Switch, RH
84921K	Knob, Power Seat Switch, LH
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84927	Switch, Seat Memory
84966	Switch, Power Back Door Control
84966A	Switch, Power Back Door Control, NO.1
84975	Switch, Trip
84988H	Switch, Downhill Assist Control
84988L	Switch, Vsc Off
85530	Socket Assy, Power Outlet, NO.1
85530A	Relay, Power Outlet Socket
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85532	Socket, Usb Charger
85532A	Relay, Usb
85532C	Socket, Usb Charger, NO.2
85532F	Relay, Usb, NO.2
85535B	Cover, Power Outlet Socket, NO.1
85535E	Cover, Power Outlet Socket, NO.2
85910E	Relay, Injector
85910X	Relay, Heater Mirror
85911R	Relay, Rear Seat Heater, RH
85911S	Relay, Rear Seat Heater, LH
85912	Relay, Defogger
85912K	Relay, Vvt
85912Q	Relay, Front Seat Heater, RH
85912R	Relay, Front Seat Heater, LH
85916D	Relay, Fog Lamp
85916P	Relay, Headlamp
85924C	Relay, Igct
85939A	Relay, Steering Heater
85940	Relay Assy, Windshield Wiper
85940F	Relay Assy, Windshield Deicer
85948	Relay, Windshield Wiper
8598A	Battery, Door Control
86210A	Inverter Assy, Voltage
86220A	Relay, Inverter
86530	Relay Assy, Horn
87989	Relay, Mirror Control
88162	Sensor, Blind Spot Monitor, RH
88172	Sensor, Blind Spot Monitor, LH
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
891B1	Bracket, Kick Door Control
891B2	Sensor, Kick Door Control
89221	Computer, Multiplex Network Body
89222A	Computer, Multiplex Network Door
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering
89413A	Sensor, Transmission Revolution
89422A	Sensor, Water Temperature
89425	Sensor, Exhaust Gas Temperature
89425A	Sensor, Exhaust Gas Temperature, NO.2
89429F	Sensor, Temperature
89429M	Sensor, Temperature NO.2
89430A	Computer Assy, Outer Mirror Control, LH
89430B	Computer Assy, Outer Mirror Control, RH
89451A	Sensor, Shift Lever Position
89461	Sensor, Vapor Pressure
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
8946A	Bracket, Exhaust Sensor Clamp
8946AA	Bracket, Exhaust Sensor Clamp, NO.2
89481B	Sensor, Differential Pressure
89491	Sensor, Engine Oil Level
89561F	Relay, Electronic Fuel Injection Main, NO.1
89561G	Relay, Electronic Fuel Injection Main, NO.2
89561H	Relay, Electronic Fuel Injection Main, NO.3
89611	Switch, Push Start
89615	Sensor, Knock Control
89710	Computer Assy, Position Control
89730A	Relay(FOR SECURITY WARNING)
89747E	Buzzer, Power Back Door Warning
89747F	Buzzer, Blind Spot Monitor
89870E	Relay, Electronic Driver Unit
G1167A	Relay (FOR OIL PUMP MOTOR)
G9020E	Relay, Hybrid Water Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
