Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

8 part groups · 2 illustrations

Illustrations

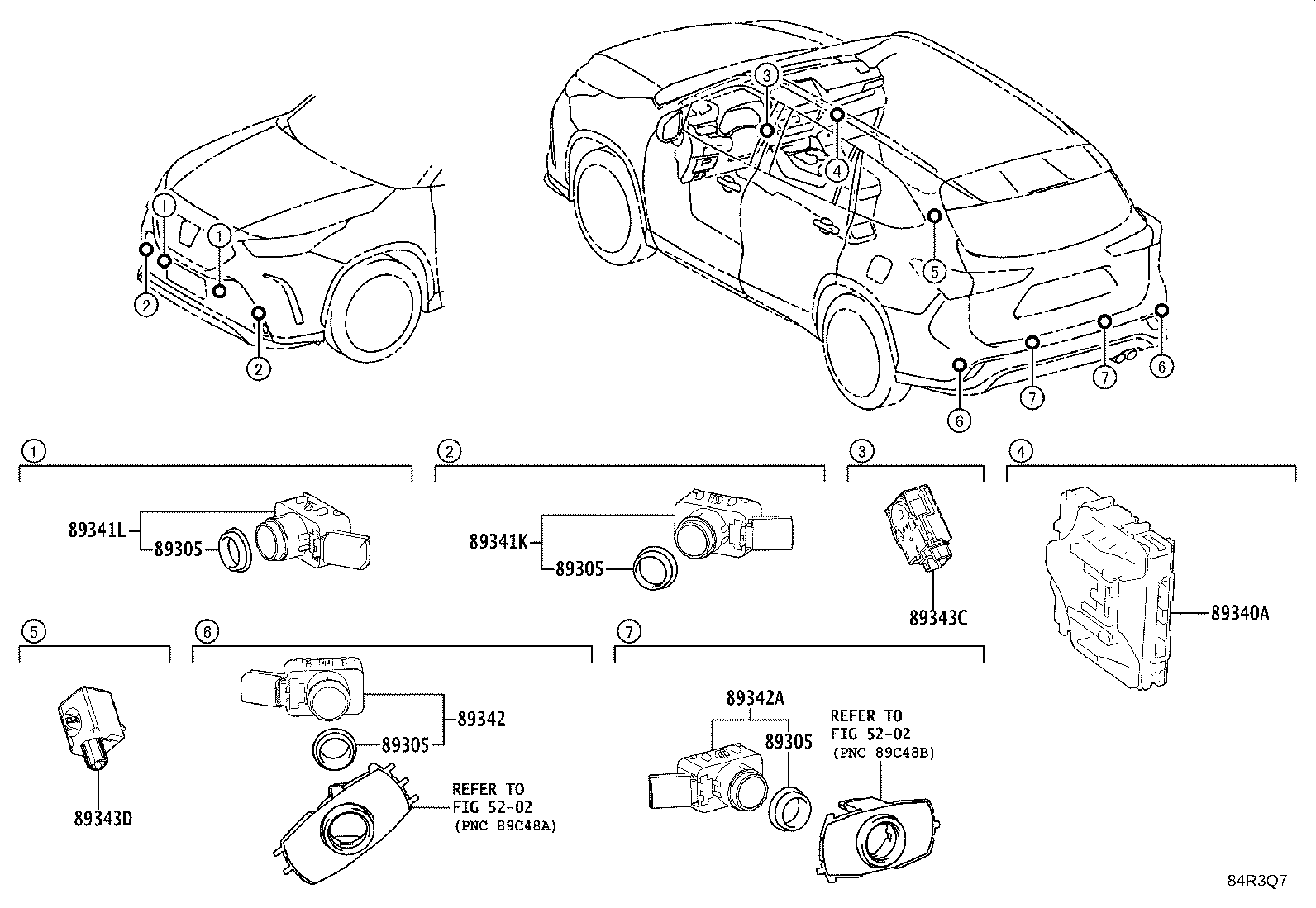

Figure 84N497A 84N497A 2021-08 → 2024-05 Figure 84R3Q7 84R3Q7 2024-05 → —

Part groups

PNCDescription
89305 Cushion Set, Ultrasonic Sensor
89340A Computer Assy, Clearance Warning
89341K Sensor, Ultrasonic, Front Corner
89341L Sensor, Ultrasonic, Front Center
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89343D Buzzer, Clearance Warning, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
