Toyota Crown Kluger

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 52A310 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

3 part groups · 2 illustrations

Illustrations

Figure 87K072A

87K072A 2021-08 → —

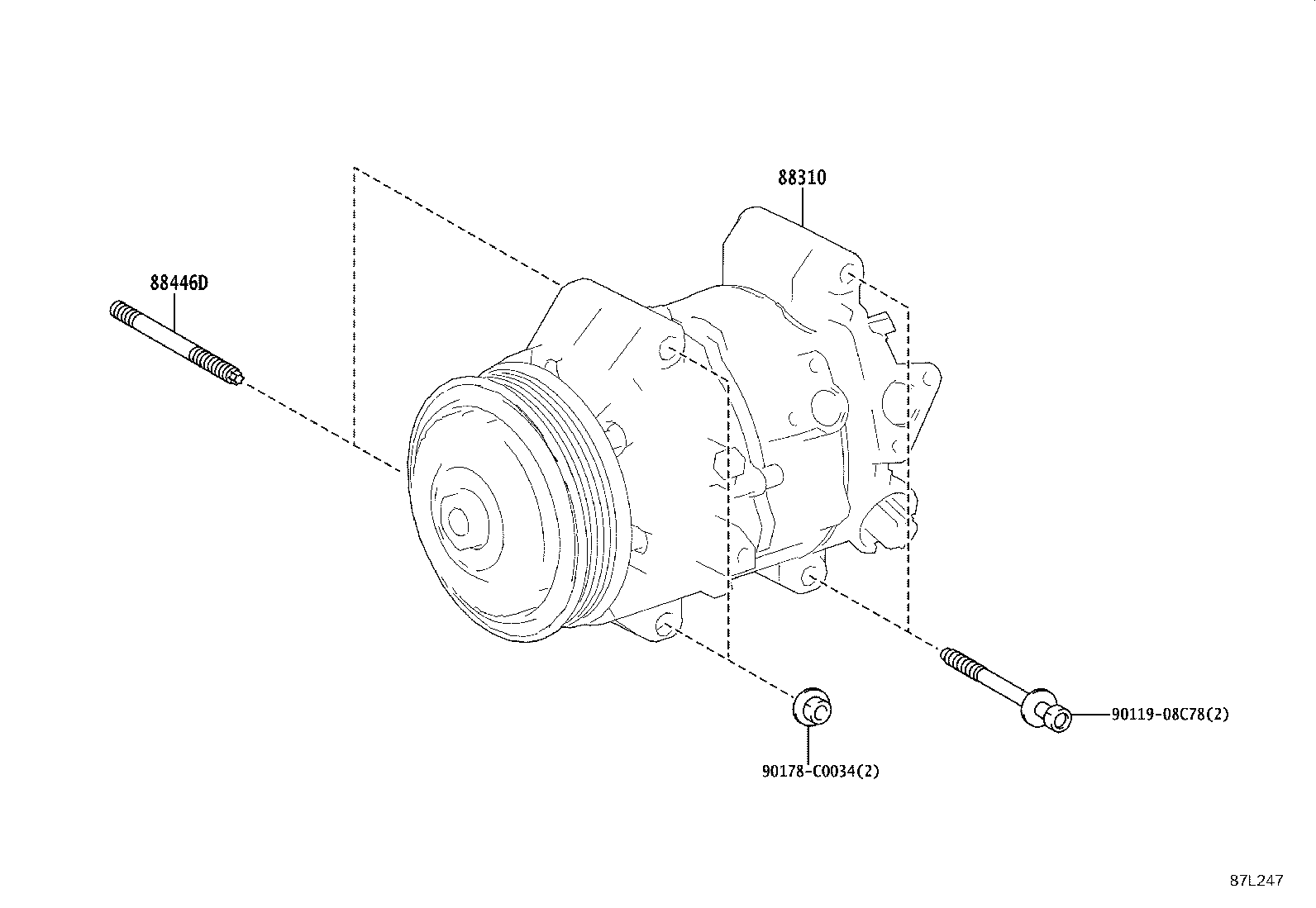

Figure 87L247

87L247 2022-09 → —

Part groups

PNC	Description
88310	Compressor Assy, W/Pulley
88370	Compressor Assy, W/Motor
88446D	Bolt, Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
