Toyota Harrier/Hev (CHINA)

2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

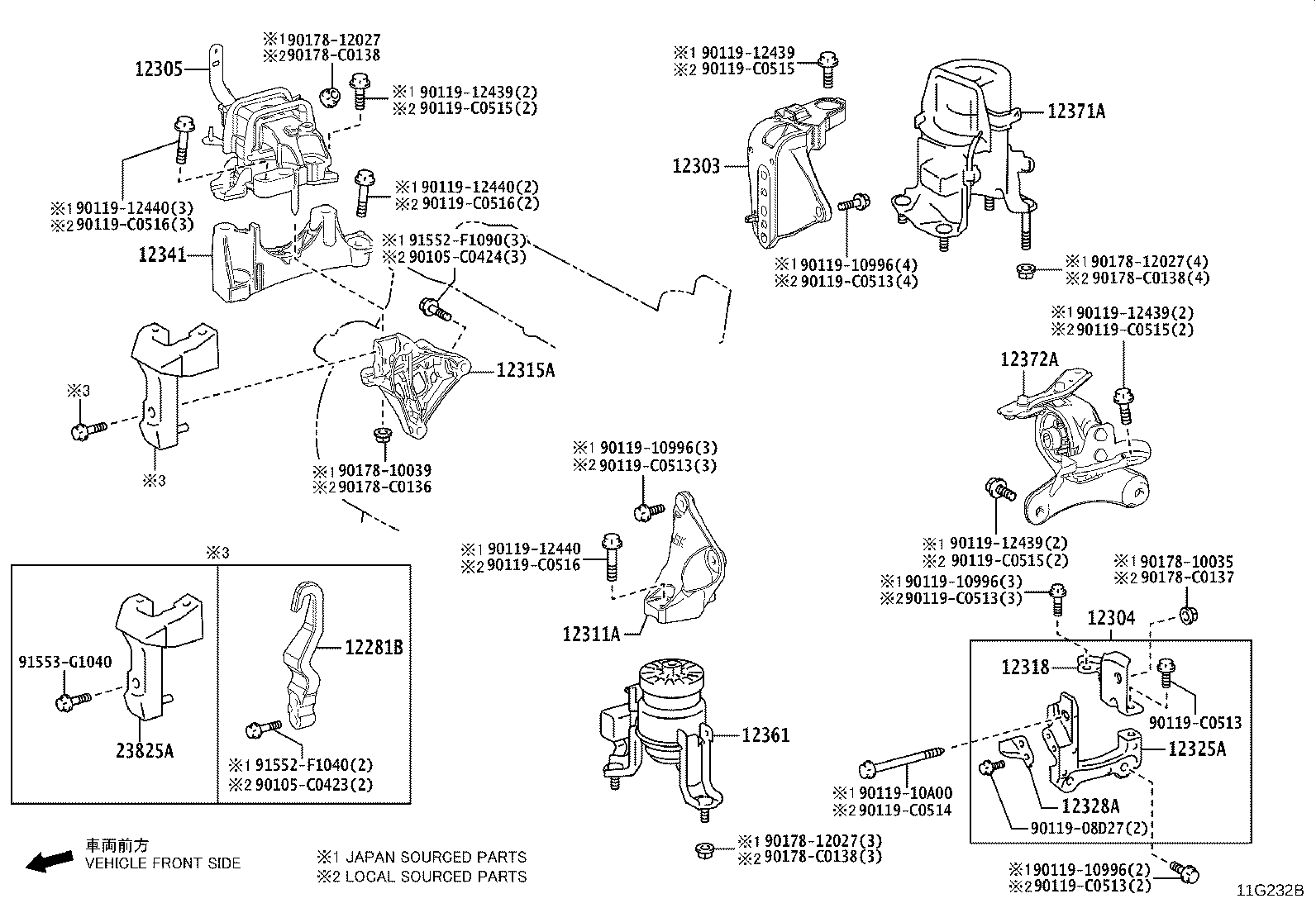

Exploded illustration 11G232B 12315A — BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (4 parts) 12305 — INSULATOR SUB-ASSY, ENGINE MOUNTING, RH (4 parts) 12311A — BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (4 parts) 12361 — INSULATOR, ENGINE MOUNTING, FRONT (2 parts) 12341 — SPACER, ENGINE MOUNTING (4 parts) 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (4 parts) 9011910996 — not listed in this catalogue 9011910996 — not listed in this catalogue 9011910A00 — not listed in this catalogue 9011912439 — not listed in this catalogue 9011912439 — not listed in this catalogue 9011912439 — not listed in this catalogue 9011912440 — not listed in this catalogue 9011912440 — not listed in this catalogue 9011912440 — not listed in this catalogue 9017810035 — not listed in this catalogue 9017812027 — not listed in this catalogue 9017812027 — not listed in this catalogue 9011910996 — not listed in this catalogue 12303 — BRACKET SUB-ASSY, ENGINE MOUNTING, REAR (4 parts) 12371A — INSULATOR, ENGINE MOUNTING, REAR (4 parts) 9011910996 — not listed in this catalogue 9011912439 — not listed in this catalogue 9017812027 — not listed in this catalogue 90178C0136 — not listed in this catalogue 9017810039 — not listed in this catalogue 90119C0513 — not listed in this catalogue 90119C0515 — not listed in this catalogue 90119C0515 — not listed in this catalogue 90119C0515 — not listed in this catalogue 90119C0516 — not listed in this catalogue 90119C0516 — not listed in this catalogue 90119C0516 — not listed in this catalogue 90178C0138 — not listed in this catalogue 90178C0138 — not listed in this catalogue 90119C0513 — not listed in this catalogue 90119C0515 — not listed in this catalogue 90178C0138 — not listed in this catalogue 12304 — BRACKET SUB-ASSY, ENGINE MOUNTING, LH (2 parts) 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (2 parts) 12318 — STAY, ENGINE MOUNTING, LH (4 parts) 12328A — STAY, ENGINE MOUNTING, NO.2 LH (2 parts) 90178C0137 — not listed in this catalogue 90119C0513 — not listed in this catalogue 9011908D27 — not listed in this catalogue 90119C0513 — not listed in this catalogue 90119C0514 — not listed in this catalogue 90119C0513 — not listed in this catalogue 23825A — GUARD, FUEL DELIVERY (9 parts) 91553G1040 — not listed in this catalogue 12281B — HANGER, ENGINE, NO.1 (4 parts) 91552F1040 — not listed in this catalogue 90105C0423 — not listed in this catalogue 91552F1090 — not listed in this catalogue 90105C0424 — not listed in this catalogue
11G232B · 14 callouts, 41 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
12281B — Hanger, Engine, NO.1
12281-F2010 Hanger, Engine, NO.1
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
12281-F2010 Hanger, Engine, NO.1
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12281-F2010 Hanger, Engine, NO.1
2021-11 → —
M20DFKS MXUA80 G,M,X —
12281-F2010 Hanger, Engine, NO.1
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
12303 — Bracket Sub-assy, Engine Mounting, Rear
12303-F0200 Bracket Sub-assy, Engine Mounting, Rear
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
12303-F0200 Bracket Sub-assy, Engine Mounting, Rear
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
12303-F2060 Bracket Sub-assy, Engine Mounting, Rear
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12303-F2060 Bracket Sub-assy, Engine Mounting, Rear
2021-11 → —
M20DFKS MXUA80 G,M,X —
12304 — Bracket Sub-assy, Engine Mounting, LH
12304-F2010 Bracket Sub-assy, Engine Mounting, LH
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12304-F2010 Bracket Sub-assy, Engine Mounting, LH
2021-11 → —
M20DFKS MXUA80 G,M,X —
12305 — Insulator Sub-assy, Engine Mounting, RH
12305-F0120 Insulator Sub-assy, Engine Mounting, RH
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
12305-F0120 Insulator Sub-assy, Engine Mounting, RH
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
12305-F2060 Insulator Sub-assy, Engine Mounting, RH
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12305-F2060 Insulator Sub-assy, Engine Mounting, RH
2021-11 → —
M20DFKS MXUA80 G,M,X —
12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12311-F0090 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
12311-F0090 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
12311-F2010 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12311-F2010 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2021-11 → —
M20DFKS MXUA80 G,M,X —
12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12315-F0030 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
12315-F0030 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
12315-F2050 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12315-F2050 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2021-11 → —
M20DFKS MXUA80 G,M,X —
12318 — Stay, Engine Mounting, LH
12318-F0090 Stay, Engine Mounting, LH
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
12318-F0090 Stay, Engine Mounting, LH
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
12318-F2060 Stay, Engine Mounting, LH
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12318-F2060 Stay, Engine Mounting, LH
2021-11 → —
M20DFKS MXUA80 G,M,X —
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-F2060 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12325-F2060 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2021-11 → —
M20DFKS MXUA80 G,M,X —
12328A — Stay, Engine Mounting, NO.2 LH
12328-F2020 Stay, Engine Mounting, NO.2 LH
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12328-F2020 Stay, Engine Mounting, NO.2 LH
2021-11 → —
M20DFKS MXUA80 G,M,X —
12341 — Spacer, Engine Mounting
12341-F0050 Spacer, Engine Mounting
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12341-F0050 Spacer, Engine Mounting
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
12341-F0050 Spacer, Engine Mounting
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
12341-F0050 Spacer, Engine Mounting
2021-11 → —
M20DFKS MXUA80 G,M,X —
12361 — Insulator, Engine Mounting, Front
12361-F2020 Insulator, Engine Mounting, Front
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12361-F2020 Insulator, Engine Mounting, Front
2021-11 → —
M20DFKS MXUA80 G,M,X —
12371A — Insulator, Engine Mounting, Rear
12371-F0220 Insulator, Engine Mounting, Rear
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
12371-F0220 Insulator, Engine Mounting, Rear
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
12371-F2020 Insulator, Engine Mounting, Rear
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12371-F2020 Insulator, Engine Mounting, Rear
2021-11 → —
M20DFKS MXUA80 G,M,X —
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12306-F0060 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
12306-F0060 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
12372-F2090 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2021-11 → 2024-08 ended
M20DFKS MXUA80 S —
12372-F2090 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2021-11 → —
M20DFKS MXUA80 G,M,X —
23825A — Guard, Fuel Delivery
23825-24010 Guard, Fuel Delivery
2021-11 → 2022-05 ended
M20DFKS MXUA80 —
23825-24010 note Guard, Fuel Delivery
2022-05 → 2024-08 ended
M20DFKS MXUA80 S —
23825-24010 note Guard, Fuel Delivery
2022-05 → —
M20DFKS MXUA80 G,M,X —
23825-25010 note Guard, Fuel Delivery
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
23825-25010 note Guard, Fuel Delivery
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
23825-F0010 note Guard, Fuel Delivery
2021-11 → 2024-08 ended
A25FFXS AXUH85 M —
23825-F0010 note Guard, Fuel Delivery
2021-11 → —
A25FFXS AXUH80;A25FFXS AXUH85 G,S —
23825-F2030 note Guard, Fuel Delivery
2022-05 → 2024-08 ended
M20DFKS MXUA80 S —
23825-F2030 note Guard, Fuel Delivery
2022-05 → —
M20DFKS MXUA80 G,M,X —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
