Toyota Harrier/Hev (CHINA)
2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General
Supported model
Data version 2023-03

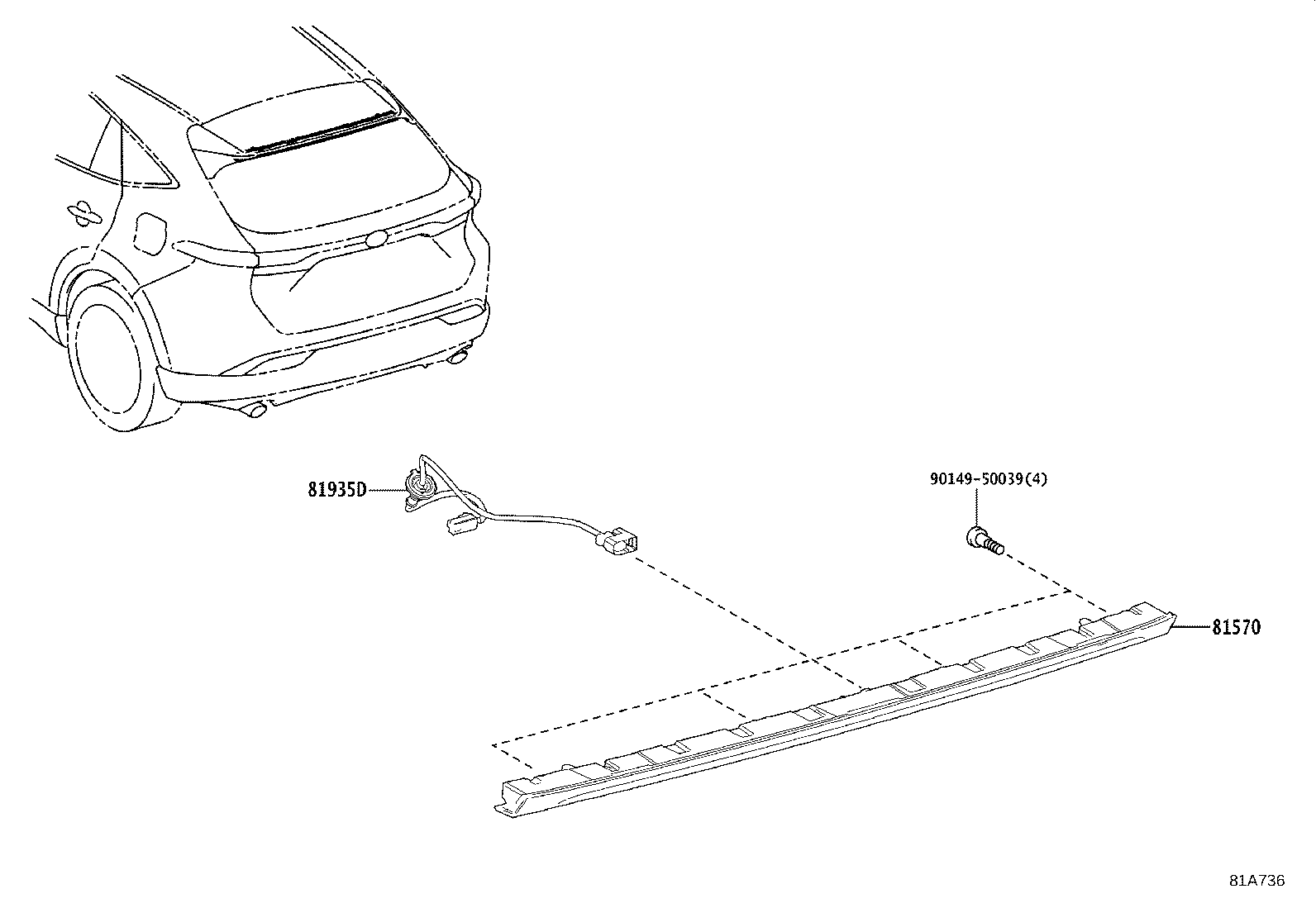

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-0E080 |
Lamp Assy, Center Stop
2021-11 → 2024-08
ended
|
AXUH85 M | — | |
| 81570-0E080 |
Lamp Assy, Center Stop
2021-11 → —
|
AXUH80,MXUA80 M,X | — | |
| 81570-0E090 |
Lamp Assy, Center Stop
2021-11 → 2024-08
ended
|
MXUA80 S | — | |
| 81570-0E090 |
Lamp Assy, Center Stop
2021-11 → —
|
MXUA80 G;AXUH85 G,S | — | |
| 81935D — Cord Assy, Center Stop Lamp | ||||
| 81935-0E030 |
Cord Assy, Center Stop Lamp
2021-11 → 2024-08
ended
|
AXUH85 M;MXUA80 S | — | |
| 81935-0E030 |
Cord Assy, Center Stop Lamp
2021-11 → —
|
AXUH85 G,S;AXUH80,MXUA80 G,M,X | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
