Toyota Harrier/Hev (CHINA)
2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General
Supported model
Data version 2023-03

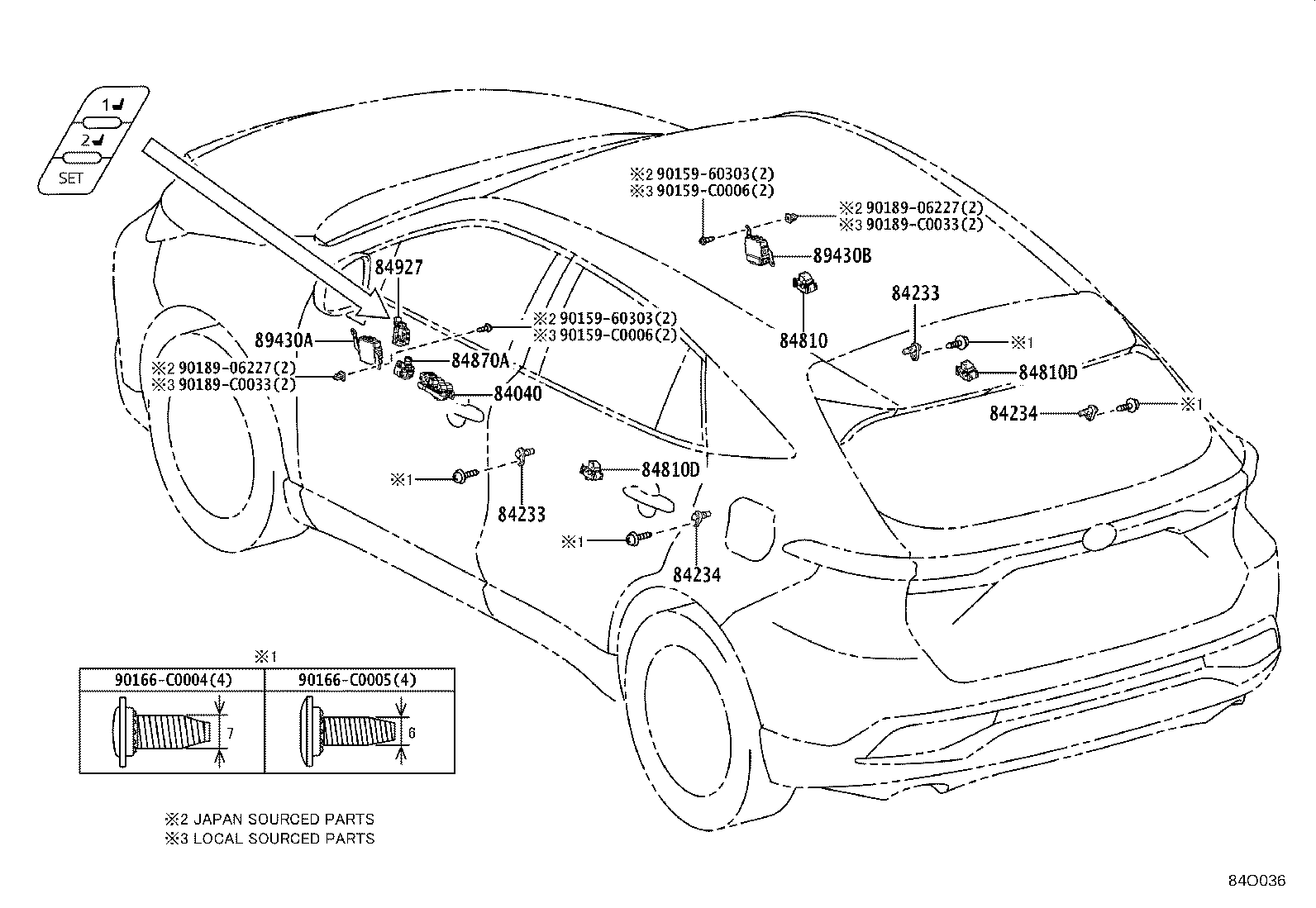

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84040 — Master Switch Assy,Multiplex Network | ||||
| 84040-0E210 |
Master Switch Assy,Multiplex Network
2021-11 → 2023-04
ended
|
AXUH8#,MXUA80 | — | |
| 84040-0R180 |
Master Switch Assy,Multiplex Network
2023-04 → 2024-08
ended
|
AXUH85 M;MXUA80 S | — | |
| 84040-0R180 |
Master Switch Assy,Multiplex Network
2023-04 → —
|
AXUH85 G,S;AXUH80,MXUA80 G,M,X | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-0R010 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2021-11 → 2024-08
ended
|
AXUH85 M;MXUA80 S | — | |
| 84231-0R010 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2021-11 → —
|
AXUH85 G,S;AXUH80,MXUA80 G,M,X | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-0R010 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2021-11 → 2024-08
ended
|
AXUH85 M;MXUA80 S | — | |
| 84231-0R010 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2021-11 → —
|
AXUH85 G,S;AXUH80,MXUA80 G,M,X | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-0R070 |
Switch Assy, Power Window Regulator
2023-04 → 2024-08
ended
|
AXUH85 M;MXUA80 S | — | |
| 84810-0R070 |
Switch Assy, Power Window Regulator
2023-04 → —
|
AXUH85 G,S;AXUH80,MXUA80 G,M,X | — | |
| 84810-F4050 |
Switch Assy, Power Window Regulator
2021-11 → 2023-04
ended
|
AXUH8#,MXUA80 | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-0R070 |
Switch Assy, Power Window Regulator, Rear
2023-04 → 2024-08
ended
|
AXUH85 M;MXUA80 S | — | |
| 84810-0R070 |
Switch Assy, Power Window Regulator, Rear
2023-04 → —
|
AXUH85 G,S;AXUH80,MXUA80 G,M,X | — | |
| 84810-F4050 |
Switch Assy, Power Window Regulator, Rear
2021-11 → 2023-04
ended
|
AXUH8#,MXUA80 | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84872-0E150 |
Switch Assy, Outer Mirror
2023-04 → 2023-07
ended
|
AXUH8#,MXUA80 M,X | — | |
| 84872-0E151 |
Switch Assy, Outer Mirror
2023-08 → 2024-08
ended
|
AXUH85 M | — | |
| 84872-0E151 |
Switch Assy, Outer Mirror
2023-08 → —
|
MXUA80 X | — | |
| 84872-0E151 |
Switch Assy, Outer Mirror
2023-08 → 2024-09
ended
|
AXUH80,MXUA80 M | — | |
| 84872-0E240 |
Switch Assy, Outer Mirror
2021-11 → 2023-04
ended
|
AXUH85,MXUA80 G,S | — | |
| 84872-0E250 |
Switch Assy, Outer Mirror
2021-11 → 2023-04
ended
|
AXUH80,MXUA80 M,X | — | |
| 84872-0R180 |
Switch Assy, Outer Mirror
2023-04 → 2023-07
ended
|
AXUH85,MXUA80 G,S | — | |
| 84872-0R181 |
Switch Assy, Outer Mirror
2023-08 → 2024-08
ended
|
MXUA80 S | — | |
| 84872-0R181 |
Switch Assy, Outer Mirror
2023-08 → —
|
MXUA80 G;AXUH85 G,S | — | |
| 84872-0R181 |
Switch Assy, Outer Mirror
2024-09 → —
|
AXUH80,MXUA80 M | — | |
| 84927 — Switch, Seat Memory | ||||
| 84927-0E160-C0 note |
Switch, Seat Memory
2021-11 → 2024-08
ended
|
MXUA80 S | — | |
| 84927-0E160-C0 note |
Switch, Seat Memory
2021-11 → —
|
MXUA80 G;AXUH85 G,S | — | |
| 84927-0E160-C0 note |
Switch, Seat Memory
2024-09 → —
|
AXUH80,MXUA80 M | — | |
| 89430A — Computer Assy, Outer Mirror Control, LH | ||||
| 89430-0E230 |
Computer Assy, Outer Mirror Control, LH
2021-11 → 2024-08
ended
|
MXUA80 S | — | |
| 89430-0E230 |
Computer Assy, Outer Mirror Control, LH
2021-11 → —
|
MXUA80 G;AXUH85 G,S | — | |
| 89430-0E230 |
Computer Assy, Outer Mirror Control, LH
2024-09 → —
|
AXUH80,MXUA80 M | — | |
| 89430B — Computer Assy, Outer Mirror Control, RH | ||||
| 89430-0E240 |
Computer Assy, Outer Mirror Control, RH
2021-11 → 2024-08
ended
|
MXUA80 S | — | |
| 89430-0E240 |
Computer Assy, Outer Mirror Control, RH
2021-11 → —
|
MXUA80 G;AXUH85 G,S | — | |
| 89430-0E240 |
Computer Assy, Outer Mirror Control, RH
2024-09 → —
|
AXUH80,MXUA80 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
