Toyota Harrier/Hev (CHINA)

2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General

Supported model Data version 2023-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

6 part groups · 2 illustrations

Illustrations

Figure 196121B

196121B 2021-11 → —

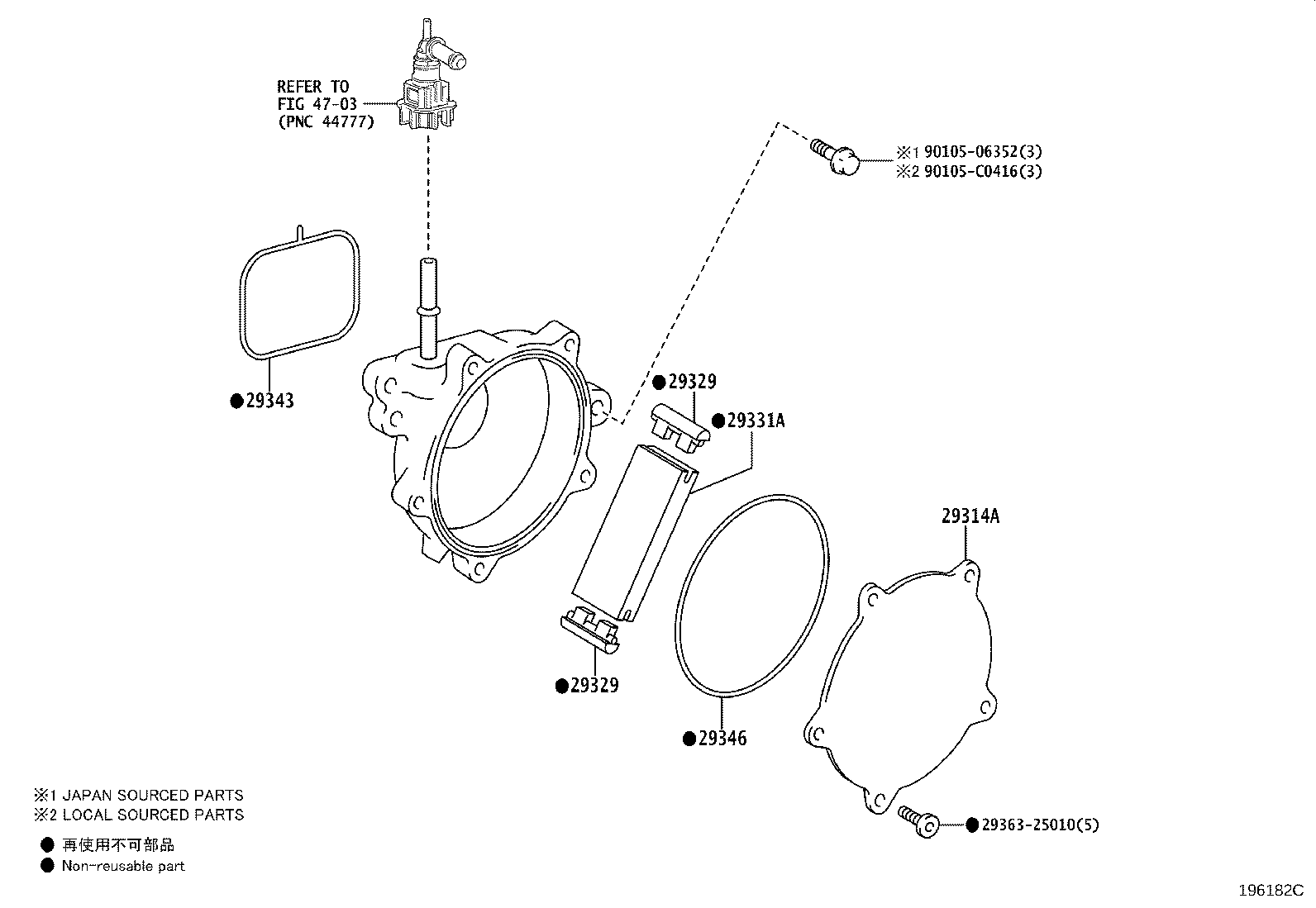

Figure 196182C

196182C 2022-02 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29314A	Cover, End
29329	Cap, Vacuum Pump Vane
29331A	Vane, Vacuum Pump
29343	Ring, O Vacuum Pump, NO.1
29346	Ring, O Vacuum Pump Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
