Toyota Harrier/Hev (CHINA)
2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General
Supported model
Data version 2023-03

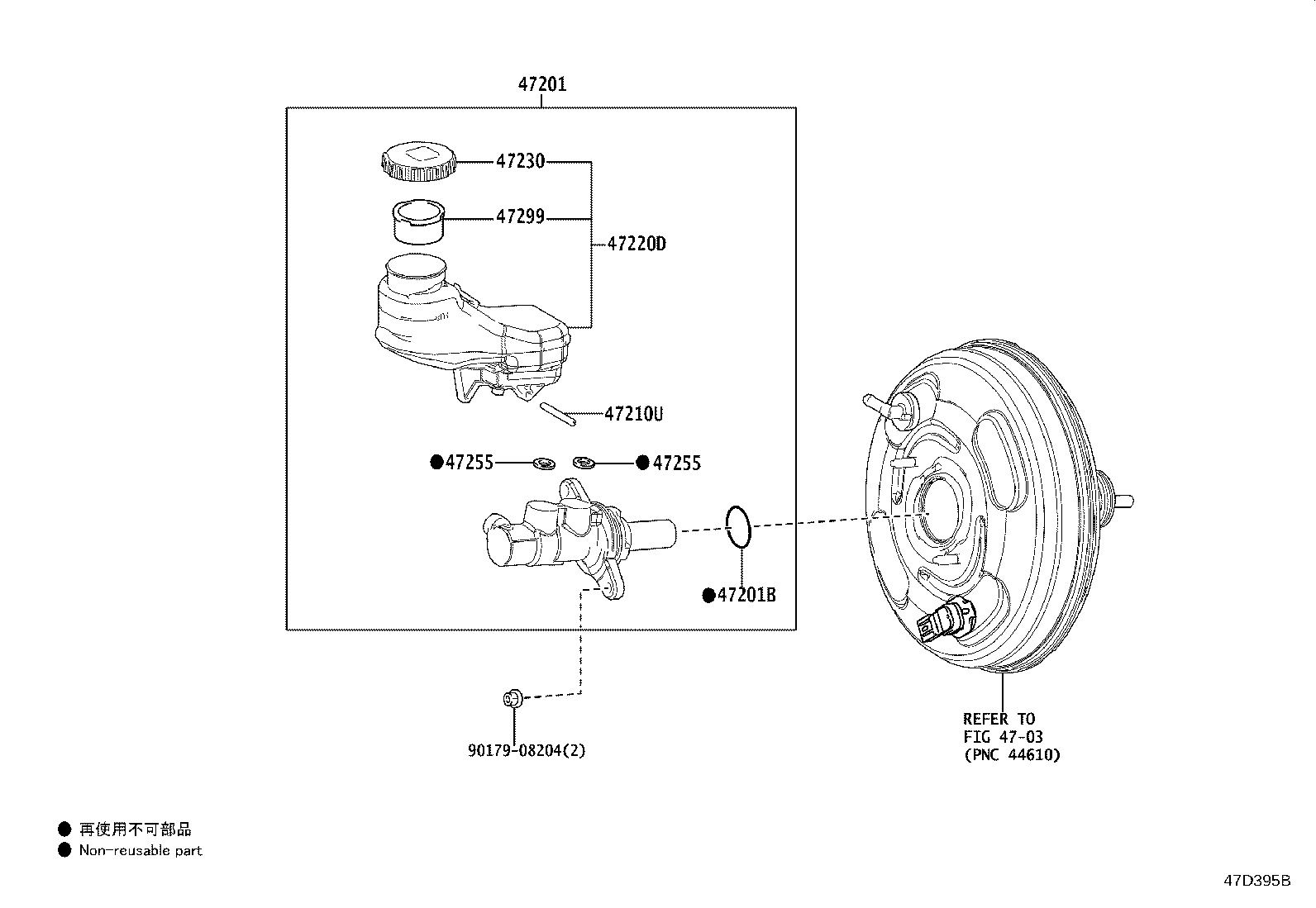

Brake Master Cylinder
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44551C | Tube, Brake Actuator, NO.1 |
| 44785D | Gasket, Brake Master Cylinder |
| 47070B | Pump Assy, Brake Booster W/Accumulator |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47234L | Hose, Reservoir, NO.1 |
| 47235G | Hose, Reservoir, NO.2 |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 47758E | Bracket, Wire Clamp, NO.1 |
| 47759E | Bracket, Wire Clamp, NO.2 |
| 47941A | Bracket, Brake Power Supply, NO.1 |
| 47942 | Bracket, Brake Power Supply, NO.2 |
| 47997A | Label, Accumulator Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
