Toyota Harrier/Hev (CHINA)
2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General
Supported model
Data version 2023-03

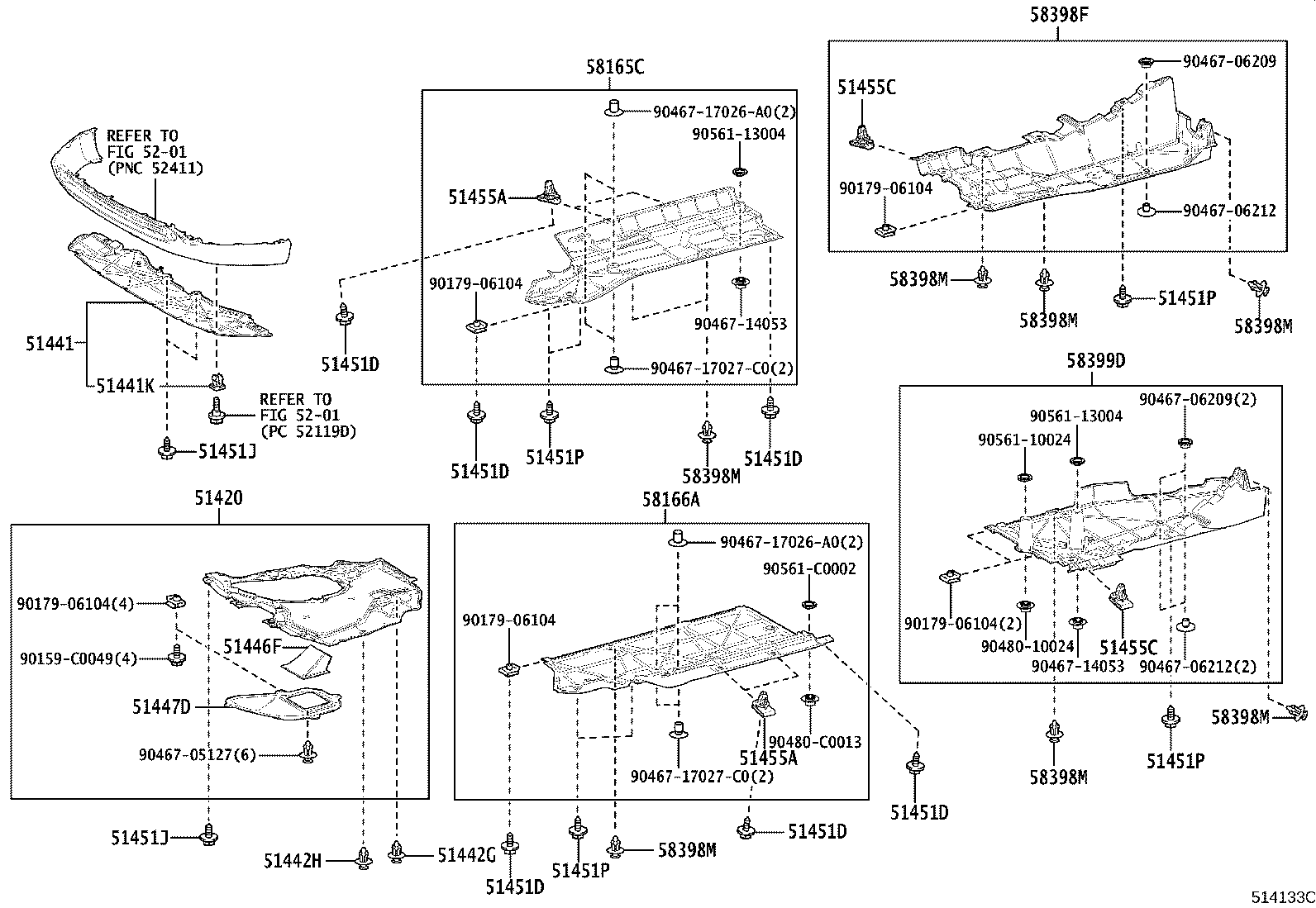

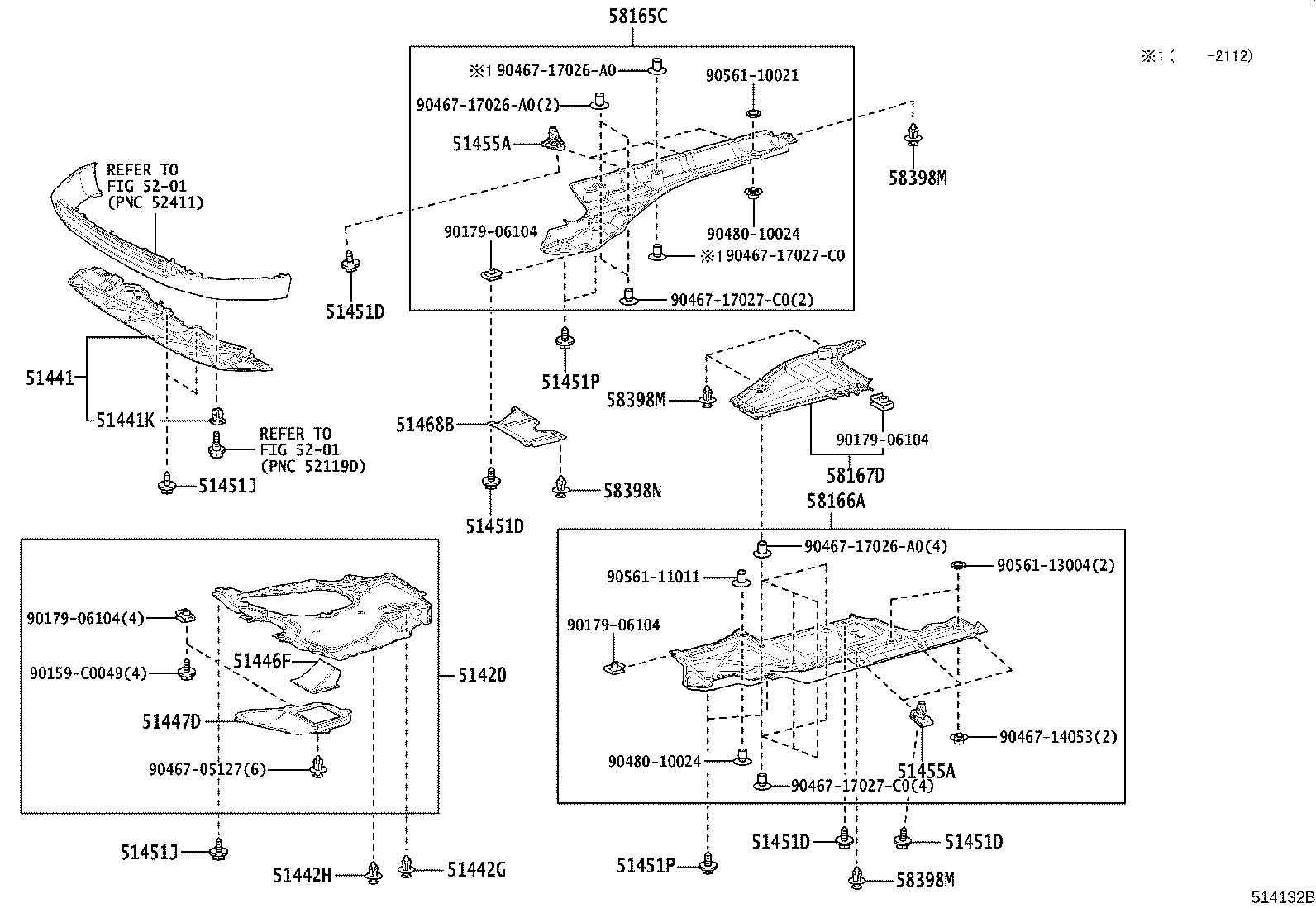

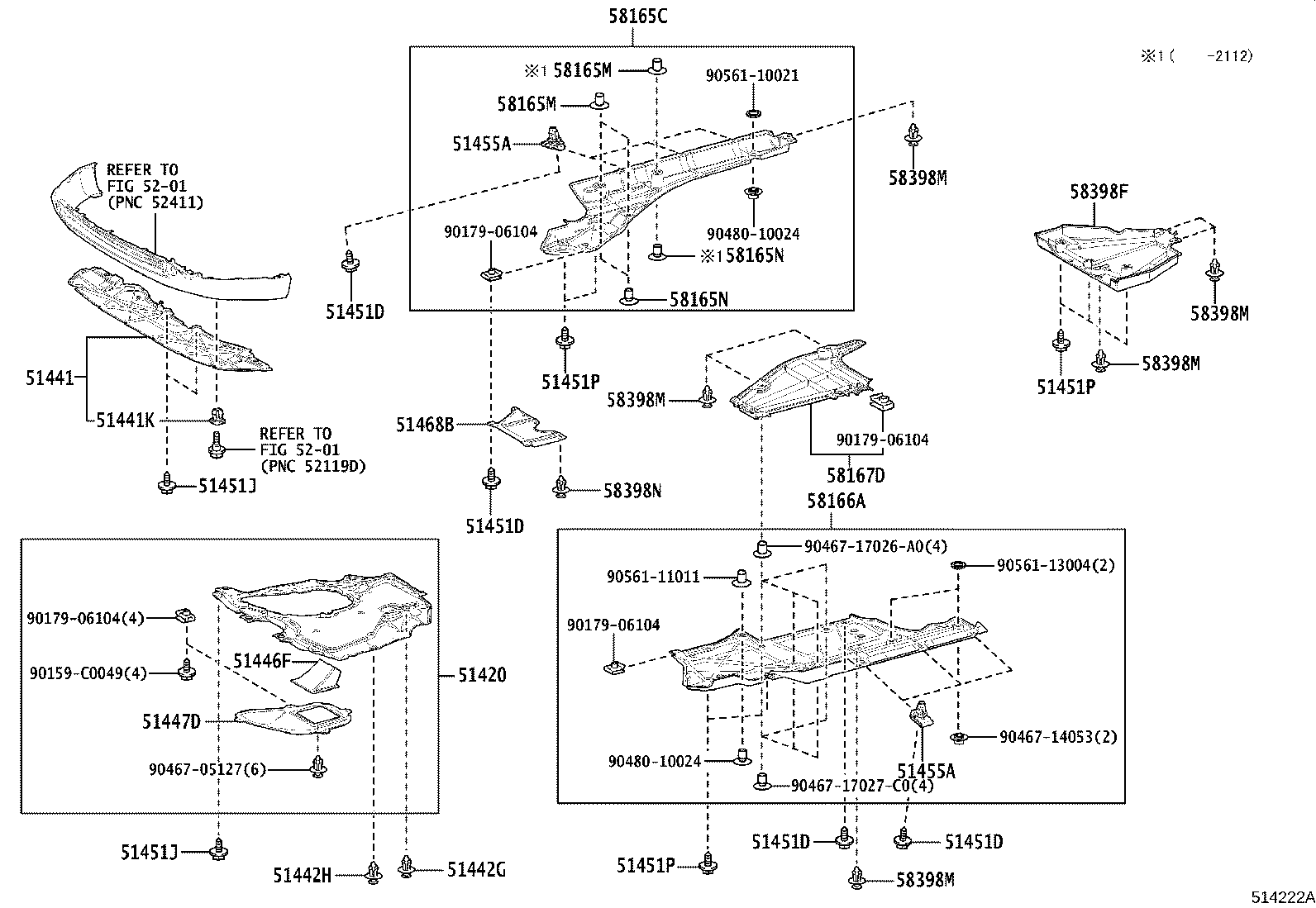

Suspension Crossmember & Under Cover
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51100G | Frame Assy, Front |
| 51206A | Member Sub-assy, Rear Suspension |
| 51420 | Cover Assy, Engine Under, NO.2 |
| 51441 | Cover, Engine Under, NO.1 |
| 51441K | Grommet(FOR ENGINE UNDER COVER) |
| 51442G | Clip, Engine Under Cover, NO.1 |
| 51442H | Clip, Engine Under Cover, NO.2 |
| 51446F | Duct, Engine Under Cover |
| 51447D | Cover, Engine Under, NO.4 Center |
| 51451D | Screw, NO.1 |
| 51451J | Bolt, NO.1 |
| 51451P | Bolt, NO.2 |
| 51455A | Seal, Engine Under Cover, NO.1 |
| 51455C | Seal, Engine Under Cover, NO.2 |
| 51468B | Insulator, Engine Under Cover Heat |
| 52257 | Brace, Front Suspension Member, Rear RH |
| 52258A | Brace, Front Suspension Member, Rear LH |
| 52271E | Cushion, Rear Suspension Member Body Mounting, Front RH |
| 52272A | Cushion, Rear Suspension Member Body Mounting, Front LH |
| 52273A | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52275B | Cushion, Rear Suspension Member Body Mount, Rear RH |
| 52276A | Cushion, Rear Suspension Member Body Mount, Rear LH |
| 52281 | Cushion, Differential Support Member |
| 52282 | Stopper, Differential Support Member, Upper |
| 52297 | Brace, Rear Suspension Member, Rear Lower RH |
| 58165C | Cover, Front Floor, RH |
| 58165M | Clip, Front Floor Cover, NO.1 |
| 58165N | Clip, Front Floor Cover, NO.2 |
| 58166A | Cover, Front Floor, LH |
| 58167D | Cover, Front Floor, Center RH |
| 58398F | Cover, Floor Under, NO.1 |
| 58398M | Clip, Floor Under Cover, NO.1 |
| 58398N | Clip, Floor Under Cover, NO.2 |
| 58399D | Cover, Floor Under, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
