Toyota Harrier/Hev (CHINA)

2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 3 illustrations

Illustrations

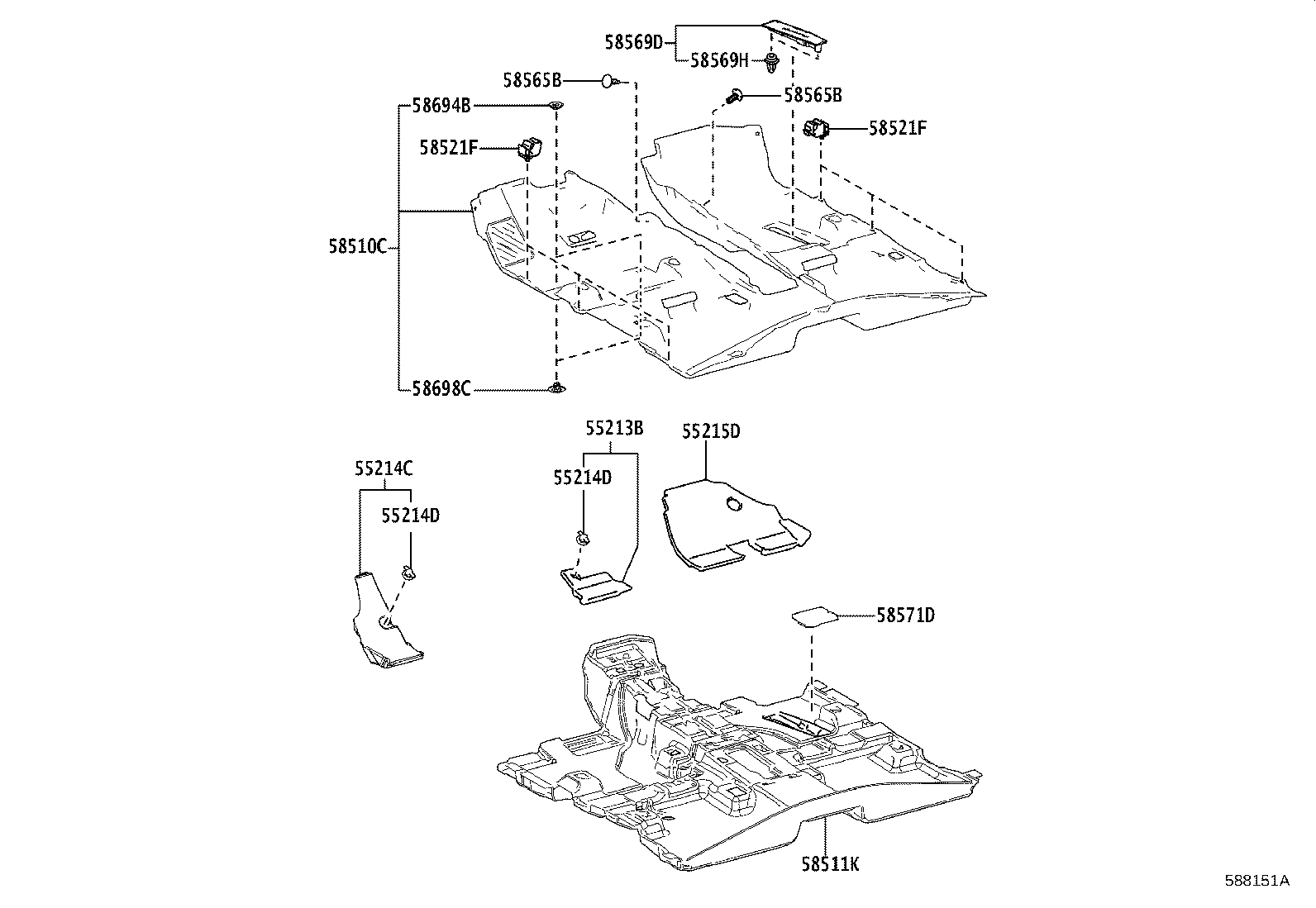

Figure 588150A 588150A 2021-11 → — Figure 588151A 588151A 2021-11 → — Figure 588152 588152 2021-11 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55214D Clip(FOR DASH PANEL INSULATOR PAD)
55215D Pad, Dash Panel Insulator, NO.3
58510C Carpet Assy, Front Floor, Front
58510H Mat Assy, Floor
58511K Mat, Floor, NO.1
58512J Mat, Floor, NO.2
58521F Hook, Floor Carpet
58565B Clip
58569D Cover, Front Floor Caution Plate
58569H Clip, Front Floor Caution Plate Cover, NO.1
58571D Mat, Rear Floor, Front RH
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
