Toyota Harrier/Hev (CHINA)

2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General

Supported model Data version 2023-03

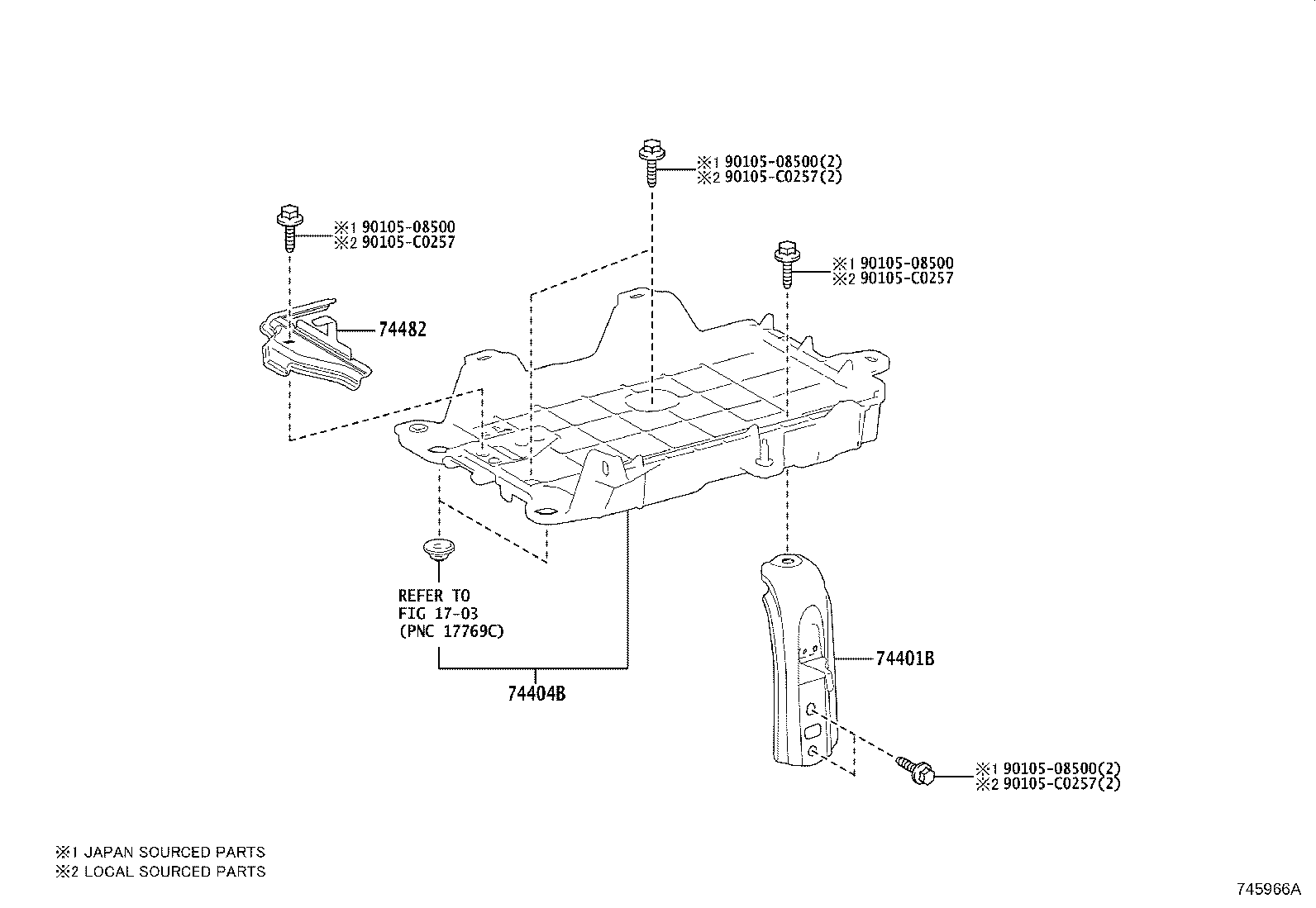

Battery Carrier

4 part groups · 2 illustrations

PNC	Description
74401B	Bracket Sub-assy, Battery Carrier
74404B	Clamp Sub-assy, Battery
74405A	Carrier Sub-assy, Battery, Upper RH
74482	Clamp, Battery, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
