Toyota Harrier/Hev (CHINA)
2021-11 → present · chassis AXUH8#,MXUA80 · catalogue 52B310 · General
Supported model
Data version 2023-03
Fuel Tank & Tube
64 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23070A | Ring, O, NO.1(FOR FUEL MAIN VALVE) |
| 23210A | Pump Assy, Fuel W/Motor & Bracket |
| 23217D | Filter, Fuel Pump |
| 77010 | Tube Assy, Fuel Tank Vent |
| 77016H | Tube Sub-assy, Fuel Return Vent |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |

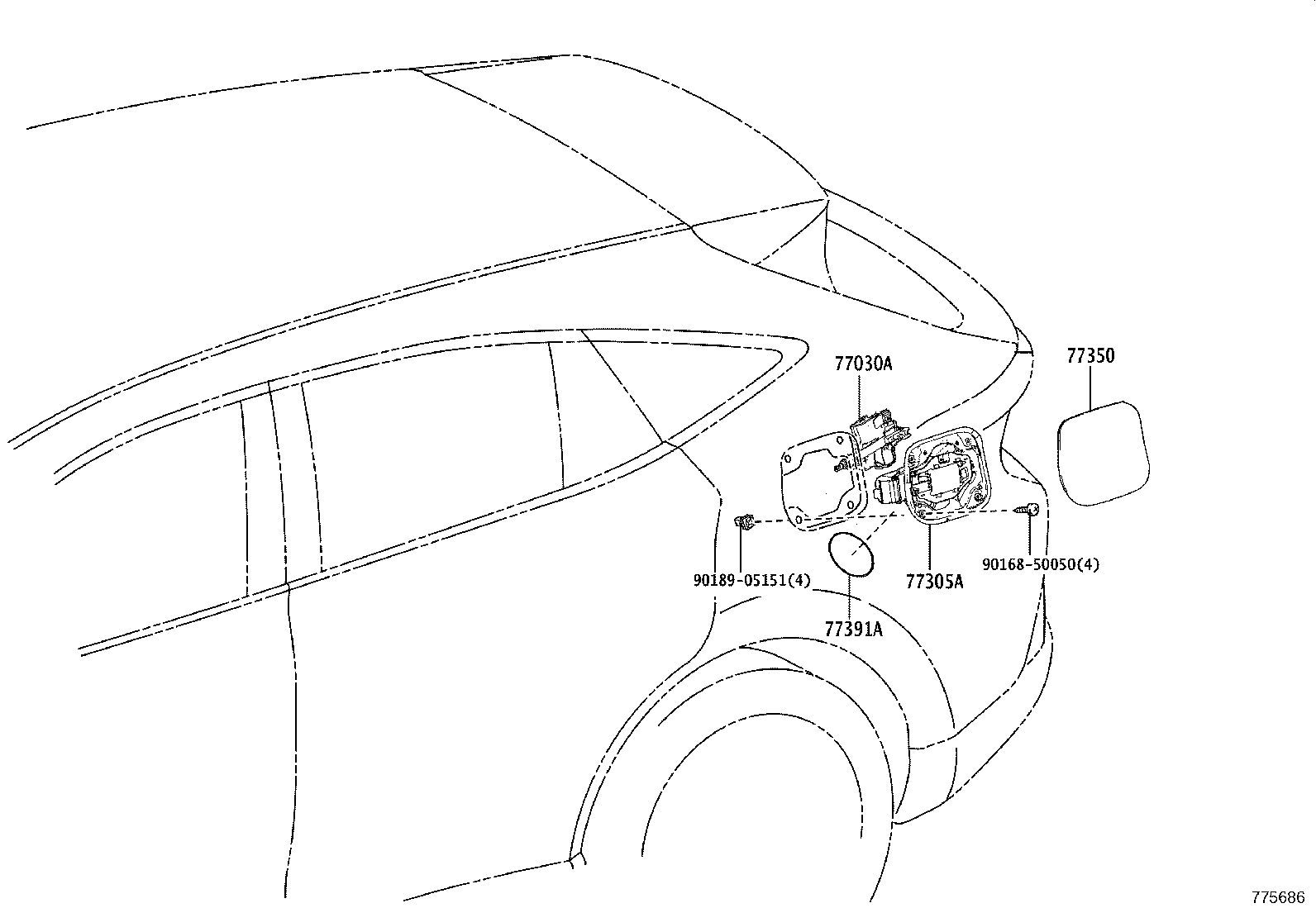

| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77070A | Valve Assy, Close Tank |

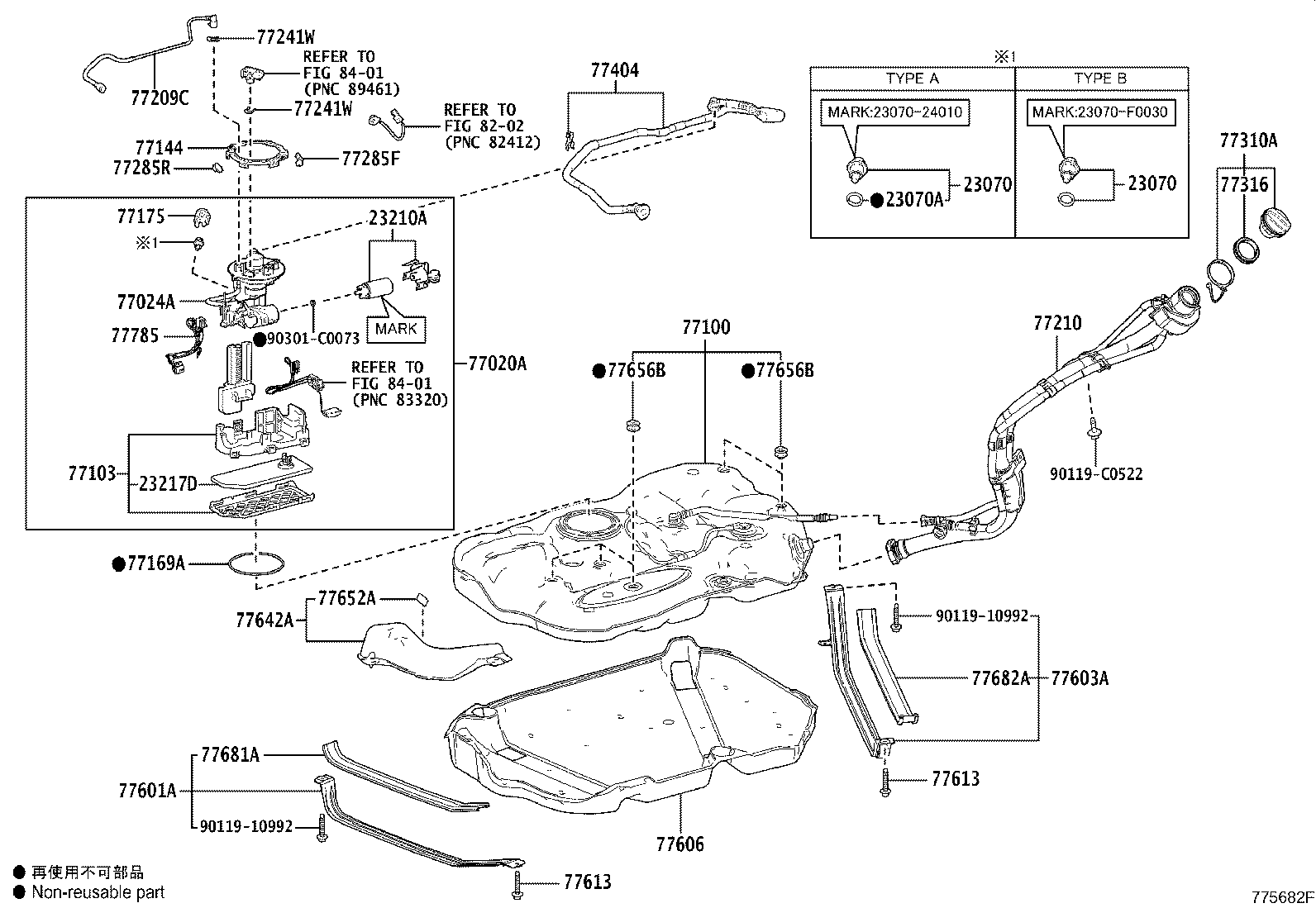

| 77100 | Tank Assy, Fuel |
| 77103 | Sub-tank Sub-assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77210 | Pipe Assy, Fuel Tank Filler |
| 77221 | Tube, Fuel Tank Breather, NO.1 |
| 77221B | Clamp, Breathr Tube |
| 77222 | Tube, Fuel Tank Breather, NO.2 |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285R | Clamp, Fuel Tube, NO.1 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286S | Cushion, Fuel Tank Protector |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77305A | Lid Sub-assy, Fuel Filler Opening |

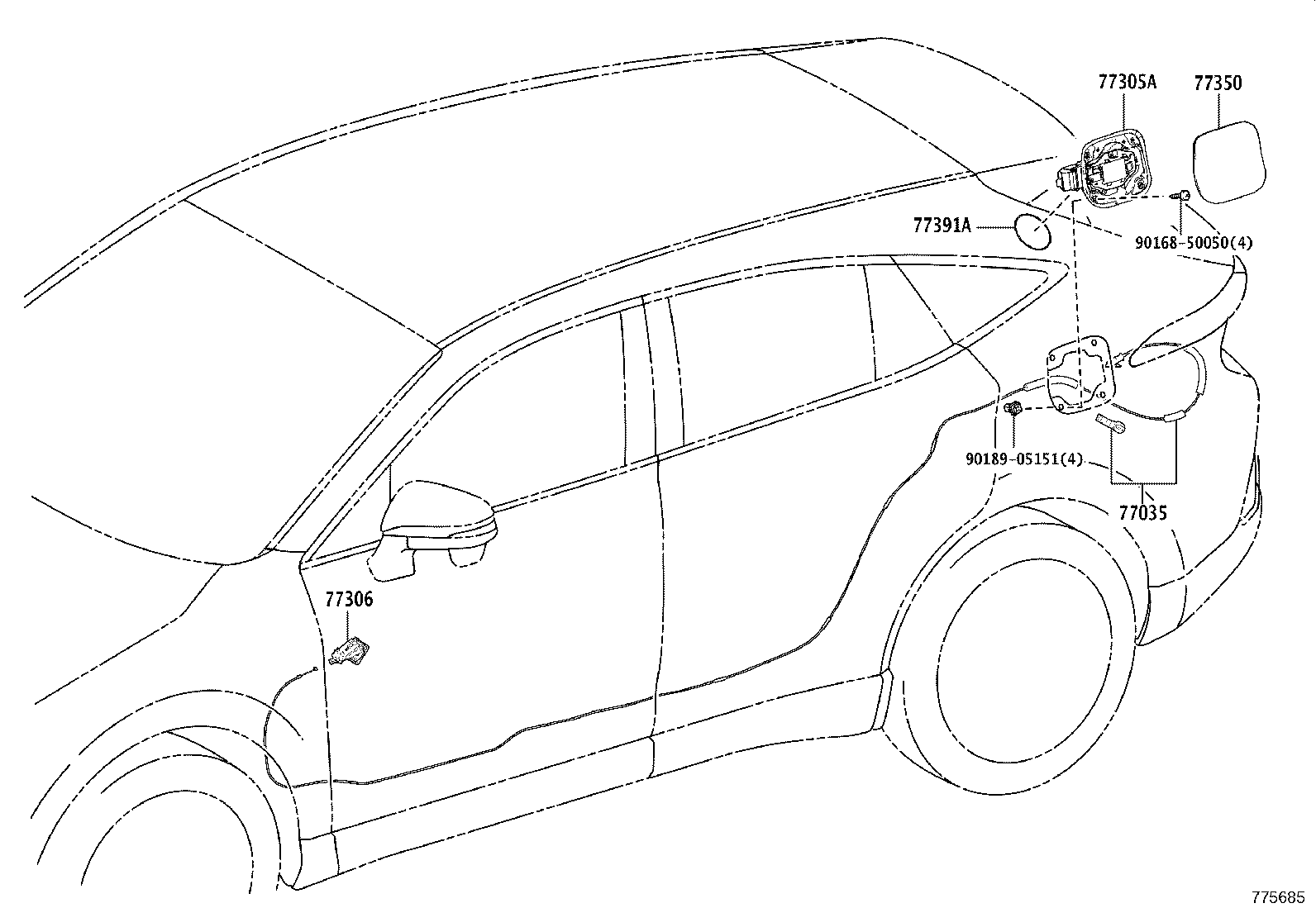

| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77391A | Ring, Fuel Inlet Box |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77404A | Hose Sub-assy, Fuel Tank Vent |
| 77512C | Bracket, Fuel Tank |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77601E | Band Sub-assy, Fuel Tank |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77613 | Bolt, Fuel Tank Band Set |
| 77641C | Protector Assy, Fuel Tank |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77654A | Cushion, Fuel Tank, NO.4 |
| 77655A | Cushion, Fuel Tank, NO.5 |
| 77656B | Cushion, Fuel Tank, NO.6 |
| 77681A | Seat, Fuel Tank Band |
| 77682A | Seat, Fuel Tank Band, NO.2 |

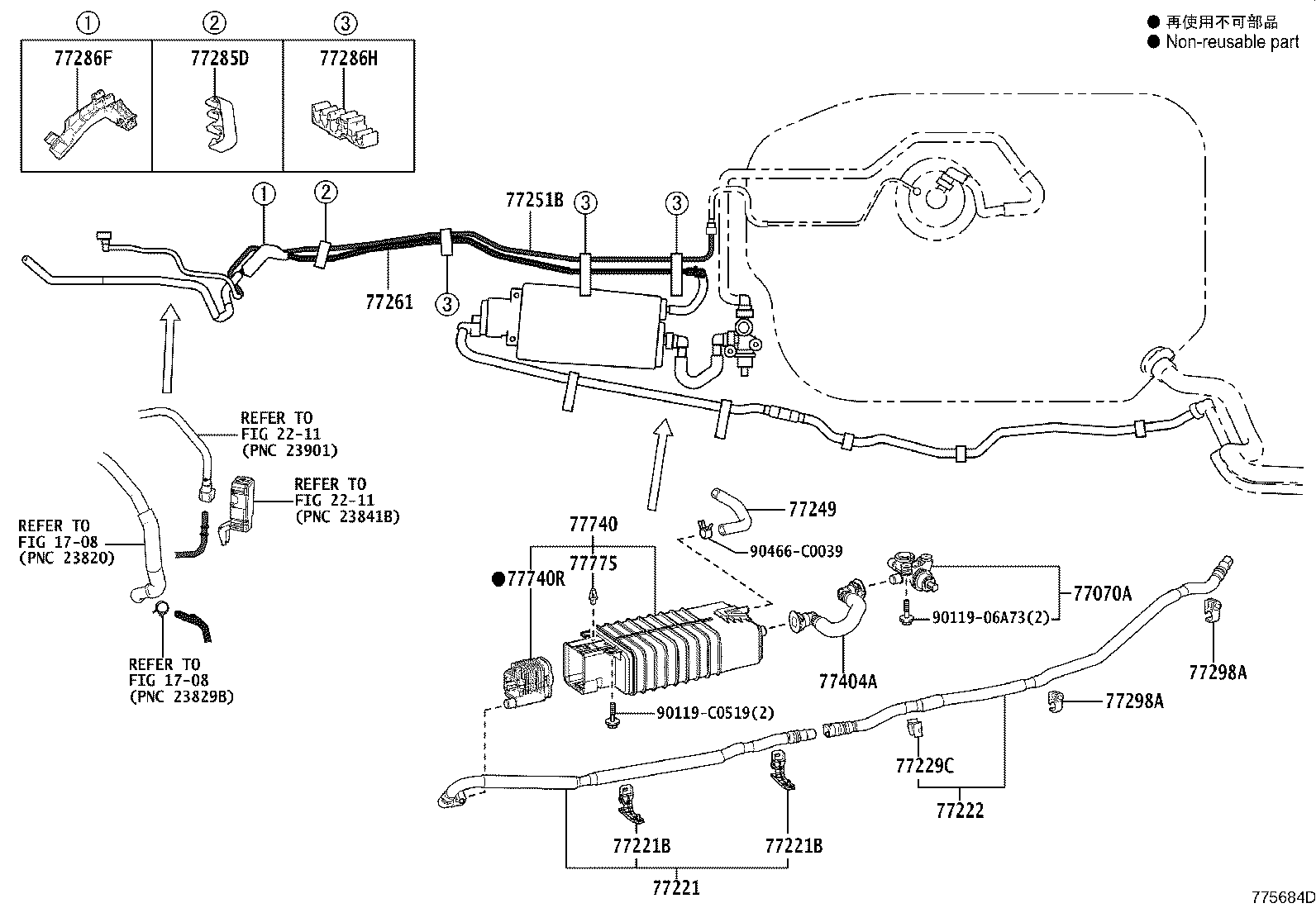

| 77740 | Canister Assy, Charcoal |
| 77740R | Pump Sub-assy, Leak Detection |

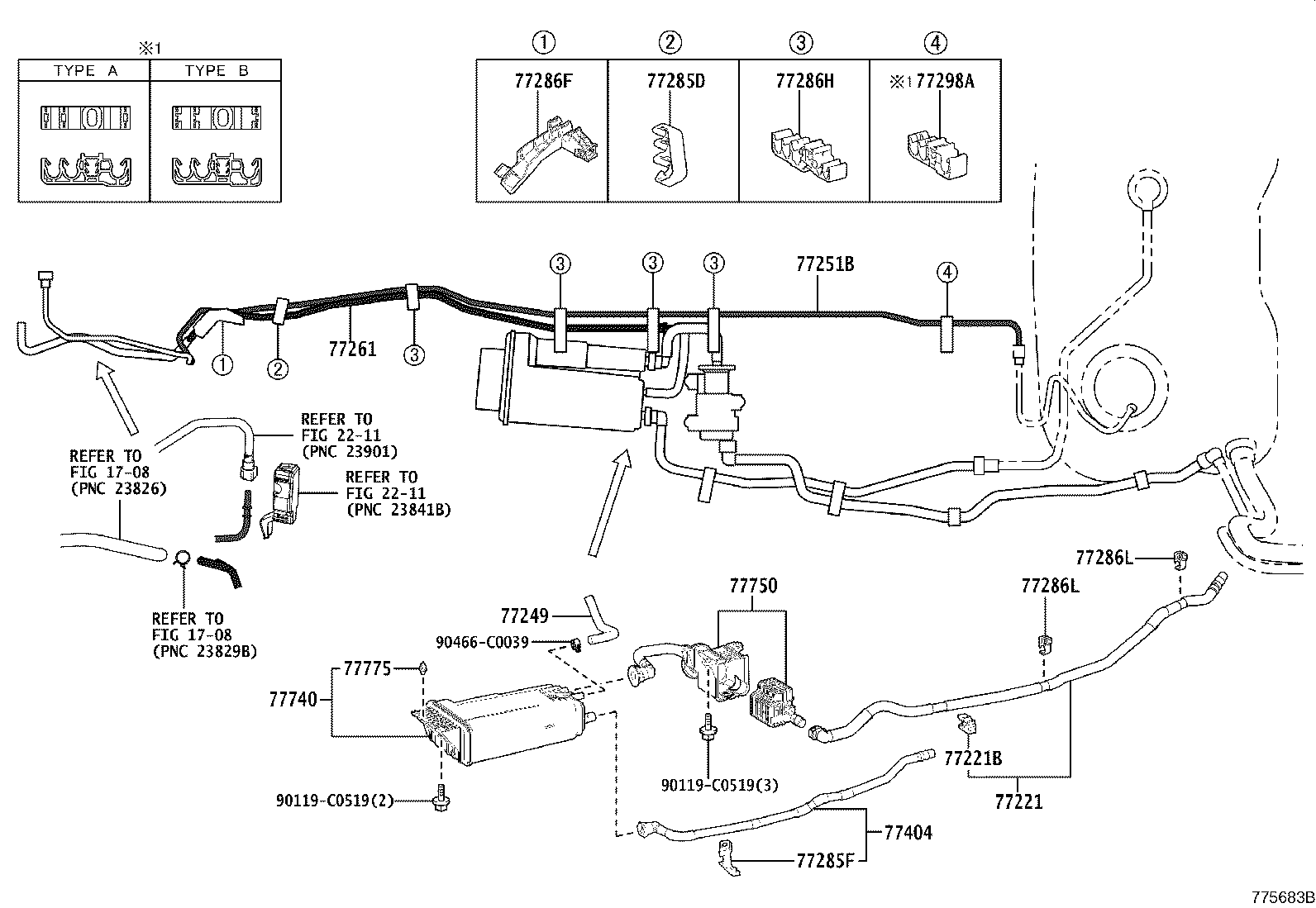

| 77750 | Canister Assy, Charcoal |
| 77775 | Guide, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
